IslandPath Analysis: Pseudomonas syringae pv. syringae B728a

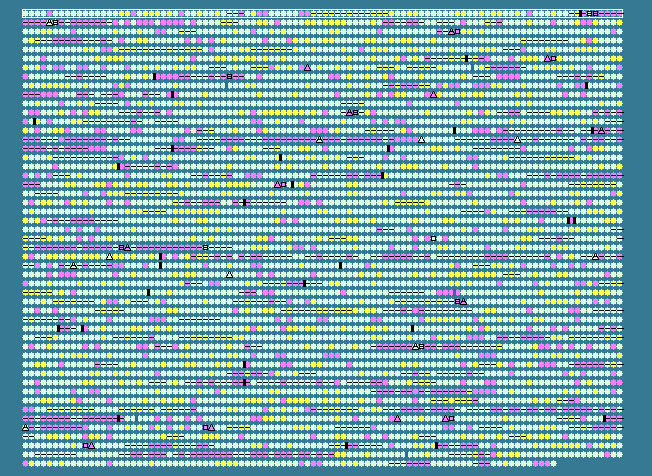

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 59.35   STD DEV: 4.19
Pseudomonas syringae pv. syringae B728a, complete genome - 1..6093698
5089 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 58.14	0	1..1536	+	511	66043272	dnaA	Psyr_0001	-	chromosomal replication initiation protein
2	 57.70	0	1575..2678	+	367	66043273	-	Psyr_0002	-	DNA polymerase III subunit beta
3	 57.07	0	2701..3804	+	367	66043274	recF	Psyr_0003	-	recombination protein F
4	 56.53	0	3809..6226	+	805	66043275	gyrB	Psyr_0004	-	DNA gyrase subunit B
5	 54.28	-1	6282..7169	-	295	66043276	-	Psyr_0005	-	hypothetical protein
6	 59.61	0	7197..8231	-	344	66043277	-	Psyr_0006	-	putative phenylacetaldoxime dehydratase.
7	 58.75	0	8233..9243	-	336	66043278	-	Psyr_0007	-	aliphatic nitrilase
8	 56.00	0	9410..10384	+	324	66043279	-	Psyr_0008	-	helix-turn-helix, AraC type
9	 57.98	0	10525..11295	-	256	66043280	-	Psyr_0009	-	phospholipid/glycerol acyltransferase
10	 60.41	0	11361..11903	-	180	66043281	-	Psyr_0010	-	D,D-heptose 1,7-bisphosphate phosphatase
11	 62.38	0	11916..13970	-	684	66043282	glyS	Psyr_0011	-	glycyl-tRNA synthetase subunit beta
12	 61.11	0	13967..14974	-	335	66043283	glyQ	Psyr_0012	-	glycyl-tRNA synthetase subunit alpha
13	 60.14	0	14995..15546	+	183	66043284	-	Psyr_0013	-	DNA-3-methyladenine glycosylase I
14	 61.26	0	15585..16472	+	295	66043285	-	Psyr_0014	-	lipid A biosynthesis lauroyl acyltransferase
15	 61.55	0	16812..19175	-	787	66043286	-	Psyr_0015	-	oxidoreductase alpha (molybdopterin) subunit
16	 62.01	0	19329..20702	-	457	66043287	trkA	Psyr_0016	-	potassium transporter peripheral membrane component
17	 65.33	+1	20699..22045	-	448	66043288	-	Psyr_0017	-	Fmu, rRNA SAM-dependent methyltransferase
18	 65.82	+1	22042..22986	-	314	66043289	fmt	Psyr_0018	-	methionyl-tRNA formyltransferase
19	 55.62	0	23040..23546	-	168	66043290	def	Psyr_0019	-	peptide deformylase
20	 61.31	0	23672..24697	+	341	66043291	-	Psyr_0020	-	peptidoglycan-binding LysM
21	 64.16	+1	24821..25939	+	372	66043292	-	Psyr_0021	-	SMF protein
22	 63.98	+1	25978..26535	+	185	66043293	-	Psyr_0022	-	SUA5/yciO/yrdC, N-terminal
23	 63.91	+1	26572..27549	-	325	66043294	-	Psyr_0023	-	zinc-containing alcohol dehydrogenase superfamily protein
24	 61.31	0	27721..28635	+	304	66043295	-	Psyr_0024	-	coproporphyrinogen III oxidase
25	 64.73	+1	28635..29459	+	274	66043296	aroE	Psyr_0025	-	shikimate 5-dehydrogenase
26	 62.40	0	29644..31212	-	522	66043297	-	Psyr_0026	-	Sulfate transporter/antisigma-factor antagonist STAS:sulphate transporter
27	 52.83	-1	31284..31601	-	105	66043298	-	Psyr_0027	-	hypothetical protein
28	 57.71	0	31768..32694	-	308	66043299	-	Psyr_0028	-	substrate-binding region of ABC-type glycine betaine transport system
29	 60.03	0	32731..34236	-	501	66043300	-	Psyr_0029	-	sulfatase
30	 62.99	0	34350..35300	+	316	66043301	-	Psyr_0030	-	regulatory protein, LysR:LysR, substrate-binding
31	 58.79	0	35445..36269	+	274	66043302	-	Psyr_0031	-	Alpha/beta hydrolase fold
32	 62.52	0	36536..37066	-	176	66043303	-	Psyr_0032	-	hypothetical protein
33	 64.57	+1	37192..38001	-	269	66043304	trpA	Psyr_0033	-	tryptophan synthase subunit alpha
34	 61.95	0	37998..39227	-	409	66043305	-	Psyr_0034	-	tryptophan synthase subunit beta
35	 61.34	0	39307..40263	+	318	66043306	-	Psyr_0035	-	regulatory protein, LysR:LysR, substrate-binding
36	 57.80	0	40264..40590	-	108	66043307	-	Psyr_0036	-	hypothetical protein
37	 52.78	-1	40756..40971	+	71	66043308	-	Psyr_0037	-	hypothetical protein
38	 56.89	0	41122..41346	+	74	66043309	-	Psyr_0038	-	hypothetical protein
39	 62.97	0	41484..42485	-	333	66043310	-	Psyr_0039	-	luciferase
40	 55.32	0	42698..43129	+	143	66043311	-	Psyr_0040	-	OsmC-like protein
41	 53.42	-1	43248..43481	+	77	66043312	-	Psyr_0041	-	hypothetical protein
42	 59.92	0	43482..43970	-	162	66043313	-	Psyr_0042	-	putative lipoprotein
43	 60.89	0	44004..45059	+	351	66043314	-	Psyr_0043	-	hypothetical protein
44	 62.27	0	45231..45776	-	181	66043315	-	Psyr_0044	-	hexapaptide repeat-containing transferase
45	 61.79	0	45889..47940	+	683	66043316	-	Psyr_0045	-	oligopeptidase A
46	 56.36	0	47937..48227	+	96	66043317	-	Psyr_0046	-	hypothetical protein
47	 45.21	-2	48272..48574	-	100	66043318	-	Psyr_0047	-	hypothetical protein
48	 50.22	-2	48668..48898	-	76	66043319	-	Psyr_0048	-	hypothetical protein
49	 65.40	+1	49110..51008	-	632	66043320	-	Psyr_0049	-	cytochrome c, class I:Iron permease FTR1
50	 61.61	0	51165..51797	-	210	66043321	-	Psyr_0050	-	lysine exporter protein LysE/YggA
51	 62.96	0	51865..52458	-	197	66043322	-	Psyr_0051	-	hypothetical protein
52	 63.32	0	52475..54385	-	636	66043323	-	Psyr_0052	-	ABC transporter
53	 61.22	0	54432..54908	+	158	66043324	-	Psyr_0053	-	hypothetical protein
54	 62.83	0	54905..55921	-	338	66043325	-	Psyr_0054	-	alginate regulatory protein AlgR3
55	 63.42	0	56138..56815	+	225	66043326	-	Psyr_0055	-	FKBP-type peptidyl-prolyl isomerase, N-terminal:peptidylprolyl isomerase, FKBP-type
56	 57.17	0	56893..57366	-	157	161486741	-	Psyr_0056	-	anti-RNA polymerase sigma 70 factor
57	 56.21	0	57384..57536	-	50	66043328	-	Psyr_0057	-	hypothetical protein
58	 60.42	0	57541..58068	-	175	66043329	-	Psyr_0058	-	disulfide bond formation protein DsbB
59	 63.05	0	58285..59529	-	414	66043330	-	Psyr_0059	-	HemY, N-terminal:HemY, N-terminal:HemY, N-terminal
60	 63.18	0	59526..60701	-	391	66043331	-	Psyr_0060	-	hypothetical protein
61	 63.82	+1	60701..61474	-	257	66043332	-	Psyr_0061	-	uroporphyrinogen-III synthase
62	 63.80	+1	61471..62412	-	313	66043333	hemC	Psyr_0062	-	porphobilinogen deaminase
63	 61.85	0	62645..63391	-	248	66043334	-	Psyr_0063	-	response regulator receiver:LytTr DNA-binding region
64	 58.54	0	63388..64470	-	360	66043335	-	Psyr_0064	-	histidine kinase internal region
65	 62.87	0	64605..65999	+	464	66043336	-	Psyr_0065	-	argininosuccinate lyase
66	 63.53	0	66405..67646	+	413	66043337	-	Psyr_0066	-	bifunctional spore maturation protein, fused SpmA/SpmB
67	 61.56	0	67651..68844	-	397	66043338	-	Psyr_0067	-	hypothetical protein
68	 61.37	0	68941..70317	-	458	66043339	-	Psyr_0068	-	insulinase-like:peptidase M16, C-terminal
69	 62.37	0	70375..72027	-	550	66043340	-	Psyr_0069	-	Na+/Pi-cotransporter:Na/Pi cotransporter II-related
70	 60.67	0	72227..73060	+	277	66043341	-	Psyr_0070	-	hypothetical protein
71	 62.27	0	72996..74972	-	658	66043342	-	Psyr_0071	-	histidine kinase, HAMP region: chemotaxis sensory transducer
72	 61.13	0	75159..76079	-	306	66043343	-	Psyr_0072	-	regulatory protein, LysR:LysR, substrate-binding
73	 64.06	+1	76238..77620	+	460	66043344	-	Psyr_0073	-	multidrug efflux protein NorA
74	 63.66	+1	77633..79297	-	554	66043345	-	Psyr_0074	-	GGDEF
75	 60.55	0	79502..81511	+	669	66043346	-	Psyr_0075	-	ATP-dependent DNA helicase RepA
76	 59.82	0	81563..82132	+	189	66043347	-	Psyr_0076	-	xanthine phosphoribosyltransferase
77	 64.09	+1	82724..84043	-	439	66043348	-	Psyr_0077	-	helix-turn-helix, Fis-type
78	 61.36	0	84310..85194	+	294	66043349	-	Psyr_0078	-	Beta-lactamase-like
79	 64.83	+1	85222..86475	+	417	66043350	-	Psyr_0079	-	hypothetical protein
80	 65.68	+1	86468..87280	+	270	66043351	-	Psyr_0080	-	hypothetical protein
81	 62.69	0	87481..88461	-	326	66043352	-	Psyr_0081	-	ABC transporter
82	 61.86	0	88464..89336	-	290	66043353	-	Psyr_0082	-	binding-protein dependent transport system inner membrane protein
83	 63.50	0	89350..90171	-	273	66043354	-	Psyr_0083	-	binding-protein dependent transport system inner membrane protein
84	 59.05	0	90266..91276	-	336	66043355	-	Psyr_0084	-	extracellular solute-binding protein
85	 52.22	-1	91428..91607	-	59	66043356	-	Psyr_0085	-	hypothetical protein
86	 60.68	0	91808..93727	-	639	66043357	-	Psyr_0086	-	PAS:GGDEF
87	 59.75	0	93880..95064	+	394	66043358	-	Psyr_0087	-	Fatty acid desaturase
88	 61.01	0	95185..96192	+	335	66043359	-	Psyr_0088	-	PAS:GGDEF
89	 64.22	+1	96943..98331	-	462	66043360	-	Psyr_0089	-	response regulator receiver
90	 60.89	0	98488..99768	-	426	66043361	-	Psyr_0090	-	4-aminobutyrate aminotransferase
91	 62.37	0	99948..101390	-	480	66043362	gabD	Psyr_0091	-	succinate-semialdehyde dehydrogenase I
92	 60.53	0	101677..102312	-	211	66043363	-	Psyr_0092	-	lysine exporter protein LysE/YggA
93	 63.32	0	102358..103761	-	467	66043364	-	Psyr_0093	-	flavoprotein monooxygenase
94	 55.46	0	103896..104600	+	234	66043365	-	Psyr_0094	-	hypothetical protein
95	 56.59	0	104951..106369	-	472	66043366	-	Psyr_0095	-	transposase IS4
96	 55.79	0	106580..107563	-	327	66043367	-	Psyr_0096	-	transposase IS4
97	 39.53	-2	108211..109452	+	413	66043368	-	Psyr_0097	-	hypothetical protein
98	 43.22	-2	109452..111323	+	623	66043369	-	Psyr_0098	-	hypothetical protein
99	 43.81	-2	111332..111541	+	69	66043370	-	Psyr_0099	-	hypothetical protein
100	 49.06	-2	112435..112968	-	177	66043371	-	Psyr_0100	-	hypothetical protein
59.35	MEAN

4.19	STD DEV
