IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

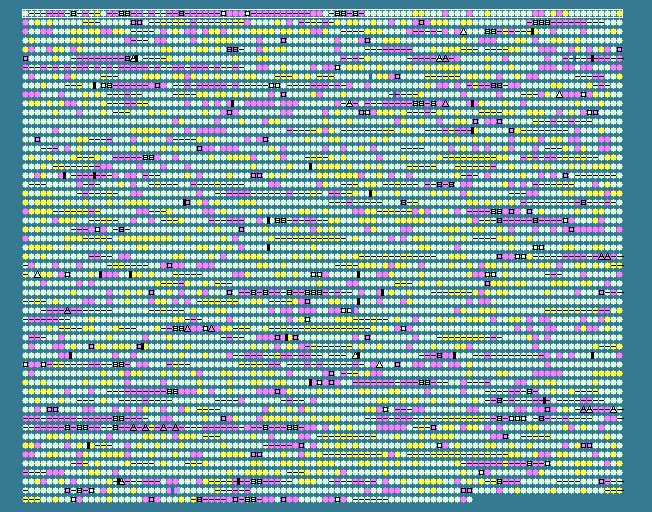

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 57.94	0	339..1874	+	511	28867244	dnaA	PSPTO_0001	-	chromosomal replication initiation protein
2	 56.61	0	1913..3016	+	367	28867245	dnaN	PSPTO_0002	-	DNA polymerase III subunit beta
3	 56.34	0	3039..4142	+	367	28867246	recF	PSPTO_0003	-	recombination protein F
4	 56.16	0	4147..6564	+	805	28867247	gyrB	PSPTO_0004	-	DNA gyrase subunit B
5	 53.72	-1	7092..8798	+	568	28867248	-	PSPTO_0005	-	type I restriction-modification system, M subunit, putative
6	 51.15	-1	8861..10168	+	435	28867249	-	PSPTO_0006	-	type I restriction-modification system S subunit
7	 55.03	0	10179..11063	+	294	28867250	-	PSPTO_0007	-	hypothetical protein
8	 55.97	0	11067..14366	+	1099	28867251	-	PSPTO_0008	-	HsdR family type I site-specific deoxyribonuclease
9	 58.05	0	14512..15741	-	409	28867252	-	PSPTO_0009	-	ISPsy3, transposase
10	 55.70	0	16743..17453	+	236	28867253	-	PSPTO_0011	-	hypothetical protein
11	 54.76	0	17514..18017	+	167	28867254	-	PSPTO_0012	-	hypothetical protein
12	 57.72	0	17992..18561	+	189	28867255	-	PSPTO_0013	-	hypothetical protein
13	 65.98	+1	18573..18863	-	96	28867256	-	PSPTO_0014	-	hypothetical protein
14	 55.56	0	19321..19932	+	203	28867257	-	PSPTO_0015	-	hypothetical protein
15	 53.42	-1	19968..20435	+	155	28867258	-	PSPTO_0016	-	hypothetical protein
16	 53.74	-1	20738..23143	-	801	28867259	-	PSPTO_0017	-	helicase/SNF2 domain-containing protein
17	 57.78	0	23290..24099	-	269	28867260	-	PSPTO_0018	-	transposase/IS protein
18	 59.24	0	24096..25118	-	340	28867261	-	PSPTO_0019	-	ISPsy4, transposase
19	 54.42	-1	25187..25537	-	116	28867262	-	PSPTO_0020	-	hypothetical protein
20	 51.09	-1	25556..27796	-	746	28867263	-	PSPTO_0021	-	hypothetical protein
21	 56.15	0	28478..29323	+	281	28867264	-	PSPTO_0022	-	DNA-binding protein
22	 53.67	-1	29320..29919	+	199	28867265	-	PSPTO_0023	-	hypothetical protein
23	 59.42	0	30850..30987	+	45	28867266	-	PSPTO_0024	-	hypothetical protein
24	 56.51	0	31338..31967	+	209	28867267	-	PSPTO_0025	-	HAD superfamily hydrolase
25	 52.91	-1	32022..33068	-	348	28867268	-	PSPTO_0026	-	hypothetical protein
26	 51.59	-1	33254..33976	+	240	28867269	-	PSPTO_0027	-	hypothetical protein
27	 46.57	-2	33978..35933	+	651	28867270	-	PSPTO_0028	-	transposase
28	 51.07	-1	35933..36868	+	311	28867271	-	PSPTO_0029	-	transposition helper protein
29	 53.42	-1	36881..38767	+	628	28867272	-	PSPTO_0030	-	hypothetical protein
30	 51.90	-1	39345..40082	+	245	28867273	-	PSPTO_0031	-	Ser/Thr protein phosphatase family protein
31	 48.81	-2	40884..41852	-	322	28867274	-	PSPTO_0032	-	hypothetical protein
32	 47.35	-2	41852..42757	-	301	28867275	-	PSPTO_0033	-	ParB family protein
33	 50.29	-2	42754..44310	-	518	28867276	-	PSPTO_0034	-	recombinase, putative
34	 56.31	0	45183..46736	-	517	28867277	-	PSPTO_0035	-	ISPsy5, transposase
35	 48.33	-2	46754..47113	-	119	28867278	-	PSPTO_0036	-	ISPsy5, Orf1
36	 53.37	-1	47448..52358	+	1636	28867279	-	PSPTO_0037	-	helicase domain-containing protein
37	 53.32	-1	52403..54493	+	696	28867280	-	PSPTO_0038	-	hypothetical protein
38	 56.31	0	54971..56524	-	517	28867281	-	PSPTO_0039	-	ISPsy5, transposase
39	 48.33	-2	56542..56901	-	119	28867282	-	PSPTO_0040	-	ISPsy5, Orf1
40	 54.01	-1	56961..57347	+	128	28867283	-	PSPTO_0041	-	hypothetical protein
41	 51.38	-1	58344..59906	+	520	28867284	-	PSPTO_0043	-	cytidine/deoxycytidylate deaminase family protein
42	 54.57	0	60407..61423	-	338	28867285	hopK1	PSPTO_0044	-	type III effector HopK1
43	 52.83	-1	61526..61684	+	52	28867286	-	PSPTO_0045	-	hypothetical protein
44	 54.78	0	62078..64063	+	661	28867287	-	PSPTO_0046	-	hypothetical protein
45	 53.49	-1	64066..65970	+	634	28867288	-	PSPTO_0047	-	UvrD/REP helicase family protein
46	 49.96	-2	67445..68611	+	388	28867289	-	PSPTO_0048	-	hypothetical protein
47	 49.73	-2	68863..69606	+	247	28867290	-	PSPTO_0049	-	hypothetical protein
48	 47.75	-2	69623..70954	+	443	28867291	-	PSPTO_0050	-	hypothetical protein
49	 53.38	-1	71041..71484	+	147	28867292	-	PSPTO_0051	-	hypothetical protein
50	 52.99	-1	71711..73480	+	589	28867293	-	PSPTO_0052	-	hypothetical protein
51	 55.60	0	73641..75086	-	481	28867294	-	PSPTO_0053	-	hypothetical protein
52	 56.86	0	75073..75684	-	203	28867295	-	PSPTO_0054	-	hypothetical protein
53	 59.24	0	75949..76971	+	340	28867296	-	PSPTO_0055	-	ISPsy4, transposase
54	 57.78	0	76968..77777	+	269	28867297	-	PSPTO_0056	-	transposase/IS protein
55	 51.74	-1	78120..79010	-	296	28867298	-	PSPTO_0057	-	transposition helper protein
56	 55.48	0	79007..80794	-	595	28867299	-	PSPTO_0058	-	transposase
57	 54.11	-1	80922..81542	-	206	28867300	-	PSPTO_0059	-	hypothetical protein
58	 58.45	0	82500..83363	+	287	28867301	hopY1	PSPTO_0061	-	type III effector HopY1
59	 60.40	0	83552..84859	-	435	28867302	-	PSPTO_0062	-	citrate transporter
60	 59.65	0	85159..85557	+	132	28867303	-	PSPTO_0063	-	hypothetical protein
61	 60.80	0	85784..87181	-	465	28867304	-	PSPTO_0064	-	hypothetical protein
62	 61.71	0	87268..89343	-	691	28867305	recG	PSPTO_0065	-	ATP-dependent DNA helicase RecG
63	 59.42	0	89355..90278	-	307	28867306	-	PSPTO_0066	-	oxidative stress regulatory protein OxyR, putative
64	 61.31	0	90371..91117	-	248	28867307	tonB-1	PSPTO_0067	-	tonB protein
65	 59.62	0	91114..91539	-	141	28867308	exbD-1	PSPTO_0068	-	biopolymer transport protein ExbD
66	 62.70	0	91543..92499	-	318	28867309	exbB-1	PSPTO_0069	-	TonB system transport protein ExbB
67	 64.19	+1	92710..93558	+	282	28867310	-	PSPTO_0070	-	hypothetical protein
68	 58.40	0	93607..94344	-	245	28867311	-	PSPTO_0071	-	putative lipoprotein
69	 57.22	0	94399..94779	-	126	28867312	-	PSPTO_0072	-	endoribonuclease L-PSP, putative
70	 59.97	0	94805..96910	-	701	28867313	spoT	PSPTO_0073	-	guanosine-3,5-bis(diphosphate) 3-pyrophosphohydrolase
71	 54.55	0	96971..97234	-	87	28867314	rpoZ	PSPTO_0074	-	DNA-directed RNA polymerase subunit omega
72	 58.76	0	97382..98026	-	214	28867315	gmk	PSPTO_0075	-	guanylate kinase
73	 61.69	0	98040..98903	-	287	28867316	-	PSPTO_0076	-	hypothetical protein
74	 61.13	0	99223..99945	+	240	28867317	rph	PSPTO_0077	-	ribonuclease PH
75	 51.34	-1	99962..100333	+	123	28867318	-	PSPTO_0078	-	hypothetical protein
76	 56.54	0	100403..101182	-	259	28867319	-	PSPTO_0079	-	exodeoxyribonuclease III, putative
77	 60.75	0	101265..101906	+	213	28867320	pyrE	PSPTO_0080	-	orotate phosphoribosyltransferase
78	 63.98	+1	101917..102549	+	210	28867321	-	PSPTO_0081	-	hypothetical protein
79	 58.72	0	102801..103706	-	301	28867322	argB	PSPTO_0082	-	acetylglutamate kinase
80	 58.66	0	103735..105132	-	465	28867323	algC	PSPTO_0083	-	phosphomannomutase AlgC
81	 61.40	0	106375..106830	-	151	28867324	dut	PSPTO_0084	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
82	 61.86	0	106837..108084	-	415	28867325	coaBC	PSPTO_0085	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
83	 59.56	0	108181..108855	+	224	28867326	radC	PSPTO_0086	-	DNA repair protein RadC
84	 59.17	0	108910..110496	-	528	28867327	-	PSPTO_0087	-	solute-binding family 5 protein
85	 57.78	0	110557..110691	-	44	28867328	-	PSPTO_0088	-	hypothetical protein
86	 51.71	-1	110860..111093	+	77	28867329	rpmB	PSPTO_0089	-	50S ribosomal protein L28
87	 43.59	-2	111105..111260	+	51	28867330	rpmG	PSPTO_0090	-	50S ribosomal protein L33
88	 58.74	0	111368..111733	-	121	28867331	-	PSPTO_0091	-	hypothetical protein
89	 62.12	0	111972..113465	+	497	28867332	-	PSPTO_0092	-	aldehyde dehydrogenase family protein
90	 51.59	-1	113528..113779	-	83	28867333	-	PSPTO_0093	-	hypothetical protein
91	 63.71	+1	113892..115040	+	382	28867334	-	PSPTO_0094	-	hypothetical protein
92	 61.33	0	115037..116665	-	542	28867335	-	PSPTO_0095	-	phospholipase D family protein
93	 61.46	0	116690..118111	-	473	28867336	-	PSPTO_0096	-	GntR family transcriptional regulator
94	 59.15	0	118233..118538	+	101	28867337	-	PSPTO_0097	-	hypothetical protein
95	 61.42	0	118544..119857	-	437	28867338	-	PSPTO_0098	-	hypothetical protein
96	 61.76	0	119909..120316	+	135	28867339	-	PSPTO_0099	-	hypothetical protein
97	 58.90	0	120331..120819	-	162	28867340	lrp	PSPTO_0100	-	leucine-responsive regulatory protein
98	 60.75	0	120976..122277	+	433	28867341	dadA	PSPTO_0101	-	D-amino acid dehydrogenase small subunit
99	 59.04	0	122249..122602	+	117	28867342	-	PSPTO_0102	-	endoribonuclease L-PSP family protein
100	 63.04	+1	122682..123755	+	357	28867343	dadX	PSPTO_0103	-	alanine racemase
58.61	MEAN

4.14	STD DEV
