IslandPath Analysis: Escherichia coli O157:H7 str. Sakai

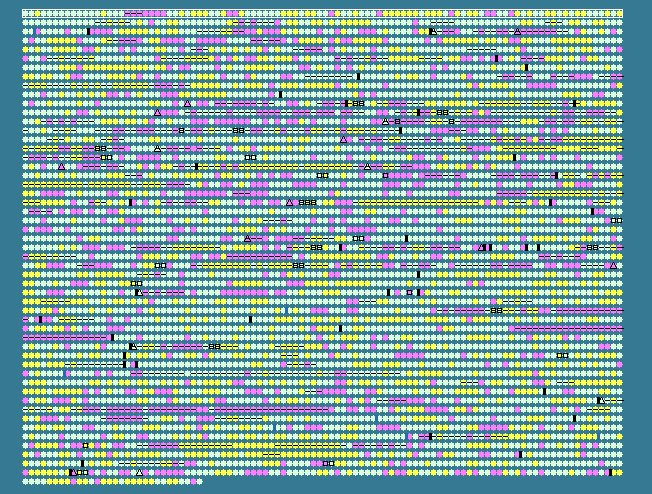

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 50.61   STD DEV: 5.56
Escherichia coli O157:H7 str. Sakai, complete genome - 1..5498450
5230 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 51.19	0	190..273	+	27	15829255	-	ECs0001	-	thr operon leader peptide
2	 52.82	0	354..2816	+	820	15829256	thrA	ECs0002	-	bifunctional aspartokinase I/homeserine dehydrogenase I
3	 56.27	+1	2818..3750	+	310	15829257	-	ECs0003	-	homoserine kinase
4	 53.15	0	3751..5037	+	428	15829258	-	ECs0004	-	threonine synthase
5	 53.87	0	5251..5547	+	98	15829259	-	ECs0005	-	hypothetical protein
6	 48.91	0	5700..6476	-	258	15829260	-	ECs0006	-	hypothetical protein
7	 52.97	0	6546..7976	-	476	15829261	-	ECs0007	-	putative inner membrane transport protein
8	 51.68	0	8255..9208	+	317	15829262	-	ECs0008	-	transaldolase B
9	 53.91	0	9323..9910	+	195	15829263	mogA	ECs0009	-	molybdenum cofactor biosynthesis protein
10	 52.73	0	9945..10511	-	188	15829264	-	ECs0010	-	hypothetical protein
11	 50.98	0	10660..11373	-	237	15829265	-	ECs0012	-	hypothetical protein
12	 48.89	0	11399..11803	-	134	15829267	-	ECs0013	-	hypothetical protein
13	 51.38	0	12180..14096	+	638	15829268	dnaK	ECs0014	-	molecular chaperone DnaK
14	 55.08	0	14185..15315	+	376	15829269	-	ECs0015	-	chaperone protein DnaJ
15	 50.95	0	15419..15628	-	69	15829270	-	ECs0016	-	Gef
16	 51.33	0	16157..17323	+	388	15829271	nhaA	ECs0017	-	pH-dependent sodium/proton antiporter
17	 47.57	0	17383..18288	+	301	15829272	nhaR	ECs0018	-	transcriptional activator NhaR
18	 36.93	-2	18326..18853	-	175	15829273	-	ECs0019	-	hypothetical protein
19	 37.00	-2	18959..19285	-	108	15829275	-	ECs0021	-	hypothetical protein
20	 41.00	-1	19298..21748	-	816	15829276	-	ECs0022	-	putative outer membrane usher protein precursor
21	 36.55	-2	21761..22444	-	227	15829277	-	ECs0023	-	putative fimbrial chaperone
22	 39.14	-2	22494..23027	-	177	15829278	-	ECs0024	-	putative fimbrial protein
23	 32.28	-2	23329..24750	-	473	15829279	-	ECs0025	-	hypothetical protein
24	 46.59	0	25220..25483	-	87	15829280	rpsT	ECs0026	-	30S ribosomal protein S20
25	 48.00	0	25586..25810	+	74	15829281	-	ECs0027	-	hypothetical protein
26	 53.50	0	25818..26759	+	313	15829282	-	ECs0028	-	bifunctional riboflavin kinase/FMN adenylyltransferase
27	 55.73	0	26802..29618	+	938	15829283	ileS	ECs0029	-	isoleucyl-tRNA synthetase
28	 53.33	0	29618..30112	+	164	15829284	lspA	ECs0030	-	lipoprotein signal peptidase
29	 55.33	0	30200..30649	+	149	15829285	-	ECs0031	-	putative FKBX-type 16KD peptidyl-prolyl cis-trans isomerase
30	 55.21	0	30651..31601	+	316	15829286	ispH	ECs0032	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
31	 55.63	0	31667..32581	+	304	15829287	-	ECs0033	-	ribonucleoside hydrolase RihC
32	 52.92	0	32748..33569	+	273	15829288	-	ECs0034	-	dihydrodipicolinate reductase
33	 53.44	0	34025..35173	+	382	15829289	-	ECs0035	-	carbamoyl phosphate synthase small subunit
34	 55.87	0	35191..38412	+	1073	15829290	carB	ECs0036	-	carbamoyl phosphate synthase large subunit
35	 35.62	-2	38420..38638	-	72	38704266	-	ECs5362	-	hypothetical protein
36	 45.96	0	38673..39068	+	131	162139821	-	ECs0037	-	DNA-binding transcriptional activator CaiF
37	 54.90	0	39187..39798	-	203	15829292	-	ECs0038	-	carnitine operon protein CaiE
38	 52.46	0	39783..40676	-	297	15829293	-	ECs0039	-	carnitinyl-CoA dehydratase
39	 50.61	0	40677..42245	-	522	15829294	caiC	ECs0040	-	putative crotonobetaine/carnitine-CoA ligase
40	 52.46	0	42304..43521	-	405	15829295	-	ECs0041	-	crotonobetainyl-CoA:carnitine CoA-transferase
41	 53.81	0	43650..44792	-	380	15829296	-	ECs0042	-	crotonobetainyl-CoA dehydrogenase
42	 51.88	0	44823..46337	-	504	15829297	-	ECs0043	-	L-carnitine/gamma-butyrobetaine antiporter
43	 52.14	0	46816..47586	+	256	162139820	-	ECs0044	-	putative electron transfer flavoprotein FixA
44	 55.94	0	47601..48542	+	313	15829299	fixB	ECs0045	-	putative electron transfer flavoprotein FixB
45	 54.86	0	48593..49879	+	428	15829300	-	ECs0046	-	putative oxidoreductase FixC
46	 56.94	+1	49876..50163	+	95	15829301	-	ECs0047	-	putative ferredoxin
47	 53.38	0	50221..51552	+	443	15829302	-	ECs0048	-	putative transport protein
48	 54.80	0	51660..52190	+	176	15829303	-	ECs0049	-	glutathione-regulated potassium-efflux system ancillary protein KefF
49	 55.82	0	52183..54045	+	620	15829304	-	ECs0050	-	glutathione-regulated potassium-efflux system protein KefC
50	 53.33	0	54237..54716	+	159	15829305	folA	ECs0051	-	dihydrofolate reductase
51	 48.72	0	54802..55035	+	77	15829306	-	ECs0052	-	CcdA-like protein
52	 45.71	0	55038..55352	+	104	15829307	-	ECs0053	-	CcdB-like protein
53	 55.95	0	55349..56197	-	282	15829308	apaH	ECs0054	-	diadenosine tetraphosphatase
54	 51.85	0	56204..56581	-	125	15829309	apaG	ECs0055	-	ApaG
55	 53.16	0	56584..57405	-	273	15829310	ksgA	ECs0056	-	dimethyladenosine transferase
56	 56.16	0	57402..58391	-	329	15829311	pdxA	ECs0057	-	4-hydroxythreonine-4-phosphate dehydrogenase
57	 53.77	0	58391..59677	-	428	15829312	-	ECs0058	-	peptidyl-prolyl cis-trans isomerase SurA
58	 51.34	0	59730..62084	-	784	15829313	-	ECs0059	-	organic solvent tolerance protein
59	 52.82	0	62339..63154	+	271	15829314	djlA	ECs0060	-	DNA-J like membrane chaperone protein
60	 41.83	-1	63449..64201	+	250	15829315	-	ECs0061	-	hypothetical protein
61	 54.09	0	64619..65278	-	219	15829316	-	ECs0062	-	23S rRNA/tRNA pseudouridine synthase A
62	 55.01	0	65290..68196	-	968	15829317	-	ECs0063	-	ATP-dependent helicase HepA
63	 55.57	0	68360..70711	-	783	15829318	-	ECs0064	-	DNA polymerase II
64	 54.89	0	70786..71481	-	231	15829319	araD	ECs0065	-	L-ribulose-5-phosphate 4-epimerase
65	 55.62	0	71681..73183	-	500	15829320	-	ECs0066	-	L-arabinose isomerase
66	 57.97	+1	73194..74894	-	566	15829321	-	ECs0067	-	ribulokinase
67	 52.90	0	75233..76111	+	292	15829322	-	ECs0068	-	DNA-binding transcriptional regulator AraC
68	 54.38	0	76197..76961	+	254	15829323	-	ECs0069	-	hypothetical protein
69	 56.94	+1	77048..77746	-	232	15829324	thiQ	ECs0070	-	thiamine transporter ATP-binding subunit
70	 58.97	+1	77730..79340	-	536	15829325	thiP	ECs0071	-	thiamine transporter membrane protein
71	 52.95	0	79316..80299	-	327	15829326	tbpA	ECs0072	-	thiamine transporter substrate binding subunit
72	 43.16	-1	80671..81240	+	189	15829327	-	ECs0073	-	hypothetical protein
73	 55.21	0	81469..83127	-	552	15829328	-	ECs0074	-	transcriptional regulator SgrR
74	 52.31	0	83455..84060	-	201	15829329	leuD	ECs0075	-	isopropylmalate isomerase small subunit
75	 55.67	0	84071..85471	-	466	15829330	-	ECs0076	-	isopropylmalate isomerase large subunit
76	 54.85	0	85474..86565	-	363	38703842	-	ECs0077	-	3-isopropylmalate dehydrogenase
77	 53.12	0	86565..88136	-	523	15829332	-	ECs0078	-	2-isopropylmalate synthase
78	 47.13	0	88229..88315	-	28	15829333	-	ECs0079	-	leu operon leader peptide
79	 45.79	0	88955..89917	+	320	162139819	leuO	ECs0080	-	leucine transcriptional activator
80	 52.75	0	90235..91959	+	574	38703843	-	ECs0081	-	acetolactate synthase 3 catalytic subunit
81	 49.39	0	91962..92453	+	163	15829336	ilvH	ECs0082	-	acetolactate synthase 3 regulatory subunit
82	 44.83	-1	92465..92551	+	28	15829337	-	ECs0083	-	fruR leader peptide
83	 54.83	0	92633..93637	+	334	15829338	-	ECs0084	-	DNA-binding transcriptional regulator FruR
84	 52.29	0	94239..94697	+	152	15829339	-	ECs0085	-	cell division protein MraZ
85	 54.88	0	94699..95640	+	313	15829340	mraW	ECs0086	-	S-adenosyl-methyltransferase MraW
86	 50.55	0	95637..96002	+	121	15829341	ftsL	ECs0087	-	cell division protein FtsL
87	 53.65	0	96018..97784	+	588	15829342	ftsI	ECs0088	-	hypothetical protein
88	 56.32	+1	97771..99258	+	495	15829343	murE	ECs0089	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
89	 54.75	0	99255..100613	+	452	15829344	murF	ECs0090	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
90	 53.09	0	100607..101689	+	360	15829345	mraY	ECs0091	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
91	 55.20	0	101692..103008	+	438	15829346	murD	ECs0092	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
92	 52.85	0	103008..104252	+	414	15829347	-	ECs0093	-	cell division protein FtsW
93	 55.99	0	104249..105316	+	355	15829348	murG	ECs0094	-	N-acetylglucosaminyl transferase
94	 54.61	0	105370..106845	+	491	15829349	murC	ECs0095	-	UDP-N-acetylmuramate--L-alanine ligase
95	 51.68	0	106838..107758	+	306	15829350	ddl	ECs0096	-	D-alanine--D-alanine ligase
96	 53.55	0	107760..108590	+	276	15829351	-	ECs0097	-	cell division protein FtsQ
97	 52.26	0	108587..109849	+	420	15829352	ftsA	ECs0098	-	cell division protein FtsA
98	 54.25	0	109910..111061	+	383	15829353	-	ECs0099	-	cell division protein FtsZ
99	 51.20	0	111162..112079	+	305	15829354	lpxC	ECs0100	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
100	 54.58	0	112310..112822	+	170	162139818	-	ECs0101	-	SecA regulator SecM
50.61	MEAN

5.56	STD DEV
