IslandPath Analysis: Bacillus cereus ATCC 10987

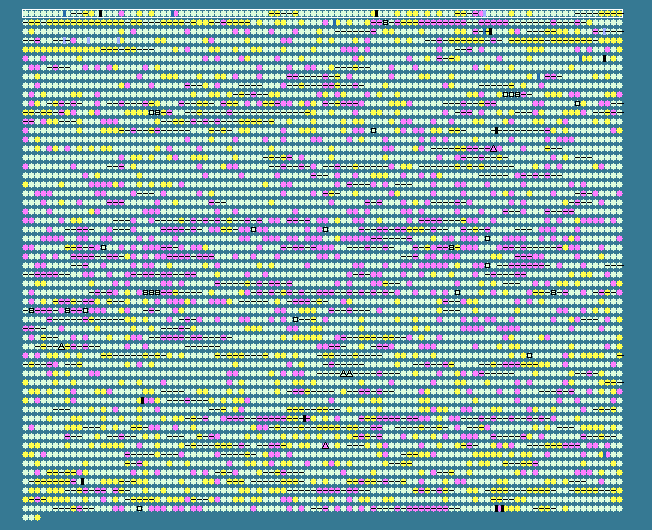

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.34 STD DEV: 4.00
Bacillus cereus ATCC 10987, complete genome - 1..5224283
5603 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 35.42	0	408..1748	+	446	42779082	dnaA	BCE_0001	-	chromosomal replication initiation protein
2	 32.72	0	1927..3066	+	379	42779083	dnaN	BCE_0002	-	DNA polymerase III subunit beta
3	 34.22	0	3182..3406	+	74	42779084	-	BCE_0003	-	hypothetical protein
4	 34.57	0	3418..4545	+	375	42779085	recF	BCE_0004	-	recombination protein F
5	 37.03	0	4584..6506	+	640	42779086	gyrB	BCE_0005	-	DNA gyrase subunit B
6	 36.97	0	6595..9066	+	823	42779087	gyrA	BCE_0006	-	DNA gyrase subunit A
7	 32.32	0	9241..9339	+	32	42779088	-	BCE_0007	-	hypothetical protein
8	 33.53	0	14353..15354	-	333	42779089	-	BCE_0008	-	hypothetical protein
9	 38.59	0	15470..16933	+	487	42779090	guaB	BCE_0009	-	inositol-5-monophosphate dehydrogenase
10	 35.46	0	17038..18354	+	438	42779091	dacA	BCE_0010	-	D-alanyl-D-alanine carboxypeptidase
11	 43.47	+2	18516..19403	+	295	42779092	-	BCE_0011	-	pyridoxine biosynthesis protein
12	 40.27	+1	19422..20012	+	196	42779093	-	BCE_0012	-	glutamine amidotransferase subunit PdxT
13	 38.51	0	20340..21614	+	424	42779094	serS	BCE_0013	-	seryl-tRNA synthetase
14	 34.48	0	21897..22421	+	174	42779095	-	BCE_0014	-	hypothetical protein
15	 35.43	0	22457..23125	-	222	42779096	-	BCE_0015	-	deoxynucleoside kinase family protein
16	 34.91	0	23128..23763	-	211	42779097	-	BCE_0016	-	deoxynucleoside kinase family protein
17	 30.74	-1	23889..24428	-	179	42779098	-	BCE_0017	-	isochorismatase family protein
18	 32.62	0	24406..24546	+	46	42779099	-	BCE_0018	-	hypothetical protein
19	 38.12	0	24536..25036	+	166	42779100	-	BCE_0019	-	cytidine/deoxycytidylate deaminase zinc-binding domain-containing protein
20	 39.02	0	25513..27201	+	562	42779101	dnaX	BCE_0020	-	DNA polymerase III subunits gamma and tau
21	 37.58	0	27224..27553	+	109	42779102	-	BCE_0021	-	hypothetical protein
22	 39.53	+1	27568..28164	+	198	42779103	recR	BCE_0022	-	recombination protein RecR
23	 34.23	0	28179..28400	+	73	42779104	-	BCE_0023	-	hypothetical protein
24	 35.00	0	28316..28495	+	59	42779105	-	BCE_0024	-	hypothetical protein
25	 32.22	0	28593..28862	+	89	42779106	bofA	BCE_0025	-	sigma-k factor processing regulatory protein BofA
26	 25.56	-2	34288..34467	+	59	42779107	-	BCE_0026	-	csfB protein, putative
27	 35.16	0	34540..35961	+	473	42779108	cad	BCE_0027	-	lysine decarboxylase
28	 37.00	0	35963..36589	+	208	42779109	tdk	BCE_0028	-	thymidylate kinase
29	 36.89	0	36625..37608	+	327	42779110	holB	BCE_0029	-	DNA polymerase III subunit delta'
30	 36.32	0	37605..38441	+	278	42779111	-	BCE_0030	-	hypothetical protein
31	 33.61	0	38441..38806	+	121	42779112	-	BCE_0031	-	DNA replication intiation control protein YabA
32	 34.41	0	38927..39667	+	246	42779113	-	BCE_0032	-	hypothetical protein
33	 35.05	0	39654..39944	+	96	42779114	-	BCE_0033	-	GIY-YIG nuclease superfamily protein
34	 35.39	0	39913..40788	+	291	42779115	-	BCE_0034	-	hypothetical protein
35	 34.74	0	40809..41093	-	94	42779116	abrB	BCE_0035	-	transition state transcriptional regulatory protein AbrB
36	 36.16	0	41611..43593	+	660	42779117	metG	BCE_0036	-	methionyl-tRNA synthetase
37	 36.98	0	43759..44526	+	255	42779118	-	BCE_0037	-	TatD family deoxyribonuclease
38	 37.63	0	44740..45297	+	185	42779119	-	BCE_0038	-	primase-related protein
39	 36.63	0	45294..46172	+	292	42779120	ksgA	BCE_0039	-	dimethyladenosine transferase
40	 37.38	0	46283..47146	+	287	42779121	-	BCE_0040	-	yabG protein
41	 36.40	0	47385..47645	+	86	42779122	-	BCE_0041	-	veg protein
42	 39.44	+1	47737..47916	+	59	42779123	sspF	BCE_0042	-	small, acid-soluble spore protein
43	 38.85	0	48113..48982	+	289	42779124	ispE	BCE_0043	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
44	 37.46	0	49037..49885	+	282	42779125	purR	BCE_0044	-	purine operon repressor
45	 33.85	0	49999..50382	+	127	42779126	-	BCE_0045	-	endoribonuclease L-PSP, putative
46	 40.48	+1	50535..50828	+	97	161511032	spoVG	BCE_0046	-	regulatory protein SpoVG
47	 38.48	0	51151..52530	+	459	42779128	gcaD	BCE_0047	-	UDP-N-acetylglucosamine pyrophosphorylase
48	 37.32	0	52549..53502	+	317	42779129	prs	BCE_0048	-	ribose-phosphate pyrophosphokinase
49	 35.07	0	53503..54135	+	210	42779130	spoVC	BCE_0049	-	peptidyl-tRNA hydrolase
50	 32.89	0	54206..54430	+	74	42779131	-	BCE_0050	-	hypothetical protein
51	 35.60	0	54537..58067	+	1176	42779132	mfd	BCE_0051	-	transcription-repair coupling factor
52	 36.69	0	58204..58740	+	178	42779133	spoVT	BCE_0052	-	stage V sporulation protein T
53	 34.83	0	58971..60572	+	533	42779134	-	BCE_0053	-	stage V sporulation protein B, putative
54	 37.50	0	60678..62045	+	455	42779135	-	BCE_0054	-	tetrapyrrole methylase family protein/MazG family protein
55	 32.97	0	62060..62335	+	91	42779136	-	BCE_0055	-	S4 domain-containing protein
56	 33.66	0	62394..62702	+	102	42779137	-	BCE_0056	-	yabP protein
57	 32.72	0	62699..63352	+	217	42779138	-	BCE_0057	-	hypothetical protein
58	 35.09	0	63310..63708	+	132	42779139	divIC	BCE_0058	-	cell division protein DivIC
59	 42.65	+1	63796..64278	+	160	42779140	-	BCE_0059	-	hypothetical protein
60	 36.44	0	64950..67328	+	792	42779141	spoIIE	BCE_0060	-	stage II sporulation protein E
61	 36.55	0	67554..68984	+	476	42779142	-	BCE_0061	-	hypothetical protein
62	 34.25	0	68981..69523	+	180	42779143	hpt	BCE_0062	-	hypoxanthine-guanine phosphoribosyltransferase
63	 40.43	+1	69609..71510	+	633	42779144	ftsH	BCE_0063	-	cell division protein FtsH
64	 37.52	0	71736..72524	+	262	42779145	-	BCE_0064	-	pantothenate kinase
65	 39.50	+1	72531..73406	+	291	42779146	hslO	BCE_0065	-	Hsp33-like chaperonin
66	 39.18	0	73511..74434	+	307	42779147	cysK	BCE_0066	-	cysteine synthase A
67	 38.39	0	74609..76051	+	480	42779148	pabB	BCE_0067	-	para-aminobenzoate synthase component I
68	 39.29	0	76057..76644	+	195	42779149	pabA	BCE_0068	-	para-aminobenzoate/anthranilate synthase glutamine amidotransferase component II
69	 36.66	0	76638..77510	+	290	42779150	pabC	BCE_0069	-	4-amino-4-deoxychorismate lyase
70	 39.50	+1	77503..78345	+	280	42779151	folP	BCE_0070	-	dihydropteroate synthase
71	 36.36	0	78346..78708	+	120	42779152	folB	BCE_0071	-	dihydroneopterin aldolase
72	 34.69	0	78705..79220	+	171	42779153	folK	BCE_0072	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
73	 41.18	+1	79172..79375	+	67	42779154	-	BCE_0073	-	DNA-binding protein
74	 40.44	+1	79399..80397	+	332	42779155	-	BCE_0074	-	NifR3 family TIM-barrel protein
75	 36.93	0	80557..82056	+	499	42779156	lysS	BCE_0075	-	lysyl-tRNA synthetase
76	 24.44	-2	82152..82286	+	44	42779157	-	BCE_0076	-	hypothetical protein
77	 29.37	-1	82283..82408	+	41	42779158	-	BCE_0077	-	hypothetical protein
78	 33.33	0	87416..87877	+	153	42779159	ctsR	BCE_0078	-	transcriptional regulator CtsR
79	 35.34	0	88051..88599	+	182	42779160	-	BCE_0079	-	hypothetical protein
80	 34.65	0	88604..89668	+	354	42779161	-	BCE_0080	-	ATP:guanido phosphotransferase
81	 38.42	0	89691..92126	+	811	42779162	-	BCE_0081	-	negative regulator of genetic competence ClpC/MecB
82	 39.36	+1	92223..93599	+	458	42779163	radA	BCE_0082	-	DNA repair protein RadA
83	 37.52	0	93603..94676	+	357	42779164	-	BCE_0083	-	DNA integrity scanning protein DisA
84	 35.05	0	94837..95946	+	369	42779165	-	BCE_0084	-	hypothetical protein
85	 38.91	0	95963..96643	+	226	42779166	ispD	BCE_0085	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
86	 36.69	0	96759..97235	+	158	42779167	ispF	BCE_0086	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
87	 36.83	0	97325..98782	+	485	42779168	gltX	BCE_0087	-	glutamyl-tRNA synthetase
88	 37.99	0	99213..99878	+	221	42779169	cysE	BCE_0088	-	serine O-acetyltransferase
89	 36.77	0	99859..101256	+	465	42779170	cysS	BCE_0089	-	cysteinyl-tRNA synthetase
90	 37.75	0	101259..101666	+	135	42779171	-	BCE_0090	-	hypothetical protein
91	 37.77	0	101663..102406	+	247	42779172	-	BCE_0091	-	RNA methyltransferase
92	 38.79	0	102410..102922	+	170	42779173	-	BCE_0092	-	hypothetical protein
93	 35.91	0	102990..103649	+	219	42779174	sigH	BCE_0093	-	RNA polymerase factor sigma-70
94	 33.33	0	103777..103923	+	48	42779175	rpmG	BCE_0094	-	50S ribosomal protein L33
95	 37.78	0	103956..104135	+	59	42779176	secE	BCE_0095	-	preprotein translocase subunit SecE
96	 37.27	0	104267..104800	+	177	42779177	nusG	BCE_0096	-	transcription antitermination protein NusG
97	 43.19	+1	104968..105393	+	141	42779178	rplK	BCE_0097	-	50S ribosomal protein L11
98	 40.98	+1	105571..106263	+	230	42779179	rplA	BCE_0098	-	50S ribosomal protein L1
99	 41.12	+1	106496..106996	+	166	42779180	rplJ	BCE_0099	-	50S ribosomal protein L10
100	 39.17	0	107064..107423	+	119	42779181	rplL	BCE_0100	-	50S ribosomal protein L7/L12
35.34	MEAN

4.00	STD DEV
