IslandPath Analysis: Bacillus anthracis str. Sterne

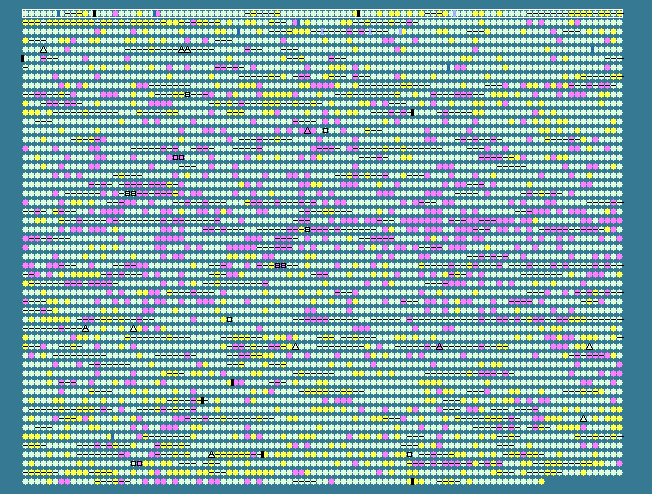

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.52   STD DEV: 3.39
Bacillus anthracis str. Sterne, complete genome - 1..5228663
5287 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 35.42	0	408..1748	+	446	49183040	dnaA	BAS0001	-	chromosomal replication initiation protein
2	 32.11	-1	1927..3066	+	379	49183041	-	BAS0002	-	DNA polymerase III subunit beta
3	 34.74	0	3194..3406	+	70	49183042	-	BAS0003	-	hypothetical protein
4	 34.57	0	3419..4546	+	375	49183043	recF	BAS0004	-	recombination protein F
5	 36.92	0	4585..6507	+	640	49183044	gyrB	BAS0005	-	DNA gyrase subunit B
6	 36.53	0	6596..9067	+	823	49183045	-	BAS0006	-	DNA gyrase subunit A
7	 33.86	0	14354..15298	-	314	49183046	-	BAS0009	-	hypothetical protein
8	 38.52	0	15469..16932	+	487	49183047	-	BAS0011	-	inositol-5-monophosphate dehydrogenase
9	 35.23	0	17037..18353	+	438	49183048	-	BAS0012	-	D-alanyl-D-alanine carboxypeptidase
10	 42.79	+2	18515..19402	+	295	49183049	-	BAS0013	-	pyridoxine biosynthesis protein
11	 40.27	+1	19421..20011	+	196	49183050	-	BAS0014	-	glutamine amidotransferase subunit PdxT
12	 38.27	0	20339..21613	+	424	49183051	-	BAS0015	-	seryl-tRNA synthetase
13	 34.78	0	21870..22421	+	183	49183052	-	BAS0016	-	hypothetical protein
14	 35.87	0	22457..23125	-	222	49183053	-	BAS0017	-	deoxynucleoside kinase family protein
15	 34.59	0	23128..23763	-	211	49183054	-	BAS0018	-	deoxynucleoside kinase family protein
16	 30.56	-1	23889..24428	-	179	49183055	-	BAS0019	-	isochorismatase family protein
17	 37.72	0	24536..25036	+	166	49183056	-	BAS0020	-	cytidine/deoxycytidylate deaminase zinc-binding domain-containing protein
18	 38.90	0	25513..27201	+	562	49183057	-	BAS0021	-	DNA polymerase III subunits gamma and tau
19	 36.97	0	27224..27553	+	109	49183058	-	BAS0022	-	hypothetical protein
20	 40.03	+1	27568..28164	+	198	49183059	recR	BAS0023	-	recombination protein RecR
21	 32.88	0	28179..28400	+	73	49183060	-	BAS0024	-	hypothetical protein
22	 32.22	0	28615..28884	+	89	49183061	-	BAS0025	-	sigma-k factor processing regulatory protein BofA
23	 25.56	-2	34304..34483	+	59	49183062	-	BAS0027	-	csfB protein, putative
24	 35.09	0	34555..35976	+	473	49183063	-	BAS0028	-	lysine decarboxylase
25	 36.04	0	35978..36604	+	208	49183064	tdk	BAS0029	-	thymidylate kinase
26	 36.99	0	36640..37623	+	327	49183065	-	BAS0030	-	DNA polymerase III subunit delta'
27	 36.44	0	37620..38456	+	278	49183066	-	BAS0031	-	hypothetical protein
28	 33.06	0	38456..38821	+	121	49183067	-	BAS0032	-	DNA replication intiation control protein YabA
29	 34.41	0	38942..39682	+	246	49183068	-	BAS0033	-	hypothetical protein
30	 34.02	0	39669..39959	+	96	49183069	-	BAS0034	-	GIY-YIG nuclease superfamily protein
31	 34.82	0	39928..40803	+	291	49183070	-	BAS0035	-	hypothetical protein
32	 33.68	0	40824..41108	-	94	49183071	-	BAS0036	-	transition state transcriptional regulatory protein AbrB
33	 36.01	0	41599..43581	+	660	49183072	metG	BAS0037	-	methionyl-tRNA synthetase
34	 37.50	0	43747..44514	+	255	49183073	-	BAS0038	-	TatD family deoxyribonuclease
35	 37.63	0	44729..45286	+	185	49183074	-	BAS0039	-	primase-related protein
36	 36.06	0	45283..46161	+	292	49183075	ksgA	BAS0040	-	dimethyladenosine transferase
37	 37.50	0	46272..47135	+	287	49183076	-	BAS0041	-	yabG protein
38	 36.78	0	47374..47634	+	86	49183077	-	BAS0042	-	veg protein
39	 39.44	+1	47726..47905	+	59	49183078	-	BAS0043	-	small, acid-soluble spore protein
40	 38.23	0	48093..48971	+	292	49183079	-	BAS0044	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
41	 36.98	0	49026..49874	+	282	49183080	-	BAS0045	-	purine operon repressor
42	 35.47	0	49997..50371	+	124	49183081	-	BAS0046	-	endoribonuclease L-PSP, putative
43	 40.82	+1	50524..50817	+	97	161611187	-	BAS0047	-	regulatory protein SpoVG
44	 38.33	0	51140..52519	+	459	49183083	-	BAS0048	-	UDP-N-acetylglucosamine pyrophosphorylase
45	 37.21	0	52538..53491	+	317	49183084	-	BAS0049	-	ribose-phosphate pyrophosphokinase
46	 34.40	0	53564..54124	+	186	49183085	-	BAS0050	-	peptidyl-tRNA hydrolase
47	 32.89	0	54195..54419	+	74	49183086	-	BAS0051	-	hypothetical protein
48	 35.74	0	54525..58055	+	1176	49183087	-	BAS0052	-	transcription-repair coupling factor
49	 36.31	0	58191..58727	+	178	49183088	-	BAS0053	-	stage V sporulation protein T
50	 34.83	0	58958..60559	+	533	49183089	-	BAS0054	-	stage V sporulation protein B, putative
51	 37.30	0	60572..62032	+	486	49183090	-	BAS0055	-	tetrapyrrole methylase family protein/MazG family protein
52	 32.61	0	62047..62322	+	91	49183091	-	BAS0056	-	S4 domain-containing protein
53	 34.25	0	62363..62689	+	108	49183092	-	BAS0057	-	yabP protein
54	 32.42	0	62686..63339	+	217	49183093	-	BAS0058	-	hypothetical protein
55	 33.61	0	63336..63695	+	119	49183094	-	BAS0059	-	cell division protein DivIC
56	 42.44	+2	63783..64265	+	160	49183095	-	BAS0060	-	hypothetical protein
57	 37.08	0	64889..67315	+	808	49183096	-	BAS0061	-	stage II sporulation protein E
58	 36.48	0	67549..68979	+	476	49183097	-	BAS0062	-	hypothetical protein
59	 34.81	0	68976..69518	+	180	49183098	-	BAS0063	-	hypoxanthine-guanine phosphoribosyltransferase
60	 40.12	+1	69604..71505	+	633	49183099	-	BAS0064	-	cell division protein FtsH
61	 38.28	0	71730..72518	+	262	49183100	-	BAS0065	-	pantothenate kinase
62	 39.84	+1	72525..73400	+	291	49183101	hslO	BAS0066	-	Hsp33-like chaperonin
63	 39.94	+1	73505..74428	+	307	49183102	-	BAS0067	-	cysteine synthase A
64	 38.20	0	74649..76046	+	465	49183103	-	BAS0068	-	para-aminobenzoate synthase component I
65	 39.63	+1	76052..76639	+	195	49183104	-	BAS0069	-	para-aminobenzoate/anthranilate synthase glutamine amidotransferase component II
66	 35.05	0	76633..77505	+	290	49183105	-	BAS0070	-	4-amino-4-deoxychorismate lyase
67	 39.15	+1	77498..78340	+	280	49183106	-	BAS0071	-	dihydropteroate synthase
68	 36.64	0	78341..78703	+	120	49183107	-	BAS0072	-	dihydroneopterin aldolase
69	 34.11	0	78700..79215	+	171	49183108	-	BAS0073	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
70	 39.22	+1	79167..79370	+	67	49183109	-	BAS0074	-	DNA-binding protein
71	 39.38	+1	79418..80392	+	324	49183110	-	BAS0075	-	NifR3 family TIM-barrel protein
72	 36.73	0	80552..82051	+	499	49183111	lysS	BAS0076	-	lysyl-tRNA synthetase
73	 33.33	0	87416..87877	+	153	49183112	-	BAS0078	-	transcriptional regulator CtsR
74	 35.34	0	88051..88599	+	182	49183113	-	BAS0079	-	hypothetical protein
75	 34.65	0	88604..89668	+	354	49183114	-	BAS0080	-	ATP:guanido phosphotransferase
76	 39.12	+1	89691..92126	+	811	49183115	-	BAS0081	-	negative regulator of genetic competence ClpC/MecB
77	 39.51	+1	92223..93599	+	458	49183116	-	BAS0082	-	DNA repair protein RadA
78	 37.34	0	93603..94676	+	357	49183117	-	BAS0083	-	DNA integrity scanning protein DisA
79	 35.05	0	94837..95946	+	369	49183118	-	BAS0084	-	hypothetical protein
80	 39.35	+1	95963..96643	+	226	49183119	ispD	BAS0085	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
81	 37.95	0	96758..97234	+	158	49183120	ispF	BAS0086	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
82	 37.11	0	97324..98781	+	485	49183121	gltX	BAS0087	-	glutamyl-tRNA synthetase
83	 37.39	0	99214..99879	+	221	49183122	-	BAS0088	-	serine O-acetyltransferase
84	 36.77	0	99860..101257	+	465	49183123	cysS	BAS0089	-	cysteinyl-tRNA synthetase
85	 38.24	0	101260..101667	+	135	49183124	-	BAS0090	-	hypothetical protein
86	 37.50	0	101664..102407	+	247	49183125	-	BAS0091	-	RNA methyltransferase
87	 37.62	0	102411..102923	+	170	49183126	-	BAS0092	-	hypothetical protein
88	 35.92	0	102991..103647	+	218	49183127	-	BAS0093	-	RNA polymerase factor sigma-70
89	 33.33	0	103779..103925	+	48	49183128	rpmG	BAS0094	-	50S ribosomal protein L33
90	 37.78	0	103958..104137	+	59	49183129	secE	BAS0095	-	preprotein translocase subunit SecE
91	 37.27	0	104269..104802	+	177	49183130	nusG	BAS0096	-	transcription antitermination protein NusG
92	 42.96	+2	104970..105395	+	141	49183131	rplK	BAS0097	-	50S ribosomal protein L11
93	 40.84	+1	105573..106265	+	230	49183132	rplA	BAS0098	-	50S ribosomal protein L1
94	 41.12	+1	106498..106998	+	166	49183133	rplJ	BAS0099	-	50S ribosomal protein L10
95	 39.17	+1	107066..107425	+	119	49183134	rplL	BAS0100	-	50S ribosomal protein L7/L12
96	 38.50	0	107500..108099	+	199	49183135	-	BAS0101	-	ybxB protein
97	 41.74	+1	108392..111925	+	1177	49183136	rpoB	BAS0102	-	DNA-directed RNA polymerase subunit beta
98	 40.45	+1	111963..115574	+	1203	49183137	-	BAS0103	-	DNA-directed RNA polymerase subunit beta'
99	 36.88	0	115655..115936	+	93	49183138	-	BAS0104	-	hypothetical protein
100	 40.43	+1	116051..116473	+	140	49183139	rpsL	BAS0105	-	30S ribosomal protein S12
35.52	MEAN

3.39	STD DEV
