IslandPath Analysis: Bacillus anthracis str. Ames

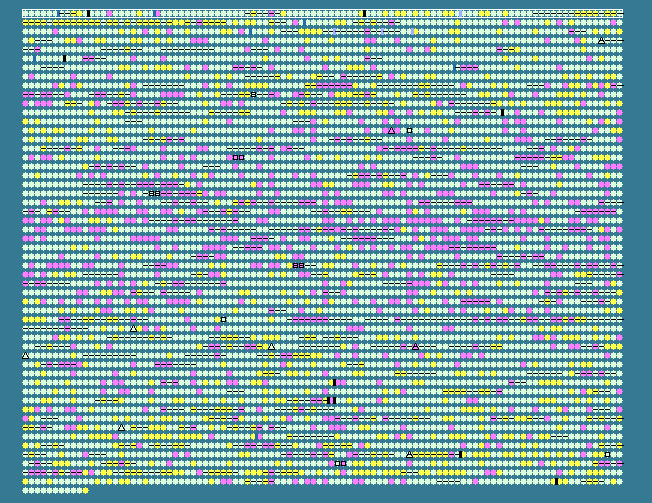

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.42   STD DEV: 3.63
Bacillus anthracis str. Ames, complete genome - 1..5227293
5311 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 35.42	0	407..1747	+	446	30260196	dnaA	BA0001	-	chromosomal replication initiation protein
2	 32.11	0	1926..3065	+	379	30260197	dnaN-1	BA0002	-	DNA polymerase III subunit beta
3	 34.74	0	3193..3405	+	70	30260198	-	BA0003	-	hypothetical protein
4	 34.57	0	3418..4545	+	375	30260199	recF	BA0004	-	recombination protein F
5	 36.92	0	4584..6506	+	640	30260200	gyrB	BA0005	-	DNA gyrase subunit B
6	 36.53	0	6595..9066	+	823	30260201	gyrA	BA0006	-	DNA gyrase subunit A
7	 38.52	0	15468..16931	+	487	30260202	guaB	BA0008	-	inositol-5-monophosphate dehydrogenase
8	 35.09	0	17045..18352	+	435	30260203	dacA	BA0009	-	D-alanyl-D-alanine carboxypeptidase
9	 42.79	+2	18514..19401	+	295	30260204	-	BA0010	-	pyridoxine biosynthesis protein
10	 40.27	+1	19420..20010	+	196	30260205	-	BA0011	-	glutamine amidotransferase subunit PdxT
11	 38.27	0	20338..21612	+	424	30260206	serS	BA0012	-	seryl-tRNA synthetase
12	 34.78	0	21869..22420	+	183	30260207	-	BA0013	-	hypothetical protein
13	 35.87	0	22456..23124	-	222	30260208	-	BA0014	-	deoxynucleoside kinase family protein
14	 34.59	0	23127..23762	-	211	30260209	-	BA0015	-	deoxynucleoside kinase family protein
15	 30.56	-1	23888..24427	-	179	30260210	-	BA0016	-	isochorismatase family protein
16	 32.62	0	24405..24545	+	46	30260211	-	BA0017	-	hypothetical protein
17	 37.72	0	24535..25035	+	166	30260212	-	BA0018	-	cytidine/deoxycytidylate deaminase zinc-binding domain-containing protein
18	 38.90	0	25512..27200	+	562	30260213	dnaX	BA0019	-	DNA polymerase III subunits gamma and tau
19	 36.97	0	27223..27552	+	109	30260214	-	BA0020	-	hypothetical protein
20	 40.03	+1	27567..28163	+	198	30260215	recR	BA0021	-	recombination protein RecR
21	 32.88	0	28178..28399	+	73	30260216	-	BA0022	-	hypothetical protein
22	 32.22	0	28614..28883	+	89	30260217	bofA	BA0024	-	sigma-k factor processing regulatory protein BofA
23	 25.56	-2	34303..34482	+	59	30260218	-	BA0025	-	csfB protein, putative
24	 35.09	0	34554..35975	+	473	30260219	cad-1	BA0026	-	lysine decarboxylase
25	 36.04	0	35977..36603	+	208	30260220	tdk	BA0027	-	thymidylate kinase
26	 36.99	0	36639..37622	+	327	30260221	holB	BA0028	-	DNA polymerase III subunit delta'
27	 36.44	0	37619..38455	+	278	30260222	-	BA0029	-	hypothetical protein
28	 32.19	0	38470..38820	+	116	30260223	-	BA0030	-	DNA replication intiation control protein YabA
29	 34.41	0	38941..39681	+	246	30260224	-	BA0031	-	hypothetical protein
30	 34.02	0	39668..39958	+	96	30260225	-	BA0032	-	GIY-YIG nuclease superfamily protein
31	 34.82	0	39927..40802	+	291	30260226	-	BA0033	-	hypothetical protein
32	 33.68	0	40823..41107	-	94	30260227	abrB	BA0034	-	transition state transcriptional regulatory protein AbrB
33	 36.01	0	41598..43580	+	660	30260228	metG	BA0036	-	methionyl-tRNA synthetase
34	 37.50	0	43746..44513	+	255	30260229	-	BA0037	-	TatD family deoxyribonuclease
35	 37.63	0	44728..45285	+	185	30260230	-	BA0038	-	primase-related protein
36	 36.06	0	45282..46160	+	292	30260231	ksgA	BA0039	-	dimethyladenosine transferase
37	 37.50	0	46271..47134	+	287	30260232	-	BA0040	-	yabG protein
38	 36.78	0	47373..47633	+	86	30260233	-	BA0041	-	veg protein
39	 39.44	+1	47725..47904	+	59	30260234	sspF	BA0042	-	small, acid-soluble spore protein
40	 38.28	0	48101..48970	+	289	30260235	ispE	BA0043	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
41	 36.98	0	49025..49873	+	282	30260236	purR	BA0044	-	purine operon repressor
42	 22.50	-2	49860..49979	+	39	30260237	-	BA0045	-	hypothetical protein
43	 35.47	0	49996..50370	+	124	30260238	-	BA0046	-	endoribonuclease L-PSP, putative
44	 40.82	+1	50523..50816	+	97	30260239	spoVG	BA0047	-	regulatory protein SpoVG
45	 38.33	0	51139..52518	+	459	30260240	gcaD	BA0048	-	UDP-N-acetylglucosamine pyrophosphorylase
46	 37.21	0	52537..53490	+	317	30260241	prs	BA0049	-	ribose-phosphate pyrophosphokinase
47	 34.40	0	53563..54123	+	186	30260242	spoVC	BA0050	-	peptidyl-tRNA hydrolase
48	 32.89	0	54194..54418	+	74	30260243	-	BA0051	-	hypothetical protein
49	 35.74	0	54524..58054	+	1176	30260244	mfd	BA0052	-	transcription-repair coupling factor
50	 36.31	0	58190..58726	+	178	30260245	spoVT	BA0053	-	stage V sporulation protein T
51	 34.83	0	58957..60558	+	533	30260246	-	BA0054	-	stage V sporulation protein B, putative
52	 37.30	0	60571..62031	+	486	30260247	-	BA0055	-	tetrapyrrole methylase family protein/MazG family protein
53	 32.61	0	62046..62321	+	91	30260248	-	BA0056	-	S4 domain-containing protein
54	 33.66	0	62380..62688	+	102	30260249	-	BA0057	-	yabP protein
55	 32.42	0	62685..63338	+	217	30260250	-	BA0058	-	hypothetical protein
56	 33.61	0	63335..63694	+	119	30260251	divIC-1	BA0059	-	cell division protein DivIC
57	 42.44	+1	63782..64264	+	160	30260252	-	BA0060	-	hypothetical protein
58	 36.91	0	64936..67314	+	792	30260253	spoIIE	BA0061	-	stage II sporulation protein E
59	 36.48	0	67548..68978	+	476	30260254	-	BA0062	-	hypothetical protein
60	 34.81	0	68975..69517	+	180	30260255	hpt-1	BA0063	-	hypoxanthine-guanine phosphoribosyltransferase
61	 40.12	+1	69603..71504	+	633	30260256	ftsH	BA0064	-	cell division protein FtsH
62	 38.28	0	71729..72517	+	262	30260257	-	BA0065	-	pantothenate kinase
63	 39.84	+1	72524..73399	+	291	30260258	hslO	BA0066	-	Hsp33-like chaperonin
64	 39.83	+1	73504..74427	+	307	30260259	cysK-1	BA0067	-	cysteine synthase A
65	 38.20	0	74648..76045	+	465	30260260	pabB	BA0068	-	para-aminobenzoate synthase component I
66	 39.63	+1	76051..76638	+	195	30260261	pabA-1	BA0069	-	para-aminobenzoate/anthranilate synthase glutamine amidotransferase component II
67	 35.05	0	76632..77504	+	290	30260262	pabC	BA0070	-	4-amino-4-deoxychorismate lyase
68	 39.15	+1	77497..78339	+	280	30260263	folP	BA0071	-	dihydropteroate synthase
69	 36.64	0	78340..78702	+	120	30260264	folB	BA0072	-	dihydroneopterin aldolase
70	 34.11	0	78699..79214	+	171	30260265	folK	BA0073	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
71	 39.22	+1	79166..79369	+	67	30260266	-	BA0074	-	DNA-binding protein
72	 39.38	+1	79417..80391	+	324	30260267	-	BA0075	-	NifR3 family TIM-barrel protein
73	 36.73	0	80551..82050	+	499	30260268	lysS	BA0076	-	lysyl-tRNA synthetase
74	 33.33	0	87415..87876	+	153	30260269	ctsR	BA0077	-	transcriptional regulator CtsR
75	 35.34	0	88050..88598	+	182	30260270	-	BA0078	-	hypothetical protein
76	 34.65	0	88603..89667	+	354	30260271	-	BA0079	-	ATP:guanido phosphotransferase
77	 39.12	+1	89690..92125	+	811	30260272	-	BA0080	-	negative regulator of genetic competence ClpC/MecB
78	 39.51	+1	92222..93598	+	458	30260273	radA	BA0081	-	DNA repair protein RadA
79	 37.34	0	93602..94675	+	357	30260274	-	BA0082	-	DNA integrity scanning protein DisA
80	 35.05	0	94836..95945	+	369	30260275	-	BA0083	-	hypothetical protein
81	 39.35	+1	95962..96642	+	226	30260276	ispD	BA0084	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
82	 37.95	0	96757..97233	+	158	30260277	ispF	BA0085	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
83	 37.11	0	97323..98780	+	485	30260278	gltX	BA0086	-	glutamyl-tRNA synthetase
84	 37.39	0	99213..99878	+	221	30260279	cysE	BA0088	-	serine O-acetyltransferase
85	 36.77	0	99859..101256	+	465	30260280	cysS	BA0089	-	cysteinyl-tRNA synthetase
86	 38.24	0	101259..101666	+	135	30260281	-	BA0090	-	hypothetical protein
87	 37.50	0	101663..102406	+	247	30260282	-	BA0091	-	RNA methyltransferase
88	 37.62	0	102410..102922	+	170	30260283	-	BA0092	-	hypothetical protein
89	 35.92	0	102990..103646	+	218	30260284	sigH	BA0093	-	RNA polymerase factor sigma-70
90	 33.33	0	103778..103924	+	48	30260285	rpmG	BA0094	-	50S ribosomal protein L33
91	 37.78	0	103957..104136	+	59	30260286	secE	BA0095	-	preprotein translocase subunit SecE
92	 37.27	0	104268..104801	+	177	30260287	nusG	BA0096	-	transcription antitermination protein NusG
93	 42.96	+2	104969..105394	+	141	30260288	rplK	BA0097	-	50S ribosomal protein L11
94	 40.84	+1	105572..106264	+	230	30260289	rplA	BA0098	-	50S ribosomal protein L1
95	 41.12	+1	106497..106997	+	166	30260290	rplJ	BA0099	-	50S ribosomal protein L10
96	 39.17	+1	107065..107424	+	119	30260291	rplL	BA0100	-	50S ribosomal protein L7/L12
97	 38.50	0	107499..108098	+	199	30260292	-	BA0101	-	ybxB protein
98	 41.74	+1	108391..111924	+	1177	30260293	rpoB	BA0102	-	DNA-directed RNA polymerase subunit beta
99	 40.61	+1	111989..115573	+	1194	30260294	rpoC	BA0103	-	DNA-directed RNA polymerase subunit beta'
100	 36.55	0	115687..115935	+	82	30260295	-	BA0104	-	hypothetical protein
35.42	MEAN

3.63	STD DEV
