IslandPath Analysis: Vibrio parahaemolyticus RIMD 2210633 chromosome II

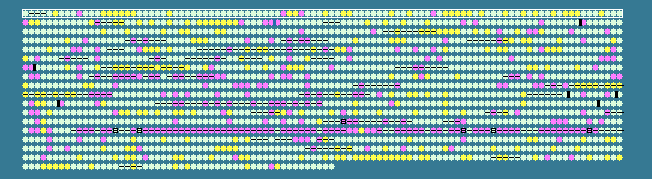

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 45.47   STD DEV: 3.83
Vibrio parahaemolyticus RIMD 2210633 chromosome II, complete sequence - 0..1877212
1752 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 46.58        1150..3120     	 +	656	28899856	-	VPA0001	-	conserved hypothetical protein
2	 43.74        3409..3879     	 -	156	28899857	-	VPA0002	-	hypothetical protein
3	 48.45        3876..4808     	 -	310	28899858	-	VPA0003	-	peptide ABC transporter, ATP-binding protein
4	 47.76        4805..5698     	 -	297	28899859	-	VPA0004	-	peptide ABC transporter, ATP-binding protein
5	 45.27        6022..6222     	 +	66	28899860	-	VPA0005	-	hypothetical protein
6	 49.59 +1     6422..7528     	 +	368	28899861	-	VPA0006	-	GTP cyclohydrolase II
7	 43.75        7497..7592     	 +	31	28899862	-	VPA0007	-	hypothetical protein
8	 44.97        7634..8389     	 -	251	28899863	-	VPA0008	-	putative amino acid ABC transporter, periplasmic amino acid-binding portion
9	 48.13        8458..10356    	 +	632	28899864	-	VPA0009	-	putative two-component sensor
10	 41.90       10458..10667    	 +	69	28899865	-	VPA0010	-	hypothetical protein
11	 45.19       10802..11518    	 +	238	28899866	-	VPA0011	-	conserved hypothetical protein
12	 47.28       11595..12677    	 -	360	28899867	-	VPA0012	-	rod shape-determining protein RodA
13	 43.56       12773..13075    	 +	100	28899868	-	VPA0013	-	hypothetical protein
14	 49.33 +1    13135..13803    	 +	222	28899869	-	VPA0014	-	hypothetical protein
15	 49.46 +1    13786..13878    	 -	30	28899870	-	VPA0016	-	hypothetical protein
16	 51.07 +1    13813..14511    	 +	232	28899871	-	VPA0015	-	ABC transporter, ATP-binding protein
17	 49.65 +1    14499..15767    	 +	422	28899872	-	VPA0017	-	conserved hypothetical protein
18	 49.87 +1    15760..16533    	 +	257	28899873	-	VPA0018	-	hypothetical protein
19	 49.22       16566..17906    	 +	446	28899874	-	VPA0019	-	hypothetical protein
20	 46.80       17907..18938    	 +	343	28899875	-	VPA0020	-	conserved hypothetical protein
21	 46.72       18940..19731    	 +	263	28899876	-	VPA0021	-	response regulator
22	 46.23       19809..20444    	 +	211	28899877	-	VPA0022	-	hypothetical protein
23	 47.68       20547..21041    	 -	164	28899878	-	VPA0023	-	peptidyl-prolyl cis-trans isomerase B
24	 48.86       21160..22821    	 -	553	28899879	-	VPA0024	-	methyl-accepting chemotaxis protein
25	 50.13 +1    23001..23387    	 -	128	28899880	-	VPA0025	-	hypothetical protein
26	 46.14       23389..24216    	 -	275	28899881	-	VPA0026	-	hypothetical protein
27	 45.93       24113..24247    	 -	44	28899882	-	VPA0027	-	hypothetical protein
28	 46.17       24466..25104    	 +	212	28899883	-	VPA0028	-	antibiotic acetyltransferase
29	 43.26       25171..25311    	 +	46	28899884	-	VPA0029	-	hypothetical protein
30	 46.79       25362..25517    	 +	51	28899885	-	VPA0030	-	hypothetical protein
31	 46.52       25649..26884    	 +	411	28899886	-	VPA0031	-	sodium/glutamate symporter
32	 48.68       26983..27816    	 -	277	28899887	-	VPA0032	-	putative membrane protein
33	 48.37       27813..28670    	 -	285	28899888	-	VPA0033	-	putative ABC transporter ATP-binding protein
34	 46.19       28667..29047    	 -	126	28899889	-	VPA0034	-	putative transcriptional regulator, GntR family
35	 46.62       29473..30699    	 +	408	28899890	-	VPA0035	-	sodium/glutamate symporter
36	 47.06       30877..31743    	 +	288	28899891	-	VPA0036	-	hypothetical protein
37	 42.98       31787..31900    	 +	37	28899892	-	VPA0037	-	hypothetical protein
38	 45.69       31871..32671    	 -	266	28899893	-	VPA0038	-	glucosamine-6-phosphate isomerase
39	 45.24       33057..33308    	 +	83	28899894	-	VPA0039	-	conserved hypothetical protein
40	 44.92       33460..33813    	 -	117	28899895	-	VPA0040	-	conserved hypothetical protein
41	 46.11       33962..34861    	 +	299	28899896	-	VPA0041	-	transcriptional regulator, LysR family
42	 46.84       34981..35676    	 -	231	28899897	-	VPA0042	-	hypothetical protein
43	 47.97       35698..36141    	 -	147	28899898	-	VPA0043	-	conserved hypothetical protein
44	 39.01 -1    36354..36494    	 -	46	28899899	-	VPA0044	-	hypothetical protein
45	 49.71 +1    36875..38242    	 +	455	28899900	-	VPA0045	-	ada regulatory protein
46	 49.69 +1    38239..38721    	 +	160	28899901	-	VPA0046	-	methylated-DNA-protein-cysteine S-methyltransferase
47	 39.47 -1    38718..38831    	 -	37	28899902	-	VPA0048	-	hypothetical protein
48	 48.72       38821..39639    	 +	272	28899903	-	VPA0047	-	hypothetical protein
49	 47.62       39723..40331    	 -	202	28899904	-	VPA0049	-	conserved hypothetical protein
50	 46.46       40533..40928    	 +	131	28899905	-	VPA0050	-	putative inner membrane protein
51	 50.79 +1    40956..42221    	 -	421	28899906	-	VPA0051	-	NhaD
52	 46.69       42797..43822    	 -	341	28899907	-	VPA0052	-	hypothetical protein
53	 44.33       44076..44666    	 +	196	28899908	-	VPA0053	-	putative transcription regulator protein
54	 49.65 +1    44787..45644    	 +	285	28899909	-	VPA0054	-	hypothetical protein
55	 49.43 +1    45762..48308    	 -	848	28899910	-	VPA0055	-	chitinase
56	 46.03       48678..49181    	 -	167	28899911	-	VPA0056	-	hypothetical protein
57	 47.72       49506..49790    	 +	94	28899912	-	VPA0057	-	conserved hypothetical protein
58	 48.23       49961..50242    	 +	93	28899913	-	VPA0058	-	hypothetical protein
59	 46.29       50262..51419    	 -	385	28899914	-	VPA0059	-	GGDEF family protein
60	 42.74       51666..51782    	 +	38	28899915	-	VPA0060	-	lysis protein - phage PP7
61	 48.40       51995..53335    	 +	446	28899916	-	VPA0061	-	hypothetical membrane protein
62	 49.23       53424..55103    	 -	559	28899917	-	VPA0062	-	putative ribosomal large chain pseudouridine synthase A
63	 47.83       55221..55841    	 -	206	28899918	-	VPA0063	-	hypothetical protein
64	 48.79       55835..56701    	 -	288	28899919	-	VPA0064	-	hypothetical protein
65	 49.44 +1    56828..57715    	 +	295	28899920	-	VPA0065	-	putative LysR-family transcriptional regulatory protein
66	 47.76       57811..58614    	 +	267	28899921	-	VPA0066	-	hypothetical protein
67	 48.64       58723..59127    	 -	134	28899922	-	VPA0067	-	hypothetical protein
68	 42.77       59137..60228    	 -	363	28899923	-	VPA0068	-	GGDEF family protein
69	 40.48 -1    60228..60689    	 -	153	28899924	-	VPA0069	-	hypothetical protein
70	 47.02       61135..61974    	 -	279	28899925	-	VPA0070	-	putative esterase
71	 49.70 +1    62036..63184    	 -	382	28899926	-	VPA0071	-	putative alcohol dehydrogenase
72	 49.81 +1    63478..64284    	 +	268	28899927	-	VPA0072	-	putative N-hydroxyarylamine O-acetyltransferase
73	 51.38 +1    64365..65234    	 +	289	28899928	-	VPA0073	-	putative transcriptional regulator
74	 48.95       65235..65945    	 -	236	28899929	-	VPA0074	-	putative DNA polymerase III, epsilon subunit
75	 49.28       65948..67816    	 -	622	28899930	-	VPA0075	-	hypothetical protein
76	 45.49       67900..68697    	 -	265	28899931	-	VPA0076	-	putative regulator
77	 49.34 +1    68938..69699    	 +	253	28899932	-	VPA0077	-	2-deoxy-D-gluconate 3-dehydrogenase
78	 45.14       69718..70242    	 +	174	28899933	-	VPA0078	-	putative membrane protein
79	 45.48       70250..70570    	 +	106	28899934	-	VPA0079	-	putative pectin degradation protein (sugar phosphate isomerase family)
80	 47.48       70611..71246    	 +	211	28899935	-	VPA0080	-	putative sugar-phosphate isomerase
81	 50.88 +1    71323..72234    	 +	303	28899936	-	VPA0081	-	hypothetical protein
82	 48.71       72333..73262    	 +	309	28899937	-	VPA0082	-	putative 2-dehydro-3-deoxygluconokinase
83	 48.56       73274..73897    	 +	207	28899938	-	VPA0083	-	4-hydroxy-2-oxoglutarate aldolase/2-deydro-3-deoxyphosphogluconate aldolase
84	 49.94 +1    74083..75822    	 -	579	28899939	-	VPA0084	-	putative transporter protein
85	 47.35       75952..76629    	 +	225	28899940	-	VPA0085	-	putative exported protein
86	 51.19 +1    76645..78873    	 +	742	28899941	-	VPA0086	-	putative exopolygalacturonate lyase
87	 48.84       79174..80946    	 +	590	28899942	-	VPA0087	-	putative transporter
88	 46.19       81003..82169    	 +	388	28899943	-	VPA0088	-	oligogalacturonate lyase
89	 50.39 +1    82256..83029    	 -	257	28899944	-	VPA0089	-	putative siderophore utilization protein
90	 48.38       83209..83793    	 -	194	28899945	-	VPA0090	-	conserved hypothetical protein
91	 49.21       83908..84348    	 +	146	28899946	-	VPA0091	-	transcriptional regulator, AsnC family
92	 49.45 +1    84564..85742    	 +	392	28899947	-	VPA0092	-	spindolin-related protein
93	 49.11       85859..86479    	 -	206	28899948	-	VPA0093	-	hypothetical protein
94	 47.76       86518..86829    	 -	103	28899949	-	VPA0094	-	hypothetical protein
95	 45.31       86839..87489    	 -	216	28899950	-	VPA0095	-	hypothetical protein
96	 43.57       87986..88630    	 +	214	28899951	-	VPA0096	-	outer membrane protein OmpW
97	 49.71 +1    88863..89888    	 +	341	28899952	-	VPA0097	-	putative secretion protein
98	 48.83       89885..91375    	 +	496	28899953	-	VPA0098	-	putative efflux pump protein
99	 46.34       91472..91717    	 -	81	28899954	-	VPA0099	-	hypothetical protein
100	 47.41       91898..93034    	 +	378	28899955	-	VPA0100	-	conserved hypothetical protein


 45.47 MEAN

 3.83  STD DEV
