IslandPathversion 1.0

IslandPath Analysis: Vibrio cholerae chromosome II

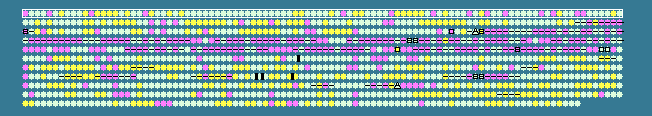

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae chromosome II, complete chromosome - 0..1072315
1093 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 39.26 -1      112..246      	 -	44	15600772	VCA0001	VCA0001	-	hypothetical protein
2	 46.43        1134..3110     	 +	658	15600773	VCA0002	VCA0002	-	hypothetical protein
3	 46.83        3330..3944     	 -	204	15600774	VCA0003	VCA0003	-	hypothetical protein
4	 44.95        4154..4351     	 +	65	15600775	VCA0004	VCA0004	-	hypothetical protein
5	 41.94        4445..4723     	 +	92	15600776	VCA0005	VCA0005	-	hypothetical protein
6	 47.36        4811..5530     	 +	239	15600777	VCA0006	VCA0006	S	conserved hypothetical protein
7	 51.05 +1     5573..6520     	 +	315	15600778	VCA0007	VCA0007	I	3-hydroxyisobutyrate dehydrogenase, putative
8	 48.38        6624..8285     	 -	553	15600779	VCA0008	VCA0008	N	methyl-accepting chemotaxis protein
9	 42.56        8288..8482     	 +	64	15600780	VCA0009	VCA0009	-	hypothetical protein
10	 44.98        8482..8919     	 +	145	15600781	VCA0010	VCA0010	-	conserved hypothetical protein
11	 50.58        8986..11751    	 -	921	15600782	VCA0011	VCA0011	K	malT regulatory protein
12	 35.48 -2    11903..11995    	 +	30	15600783	VCA0012	VCA0012	-	hypothetical protein
13	 52.49 +1    12271..14724    	 +	817	15600784	VCA0013	VCA0013	G	maltodextrin phosphorylase
14	 52.09 +1    14810..16990    	 +	726	15600785	VCA0014	VCA0014	G	4-alpha-glucanotransferase
15	 52.38 +1    17196..17426    	 +	76	15600786	VCA0015	VCA0015	-	hypothetical protein
16	 50.57       17386..19386    	 +	666	15600787	VCA0016	VCA0016	G	1,4-alpha-glucan branching enzyme
17	 49.13       19781..20299    	 +	172	15600788	VCA0017	VCA0017	R	hcp protein
18	 53.14 +1    20427..22511    	 +	694	15600789	VCA0018	VCA0018	S	vgrG protein
19	 46.73       22511..23398    	 +	295	15600790	VCA0019	VCA0019	-	hypothetical protein
20	 46.38       23395..26652    	 +	1085	15600791	VCA0020	VCA0020	-	hypothetical protein
21	 41.43       26653..27381    	 +	242	15600792	VCA0021	VCA0021	-	hypothetical protein
22	 50.00       27484..27885    	 +	133	15600793	VCA0022	VCA0022	R	glutathione S-transfersae-related protein
23	 46.88       28058..29098    	 -	346	15600794	VCA0023	VCA0023	S	hypothetical protein
24	 47.53       29214..30206    	 -	330	15600795	VCA0024	VCA0024	R	conserved hypothetical protein
25	 49.46       30484..31872    	 +	462	15600796	VCA0025	VCA0025	P	transporter, NadC family
26	 45.60       31968..32603    	 -	211	15600797	VCA0026	VCA0026	S	conserved hypothetical protein
27	 49.53       33035..35584    	 +	849	15600798	VCA0027	VCA0027	G	chitinase
28	 45.10       35606..35860    	 -	84	15600799	VCA0028	VCA0028	-	hypothetical protein
29	 47.89       35950..36684    	 +	244	15600800	VCA0029	VCA0029	K	transcriptional regulator, putative
30	 46.14       36685..37527    	 +	280	15600801	VCA0030	VCA0030	-	hypothetical protein
31	 45.53       37648..39213    	 -	521	15600802	VCA0031	VCA0031	N	methyl-accepting chemotaxis protein
32	 44.21       39311..39871    	 -	186	15600803	VCA0032	VCA0032	-	hypothetical protein
33	 48.53       40280..42154    	 +	624	15600804	VCA0033	VCA0033	R	hypothetical protein
34	 46.85       42214..43086    	 -	290	15600805	VCA0034	VCA0034	T	conserved hypothetical protein
35	 47.52       43202..44026    	 +	274	15600806	VCA0035	VCA0035	I	phosphatidylglycerophosphatase B, putative
36	 48.85       44080..45297    	 -	405	15600807	VCA0036	VCA0036	E	sodium/dicarboxylate symporter
37	 47.24       45638..46090    	 -	150	15600808	VCA0037	VCA0037	S	conserved hypothetical protein
38	 45.70       46104..46685    	 -	193	15600809	VCA0038	VCA0038	R	Sco1-related protein
39	 49.41       46682..47104    	 -	140	15600810	VCA0039	VCA0039	-	hypothetical protein
40	 48.11       47303..48229    	 -	308	15600811	VCA0040	VCA0040	S	conserved hypothetical protein
41	 46.13       48768..49994    	 +	408	15600812	VCA0041	VCA0041	E	sodium/glutamate symporter
42	 46.64       50073..50831    	 -	252	15600813	VCA0042	VCA0042	-	hypothetical protein
43	 48.42       50963..51247    	 +	94	15600814	VCA0043	VCA0043	R	conserved hypothetical protein
44	 48.95       51480..53624    	 +	714	15600815	VCA0044	VCA0044	-	hypothetical protein
45	 48.44       53551..54735    	 +	394	15600816	VCA0045	VCA0045	M	protease-related protein
46	 50.41       54727..54849    	 -	40	15600817	VCA0046	VCA0046	-	hypothetical protein
47	 49.51       54930..56060    	 -	376	15600818	VCA0047	VCA0047	Q	conserved hypothetical protein
48	 43.33       56060..56449    	 -	129	15600819	VCA0048	VCA0048	-	conserved hypothetical protein
49	 47.05       56584..57465    	 -	293	15600820	VCA0049	VCA0049	T	GGDEF family protein
50	 49.38       57462..58190    	 -	242	15600821	VCA0050	VCA0050	-	hypothetical protein
51	 48.69       58144..59667    	 -	507	15600822	VCA0051	VCA0051	-	hypothetical protein
52	 49.84       59786..61348    	 -	520	15600823	VCA0052	VCA0052	-	hypothetical protein
53	 47.43       61320..62057    	 -	245	15600824	VCA0053	VCA0053	F	purine nucleoside phosphorylase
54	 35.56 -2    62116..62295    	 -	59	15600825	VCA0054	VCA0054	-	hypothetical protein
55	 47.88       62337..63305    	 +	322	15600826	VCA0055	VCA0055	S	conserved hypothetical protein
56	 51.00 +1    63295..64092    	 +	265	15600827	VCA0056	VCA0056	K	transcriptional regulator, MerR family
57	 50.78 +1    64102..65511    	 +	469	15600828	VCA0057	VCA0057	L	deoxyribodipyrimidine photolyase
58	 47.88       65520..66440    	 +	306	15600829	VCA0058	VCA0058	S	conserved hypothetical protein
59	 45.00       66526..66885    	 -	119	15600830	VCA0059	VCA0059	-	major outer membrane lipoprotein
60	 44.07       67082..67258    	 +	58	15600831	VCA0060	VCA0060	-	hypothetical protein
61	 47.98       67304..68662    	 +	452	15600832	VCA0061	VCA0061	L	ATP-dependent RNA helicase, DEAD box family
62	 42.34       68659..68769    	 -	36	15600833	VCA0062	VCA0062	-	hypothetical protein
63	 51.05 +1    68875..70872    	 +	665	15600834	VCA0063	VCA0063	E	protease II
64	 50.56       70872..73013    	 +	713	15600835	VCA0064	VCA0064	P	TonB system receptor, putative
65	 50.33       73023..75329    	 +	768	15600836	VCA0065	VCA0065	-	hypothetical protein
66	 50.59       75326..76768    	 +	480	15600837	VCA0066	VCA0066	-	hypothetical protein
67	 52.41 +1    76765..77325    	 +	186	15600838	VCA0067	VCA0067	-	hypothetical protein
68	 48.48       77459..79102    	 -	547	15600839	VCA0068	VCA0068	N	methyl-accepting chemotaxis protein
69	 38.38 -1    79249..79347    	 +	32	15600840	VCA0069	VCA0069	-	hypothetical protein
70	 46.44       79395..80294    	 +	299	15600841	VCA0070	VCA0070	P	phosphate ABC transporter, periplasmic phosphate-binding protein
71	 50.20       80309..81292    	 +	327	15600842	VCA0071	VCA0071	P	phosphate ABC transporter, permease protein
72	 48.16       81292..82161    	 +	289	15600843	VCA0072	VCA0072	P	phosphate ABC transporter, permease protein
73	 47.62       82190..82945    	 +	251	15600844	VCA0073	VCA0073	P	phosphate ABC transporter, ATP-binding protein
74	 45.14       82992..84092    	 -	366	15600845	VCA0074	VCA0074	T	GGDEF family protein
75	 41.88       84089..84556    	 -	155	15600846	VCA0075	VCA0075	S	hypothetical protein
76	 48.95       84847..86223    	 -	458	15600847	VCA0076	VCA0076	S	conserved hypothetical protein
77	 49.58       86658..88319    	 -	553	15600848	VCA0077	VCA0077	P	sulfate permease family protein
78	 40.84 -1    88624..88956    	 +	110	15600849	VCA0078	VCA0078	-	hypothetical protein
79	 47.80       89148..90440    	 +	430	15600850	VCA0079	VCA0079	M	conserved hypothetical protein
80	 42.65       90558..92381    	 -	607	15600851	VCA0080	VCA0080	T	GGDEF family protein
81	 36.19 -2    92442..92546    	 +	34	15600852	VCA0081	VCA0081	-	hypothetical protein
82	 48.87       92604..93491    	 -	295	15600853	VCA0082	VCA0082	K	transcriptional regulator, LysR family
83	 48.84       93581..94792    	 +	403	15600854	VCA0083	VCA0083	G	multidrug resistance protein D
84	 47.43       94834..95280    	 -	148	15600855	VCA0084	VCA0084	K	soxR protein
85	 46.63       95459..96661    	 +	400	15600856	VCA0085	VCA0085	-	hypothetical protein
86	 45.67       96762..97142    	 +	126	15600857	VCA0086	VCA0086	-	hypothetical protein
87	 38.18 -1    97216..97380    	 +	54	15600858	VCA0087	VCA0087	-	hypothetical protein
88	 49.41       97546..98820    	 -	424	15600859	VCA0088	VCA0088	C	proton/glutamate symporter
89	 37.98 -1    98848..98976    	 +	42	15600860	VCA0089	VCA0089	-	hypothetical protein
90	 51.34 +1    99076..99969    	 -	297	15600861	VCA0090	VCA0090	G	conserved hypothetical protein
91	 46.13      100199..100495   	 +	98	15600862	VCA0091	VCA0091	R	conserved hypothetical protein
92	 45.40      100666..101295   	 -	209	15600863	VCA0092	VCA0092	-	hypothetical protein
93	 41.38      101395..101568   	 +	57	15600864	VCA0093	VCA0093	-	hypothetical protein
94	 42.02      101796..102152   	 +	118	15600865	VCA0094	VCA0094	K	conserved hypothetical protein
95	 47.07      102421..103119   	 +	232	15600866	VCA0095	VCA0095	-	hypothetical protein
96	 46.41      103162..104385   	 +	407	15600867	VCA0096	VCA0096	-	hypothetical protein
97	 49.09      104398..105114   	 -	238	15600868	VCA0097	VCA0097	F	conserved hypothetical protein
98	 47.78      105513..106820   	 +	435	15600869	VCA0098	VCA0098	H	nicotinate phosphoribosyltransferase
99	 49.76      106851..107891   	 +	346	15600870	VCA0099	VCA0099	R	oxidoreductase, Gfo/Idh/MocA family
100	 49.19      107928..108299   	 -	123	15600871	VCA0100	VCA0100	P	phage shock protein E


 45.97 MEAN

 4.79  STD DEV
