IslandPath Analysis: Thermoplasma volcanium

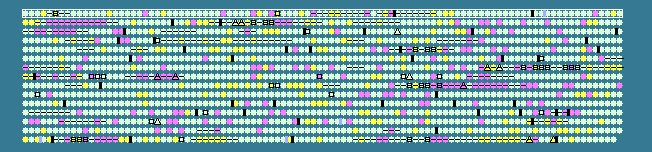

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.87   STD DEV: 3.44
Thermoplasma volcanium, complete genome - 0..1584804
1499 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 40.90         110..1192     	 +	360	13540832	-	TVN0001	R	Predicted GTPase
2	 41.19        1433..3442     	 +	669	13540833	-	TVN0002	C	Formate dehydrogenase, alpha subunit
3	 41.04        3439..4359     	 +	306	13540834	-	TVN0003	C	Ferredoxin subunit of sulfhydrogenase II
4	 44.90 +1     4397..5131     	 +	244	13540835	-	TVN0004	H	Anaerobic sulfite reduction protein B
5	 39.90        5588..7018     	 +	476	13540836	-	TVN0005	G	Phosphate transport permease
6	 45.34 +1     7048..7455     	 -	135	13540837	-	TVN0006	L	Predicted inactivated transposase
7	 40.18        7691..8143     	 +	150	13540838	-	TVN0007	J	30S ribosomal protein S16A
8	 38.40        8127..8501     	 +	124	13540839	-	TVN0008	R	DNA-binding protein
9	 44.23        8498..8653     	 +	51	13540840	-	TVN0009	J	50S ribosomal protein L39E
10	 37.41 -1     8663..8932     	 +	89	13540841	-	TVN0010	J	50S ribosomal protein L31E
11	 40.94        8973..9629     	 +	218	13540842	-	TVN0011	J	Translation initiation factor 6 (EIF6)
12	 43.71        9630..10130    	 -	166	13540843	-	TVN0012	F	Orotate phosphoribosyltransferase
13	 40.22       10229..12073    	 +	614	13540844	-	TVN0013	L	Rad3-related DNA helicase
14	 43.20       12192..12647    	 +	151	13540845	-	TVN0014	R	N-terminal acetyltransferase complex, Ard1 subunit
15	 44.47 +1    12665..13867    	 -	400	13540846	-	TVN0015	S	Uncharacterized conserved protein
16	 41.09       14001..15470    	 +	489	13540847	-	TVN0016	F	AICAR transformylase/IMP cyclohydrolase
17	 41.80       15475..16230    	 -	251	13540848	-	TVN0017	I	Enoyl-CoA hydratase
18	 38.59       16337..17173    	 -	278	13540849	-	TVN0018	S	Uncharacterized conserved protein
19	 43.49       17184..19496    	 -	770	13540850	-	TVN0019	L	DNA topoisomerase IA
20	 41.39       19502..19774    	 -	90	13540851	-	TVN0020	C	Acylphosphatase
21	 36.17 -1    19869..21347    	 -	492	13540852	-	TVN0021	R	Predicted permease
22	 41.28       21463..22242    	 -	259	13540853	-	TVN0022	Q	ABC-type multidrug transport system, ATPase component
23	 40.06       22763..23743    	 -	326	13540854	-	TVN0023	S	Uncharacterized conserved membrane protein
24	 44.96 +1    23909..25258    	 +	449	13540855	-	TVN0024	E	L-2, 4-diaminobutyrate:2-ketoglutarate 4-aminotransferase
25	 43.08       25269..25781    	 -	170	13540856	-	TVN0025	-	Uncharacterized conserved protein
26	 39.90       25913..26689    	 -	258	13540857	-	TVN0026	D	Arsenite transporting ATPase
27	 42.83       26800..27936    	 +	378	13540858	-	TVN0027	D	Cell division GTPase
28	 41.26       28471..29151    	 +	226	13540859	-	TVN0028	F	Orotidine-5'-phosphate decarboxylase
29	 41.27       29176..29868    	 +	230	13540860	-	TVN0029	N	Secreted serine protease (ClpP class)
30	 37.94       29865..30797    	 -	310	13540861	-	TVN0030	H	Cobalamin biosynthesis protein CobD/CbiB
31	 39.94       30868..32274    	 -	468	13540862	-	TVN0031	H	Cobyric acid synthase
32	 41.55       32497..34869    	 +	790	13540863	-	TVN0032	J	Valyl-tRNA synthetase
33	 42.02       35198..36820    	 +	540	13540864	-	TVN0033	F	CTP synthase
34	 36.67 -1    37710..38039    	 +	109	13540865	-	TVN0034	I	Predicted sterol carrier protein
35	 43.07       38125..41370    	 +	1081	13540866	-	TVN0035	L	DNA polymerase
36	 41.34       41375..42148    	 +	257	13540867	-	TVN0036	R	Predicted GTPase
37	 40.98       42157..42771    	 -	204	13540868	-	TVN0037	S	Uncharacterized conserved protein
38	 40.86       42761..43039    	 -	92	13540869	-	TVN0038	-	Uncharacterized conserved protein
39	 36.65 -1    43106..43618    	 +	170	13540870	-	TVN0039	-	Uncharacterized conserved protein
40	 44.91 +1    43806..44090    	 +	94	13540871	-	TVN0040	S	Uncharacterized ACR
41	 38.50       44114..44713    	 -	199	13540872	-	TVN0041	R	Predicted regulator of amino acid metabolism
42	 37.36 -1    44802..45074    	 -	90	13540873	-	TVN0042	-	Uncharacterized conserved protein
43	 49.71 +2    45165..45689    	 -	174	13540874	-	TVN0043	L	Predicted inactivated transposase
44	 39.23       46243..46971    	 +	242	13540875	-	TVN0044	R	TPR-repeat-containing protein
45	 41.46       46979..47335    	 -	118	13540876	-	TVN0045	-	Uncharacterized conserved protein
46	 41.63       47464..48222    	 +	252	13540877	-	TVN0046	L	Exonuclease III
47	 44.57 +1    48225..49505    	 -	426	13540878	-	TVN0047	E	Glycine hydroxymethyltransferase
48	 42.98       49756..49983    	 +	75	13540879	-	TVN0048	C	Archaeal-type H+-ATPase subunit K
49	 35.48 -1    49989..50546    	 +	185	13540880	-	TVN0049	C	Vacuolar-type H+-ATPase subunit E
50	 40.06       50548..51618    	 +	356	13540881	-	TVN0050	C	Vacuolar-type H+-ATPase subunit
51	 40.32       51620..51934    	 +	104	13540882	-	TVN0051	C	Vacuolar-type H+-ATPase subunit F
52	 44.36 +1    51944..54274    	 +	776	13540883	-	TVN0052	C	Vacuolar-type H+-ATPase, subunit A (contains intein)
53	 45.84 +1    54255..55637    	 +	460	13540884	-	TVN0053	C	Vacuolar-type H+-ATPase, subunit B
54	 42.90       55622..56269    	 +	215	13540885	-	TVN0054	C	Vacuolar-type H+-ATPase subunit D
55	 40.48       56417..56752    	 +	111	13540886	-	TVN0055	C	Archaeal-type H+-ATPase subunit H
56	 41.46       56755..58686    	 +	643	13540887	-	TVN0056	C	Vacuolar-type H+-ATPase subunit I
57	 39.83       58751..59350    	 +	199	13540888	-	TVN0057	H	Predicted glutamine amidotransferase
58	 37.28 -1    59351..60439    	 +	362	13540889	-	TVN0058	E	Aminomethyltransferase (glycine cleavage system T protein)
59	 38.98       60866..61804    	 -	312	13540890	-	TVN0059	M	UDP-glucose 4-epimerase
60	 40.69       61978..62181    	 +	67	13540891	-	TVN0060	-	Predicted nucleic-acid-binding protein (Zn-ribbon)
61	 44.82 +1    62254..62871    	 +	205	13540892	-	TVN0061	P	Superoxide dismutase
62	 36.42 -1    62879..63493    	 +	204	13540893	-	TVN0062	L	8-oxoguanine DNA glycosylase
63	 42.31       63671..64561    	 -	296	13540894	-	TVN0063	P	Phosphate permease
64	 41.98       64561..65125    	 -	188	13540895	-	TVN0064	-	Uncharacterized conserved protein
65	 43.82       65335..65973    	 +	212	13540896	-	TVN0065	S	Integral membrane protein (MarC family)
66	 39.39       65980..66474    	 +	164	13540897	-	TVN0066	J	2'-5' RNA ligase
67	 42.75       66522..67031    	 +	169	13540898	-	TVN0067	-	Predicted membrane protein
68	 41.30       67028..67504    	 -	158	13540899	-	TVN0068	R	Predicted nucleic-acid-binding protein
69	 48.17 +2    67506..68678    	 -	390	13540900	-	TVN0069	I	Acetyl-CoA acetyltransferase
70	 41.67       69015..70322    	 +	435	13540901	-	TVN0070	G	Proline/betaine transport permease
71	 47.00 +1    70571..71521    	 +	316	13540902	-	TVN0071	E	Threonine synthase
72	 45.51 +1    71521..72555    	 +	344	13540903	-	TVN0072	S	Uncharacterized conserved protein
73	 41.68       72606..74006    	 +	466	13540904	-	TVN0073	-	Predicted metal-binding (possibly nucleic-acid-binding) protein containing a PP-loop ATPase domain
74	 44.31 +1    74056..75057    	 +	333	13540905	-	TVN0074	G	D-mannonate dehydratase
75	 43.38       75046..75831    	 -	261	13540906	-	TVN0075	Q	Predicted dehydrogenase (short-chain alcohol dehydrogenase family)
76	 42.83       75867..76361    	 -	164	13540907	-	TVN0076	S	Uncharacterized conserved protein
77	 43.06       76358..77128    	 -	256	13540908	-	TVN0077	S	Uncharacterized conserved protein
78	 39.19       77159..78166    	 -	335	13540909	-	TVN0078	E	Histidinol-phosphate aminotransferase
79	 40.32       78297..79184    	 +	295	13540910	-	TVN0079	S	Uncharacterized conserved protein
80	 40.00       79186..79590    	 +	134	13540911	-	TVN0080	-	Predicted membrane protein
81	 42.78       79558..80637    	 -	359	13540912	-	TVN0081	M	Nucleoside-diphosphate-sugar pyrophosphorylase
82	 38.16       80863..81816    	 -	317	13540913	-	TVN0082	-	Predicted membrane protein
83	 43.57       81827..83194    	 -	455	13540914	-	TVN0083	C	Cytochrome bd-type quinol oxidase, subunit 1
84	 42.23       83526..84143    	 +	205	13540915	-	TVN0084	K	Predicted transcription activator
85	 42.30       84357..84869    	 -	170	13540916	-	TVN0085	-	Predicted membrane protein
86	 40.92       85061..85666    	 +	201	13540917	-	TVN0086	R	Predicted hydrolase (alpha/beta superfamily)
87	 40.82       85663..86076    	 +	137	13540918	-	TVN0087	H	Molybdopterin converting factor, large subunit
88	 44.09       89391..90245    	 -	284	13540919	-	TVN0088	D	ATPase involved in chromosome partitioning
89	 43.89       90326..91936    	 -	536	13540920	-	TVN0089	F	Formyltetrahydrofolate synthetase
90	 40.81       91933..92547    	 -	204	13540921	-	TVN0090	E	Formiminotetrahydrofolate cyclodeaminase
91	 42.02       92631..93539    	 -	302	13540922	-	TVN0091	E	Glutamate formiminotransferase
92	 42.40       93749..96052    	 +	767	13540923	-	TVN0092	F	Ribonucleotide reductase alpha subunit
93	 39.53       96070..96843    	 -	257	13540924	-	TVN0093	R	Predicted metal-dependent hydrolase (beta-lactamase superfamily)
94	 42.10       97142..98920    	 -	592	13540925	-	TVN0094	P	Chloride channel protein
95	 38.39       99129..100097   	 -	322	13540926	-	TVN0095	M	Glycosyltransferase involved in cell wall biogenesis
96	 36.93 -1   100132..100770   	 -	212	13540927	-	TVN0096	H	Uncharacterized conserved protein
97	 42.66      100811..101839   	 -	342	13540928	-	TVN0097	P	Kef-type K+ transport system, predicted NAD-binding component
98	 41.99      102084..102626   	 +	180	13540929	-	TVN0098	S	Uncharacterized conserved protein
99	 45.31 +1   102621..103931   	 -	436	13540930	-	TVN0099	C	Dihydrolipoamide dehydrogenase
100	 43.84      103933..105141   	 -	402	13540931	-	TVN0100	C	Dihydrolipoamide acyltransferase


 40.87 MEAN

 3.44  STD DEV
