IslandPath Analysis: Synechocystis sp PCC6803

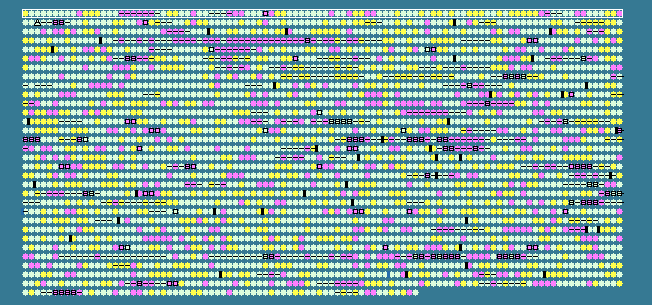

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 48.22   STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 0..3573470
3167 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 50.62         -199..772  	 +	323	16329171	sds	slr0611	H	solanesyl diphosphate synthase
2	 53.23 +1      937..1494     	 +	185	16329172	-	slr0612	J	hypothetical protein
3	 50.77        1577..2098     	 +	173	16329173	-	slr0613	-	unknown protein
4	 49.72        2172..2873     	 -	233	16329174	-	sll0558	-	hypothetical protein
5	 47.08        3192..4268     	 -	358	16329175	-	sll1214	-	PNIL34 or AT103 phytochrome-regulated gene homologue
6	 49.41        4451..5389     	 -	312	16329176	-	sll1213	M	hypothetical protein
7	 49.59        5534..6622     	 -	362	16329177	rfbD	sll1212	M	GDP-D-mannose dehydratase
8	 51.43        7229..8311     	 +	360	16329178	psbA2	slr1311	-	photosystem II D1 protein
9	 46.52        8492..10471    	 +	659	16329179	speA	slr1312	E	arginine decarboxylase
10	 49.15       10622..12631    	 -	669	16329180	lig	sll1209	L	DNA ligase
11	 44.66       12755..13363    	 +	202	16329181	-	slr1315	-	unknown protein
12	 52.03       13498..14529    	 +	343	16329182	fecC	slr1316	P	iron(III) dicitrate transport system permease protein; FecC
13	 53.71 +1    14626..15675    	 +	349	16329183	fecD	slr1317	P	iron(III) dicitrate transport system permease protein; FecD
14	 52.42       15937..16743    	 +	268	16329184	fecE	slr1318	P	iron(III) dicitrate transport system permease protein; FecE
15	 48.21       16740..17687    	 +	315	16329185	fecB	slr1319	P	iron(III) dicitrate transport system permease protein; FecB
16	 51.64       17853..20408    	 -	851	16329186	iutA	sll1206	P	ferric aerobactin receptor
17	 49.44       20615..21595    	 -	326	16329187	pchR	sll1205	K	regulatory protein; PchR
18	 38.40 -1    21838..23121    	 -	427	16329188	-	sll1204	G	hypothetical protein
19	 35.09 -2    23139..24104    	 -	321	16329189	-	sll1203	-	unknown protein
20	 31.61 -2    24101..25144    	 -	347	16329190	-	sll1202	P	unknown protein
21	 39.35 -1    25266..27857    	 -	863	16329191	fhuA	sll1409	P	ferrichrome-iron receptor
22	 33.62 -2    27990..29030    	 -	346	16329192	pcrR	sll1408	K	regulatory protein; PcrR
23	 36.72 -2    29098..29895    	 -	265	16329193	-	sll1407	Q	unknown protein
24	 44.95       29968..32454    	 -	828	16329194	fhuA	sll1406	P	ferrichrome-iron receptor
25	 45.45       32524..32952    	 -	142	16329195	-	sll1405	N	biopolymer transport ExbD protein homologue
26	 52.45       32912..33544    	 -	210	16329196	exbB	sll1404	N	biopolymer transport ExbB protein
27	 56.29 +1    33891..35489    	 +	532	16329197	-	slr1484	-	unknown protein
28	 46.57       35566..36615    	 +	349	16329198	-	slr1485	-	hypothetical protein
29	 50.83       36721..38538    	 +	605	16329199	-	slr1488	Q	ABC transporter
30	 43.10 -1    38644..39636    	 +	330	16329200	pchR	slr1489	K	regulatory protein; PchR
31	 46.45       39802..42363    	 +	853	16329201	fhuA	slr1490	P	ferrichrome-iron receptor
32	 50.25       42405..43397    	 +	330	16329202	fecB	slr1491	P	iron(III) dicitrate-binding periplasmic protein
33	 49.36       43571..44506    	 +	311	16329203	fecB	slr1492	P	iron(III) dicitrate-binding periplasmic protein
34	 46.62       44442..44885    	 +	147	16329204	-	slr1493	-	unknown protein
35	 48.70       44948..46789    	 +	613	16329205	-	slr1494	Q	ABC transporter
36	 34.22 -2    47007..48017    	 -	336	16329206	-	sll1401	-	unknown protein
37	 37.13 -2    48067..48408    	 -	113	16329207	-	sll1400	-	unknown protein
38	 41.13 -1    48405..48635    	 -	76	16329208	-	ssl2733	S	unknown protein
39	 50.41       48663..49868    	 -	401	16329209	-	sll1399	-	hypothetical protein
40	 46.90       49893..50231    	 -	112	16329210	psb13	sll1398	-	photosystem II 13 kD protein
41	 50.85       50246..51895    	 +	549	16329211	-	slr1495	-	unknown protein
42	 36.75 -2    52260..53108    	 -	282	16329212	-	sll1397	L	transposase
43	 41.93 -1    53453..54127    	 -	224	16329213	-	sll1396	-	unknown protein
44	 52.27       54533..55657    	 +	374	16329214	hypD	slr1498	O	hydrogenase isoenzymes formation protein; HypD
45	 52.55       55669..56511    	 -	280	16329215	rfbD	sll1395	M	dTDP-6-deoxy-L-mannose-dehydrogenase
46	 49.78       56556..57224    	 -	222	16329216	msrA	sll1394	O	peptide methionine sulfoxide reductase
47	 48.78       57340..58815    	 -	491	16329217	glgA	sll1393	G	glycogen (starch) synthase
48	 51.47       59039..59650    	 -	203	16329218	-	sll1392	K	hypothetical protein
49	 48.97       59746..60423    	 +	225	16329219	-	slr1501	K	unknown protein
50	 50.75       60524..61522    	 +	332	16329220	-	slr1113	Q	ABC transporter
51	 51.59       61834..63591    	 +	585	16329221	-	slr1114	-	unknown protein
52	 49.61       63588..64361    	 +	257	16329222	-	slr1115	Q	unknown protein
53	 42.53 -1    64393..64914    	 +	173	16329223	-	slr1116	S	unknown protein
54	 44.75       64987..65748    	 +	253	16329224	-	slr1117	Q	unknown protein
55	 48.21       65827..67533    	 -	568	16329225	-	sll1064	-	unknown protein
56	 44.44       67606..68361    	 +	251	16329226	rffM	slr1118	M	UDP-N-acetyl-D-mannosaminuronic acid transferase
57	 51.82       68400..69059    	 -	219	16329227	-	sll1063	O	unknown protein
58	 52.42       69284..69985    	 +	233	16329228	-	slr1119	E	unknown protein
59	 36.24 -2    70016..70393    	 -	125	16329229	-	sll1062	-	unknown protein
60	 34.11 -2    70420..70935    	 -	171	16329230	-	sll1061	-	unknown protein
61	 47.24       70944..74042    	 -	1032	16329231	-	sll1060	S	unknown protein
62	 45.24       73978..74229    	 -	83	16329232	-	ssl2069	-	unknown protein
63	 46.88       74498..74785    	 +	95	16329233	-	ssr1853	-	unknown protein
64	 52.10       74995..75804    	 +	269	16329234	hofD	slr1120	N	type 4 prepilin peptidase
65	 49.82       75955..76500    	 -	181	16329235	adk	sll1059	F	adenylate kinase
66	 50.85       76580..77407    	 -	275	16329236	dapB	sll1058	E	dihydrodipicolinate reductase
67	 48.03       77494..77874    	 -	126	16329237	trx	sll1057	O	thioredoxin M
68	 52.96       78467..80800    	 -	777	16329238	purL	sll1056	F	phosphoribosylformyl glycinamidine synthetase II
69	 47.81       80938..81690    	 +	250	16329239	-	slr1122	-	unknown protein
70	 51.77       81696..82259    	 -	187	16329240	-	sll1054	L	hypothetical protein
71	 54.19 +1    82291..83853    	 -	520	16329241	-	sll1053	Q	hypothetical protein
72	 51.56       84122..84697    	 +	191	16329242	gmk	slr1123	F	guanylate kinase
73	 51.90       85058..86107    	 +	349	16329243	gpmB	slr1124	G	phosphoglycerate mutase
74	 48.81       86159..87418    	 +	419	16329244	crtX	slr1125	G	zeaxanthin glucosyl transferase
75	 48.00       87536..87910    	 -	124	16329245	-	sll1052	R	unknown protein
76	 56.74 +1    88017..88661    	 -	214	16329246	cpcF	sll1051	-	phycocyanin alpha phycocyanobilin lyase; CpcF
77	 52.51       88818..90512    	 -	564	16329247	-	sll1049	E	unknown protein
78	 52.27       90620..91411    	 +	263	16329248	-	slr1127	-	unknown protein
79	 47.52       91517..92482    	 +	321	16329249	-	slr1128	O	erthyrocyte band 7 integral membrane protein, protein 7.2B, stomatin
80	 50.81       93128..95152    	 +	674	16329250	rne	slr1129	J	ribonuclease E
81	 52.53       95236..95808    	 +	190	16329251	rhnB	slr1130	L	ribonuclease HII
82	 51.58       95818..96228    	 -	136	16329252	mutT	sll1045	L	mutator MutT protein
83	 53.96 +1    96325..98481    	 -	718	16329253	pnp	sll1043	J	polyribonucleotide nucleotidyltransferase
84	 52.79       98609..99199    	 -	196	16329254	lepB	sll0716	N	leader peptidase I
85	 53.16       99402..100793   	 +	463	16329255	me	slr0721	C	malic enzyme
86	 52.76      100794..101771   	 -	325	16329256	cysM	sll0712	E	cysteine synthase
87	 54.85 +1   101884..102831   	 -	315	16329257	-	sll0711	I	hypothetical protein
88	 30.08 -2   102930..105110   	 -	726	16329258	-	sll0710	-	unknown protein
89	 30.38 -2   105151..106539   	 -	462	16329259	llaI.2	sll0709	L	2nd component required for LlaI restriction activity
90	 47.95      107471..108325   	 -	284	16329260	ksgA	sll0708	J	dimethyladenosine transferase
91	 51.43      108290..109201   	 +	303	16329261	-	slr0722	S	hypothetical protein
92	 50.00      109222..110313   	 +	363	16329262	-	slr0723	-	unknown protein
93	 47.45      110392..110724   	 +	110	16329263	sohA	slr0724	-	HtaR suppressor protein
94	 40.29 -1   110808..111224   	 +	138	16329264	-	slr0725	-	hypothetical protein
95	 31.59 -2   111585..112559   	 +	324	16329265	-	slr0727	-	unknown protein
96	 51.55      113025..114188   	 +	387	16329266	-	slr0728	M	unknown protein
97	 50.33      114319..114624   	 +	101	16329267	-	slr0729	-	unknown protein
98	 49.87      114874..115272   	 +	132	16329268	-	slr0730	-	unknown protein
99	 52.94      115269..116477   	 +	402	16329269	-	slr0731	-	unknown protein
100	 54.51 +1   116518..117693   	 -	391	16329270	nifS	sll0704	E	NifS protein


 48.22 MEAN

 4.98  STD DEV
