IslandPath Analysis: Streptococcus pyogenes

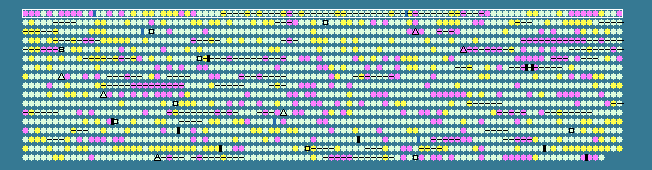

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.64   STD DEV: 3.66
Streptococcus pyogenes, complete genome - 0..1852441
1697 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 33.41 -1      232..1587     	 +	451	15674251	dnaA	SPy0002	L	Chromosomal initiator protein
2	 33.16 -1     1742..2878     	 +	378	15674252	dnaN	SPy0003	L	beta subunit of DNA polymerase III
3	 32.32 -1     2953..3150     	 +	65	15674253	-	SPy0004	-	conserved hypothetical protein
4	 37.19        3480..4595     	 +	371	15674254	-	SPy0006	R	putative GTP-binding protein
5	 31.75 -1     4665..5234     	 +	189	15674255	pth	SPy0007	J	putative peptidyl-tRNA hydrolase
6	 35.39        5237..8740     	 +	1167	15674256	trcF	SPy0008	L	putative transcription-repair coupling factor
7	 30.98 -2     8879..9175     	 +	98	15674257	-	SPy0009	J	conserved hypothetical proteins
8	 26.88 -2     9162..9533     	 +	123	15674258	divIC	SPy0010	-	putative cell division protein (DivIC)
9	 31.55 -1     9668..10954    	 +	428	15674259	-	SPy0012	-	hypothetical protein
10	 28.44 -2    10951..12237    	 +	428	15674260	-	SPy0013	D	putative cell-cycle protein
11	 37.68       12806..14785    	 +	659	15674261	ftsH	SPy0015	O	putative cell division protein
12	 33.12 -1    15110..16501    	 +	463	15674262	-	SPy0016	E	putative amino acid permease
13	 40.77       30546..31742    	 +	398	15674263	-	SPy0019	S	putative secreted protein
14	 39.04       31995..32957    	 +	320	15674264	prsA.2	SPy0020	F	putative ribose-phosphate pyrophosphokinase
15	 31.35 -1    33143..33898    	 +	251	15674265	-	SPy0021	L	conserved hypothetical protein
16	 38.10       34001..35008    	 +	335	15674266	plsX	SPy0022	I	putative fatty acid/phospholipid synthesis protein
17	 30.04 -2    35001..35243    	 +	80	15674267	acpP.2	SPy0023	I	putative acyl carrier protein
18	 35.92       35364..36098    	 +	244	15674268	purC	SPy0024	F	putative phosphoribosylaminoimidazole - succinocarboxamide synthase (SAICAR synthetase)
19	 44.62 +1    36174..39947    	 +	1257	15674269	-	SPy0025	F	putative phosphoribosylformylglycinamidine synthase II
20	 39.11       40108..41562    	 +	484	15674270	purF	SPy0026	F	putative phosphoribosylpyrophosphate amidotransferase
21	 42.72 +1    41590..42612    	 +	340	15674271	purM	SPy0027	F	putative phosphoribosylformylglycinamide cyclo-ligase
22	 46.49 +2    42780..43334    	 +	184	15674272	purN	SPy0028	F	Phosphoribosylglycinamide formyltransferase
23	 39.56       45123..46247    	 -	374	15674273	-	SPy0031	-	putative choline binding protein
24	 48.74 +2    46500..47765    	 +	421	15674274	purD	SPy0032	F	phosphoribosylamine-glycine ligase
25	 50.20 +2    48043..48534    	 +	163	15674275	purE	SPy0033	F	putative phosphoribosylaminoimidazole carboxylase I
26	 49.73 +2    48485..49594    	 +	369	15674276	purK	SPy0034	F	phosphoribosylaminoimidazole carboxylase II
27	 29.87 -2    49621..51264    	 +	547	15674277	abiR	SPy0035	-	possible abortive infection phage resistance protein
28	 44.93 +1    51282..52574    	 +	430	15674278	purB	SPy0036	F	adenylosuccinate lyase
29	 29.39 -2    52706..53617    	 +	303	15674279	-	SPy0037	K	hypothetical protein
30	 39.64       53843..54841    	 +	332	15674280	ruvB	SPy0038	L	putative Holliday junction DNA helicase, subunit B
31	 35.62       54979..55416    	 +	145	15674281	-	SPy0039	T	putative protein-tyrosine phosphatase
32	 36.07       55439..55840    	 +	133	15674282	-	SPy0040	-	hypothetical protein
33	 36.54       55837..57612    	 +	591	15674283	-	SPy0041	I	putative acyltransferase
34	 42.28       60815..61831    	 +	338	15674284	adhA	SPy0044	R	putative alcohol dehydrogenase I
35	 41.14       62219..63511    	 +	430	15674285	-	SPy0045	Q	conserved hypothetical protein
36	 40.13       63712..64020    	 +	102	15674286	rpsJ	SPy0047	J	30S ribosomal protein S10
37	 41.63       64268..64894    	 +	208	15674287	rplC	SPy0049	J	50S ribosomal protein L3
38	 42.47 +1    64918..65541    	 +	207	15674288	rplD	SPy0050	J	50S ribosomal protein L4
39	 37.71       65541..65837    	 +	98	15674289	rplW	SPy0051	J	50S ribosomal protein L23
40	 43.53 +1    65855..66688    	 +	277	15674290	rplB	SPy0052	J	50S ribosomal protein L2
41	 40.50       66827..67105    	 +	92	15674291	rpsS	SPy0053	J	30S ribosomal protein S19
42	 39.71       67121..67465    	 +	114	15674292	rplV	SPy0055	J	50S ribosomal protein L22
43	 41.59       67478..68131    	 +	217	15674293	rpsC	SPy0056	J	30S ribosomal protein S3
44	 43.24 +1    68135..68548    	 +	137	15674294	rplP	SPy0057	J	50S ribosomal protein L16
45	 34.78 -1    68558..68764    	 +	68	15674295	rpmC	SPy0059	J	50S ribosomal protein L29
46	 38.31       68790..69050    	 +	86	15674296	rpsQ	SPy0060	J	30S ribosomal protein S17
47	 44.17 +1    69075..69443    	 +	122	15674297	-	SPy0061	J	50S ribosomal protein L14
48	 36.27       69522..69827    	 +	101	15674298	rplX	SPy0062	J	50S ribosomal protein L24
49	 40.52       69851..70393    	 +	180	15674299	rplE	SPy0063	J	50S ribosomal protein L5
50	 39.25       70409..70594    	 +	61	15674300	rpsN	SPy0064	J	30S ribosomal protein S14
51	 36.59       70745..71143    	 +	132	15674301	rpsH	SPy0065	J	30S ribosomal protein S8
52	 39.11       71346..71882    	 +	178	15674302	rplF	SPy0066	J	50S ribosomal protein L6
53	 45.94 +1    71987..72343    	 +	118	15674303	rplR	SPy0067	J	50S ribosomal protein L18
54	 42.42 +1    72362..72856    	 +	164	15674304	rpsE	SPy0069	J	30S ribosomal protein S5
55	 37.16       72871..73053    	 +	60	15674305	rpmD	SPy0071	J	50S ribosomal protein L30
56	 39.68       73267..73707    	 +	146	15674306	rplO	SPy0072	J	50S ribosomal protein L15
57	 36.40       73724..75028    	 +	434	15674307	secY	SPy0073	N	putative preprotein translocase
58	 39.44       75178..75816    	 +	212	15674308	adk	SPy0074	F	adenylate kinase
59	 36.99       75934..76152    	 +	72	15674309	infA	SPy0075	J	putative translation initiation factor IF-1
60	 37.61       76178..76294    	 +	38	15674310	rpmJ	SPy0076	J	50S ribosomal protein B
61	 39.34       76312..76677    	 +	121	15674311	rpsM	SPy0077	J	30S ribosomal protein S13
62	 44.27 +1    76695..77078    	 +	127	15674312	rpsK	SPy0078	J	30S ribosomal protein S11
63	 38.02       77124..78062    	 +	312	15674313	rpoA	SPy0080	K	DNA-directed RNA polymerase alpha subunit
64	 40.57       78077..78463    	 +	128	15675947	rplQ	SPy0080a	J	ribosomal protein L17
65	 42.47 +1    85708..85893    	 +	61	15674314	-	SPy0084	-	hypothetical protein
66	 34.01 -1    87214..87657    	 +	147	15674315	adcR	SPy0092	K	putative repressor protein
67	 40.97       87661..88380    	 +	239	15674316	adcC	SPy0093	P	ABC transporter (ATP-binding protein)
68	 38.48       88373..89188    	 +	271	15674317	adcB	SPy0094	P	putative ABC transporter (permease)
69	 40.62       89228..89611    	 -	127	15674318	-	SPy0095	F	putative histidine triad (HIT) protein
70	 41.45       89662..90918    	 -	418	15674319	tyrS	SPy0096	J	putative tyrosine-tRNA ligase
71	 40.25       91010..93322    	 +	770	15674320	pbp1b	SPy0097	M	putative penicillin-binding protein 1b
72	 43.12 +1    93586..97152    	 +	1188	15674321	rpoB	SPy0098	K	putative DNA-dependent RNA polymerase subunit beta
73	 43.74 +1    97243..100884   	 +	1213	15674322	rpoC	SPy0099	K	DNA-dependent RNA polymerase, B' subunit
74	 34.70 -1   101036..101401   	 +	121	15674323	-	SPy0100	-	putative DNA binding protein
75	 37.38      101494..102432   	 +	312	15674324	comYA	SPy0101	N	putative ABC transporter subunit ComYA
76	 35.69      102554..103402   	 +	282	15674325	comYB	SPy0102	N	putative competence protein, ABC transporter subunit
77	 33.94 -1   103404..103730   	 +	108	15674326	comYC	SPy0103	-	putative competence protein
78	 34.27 -1   103705..104133   	 +	142	15674327	-	SPy0104	-	putative competence protein
79	 38.40      104138..104374   	 +	78	15674328	-	SPy0105	-	hypothetical protein
80	 35.17      104367..104801   	 +	144	15674329	comYD	SPy0106	-	putative competence protein
81	 35.47      104785..105111   	 +	108	15674330	-	SPy0107	-	hypothetical protein
82	 38.36      105209..106162   	 +	317	15674331	-	SPy0108	L	conserved hypothetical protein
83	 38.93      106221..107417   	 +	398	15674332	ackA	SPy0109	C	acetate kinase
84	 35.60      107604..107912   	 +	102	15674333	-	SPy0110	-	hypothetical protein
85	 43.84 +1   107995..108765   	 -	256	15674334	proC	SPy0112	E	putative pyrroline carboxylate reductase
86	 45.22 +1   108813..109880   	 -	355	15674335	pepA	SPy0115	G	putative glutamyl-aminopeptidase
87	 38.18      109990..110154   	 -	54	15674336	-	SPy0116	-	hypothetical protein
88	 36.84      110345..110629   	 +	94	15674337	-	SPy0117	-	hypothetical protein
89	 40.03      112394..113035   	 -	213	15674338	-	SPy0121	F	putative deoxyguanosine kinase/deoxyadenosine kinase(I) subunit
90	 45.50 +1   113055..114032   	 -	325	15674339	-	SPy0122	R	possible transcriptional regulator
91	 42.04      114019..114891   	 -	290	15674340	-	SPy0123	O	putative heat shock protein HSP33
92	 34.07 -1   115038..116531   	 -	497	15674341	rofA	SPy0124	-	regulatory protein
93	 32.83 -1   119222..119617   	 +	131	15674342	-	SPy0127	-	putative signal peptidase I
94	 35.00      119650..120672   	 +	340	15674343	-	SPy0128	-	hypothetical protein
95	 30.67 -2   120682..121395   	 +	237	15674344	-	SPy0129	-	hypothetical protein
96	 31.79 -1   121417..122064   	 +	215	15674345	-	SPy0130	-	hypothetical protein
97	 42.35 +1   122251..123603   	 -	450	15674346	-	SPy0131	L	conserved hypothetical protein
98	 40.74      123814..124164   	 -	116	15674347	-	SPy0133	L	conserved hypothetical protein
99	 39.55      124468..125223   	 +	251	15674348	-	SPy0135	M	putative fimbria-associated protein
100	 33.93 -1   125417..126082   	 -	221	15674349	-	SPy0136	-	hypothetical protein


 38.64 MEAN

 3.66  STD DEV
