IslandPath Analysis: Streptococcus pneumoniae TIGR4

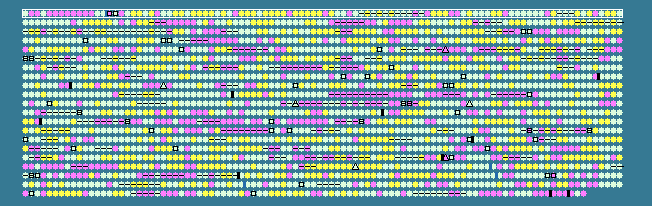

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.46 STD DEV: 5.03
Streptococcus pneumoniae, complete genome - 0..2160837
2094 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 36.49         197..1558     	 +	453	15899950	-	SP0001	L	chromosomal replication initiator protein DnaA
2	 34.30 -1     1717..2853     	 +	378	15899951	-	SP0002	L	DNA polymerase III, beta subunit
3	 34.94        2864..3112     	 +	82	15899952	-	SP0003	-	hypothetical protein
4	 40.23        3196..4311     	 +	371	15899953	-	SP0004	R	GTP-binding protein
5	 33.68 -1     4382..4951     	 +	189	15899954	-	SP0005	J	peptidyl-tRNA hydrolase
6	 35.01        4952..8461     	 +	1169	15899955	-	SP0006	L	transcription-repair coupling factor
7	 34.83        8519..8785     	 +	88	15899956	-	SP0007	J	S4 domain protein
8	 34.69        8778..9146     	 +	122	15899957	-	SP0008	-	hypothetical protein
9	 30.89 -1     9151..9273     	 +	40	15899958	-	SP0009	-	hypothetical protein
10	 32.78 -1     9266..10534    	 +	422	15899959	-	SP0010	-	conserved domain protein
11	 33.80 -1    10531..11808    	 +	425	15899960	-	SP0011	D	MesJ/Ycf62 family protein
12	 33.15 -1    11812..12354    	 +	180	15899961	-	SP0012	F	hypoxanthine-guanine phosphoribosyltransferase
13	 39.10       12370..14328    	 +	652	15899962	-	SP0013	O	cell division protein FtsH
14	 37.50       14450..14929    	 +	159	15899963	-	SP0014	-	transcriptional regulator ComX1
15	 35.49       20404..20820    	 +	138	15899964	-	SP0015	-	IS630-Spn1, transposase Orf1
16	 38.05       20929..21267    	 +	112	15899965	-	SP0016	L	IS630-Spn1, transposase Orf2
17	 28.81 -2    22359..22601    	 +	80	15899966	-	SP0018	-	hypothetical protein
18	 40.56       22832..24118    	 +	428	15899967	-	SP0019	F	adenylosuccinate synthetase
19	 43.59       24319..24786    	 +	155	15899968	-	SP0020	F	cytidine/deoxycytidylate deaminase family protein
20	 44.37       24973..25416    	 +	147	15899969	-	SP0021	F	deoxyuridine 5'triphosphate nucleotidohydrolase, putative
21	 41.09       25418..25933    	 +	171	15899970	-	SP0022	G	conserved hypothetical protein
22	 43.57       27381..27878    	 +	165	15899971	-	SP0024	P	conserved hypothetical protein
23	 34.76       27903..28112    	 +	69	15899972	-	SP0025	-	hypothetical protein
24	 39.10       28094..28717    	 +	207	15899973	-	SP0026	-	hypothetical protein
25	 41.69       28862..29830    	 +	322	15899974	-	SP0027	F	ribose-phosphate pyrophosphokinase
26	 44.87 +1    30372..30605    	 -	77	15899975	-	SP0029	-	hypothetical protein
27	 43.73       30563..30889    	 -	108	15899976	-	SP0030	-	competence-induced protein Ccs16
28	 39.05       30929..31243    	 -	104	15899977	-	SP0031	-	hypothetical protein
29	 43.77       31535..34168    	 +	877	15899978	-	SP0032	L	DNA polymerase I
30	 44.52 +1    34253..34690    	 +	145	15899979	-	SP0033	R	conserved hypothetical protein
31	 46.59 +1    35009..36019    	 -	336	15899980	-	SP0034	S	membrane protein
32	 46.07 +1    36168..37337    	 +	389	15899981	-	SP0035	E	aromatic amino acid aminotransferase
33	 41.50       37334..38104    	 +	256	15899982	-	SP0036	L	conserved hypothetical protein
34	 47.63 +1    38101..39093    	 +	330	15899983	-	SP0037	I	fatty acid/phospholipid synthesis protein PlsX
35	 38.89       39099..39332    	 +	77	15899984	-	SP0038	-	acyl carrier protein, putative
36	 26.19 -2    39716..39841    	 -	41	15899985	-	SP0040	-	hypothetical protein
37	 47.19 +1    39871..40101    	 +	76	15899986	-	SP0041	-	bacteriocin BlpU
38	 44.34       40816..42969    	 +	717	15899987	-	SP0042	Q	competence factor transporting ATP-binding/permease protein ComA
39	 44.52 +1    42982..44331    	 +	449	15899988	-	SP0043	-	competence factor transport protein ComB
40	 40.11       44501..45208    	 +	235	15899989	-	SP0044	F	phosphoribosylaminoimidazole-succinocarboxamide synthase
41	 45.54 +1    45410..49135    	 +	1241	15899990	-	SP0045	F	phosphoribosylformylglycinamidine synthase, putative
42	 46.50 +1    49228..50670    	 +	480	15899991	-	SP0046	F	amidophosphoribosyltransferase
43	 47.02 +1    50889..51911    	 +	340	15899992	-	SP0047	F	phosphoribosylformylglycinamide cyclo-ligase
44	 47.44 +1    51908..52453    	 +	181	15899993	-	SP0048	F	phosphoribosylglycinamide formyltransferase
45	 29.22 -2    52537..53046    	 +	169	15899994	-	SP0049	-	vanZ protein, putative
46	 47.03 +1    53071..54618    	 +	515	15899995	-	SP0050	F	phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
47	 47.74 +1    54740..56002    	 +	420	15899996	-	SP0051	F	phosphoribosylamine--glycine ligase
48	 47.01 +1    56259..56375    	 +	38	15899997	-	SP0052	-	hypothetical protein
49	 50.31 +2    56405..56893    	 +	162	15899998	-	SP0053	F	phosphoribosylaminoimidazole carboxylase, catalytic subunit
50	 47.07 +1    56880..57971    	 +	363	15899999	-	SP0054	F	phosphoribosylaminoimidazole carboxylase, ATPase subunit
51	 35.53       57981..58208    	 +	75	15900000	-	SP0055	-	hypothetical protein
52	 46.42 +1    58271..59569    	 +	432	15900001	-	SP0056	F	adenylosuccinate lyase
53	 42.22       59624..63562    	 -	1312	15900002	-	SP0057	G	beta-N-acetylhexosaminidase
54	 37.52       63890..64606    	 -	238	15900003	-	SP0058	K	transcriptional regulator, GntR family
55	 24.51 -2    64593..64694    	 +	33	15900004	-	SP0059	-	hypothetical protein
56	 42.11       64955..66742    	 +	595	15900005	-	SP0060	G	beta-galactosidase
57	 41.30       66739..67215    	 +	158	15900006	-	SP0061	G	PTS system, IIB component
58	 44.26       67243..68148    	 +	301	15900007	-	SP0062	G	PTS system, IIC component
59	 40.44       68135..68950    	 +	271	15900008	-	SP0063	G	PTS system, IID component
60	 43.70       68957..69361    	 +	134	15900009	-	SP0064	G	PTS system, IIA component
61	 41.73       69660..70826    	 +	388	15900010	-	SP0065	M	sugar isomerase domain protein AgaS
62	 45.38 +1    70942..71979    	 +	345	15900011	-	SP0066	G	aldose 1-epimerase
63	 40.23       72141..72401    	 +	86	15900012	-	SP0067	-	hypothetical protein
64	 38.89       72456..72653    	 +	65	15900013	-	SP0068	-	hypothetical protein
65	 42.14       72674..73309    	 +	211	15900014	-	SP0069	-	choline binding protein I
66	 35.29       73353..73454    	 +	33	15900015	-	SP0070	-	hypothetical protein
67	 36.89       73761..79331    	 +	1856	15900016	-	SP0071	-	immunoglobulin A1 protease
68	 35.96       79434..79547    	 +	37	15900017	-	SP0072	-	hypothetical protein
69	 44.80 +1    79687..80541    	 +	284	15900018	-	SP0073	R	conserved hypothetical protein
70	 46.24 +1    80647..81204    	 +	185	15900019	-	SP0074	R	acetyltransferase, CysE/LacA/LpxA/NodL family
71	 49.65 +2    81481..82185    	 +	234	15900020	-	SP0075	-	phosphorylase, Pnp/Udp family
72	 35.48       82590..82682    	 -	30	15900021	-	SP0076	-	hypothetical protein
73	 31.45 -1    82659..82817    	 +	52	15900022	-	SP0077	-	hypothetical protein
74	 41.52       82798..84177    	 +	459	15900023	-	SP0078	P	potassium uptake protein, Trk family
75	 43.69       84191..84856    	 +	221	15900024	-	SP0079	P	potassium uptake protein, Trk family
76	 37.96       84877..84984    	 +	35	15900025	-	SP0080	-	hypothetical protein
77	 42.93       86298..88871    	 +	857	15900026	-	SP0082	-	cell wall surface anchor family protein
78	 41.63       89038..89736    	 +	232	15900027	-	SP0083	T	DNA-binding response regulator
79	 44.06       89733..90785    	 +	350	15900028	-	SP0084	T	sensor histidine kinase
80	 43.30       90980..91591    	 +	203	15900029	-	SP0085	J	ribosomal protein S4
81	 29.79 -1    92025..92165    	 -	46	15900030	-	SP0087	-	hypothetical protein
82	 42.22       92236..92505    	 +	89	15900031	-	SP0088	-	hypothetical protein
83	 38.54       92585..92680    	 +	31	15900032	-	SP0089	-	hypothetical protein
84	 40.83       92969..93928    	 +	319	15900033	-	SP0090	G	ABC transporter, permease protein
85	 41.99       93942..94865    	 +	307	15900034	-	SP0091	G	ABC transporter, permease protein
86	 38.41       95123..96598    	 +	491	15900035	-	SP0092	G	ABC transporter, substrate-binding protein
87	 39.47       96628..96741    	 -	37	15900036	-	SP0093	-	hypothetical protein
88	 33.33 -1    96713..96820    	 +	35	15900037	-	SP0094	-	hypothetical protein
89	 44.07       96870..97856    	 +	328	15900038	-	SP0095	R	conserved hypothetical protein
90	 41.23       98131..98991    	 +	286	15900039	-	SP0096	-	hypothetical protein
91	 40.19       99169..100233   	 -	354	15900040	-	SP0097	-	conserved domain protein
92	 41.01      100296..101207   	 -	303	15900041	-	SP0098	-	hypothetical protein
93	 43.94      101200..101793   	 -	197	15900042	-	SP0099	-	hypothetical protein
94	 42.20      101780..102106   	 -	108	15900043	-	SP0100	K	conserved hypothetical protein
95	 44.82 +1   102245..103411   	 -	388	15900044	-	SP0101	P	transporter, putative
96	 32.96 -1   103562..104626   	 +	354	15900045	-	SP0102	M	glycosyl transferase
97	 42.14      104668..106518   	 +	616	15900046	-	SP0103	M	capsular polysaccharide biosynthesis protein, putative
98	 42.97      106956..107588   	 -	210	15900047	-	SP0104	R	hydrolase, haloacid dehalogenase-like family
99	 47.88 +1   107610..108482   	 -	290	15900048	-	SP0105	E	L-serine dehydratase, iron-sulfur-dependent, alpha subunit
100	 41.67      108491..109162   	 -	223	15900049	-	SP0106	E	L-serine dehydratase, iron-sulfur-dependent, beta subunit


 39.46 MEAN

 5.03  STD DEV
