IslandPath Analysis: Streptococcus pneumoniae R6

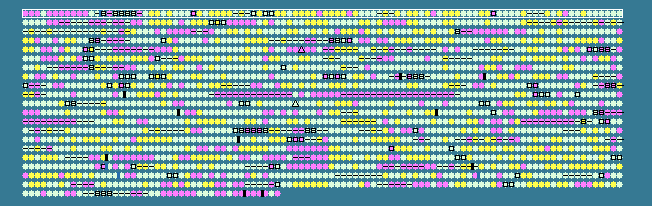

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.86 STD DEV: 4.53
Streptococcus pneumoniae R6 complete genome - 0..2038615
2043 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 36.34           1..1362     	 +	453	15902045	dnaA	spr0001	-	DNA biosynthesis, initiation, binding protein
2	 34.48 -1     1521..2657     	 +	378	15902046	dnaN	spr0002	-	DNA biosynthesis; sliding clamp subunit, required for high processivity; DNA polymerase III beta-subunit
3	 34.87 -1     2722..2916     	 +	64	15902047	-	spr0003	-	Hypothetical protein
4	 39.96        3000..4115     	 +	371	15902048	-	spr0004	-	Conserved hypothetical protein
5	 33.33 -1     4186..4755     	 +	189	15902049	pth	spr0005	-	Peptidyl-tRNA hydrolase
6	 35.01 -1     4756..8265     	 +	1169	15902050	mfd	spr0006	-	Transcription-repair coupling factor
7	 34.83 -1     8323..8589     	 +	88	15902051	-	spr0007	-	Conserved hypothetical protein
8	 34.69 -1     8582..8950     	 +	122	15902052	-	spr0008	-	Hypothetical protein
9	 32.74 -1     9001..10338    	 +	445	15902053	-	spr0009	-	Conserved hypothetical protein
10	 33.72 -1    10335..11612    	 +	425	15902054	-	spr0010	-	Conserved hypothetical protein
11	 33.33 -1    11616..12158    	 +	180	15902055	hgt	spr0011	-	Hypoxanthine guanine phosphoribosyltransferase
12	 39.20       12174..14132    	 +	652	15902056	ftsH	spr0012	-	Cell-division protein / general stress protein (class III heat-shock)
13	 37.29       14254..14733    	 +	159	15902057	comX1	spr0013	-	Competence-specific global transcription modulator
14	 36.78       20207..20554    	 +	115	15902058	transposase A	spr0014	-	Transposase
15	 33.96 -1    20593..20751    	 -	52	15902059	-	spr0015	-	Hypothetical protein
16	 38.05       20733..21071    	 +	112	15902060	transposase B	spr0016	-	Transposase
17	 36.71       21106..21312    	 -	68	15902061	IS1167-truncation	spr0017	-	Degenerate transposase (orf2)
18	 40.00       21455..21604    	 -	49	15902062	IS1167-truncation	spr0018	-	Degenerate transposase (orf2)
19	 37.20       21645..21851    	 -	68	15902063	IS1167-truncation	spr0019	-	Degenerate transposase (orf1)
20	 29.22 -2    22162..22404    	 +	80	15902064	-	spr0020	-	Hypothetical protein
21	 40.71       22635..23921    	 +	428	15902065	purA	spr0021	-	Adenylosuccinate synthetase
22	 43.80       24122..24589    	 +	155	15902066	-	spr0022	-	Conserved hypothetical protein
23	 44.59 +1    24776..25219    	 +	147	15902067	dut	spr0023	-	Deoxyuridinetriphosphatase
24	 42.31       25158..25736    	 +	192	15902068	-	spr0024	-	Conserved hypothetical protein
25	 47.66 +1    25849..27111    	 +	420	15902069	radA	spr0025	-	DNA repair: sensitivity to gamma and UV radiation
26	 42.15       27115..27681    	 +	188	15902070	-	spr0026	-	Conserved hypothetical protein
27	 37.27       27706..28365    	 +	219	15902071	-	spr0027	-	Hypothetical protein
28	 41.67       28583..29602    	 +	339	15902072	prsA	spr0028	-	Phosphoribosylpyrophosphate synthase
29	 35.11 -1    29624..30016    	 -	130	15902073	IS1167-truncation	spr0029	-	Degenerate transposase (orf1)
30	 46.31 +1    30143..30481    	 -	112	15902074	-	spr0030	-	Hypothetical protein
31	 39.83       30700..31053    	 -	117	15902075	-	spr0031	-	Hypothetical protein
32	 43.93       31306..33939    	 +	877	15902076	polA	spr0032	-	DNA polymerase I
33	 44.29       34024..34461    	 +	145	15902077	-	spr0033	-	Conserved hypothetical protein
34	 46.24 +1    34652..35674    	 -	340	15902078	-	spr0034	-	Conserved hypothetical protein
35	 45.98 +1    35811..36980    	 +	389	15902079	aspC	spr0035	-	Aspartate aminotransferase
36	 41.63       36977..37747    	 +	256	15902080	-	spr0036	-	Conserved hypothetical protein
37	 47.83 +1    37744..38736    	 +	330	15902081	plsX	spr0037	-	Involved in fatty acid/phospholipid synthesis
38	 38.89       38742..38975    	 +	77	15902082	acpP	spr0038	-	Acyl carrier protein
39	 38.10       39018..39311    	 +	97	15902083	IS1381-truncation	spr0039	-	Degenerate transposase (orf2)
40	 46.75 +1    39514..39744    	 +	76	15902084	thmA	spr0040	-	Amphipathic pore-forming peptide precursor
41	 38.02       40224..40991    	 -	255	15902085	IS1167	spr0041	-	Transposase (orf2)
42	 37.96       40982..41500    	 -	172	15902086	IS1167	spr0042	-	Transposase (orf1)
43	 44.66 +1    41902..44055    	 +	717	15902087	comA	spr0043	-	Transport ATP-binding protein ComA
44	 44.52 +1    44068..45417    	 +	449	15902088	comB	spr0044	-	Transport protein ComB
45	 40.00       45545..46294    	 +	249	15902089	purC	spr0045	-	Phosphoribosylaminoimidazole-succinocarboxamide synthetase
46	 45.48 +1    46493..50221    	 +	1242	15902090	purL	spr0046	-	Phosphoribosylformylglycinamide synthetase
47	 46.71 +1    50314..51756    	 +	480	15902091	purF	spr0047	-	Amidophosphoribosyl transferase
48	 47.02 +1    51793..52815    	 +	340	15902092	purM	spr0048	-	Phosphoribosylaminoimidazole synthetase
49	 47.07 +1    52812..53357    	 +	181	15902093	purN	spr0049	-	5'-phosphoribosylglycinamide transformylase 1
50	 29.41 -2    53441..53950    	 +	169	15902094	vanZ	spr0050	-	Teicoplanin resistance protein
51	 47.61 +1    53954..55522    	 +	522	15902095	purH	spr0051	-	Phosphoribosylaminoimidazolecarboxamide formyltransferase
52	 47.51 +1    55644..56906    	 +	420	15902096	purD	spr0052	-	Phosphoribosylglycinamide synthetase
53	 49.23 +2    57276..57797    	 +	173	15902097	purE	spr0053	-	Phosphoribosylaminoimidazole carboxylase, catalytic subunit
54	 47.66 +1    57724..58875    	 +	383	15902098	purK	spr0054	-	Phosphoribosyl glucinamide formyltransferase
55	 35.96       58885..59112    	 +	75	15902099	-	spr0055	-	Hypothetical protein
56	 46.34 +1    59175..60473    	 +	432	15902100	purB	spr0056	-	Adenylosuccinate lyase
57	 42.14       60528..64466    	 -	1312	15902101	strH	spr0057	-	Beta-N-acetyl-hexosaminidase precursor
58	 37.15       64781..65539    	 -	252	15902102	-	spr0058	-	Conserved hypothetical protein
59	 41.95       65845..67632    	 +	595	15902103	bgaC	spr0059	-	Beta-galactosidase 3
60	 41.09       67629..68105    	 +	158	15902104	PTS-EIIB	spr0060	-	Phosphotransferase system sugar-specific EIIB component
61	 44.37       68133..69038    	 +	301	15902105	PTS-EIIC	spr0061	-	Phosphotransferase system sugar-specific EIIC component
62	 40.43       69010..69840    	 +	276	15902106	PTS-EIID	spr0062	-	Phosphotransferase system sugar-specific EIID component
63	 43.95       69847..70251    	 +	134	15902107	PTS-EII	spr0063	-	Phosphotransferase system sugar-specific EII component
64	 42.25       70549..71715    	 +	388	15902108	agaS	spr0064	-	Tagatose-6-phosphate ketose/aldose isomerase
65	 45.47 +1    71831..72868    	 +	345	15902109	galM	spr0065	-	Aldose-1-epimerase (mutarotase)
66	 44.33       73075..73929    	 +	284	15902110	-	spr0066	-	Conserved hypothetical protein
67	 39.53       74079..74336    	 +	85	15902111	-	spr0067	-	Conserved hypothetical protein
68	 48.63 +1    75311..76075    	 +	254	15902112	-	spr0068	-	Conserved hypothetical protein
69	 32.08 -1    76547..76705    	 +	52	15902113	-	spr0069	-	Hypothetical protein
70	 41.45       76686..78065    	 +	459	15902114	trkH	spr0070	-	Trk transporter membrane-spanning protein - K+ transport
71	 43.52       78058..78744    	 +	228	15902115	trkA	spr0071	-	Trk transporter NAD+ binding protein - K+ transport
72	 44.63 +1    79054..79593    	 +	179	15902116	-	spr0072	-	Conserved hypothetical protein
73	 44.74 +1    79471..80040    	 -	189	15902117	-	spr0073	-	Hypothetical protein
74	 42.34       79660..80070    	 +	136	15902118	-	spr0074	-	Hypothetical protein
75	 42.94       80186..83671    	 +	1161	15902119	-	spr0075	-	Conserved hypothetical protein
76	 41.77       83838..84536    	 +	232	15902120	rr08	spr0076	-	Response regulator
77	 43.97       84533..85585    	 +	350	15902121	hk08	spr0077	-	Histidine kinase
78	 43.63       85780..86391    	 +	203	15902122	rpsD	spr0078	-	30S Ribosomal protein S4
79	 35.03 -1    86559..86735    	 +	58	15902123	transposase A	spr0079	-	Degenerative transposase
80	 42.22       87044..87313    	 +	89	15902124	-	spr0080	-	Hypothetical protein
81	 40.83       87777..88736    	 +	319	15902125	ABC-MSP	spr0081	-	ABC transporter membrane-spanning permease - sugar transport
82	 42.21       88750..89673    	 +	307	15902126	ABC-MSP	spr0082	-	ABC transporter membrane spanning permease - sugar transport
83	 37.61       89862..91406    	 +	514	15902127	ABC-SBP	spr0083	-	ABC transporter solute binding protein - sugar transport
84	 44.48 +1    91678..92664    	 +	328	15902128	-	spr0084	-	Conserved hypothetical protein
85	 40.34       92633..93646    	 +	337	15902129	-	spr0085	-	Hypothetical protein
86	 40.00       93718..94782    	 -	354	15902130	-	spr0086	-	Hypothetical protein
87	 40.60       94845..95807    	 -	320	15902131	-	spr0087	-	Hypothetical protein
88	 43.94       95749..96342    	 -	197	15902132	-	spr0088	-	Hypothetical protein
89	 42.20       96329..96655    	 -	108	15902133	-	spr0089	-	Conserved hypothetical protein
90	 44.82 +1    96794..97960    	 -	388	15902134	-	spr0090	-	Conserved hypothetical protein
91	 33.33 -1    98018..99175    	 +	385	15902135	-	spr0091	-	Conserved hypothetical protein
92	 42.19       99217..101067   	 +	616	15902136	capD	spr0092	-	CapD protein, required for the biosynthesis of type 1 capsular polysaccharide
93	 43.13      101463..102095   	 -	210	15902137	gph	spr0093	-	Phosphoglycolate phosphatase
94	 48.00 +1   102117..102989   	 -	290	15902138	sdaA	spr0094	-	L-serine dehydratase alpha subunit
95	 41.67      102998..103669   	 -	223	15902139	sdaB	spr0095	-	L-serine dehydratase beta subunit
96	 40.87      103911..104414   	 +	167	15902140	-	spr0096	-	Hypothetical protein
97	 38.55      104537..104785   	 -	82	15902141	-	spr0097	-	Hypothetical protein
98	 39.36      105242..105490   	 +	82	15902142	-	spr0098	-	Hypothetical protein
99	 37.89      105545..107653   	 +	702	15902143	ABC-MSP	spr0099	-	ABC transporter membrane-spanning permease - amino acid transport
100	 40.81      107650..108291   	 +	213	15902144	ABC-NBD	spr0100	-	ABC transporter ATP-binding protein - amino acid transport


 39.86 MEAN

 4.53  STD DEV
