IslandPath Analysis: Streptomyces avermitilis MA-4680

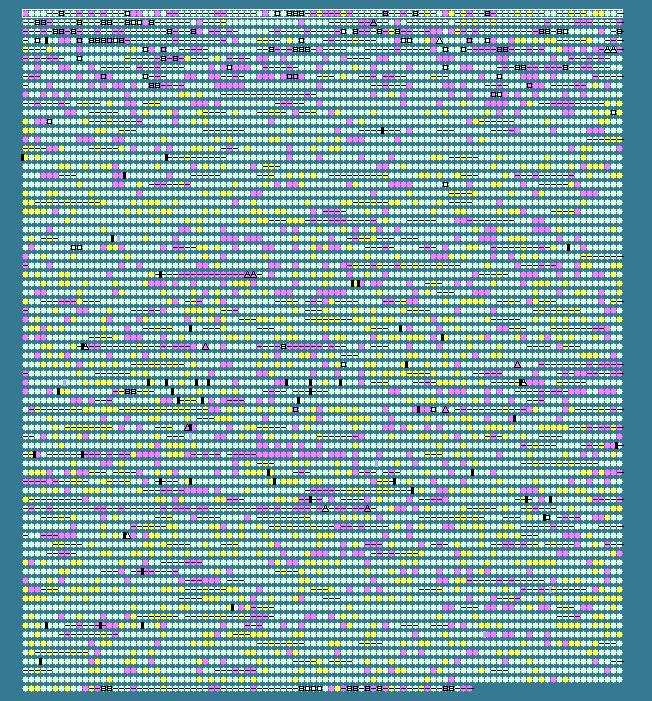

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 70.71   STD DEV: 3.30
Streptomyces avermitilis MA-4680, complete genome - 0..9025608
7575 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 65.51 -1     1380..1811     	 -	143	29826541	-	SAV1	-	hypothetical protein
2	 68.80        2466..2699     	 +	77	29826542	-	SAV2	-	hypothetical protein
3	 70.33        2765..3310     	 +	181	29826543	-	SAV3	-	putative endonuclease VII
4	 70.81        3433..3939     	 -	168	29826544	-	SAV4	-	hypothetical protein
5	 68.48        3994..4932     	 +	312	29826545	-	SAV5	-	hypothetical protein
6	 70.59        4936..7563     	 +	875	29826546	-	SAV6	-	putative helicase
7	 69.03        7554..9626     	 +	690	29826547	-	SAV7	-	putative transposase
8	 68.93        9886..10635    	 -	249	29826548	-	SAV8	-	hypothetical protein
9	 70.11       10632..10805    	 -	57	29826549	-	SAV9	-	hypothetical protein
10	 66.17 -1    11101..13497    	 -	798	29826550	-	SAV10	-	hypothetical protein
11	 67.60       13376..15523    	 -	715	29826551	-	SAV11	-	hypothetical protein
12	 67.04 -1    15815..17701    	 -	628	29826552	-	SAV12	-	hypothetical protein
13	 68.68       17828..18922    	 +	364	29826553	-	SAV13	-	hypothetical protein
14	 61.27 -2    19446..20279    	 +	277	29826554	-	SAV14	-	putative membrane protein
15	 71.68       21562..22080    	 +	172	29826555	-	SAV15	-	hypothetical protein
16	 69.13       22243..22770    	 +	175	29826556	-	SAV16	-	hypothetical protein
17	 67.27 -1    23457..23621    	 +	54	29826557	-	SAV17	-	hypothetical protein
18	 68.81       23675..24559    	 +	294	29826558	-	SAV18	-	putative IS1650 family transposase
19	 62.80 -2    24570..24983    	 -	137	29826559	-	SAV19	-	hypothetical protein
20	 62.10 -2    25166..25690    	 -	174	29826560	-	SAV20	-	hypothetical protein
21	 67.95       25699..29451    	 -	1250	29826561	-	SAV21	-	putative Rhs protein
22	 69.46       29508..30080    	 -	190	29826562	-	SAV22	-	hypothetical protein
23	 67.01 -1    30107..30394    	 -	95	29826563	-	SAV23	-	hypothetical protein
24	 68.49       30394..31323    	 -	309	29826564	-	SAV24	-	hypothetical protein
25	 66.39 -1    32197..32559    	 -	120	29826565	-	SAV25	-	hypothetical protein
26	 64.40 -1    32552..33124    	 -	190	29826566	sig1	SAV26	-	putative RNA polymerase ECF-subfamily sigma factor
27	 68.04       33121..33411    	 -	96	29826567	-	SAV27	-	hypothetical protein
28	 72.02       34056..35792    	 +	578	29826568	-	SAV28	-	putative two-component system sensor kinase
29	 70.76       37315..37656    	 +	113	29826569	-	SAV29	-	putative transcriptional regulator PadR-like family
30	 70.53       37653..38609    	 +	318	29826570	-	SAV30	-	hypothetical protein
31	 70.16       38623..39624    	 +	333	29826571	-	SAV31	-	putative prepilin peptidase-like protein
32	 68.66       41010..41612    	 +	200	29826572	-	SAV32	-	hypothetical protein
33	 63.04 -2    41665..41967    	 -	100	29826573	-	SAV33	-	hypothetical protein
34	 65.88 -1    42010..44046    	 +	678	29826574	-	SAV34	-	hypothetical protein
35	 68.31       44107..44958    	 -	283	29826575	-	SAV35	-	hypothetical protein
36	 67.40 -1    45160..45432    	 -	90	29826576	-	SAV36	-	hypothetical protein
37	 68.48       45819..47141    	 -	440	29826577	-	SAV37	-	hypothetical protein
38	 68.47       47239..48180    	 -	313	29826578	-	SAV38	-	putative hydrolase
39	 72.51       49166..49456    	 +	96	29826579	-	SAV39	-	putative terminal protein Tpg homolog
40	 68.83       49694..50434    	 -	246	29826580	-	SAV40	-	hypothetical protein
41	 62.73 -2    50521..50901    	 -	126	29826581	-	SAV41	-	hypothetical protein
42	 74.14 +1    51232..52623    	 +	463	29826582	-	SAV42	-	hypothetical protein
43	 73.54       53113..53505    	 +	130	29826583	-	SAV43	-	putative transposase
44	 68.46       54215..55330    	 +	371	29826584	-	SAV44	-	putative unsaturated glucuronyl hydrolase
45	 69.07       55687..56061    	 -	124	29826585	-	SAV45	-	putative transposase
46	 68.21       56052..56441    	 -	129	29826586	-	SAV46	-	putative transposase
47	 68.01       56620..57810    	 +	396	29826587	-	SAV47	-	putative IS605 family transposase
48	 68.95       58168..58824    	 -	218	29826588	-	SAV48	-	hypothetical protein
49	 67.01 -1    58919..59212    	 +	97	29826589	-	SAV49	-	hypothetical protein
50	 74.65 +1    59260..61488    	 -	742	29826590	-	SAV50	-	hypothetical protein
51	 67.06 -1    62242..62751    	 -	169	29826591	-	SAV51	-	putative acetyltransferase, GNAT family
52	 63.49 -2    62965..63342    	 -	125	29826592	-	SAV52	-	hypothetical protein
53	 66.78 -1    63529..64401    	 +	290	29826593	-	SAV53	-	putative transcriptional regulatory protein
54	 78.70 +2    64481..64588    	 -	35	29826594	-	SAV54	-	hypothetical protein
55	 66.43 -1    64632..65045    	 -	137	29826595	-	SAV55	-	hypothetical protein
56	 70.49       65216..65398    	 -	60	29826596	-	SAV56	-	hypothetical protein
57	 70.17       65536..66591    	 -	351	29826597	-	SAV57	-	hypothetical protein
58	 70.03       66803..67546    	 -	247	29826598	-	SAV58	-	hypothetical protein
59	 67.42       69136..69402    	 +	88	29826599	-	SAV59	-	hypothetical protein
60	 67.44       70102..70617    	 -	171	29826600	-	SAV60	-	hypothetical protein
61	 66.50 -1    70718..71920    	 -	400	29826601	-	SAV61	-	putative IS605 family transposase
62	 68.90       72189..72680    	 +	163	29826602	-	SAV62	-	putative transmembrane transport protein
63	 69.82       72680..72901    	 +	73	29826603	-	SAV63	-	putative transcriptional regulatory protein
64	 66.82 -1    73063..73698    	 +	211	29826604	-	SAV64	-	hypothetical protein
65	 72.10       74098..74520    	 +	140	29826605	-	SAV65	-	hypothetical protein
66	 71.13       74429..74899    	 -	156	29826606	-	SAV66	-	putative transposase
67	 69.45       75600..76676    	 +	358	29826607	-	SAV67	-	putative regulatory protein
68	 74.60 +1    77069..78430    	 +	453	29826608	-	SAV68	-	hypothetical protein
69	 69.17       78733..78972    	 +	79	29826609	-	SAV69	-	hypothetical protein
70	 73.26       79005..79262    	 -	85	29826610	-	SAV70	-	hypothetical protein
71	 66.43 -1    79425..79850    	 +	141	29826611	-	SAV71	-	hypothetical protein
72	 75.00 +1    80560..82215    	 -	551	29826612	-	SAV72	-	putative two-component system sensor kinase
73	 72.42       82208..82954    	 -	248	29826613	-	SAV73	-	putative two-component system response regulator
74	 74.25 +1    83059..84600    	 +	513	29826614	-	SAV74	-	hypothetical protein
75	 67.18 -1    85042..85431    	 +	129	29826615	-	SAV75	-	hypothetical protein
76	 72.02       86073..87080    	 +	335	29826616	tpc1	SAV76	-	putative terpene cyclase
77	 71.21       87168..87629    	 -	153	29826617	-	SAV77	-	hypothetical protein
78	 64.17 -1    87716..88276    	 -	186	29826618	-	SAV78	-	putative transposase
79	 66.35 -1    88693..89631    	 -	312	29826619	-	SAV79	-	putative MerR-family transcriptional regulator
80	 72.62       89844..90179    	 -	111	29826620	-	SAV80	-	putative rRNA methyltransferase
81	 70.82       90422..91192    	 -	256	29826621	-	SAV81	-	putative hydrolase
82	 70.79       91736..92317    	 -	193	29826622	-	SAV82	-	putative transcriptional regulator
83	 76.71 +1    92523..92741    	 +	72	29826623	-	SAV83	-	hypothetical protein
84	 71.89       92939..94183    	 -	414	29826624	-	SAV84	-	hypothetical protein
85	 75.39 +1    94242..95009    	 +	255	29826625	-	SAV85	-	putative MerR-family transcriptional regulator
86	 72.79       95110..96105    	 -	331	29826626	-	SAV86	-	putative erythropoiesis-stimulating protein
87	 72.97       96235..96567    	 +	110	29826627	-	SAV87	-	hypothetical protein
88	 70.14       99274..100050   	 -	258	29826628	-	SAV88	-	hypothetical protein
89	 72.96      100279..100866   	 -	195	29826629	-	SAV89	-	hypothetical protein
90	 71.57      100955..101362   	 +	135	29826630	-	SAV90	-	putative hydrolase
91	 73.15      101447..101893   	 +	148	29826631	-	SAV91	-	hypothetical protein
92	 74.80 +1   102549..103163   	 +	204	29826632	-	SAV92	-	putative lipoprotein
93	 69.11      103255..103746   	 +	163	29826633	sig2	SAV93	-	putative RNA polymerase ECF-subfamily sigma factor
94	 78.12 +2   103709..104197   	 +	162	29826634	-	SAV94	-	hypothetical protein
95	 67.45      104696..106234   	 +	512	29826635	-	SAV95	-	hypothetical protein
96	 74.78 +1   106628..107440   	 +	270	29826636	-	SAV96	-	hypothetical protein
97	 76.54 +1   107491..108027   	 -	178	29826637	-	SAV97	-	hypothetical protein
98	 68.52      108349..110238   	 -	629	29826638	-	SAV98	-	hypothetical protein
99	 73.69      110830..113364   	 +	844	29826639	-	SAV99	-	putative integral membrane protein
100	 73.11      113361..114866   	 +	501	29826640	-	SAV100	-	putative polyketide synthase


 70.71 MEAN

 3.30  STD DEV
