IslandPath Analysis: Pseudomonas syringae pv tomato str DC3000

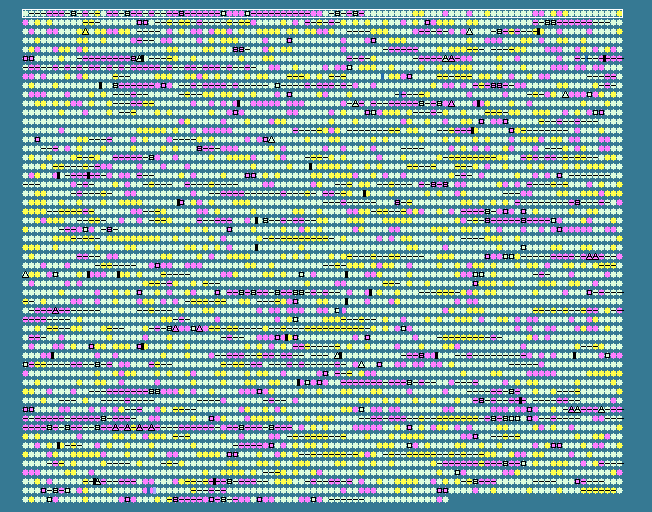

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 58.61   STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 0..6397126
5471 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 57.94         339..1874     	 +	511	28867244	dnaA	PSPTO0001	-	chromosomal replication initiator protein DnaA
2	 56.61        1913..3016     	 +	367	28867245	dnaN	PSPTO0002	-	DNA polymerase III, beta subunit
3	 56.34        3039..4142     	 +	367	28867246	recF	PSPTO0003	-	DNA replication and repair protein RecF
4	 56.16        4147..6564     	 +	805	28867247	gyrB	PSPTO0004	-	DNA gyrase, subunit B
5	 53.72 -1     7092..8798     	 +	568	28867248	-	PSPTO0005	-	type I restriction-modification system, M subunit, putative
6	 51.15 -1     8861..10168    	 +	435	28867249	-	PSPTO0006	-	type I restriction-modification system, S subunit, EcoA family
7	 55.03       10179..11063    	 +	294	28867250	-	PSPTO0007	-	hypothetical protein
8	 55.97       11067..14366    	 +	1099	28867251	-	PSPTO0008	-	type I site-specific deoxyribonuclease, HsdR family
9	 58.05       14512..15741    	 -	409	28867252	-	PSPTO0009	-	ISPsy3, transposase
10	 55.70       16743..17453    	 +	236	28867253	-	PSPTO0011	-	conserved hypothetical protein
11	 54.76       17514..18017    	 +	167	28867254	-	PSPTO0012	-	hypothetical protein
12	 57.72       17992..18561    	 +	189	28867255	-	PSPTO0013	-	hypothetical protein
13	 65.98 +1    18573..18863    	 -	96	28867256	-	PSPTO0014	-	hypothetical protein
14	 55.56       19321..19932    	 +	203	28867257	-	PSPTO0015	-	hypothetical protein
15	 53.42 -1    19968..20435    	 +	155	28867258	-	PSPTO0016	-	hypothetical protein
16	 53.74 -1    20738..23143    	 -	801	28867259	-	PSPTO0017	-	helicase/SNF2 family domain protein
17	 57.78       23290..24099    	 -	269	28867260	-	PSPTO0018	-	ISPsy4, transposition helper protein
18	 59.24       24096..25118    	 -	340	28867261	-	PSPTO0019	-	ISPsy4, transposase
19	 54.42 -1    25187..25537    	 -	116	28867262	-	PSPTO0020	-	hypothetical protein
20	 51.09 -1    25556..27796    	 -	746	28867263	-	PSPTO0021	-	hypothetical protein
21	 56.15       28478..29323    	 +	281	28867264	-	PSPTO0022	-	DNA-binding protein
22	 53.67 -1    29320..29919    	 +	199	28867265	-	PSPTO0023	-	hypothetical protein
23	 59.42       30850..30987    	 +	45	28867266	-	PSPTO0024	-	hypothetical protein
24	 56.51       31338..31967    	 +	209	28867267	-	PSPTO0025	-	hydrolase, haloacid dehalogenase-like family
25	 52.91 -1    32022..33068    	 -	348	28867268	-	PSPTO0026	-	hypothetical protein
26	 51.59 -1    33254..33976    	 +	240	28867269	-	PSPTO0027	-	hypothetical protein
27	 46.57 -2    33978..35933    	 +	651	28867270	-	PSPTO0028	-	transposase
28	 51.07 -1    35933..36868    	 +	311	28867271	-	PSPTO0029	-	transposition helper protein
29	 53.42 -1    36881..38767    	 +	628	28867272	-	PSPTO0030	-	hypothetical protein
30	 51.90 -1    39345..40082    	 +	245	28867273	-	PSPTO0031	-	Ser/Thr protein phosphatase family protein
31	 48.81 -2    40884..41852    	 -	322	28867274	-	PSPTO0032	-	conserved hypothetical protein
32	 47.35 -2    41852..42757    	 -	301	28867275	-	PSPTO0033	-	ParB family protein
33	 50.29 -2    42754..44310    	 -	518	28867276	-	PSPTO0034	-	recombinase, putative
34	 56.31       45183..46736    	 -	517	28867277	-	PSPTO0035	-	ISPsy5, transposase
35	 48.33 -2    46754..47113    	 -	119	28867278	-	PSPTO0036	-	ISPsy5, Orf1
36	 53.37 -1    47448..52358    	 +	1636	28867279	-	PSPTO0037	-	helicase domain protein
37	 53.32 -1    52403..54493    	 +	696	28867280	-	PSPTO0038	-	conserved domain protein
38	 56.31       54971..56524    	 -	517	28867281	-	PSPTO0039	-	ISPsy5, transposase
39	 48.33 -2    56542..56901    	 -	119	28867282	-	PSPTO0040	-	ISPsy5, Orf1
40	 54.01 -1    56961..57347    	 +	128	28867283	-	PSPTO0041	-	hypothetical protein
41	 51.38 -1    58344..59906    	 +	520	28867284	-	PSPTO0043	-	cytidine/deoxycytidylate deaminase family protein
42	 54.57       60407..61423    	 -	338	28867285	hopPtoK	PSPTO0044	-	type III effector HopPtoK
43	 52.83 -1    61526..61684    	 +	52	28867286	-	PSPTO0045	-	hypothetical protein
44	 54.78       62078..64063    	 +	661	28867287	-	PSPTO0046	-	conserved hypothetical protein
45	 53.49 -1    64066..65970    	 +	634	28867288	-	PSPTO0047	-	UvrD/REP helicase family protein
46	 49.96 -2    67445..68611    	 +	388	28867289	-	PSPTO0048	-	hypothetical protein
47	 49.73 -2    68863..69606    	 +	247	28867290	-	PSPTO0049	-	conserved hypothetical protein
48	 47.75 -2    69623..70954    	 +	443	28867291	-	PSPTO0050	-	conserved hypothetical protein
49	 53.38 -1    71041..71484    	 +	147	28867292	-	PSPTO0051	-	conserved hypothetical protein
50	 52.99 -1    71711..73480    	 +	589	28867293	-	PSPTO0052	-	hypothetical protein
51	 55.60       73641..75086    	 -	481	28867294	-	PSPTO0053	-	hypothetical protein
52	 56.86       75073..75684    	 -	203	28867295	-	PSPTO0054	-	hypothetical protein
53	 59.24       75949..76971    	 +	340	28867296	-	PSPTO0055	-	ISPsy4, transposase
54	 57.78       76968..77777    	 +	269	28867297	-	PSPTO0056	-	ISPsy4, transposition helper protein
55	 51.74 -1    78120..79010    	 -	296	28867298	-	PSPTO0057	-	transposition helper protein
56	 55.48       79007..80794    	 -	595	28867299	-	PSPTO0058	-	transposase
57	 54.11 -1    80922..81542    	 -	206	28867300	-	PSPTO0059	-	hypothetical protein
58	 58.45       82500..83363    	 +	287	28867301	-	PSPTO0061	-	candidate type III helper HolPtoY
59	 60.40       83552..84859    	 -	435	28867302	-	PSPTO0062	-	citrate transporter
60	 59.65       85159..85557    	 +	132	28867303	-	PSPTO0063	-	conserved hypothetical protein
61	 60.80       85784..87181    	 -	465	28867304	-	PSPTO0064	-	conserved hypothetical protein
62	 61.71       87268..89343    	 -	691	28867305	recG	PSPTO0065	-	ATP-dependent DNA helicase RecG
63	 59.42       89355..90278    	 -	307	28867306	-	PSPTO0066	-	oxidative stress regulatory protein OxyR, putative
64	 61.31       90371..91117    	 -	248	28867307	tonB-1	PSPTO0067	-	tonB protein
65	 59.62       91114..91539    	 -	141	28867308	exbD-1	PSPTO0068	-	TonB system transport protein ExbD
66	 62.70       91543..92499    	 -	318	28867309	exbB-1	PSPTO0069	-	TonB system transport protein ExbB
67	 64.19 +1    92710..93558    	 +	282	28867310	-	PSPTO0070	-	conserved hypothetical protein
68	 58.40       93607..94344    	 -	245	28867311	-	PSPTO0071	-	lipoprotein, putative
69	 57.22       94399..94779    	 -	126	28867312	-	PSPTO0072	-	endoribonuclease L-PSP, putative
70	 59.97       94805..96910    	 -	701	28867313	spoT	PSPTO0073	-	guanosine-3,5-bis(diphosphate) 3-pyrophosphohydrolase
71	 54.55       96971..97234    	 -	87	28867314	rpoZ	PSPTO0074	-	DNA-directed RNA polymerase, omega subunit
72	 58.76       97382..98026    	 -	214	28867315	gmk	PSPTO0075	-	guanylate kinase
73	 61.69       98040..98903    	 -	287	28867316	-	PSPTO0076	-	conserved hypothetical protein TIGR00255
74	 61.13       99223..99945    	 +	240	28867317	rph	PSPTO0077	-	ribonuclease PH
75	 51.34 -1    99962..100333   	 +	123	28867318	-	PSPTO0078	-	conserved hypothetical protein
76	 56.54      100403..101182   	 -	259	28867319	-	PSPTO0079	-	exodeoxyribonuclease III, putative
77	 60.75      101265..101906   	 +	213	28867320	pyrE	PSPTO0080	-	orotate phosphoribosyltransferase
78	 63.98 +1   101917..102549   	 +	210	28867321	-	PSPTO0081	-	conserved hypothetical protein
79	 58.72      102801..103706   	 -	301	28867322	argB	PSPTO0082	-	acetylglutamate kinase
80	 58.66      103735..105132   	 -	465	28867323	algC	PSPTO0083	-	phosphomannomutase AlgC
81	 61.40      106375..106830   	 -	151	28867324	dut	PSPTO0084	-	deoxyuridine 5'triphosphate nucleotidohydrolase
82	 61.86      106837..108084   	 -	415	28867325	coaBC	PSPTO0085	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
83	 59.56      108181..108855   	 +	224	28867326	radC	PSPTO0086	-	DNA repair protein RadC
84	 59.17      108910..110496   	 -	528	28867327	-	PSPTO0087	-	bacterial extracellular solute-binding protein, family 5
85	 57.78      110557..110691   	 -	44	28867328	-	PSPTO0088	-	hypothetical protein
86	 51.71 -1   110860..111093   	 +	77	28867329	rpmB	PSPTO0089	-	ribosomal protein L28
87	 43.59 -2   111105..111260   	 +	51	28867330	rpmG	PSPTO0090	-	ribosomal protein L33
88	 58.74      111368..111733   	 -	121	28867331	-	PSPTO0091	-	conserved hypothetical protein
89	 62.12      111972..113465   	 +	497	28867332	-	PSPTO0092	-	aldehyde dehydrogenase family protein
90	 51.59 -1   113528..113779   	 -	83	28867333	-	PSPTO0093	-	hypothetical protein
91	 63.71 +1   113892..115040   	 +	382	28867334	-	PSPTO0094	-	membrane protein, putative
92	 61.33      115037..116665   	 -	542	28867335	-	PSPTO0095	-	phospholipase D family protein
93	 61.46      116690..118111   	 -	473	28867336	-	PSPTO0096	-	transcriptional regulator, GntR family/aminotransferase, class I
94	 59.15      118233..118538   	 +	101	28867337	-	PSPTO0097	-	hypothetical protein
95	 61.42      118544..119857   	 -	437	28867338	-	PSPTO0098	-	conserved hypothetical protein
96	 61.76      119909..120316   	 +	135	28867339	-	PSPTO0099	-	conserved hypothetical protein
97	 58.90      120331..120819   	 -	162	28867340	lrp	PSPTO0100	-	leucine-responsive regulatory protein
98	 60.75      120976..122277   	 +	433	28867341	dadA	PSPTO0101	-	D-amino acid dehydrogenase, small subunit
99	 59.04      122249..122602   	 +	117	28867342	-	PSPTO0102	-	endoribonuclease L-PSP family protein
100	 63.04 +1   122682..123755   	 +	357	28867343	dadX	PSPTO0103	-	alanine racemase, catabolic


 58.61 MEAN

 4.14  STD DEV
