IslandPath Analysis: Neisseria meningitidis serogroup B strain MC58

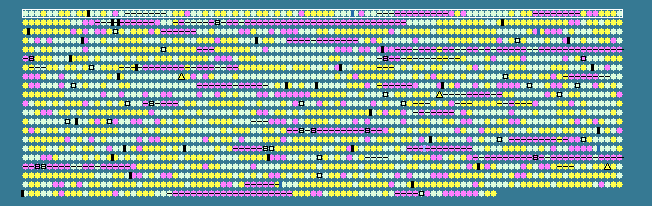

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.34   STD DEV: 7.57
Neisseria meningitidis serogroup B strain MC58 complete genome - 0..2272351
2079 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 48.58           7..498      	 -	163	15675949	NMB0001	NMB0001	K	acetyltransferase, putative
2	 49.24         502..897      	 -	131	15675950	NMB0002	NMB0002	-	hypothetical protein
3	 53.91         918..2312     	 -	464	15675951	NMB0003	NMB0003	J	glutamyl-tRNA synthetase
4	 54.88        2517..3161     	 -	214	15675952	NMB0004	NMB0004	S	EpiH/GdmH-related protein
5	 51.69        3158..3511     	 -	117	15675953	NMB0005	NMB0005	P	arsenate reductase
6	 53.83        3635..4117     	 +	160	15675954	NMB0006	NMB0006	O	thioredoxin-related protein
7	 55.45        4311..4961     	 +	216	15675955	NMB0007	NMB0007	D	cell division ATP-binding protein FtsE
8	 56.21        4958..5875     	 +	305	15675956	NMB0008	NMB0008	D	cell division protein FtsX, putative
9	 51.41        5966..6214     	 +	82	15675957	NMB0009	NMB0009	T	BolA/YrbA family protein
10	 58.17        6281..7492     	 -	403	15675958	NMB0010	NMB0010	G	phosphoglycerate kinase
11	 58.77        7573..8826     	 -	417	15675959	NMB0011	NMB0011	M	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
12	 50.10        9346..10317    	 -	323	15675960	NMB0012	NMB0012	P	conserved hypothetical protein
13	 53.56       10350..10799    	 -	149	15675961	NMB0013	NMB0013	S	conserved hypothetical protein
14	 59.67 +1    10840..12111    	 -	423	15675962	NMB0014	NMB0014	M	3-deoxy-D-manno-octulosonic-acid transferase
15	 53.83       12174..13622    	 -	482	15675963	NMB0015	NMB0015	G	6-phosphogluconate dehydrogenase, decarboxylating
16	 42.62 -1    13918..14154    	 +	78	15675964	NMB0016	NMB0016	-	hypothetical protein
17	 53.90       15221..16144    	 -	307	15675965	NMB0017	NMB0017	M	UDP-3-O-3-hydroxymyristoyl N-acetylglucosamine deacetylase
18	 52.24       17229..17741    	 -	170	15675966	NMB0018	NMB0018	N	pilin PilE
19	 52.25       18517..18939    	 -	140	15677974	-	NMB0019	N	pilS cassette
20	 52.97       19267..19653    	 -	128	15677975	-	NMB0020	N	pilS cassette
21	 52.20       19918..20304    	 -	128	15677976	-	NMB0021	N	pilS cassette
22	 51.65       20832..21164    	 -	110	15677977	-	NMB0022	N	pilS cassette
23	 52.14       21470..21889    	 -	139	15677978	-	NMB0023	N	pilS cassette
24	 50.08       21891..22481    	 -	196	15677979	-	NMB0024	N	pilS cassette
25	 53.27       22825..23496    	 -	223	15677980	-	NMB0025	N	large pilS cassette
26	 57.18       23528..23875    	 -	115	15677981	-	NMB0026	N	pilS cassette
27	 55.45       23904..24233    	 -	109	15675967	NMB0027	NMB0027	O	FKBP-type peptidyl-prolyl cis-trans isomerase
28	 46.58       24311..24529    	 -	72	15675968	NMB0028	NMB0028	S	hypothetical protein
29	 53.04       24651..25604    	 +	317	15675969	NMB0029	NMB0029	C	glycerate dehydrogenase
30	 54.28       25679..27736    	 -	685	15675970	NMB0030	NMB0030	R	methionyl-tRNA synthetase
31	 57.37       27852..29690    	 -	612	15675971	NMB0031	NMB0031	M	glucosamine--fructose-6-phosphate aminotransferase (isomerizing)
32	 49.62       29966..30493    	 +	175	15675972	NMB0032	NMB0032	-	hypothetical protein
33	 59.05 +1    30911..32236    	 -	441	15675973	NMB0033	NMB0033	M	membrane-bound lytic murein transglycosylase A, putative
34	 55.60       32447..33286    	 +	279	15675974	NMB0034	NMB0034	P	conserved hypothetical protein
35	 53.73       33283..34449    	 +	388	15675975	NMB0035	NMB0035	P	conserved hypothetical protein
36	 58.69       34713..35978    	 +	421	15675976	NMB0036	NMB0036	P	conserved hypothetical protein
37	 52.42       36050..36379    	 -	109	15675977	NMB0037	NMB0037	P	phnA protein
38	 57.33       36454..37824    	 -	456	15675978	NMB0038	NMB0038	M	UDP-N-acetylglucosamine pyrophosphorylase
39	 53.11       37879..38151    	 -	90	15675979	NMB0039	NMB0039	-	hypothetical protein
40	 55.60       38144..38857    	 -	237	15675980	NMB0040	NMB0040	R	hydrolase, putative
41	 59.58 +1    38916..39917    	 +	333	15675981	NMB0041	NMB0041	H	ABC transporter, periplasmic solute-binding protein
42	 53.36       40011..40859    	 +	282	15675982	NMB0042	NMB0042	M	conserved hypothetical protein
43	 61.11 +1    40885..41370    	 +	161	15675983	NMB0043	NMB0043	R	conserved hypothetical protein
44	 54.75       41472..43040    	 -	522	15675984	NMB0044	NMB0044	O	peptide methionine sulfoxide reductase
45	 55.85       43186..44451    	 +	421	15675985	NMB0045	NMB0045	N	signal recognition particle protein
46	 51.56       44458..44682    	 +	74	15675986	NMB0046	NMB0046	-	hypothetical protein
47	 39.30 -1    45079..45363    	 +	94	15675987	NMB0047	NMB0047	L	conserved hypothetical protein
48	 57.64       47976..48119    	 +	47	15677982	-	NMB0048	-	conserved hypothetical protein
49	 60.44 +1    53030..55180    	 -	716	15675988	NMB0050	NMB0050	S	conserved hypothetical protein
50	 55.91       55466..56692    	 -	408	15675989	NMB0051	NMB0051	N	twitching motility protein
51	 56.80       56855..57898    	 -	347	15675990	NMB0052	NMB0052	N	twitching motility protein PilT
52	 56.91       58018..58704    	 +	228	15675991	NMB0053	NMB0053	R	conserved hypothetical protein
53	 53.19       58704..59111    	 +	135	15675992	NMB0054	NMB0054	-	hypothetical protein
54	 53.54       59160..59951    	 +	263	15675993	NMB0055	NMB0055	E	pyrroline-5-carboxylate reductase
55	 49.88       60098..60514    	 +	138	15675994	NMB0056	NMB0056	T	DnaK suppressor protein
56	 54.06       66354..66710    	 +	118	15675995	NMB0057	NMB0057	L	hypothetical protein
57	 42.14 -1    66739..66897    	 +	52	15675996	NMB0058	NMB0058	-	hypothetical protein
58	 53.21       66979..68100    	 +	373	15675997	NMB0059	NMB0059	O	dnaJ protein
59	 54.53       68296..70314    	 +	672	15675998	NMB0060	NMB0060	S	conserved hypothetical protein
60	 53.06       70969..71835    	 -	288	15675999	NMB0062	NMB0062	M	glucose-1-phosphate thymidylyltransferase
61	 53.46       71898..72965    	 -	355	15676000	NMB0063	NMB0063	M	dTDP-D-glucose 4,6-dehydratase
62	 50.88       73081..74100    	 -	339	15676001	NMB0064	NMB0064	M	UDP-glucose 4-epimerase
63	 34.63 -2    74483..75409    	 +	308	15676002	NMB0065	NMB0065	-	hypothetical protein
64	 25.71 -2    75694..76428    	 +	244	15676003	NMB0066	NMB0066	J	rRNA adenine N-6-methyltransferase; foreign cassette inserted to disrupt SiaD (NMB0067) to reduce virulence
65	 29.06 -2    76613..77290    	 -	225	15677983	-	NMB0067	-	polysialic acid capsule biosynthesis protein SiaD; disrupted by foreign ermC (NMB0066) cassette
66	 40.76 -1    77374..78423    	 -	349	15676004	NMB0068	NMB0068	M	polysialic acid capsule biosynthesis protein SiaC
67	 40.17 -1    78424..79110    	 -	228	15676005	NMB0069	NMB0069	M	polysialic acid capsule biosynthesis protein SiaB
68	 38.01 -1    79114..80247    	 -	377	15676006	NMB0070	NMB0070	M	polysialic acid capsule biosynthesis protein SynX
69	 46.68       80382..81557    	 +	391	15676007	NMB0071	NMB0071	M	capsule polysaccharide export outer membrane protein CtrA
70	 46.99       81572..82735    	 +	387	15676008	NMB0072	NMB0072	M	capsule polysaccharide export inner-membrane protein CtrB
71	 42.98 -1    82735..83532    	 +	265	15676009	NMB0073	NMB0073	M	capsule polysaccharide export inner-membrane protein CtrC
72	 47.16       83529..84179    	 +	216	15676010	NMB0074	NMB0074	G	capsule polysaccharide export ATP-binding protein CtrD
73	 59.45 +1    84243..86516    	 +	757	15676011	NMB0075	NMB0075	R	transcriptional accessory protein Tex, putative
74	 36.75 -1    87536..87886    	 +	116	15677984	-	NMB0077	-	site-specific DNA methylase
75	 51.75       87929..88585    	 +	218	15677985	-	NMB0078	M	UDP-glucose 4-epimerase
76	 53.46       88701..89768    	 +	355	15676012	NMB0079	NMB0079	M	dTDP-D-glucose 4,6-dehydratase
77	 53.06       89831..90697    	 +	288	15676013	NMB0080	NMB0080	M	glucose-1-phosphate thymidylyltransferase
78	 50.81       90736..91290    	 +	184	15676014	NMB0081	NMB0081	M	dTDP-4-keto-6-deoxy-D-glucose-3,6-epimerase
79	 51.82       91315..93429    	 +	704	15676015	NMB0082	NMB0082	M	capsule polysaccharide modification protein LipA
80	 48.97       93566..94825    	 +	419	15676016	NMB0083	NMB0083	M	capsule polysaccharide modification protein LipB
81	 53.33       96815..98029    	 +	404	15676017	NMB0085	NMB0085	E	sodium/glutamate symporter
82	 58.01       98128..99144    	 +	338	15676018	NMB0086	NMB0086	-	hypothetical protein
83	 51.52       99155..99352    	 +	65	15676019	NMB0087	NMB0087	-	hypothetical protein
84	 56.67       99777..101177   	 -	466	15676020	NMB0088	NMB0088	I	outer membrane protein P1, putative
85	 60.01 +1   101492..102964   	 -	490	15676021	NMB0089	NMB0089	G	pyruvate kinase II
86	 38.40 -1   104406..104642   	 +	78	15676022	NMB0091	NMB0091	-	hypothetical protein
87	 33.77 -2   104636..104863   	 +	75	15676023	NMB0092	NMB0092	-	hypothetical protein
88	 26.44 -2   104863..104949   	 +	28	15676024	NMB0093	NMB0093	-	hypothetical protein
89	 22.75 -2   105235..105423   	 +	62	15676025	NMB0094	NMB0094	-	hypothetical protein
90	 46.41      105430..105582   	 +	50	15676026	NMB0095	NMB0095	-	hypothetical protein
91	 24.56 -2   105683..105853   	 +	56	15676027	NMB0096	NMB0096	-	hypothetical protein
92	 38.19 -1   109488..109631   	 -	47	15676028	NMB0099	NMB0099	-	hypothetical protein
93	 34.69 -2   109631..109777   	 -	48	15676029	NMB0100	NMB0100	-	hypothetical protein
94	 60.31 +1   110615..111133   	 +	172	15676030	NMB0102	NMB0102	-	hypothetical protein
95	 38.59 -1   111409..111903   	 -	164	15676031	NMB0103	NMB0103	R	bacteriocin resistance protein, putative
96	 39.70 -1   112406..113080   	 -	224	15676032	NMB0104	NMB0104	-	hypothetical protein
97	 57.53      113362..114204   	 -	280	15676033	NMB0105	NMB0105	K	PhnO-related protein
98	 56.57      114443..115363   	 +	306	15676034	NMB0106	NMB0106	F	aspartate carbamoyltransferase, catalytic subunit
99	 56.21      115373..115831   	 +	152	15676035	NMB0107	NMB0107	F	aspartate carbamoyltransferase, regulatory subunit
100	 53.30      115896..116561   	 +	221	15676036	NMB0108	NMB0108	-	hypothetical protein


 51.34 MEAN

 7.57  STD DEV
