IslandPath Analysis: Mycobacterium tuberculosis H37Rv

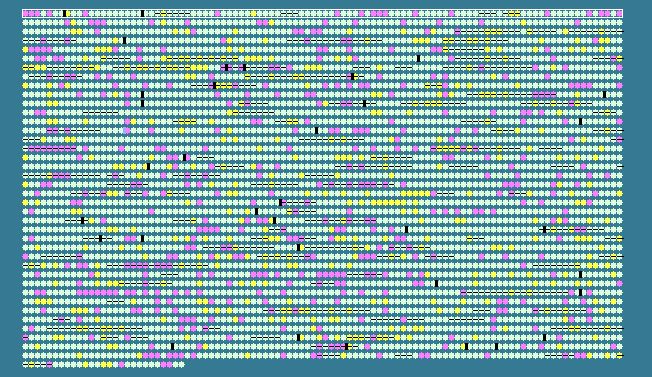

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 65.51   STD DEV: 3.36
Mycobacterium tuberculosis H37Rv complete genome - 0..4411529
3927 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 58.92 -1        1..1524     	 +	507	15607143	dnaA	Rv0001	L	dnaA
2	 59.97 -1     2052..3260     	 +	402	15607144	dnaN	Rv0002	L	dnaN
3	 59.93 -1     3280..4437     	 +	385	15607145	recF	Rv0003	L	recF
4	 66.13        4434..4997     	 +	187	15607146	-	Rv0004	-	hypothetical protein Rv0004
5	 60.28 -1     5123..7267     	 +	714	15607147	gyrB	Rv0005	L	gyrB
6	 63.89        7302..9818     	 +	838	15607148	gyrA	Rv0006	L	gyrA
7	 68.20        9914..10828    	 +	304	15607149	-	Rv0007	-	hypothetical protein Rv0007
8	 70.78 +1    11874..12311    	 -	145	15607150	-	Rv0008c	-	hypothetical protein Rv0008c
9	 62.48       12468..13016    	 +	182	15607151	ppiA	Rv0009	O	ppiA
10	 62.44       13133..13558    	 -	141	15607152	-	Rv0010c	-	hypothetical protein Rv0010c
11	 56.38 -2    13714..13995    	 -	93	15607153	-	Rv0011c	-	hypothetical protein Rv0011c
12	 64.77       14089..14877    	 +	262	15607154	-	Rv0012	S	hypothetical protein Rv0012
13	 63.95       14914..15612    	 +	232	15607155	pabA	Rv0013	E	pabA
14	 63.26       15590..17470    	 -	626	15607156	pknB	Rv0014c	T	pknB
15	 67.67       17467..18762    	 -	431	15607157	pknA	Rv0015c	T	pknA
16	 64.50       18759..20234    	 -	491	15607158	pbpA	Rv0016c	M	pbpA
17	 62.13 -1    20231..21640    	 -	469	15607159	rodA	Rv0017c	D	rodA
18	 67.57       21637..23181    	 -	514	15607160	ppp	Rv0018c	T	ppp
19	 63.03       23270..23737    	 -	155	15607161	-	Rv0019c	T	hypothetical protein Rv0019c
20	 66.35       23861..25444    	 -	527	15607162	-	Rv0020c	T	hypothetical protein Rv0020c
21	 66.05       25913..26881    	 -	322	15607163	-	Rv0021c	R	hypothetical protein Rv0021c
22	 68.33       27023..27442    	 -	139	15607164	-	Rv0022c	-	hypothetical protein Rv0022c
23	 67.32       27595..28365    	 +	256	15607165	-	Rv0023	K	hypothetical protein Rv0023
24	 69.03 +1    28362..29207    	 +	281	15607166	-	Rv0024	M	hypothetical protein Rv0024
25	 65.29       29245..29607    	 +	120	15607167	-	Rv0025	-	hypothetical protein Rv0025
26	 65.11       29722..31068    	 +	448	15607168	-	Rv0026	-	hypothetical protein Rv0026
27	 62.89       31189..31506    	 +	105	15607169	-	Rv0027	-	hypothetical protein Rv0027
28	 63.73       31514..31819    	 +	101	15607170	-	Rv0028	-	hypothetical protein Rv0028
29	 66.12       32057..33154    	 +	365	15607171	-	Rv0029	-	hypothetical protein Rv0029
30	 65.45       33224..33553    	 +	109	15607172	-	Rv0030	-	hypothetical protein Rv0030
31	 66.67       33582..33794    	 +	70	15607173	-	Rv0031	-	hypothetical protein Rv0031
32	 62.05 -1    34295..36610    	 +	771	15607174	bioF2	Rv0032	H	bioF2
33	 56.82 -2    36607..36870    	 +	87	15607175	-	Rv0033	I	hypothetical protein Rv0033
34	 65.66       36867..37262    	 +	131	15607176	-	Rv0034	R	hypothetical protein Rv0034
35	 63.59       37259..38947    	 +	562	15607177	fadD34	Rv0035	I	fadD34
36	 68.73       39056..39829    	 -	257	15607178	-	Rv0036c	-	hypothetical protein Rv0036c
37	 67.72       39877..41202    	 -	441	15607179	-	Rv0037c	G	hypothetical protein Rv0037c
38	 65.35       41304..41912    	 +	202	15607180	-	Rv0038	K	hypothetical protein Rv0038
39	 71.84 +1    42004..42351    	 -	115	15607181	-	Rv0039c	-	hypothetical protein Rv0039c
40	 67.42       42431..43363    	 -	310	15607182	-	Rv0040c	-	hypothetical protein Rv0040c
41	 62.96       43560..46469    	 +	969	15607183	leuS	Rv0041	J	leuS
42	 63.80       46579..47205    	 -	208	15607184	-	Rv0042c	K	hypothetical protein Rv0042c
43	 63.67       47364..48098    	 -	244	15607185	-	Rv0043c	K	hypothetical protein Rv0043c
44	 66.54       48231..49025    	 -	264	15607186	-	Rv0044c	C	hypothetical protein Rv0044c
45	 67.11       49041..49937    	 -	298	15607187	-	Rv0045c	R	hypothetical protein Rv0045c
46	 63.95       50019..51122    	 -	367	15607188	-	Rv0046c	I	hypothetical protein Rv0046c
47	 66.48       51183..51725    	 -	180	15607189	-	Rv0047c	K	hypothetical protein Rv0047c
48	 65.86       51826..52695    	 -	289	15607190	-	Rv0048c	-	hypothetical protein Rv0048c
49	 66.67       52829..53242    	 +	137	15607191	-	Rv0049	-	hypothetical protein Rv0049
50	 63.33       53661..55697    	 +	678	15607192	ponA	Rv0050	M	ponA
51	 64.53       55694..57376    	 +	560	15607193	-	Rv0051	-	hypothetical protein Rv0051
52	 65.96       57408..57971    	 +	187	15607194	-	Rv0052	R	hypothetical protein Rv0052
53	 60.14 -1    58190..58480    	 +	96	15607195	rpsF	Rv0053	J	rpsF
54	 66.67       58584..59078    	 +	164	15607196	ssb	Rv0054	L	ssb
55	 64.71       59120..59374    	 +	84	15607197	rpsR	Rv0055	J	rpsR
56	 62.09 -1    59407..59865    	 +	152	15607198	rplI	Rv0056	J	rplI
57	 60.73 -1    59894..60415    	 +	173	15607199	-	Rv0057	-	hypothetical protein Rv0057
58	 62.82       60394..63018    	 +	874	15607200	dnaB	Rv0058	L	dnaB
59	 61.90 -1    63198..63890    	 +	230	15607201	-	Rv0059	-	hypothetical protein Rv0059
60	 60.06 -1    63907..64965    	 +	352	15607202	-	Rv0060	S	hypothetical protein Rv0060
61	 61.74 -1    64989..65414    	 +	141	15607203	-	Rv0061	-	hypothetical protein Rv0061
62	 68.24       65550..66692    	 +	380	15607204	celA	Rv0062	-	celA
63	 67.22       66921..68360    	 +	479	15607205	-	Rv0063	C	hypothetical protein Rv0063
64	 63.67       68618..71557    	 +	979	15607206	-	Rv0064	S	hypothetical protein Rv0064
65	 62.44       71819..72220    	 +	133	15607207	-	Rv0065	-	hypothetical protein Rv0065
66	 61.80 -1    72272..74509    	 -	745	15607208	icd2	Rv0066c	C	icd2
67	 65.09       74627..75196    	 -	189	15607209	-	Rv0067c	K	hypothetical protein Rv0067c
68	 65.79       75299..76210    	 +	303	15607210	-	Rv0068	Q	hypothetical protein Rv0068
69	 65.08       76235..77620    	 -	461	15607211	sdaA	Rv0069c	E	sdaA
70	 66.12       77617..78894    	 -	425	15607212	glyA2	Rv0070c	E	glyA2
71	 64.69       79484..80191    	 +	235	15607213	-	Rv0071	L	hypothetical protein Rv0071
72	 61.71 -1    80622..81671    	 +	349	15607214	-	Rv0072	R	hypothetical protein Rv0072
73	 62.64       81674..82666    	 +	330	15607215	-	Rv0073	R	hypothetical protein Rv0073
74	 66.02       82746..83981    	 +	411	15607216	-	Rv0074	Q	hypothetical protein Rv0074
75	 64.11       83994..85166    	 +	390	15607217	-	Rv0075	E	hypothetical protein Rv0075
76	 62.31       85181..85570    	 -	129	15607218	-	Rv0076c	-	hypothetical protein Rv0076c
77	 66.19       85634..86464    	 -	276	15607219	-	Rv0077c	R	hypothetical protein Rv0077c
78	 67.99       86526..87131    	 +	201	15607220	-	Rv0078	K	hypothetical protein Rv0078
79	 68.13       88202..89023    	 +	273	15607221	-	Rv0079	-	hypothetical protein Rv0079
80	 68.85       89020..89478    	 +	152	15607222	-	Rv0080	-	hypothetical protein Rv0080
81	 65.51       89573..89917    	 +	114	15607223	-	Rv0081	K	hypothetical protein Rv0081
82	 69.58 +1    89922..90401    	 +	159	15607224	-	Rv0082	C	hypothetical protein Rv0082
83	 71.14 +1    90398..92320    	 +	640	15607225	-	Rv0083	C	hypothetical protein Rv0083
84	 68.56       92326..93276    	 +	316	15607226	hycD	Rv0084	C	hycD
85	 68.93 +1    93287..93949    	 +	220	15607227	hycP	Rv0085	-	hycP
86	 68.92 +1    93949..95415    	 +	488	15607228	hycQ	Rv0086	C	hycQ
87	 66.80       95412..96890    	 +	492	15607229	hycE	Rv0087	C	hycE
88	 61.78 -1    96925..97599    	 +	224	15607230	-	Rv0088	-	hypothetical protein Rv0088
89	 67.00       97756..98349    	 +	197	15607231	-	Rv0089	Q	hypothetical protein Rv0089
90	 65.63       98478..99248    	 +	256	15607232	-	Rv0090	S	hypothetical protein Rv0090
91	 65.10       99682..100449   	 +	255	15607233	-	Rv0091	F	hypothetical protein Rv0091
92	 67.54      100581..102866   	 +	761	15607234	ctpA	Rv0092	P	ctpA
93	 67.61      102813..103661   	 -	282	15607235	-	Rv0093c	-	hypothetical protein Rv0093c
94	 67.51      103708..104661   	 -	317	15607236	-	Rv0094c	-	hypothetical protein Rv0094c
95	 61.56 -1   104803..105213   	 -	136	15607237	-	Rv0095c	-	hypothetical protein Rv0095c
96	 65.09      105322..106713   	 +	463	15607238	PPE	Rv0096	-	PPE
97	 58.85 -1   106732..107601   	 +	289	15607239	-	Rv0097	Q	hypothetical protein Rv0097
98	 59.06 -1   107598..108149   	 +	183	15607240	-	Rv0098	-	hypothetical protein Rv0098
99	 62.66      108154..109776   	 +	540	15607241	fadD10	Rv0099	I	fadD10
100	 60.34 -1   109781..110017   	 +	78	15607242	-	Rv0100	-	hypothetical protein Rv0100


 65.51 MEAN

 3.36  STD DEV
