IslandPath Analysis: Mycoplasma penetrans

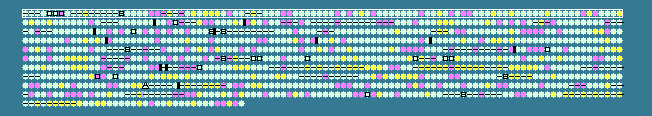

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 26.11   STD DEV: 3.47
Mycoplasma penetrans, complete genome - 0..1358633
1037 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 23.18           1..1359     	 +	452	26553453	-	MYPE10	L	chromosomal replication initiator protein
2	 25.33        1450..2586     	 +	378	26553454	-	MYPE20	L	DNA polymerase III subunit beta
3	 29.13        3002..4951     	 +	649	26553455	-	MYPE30	L	DNA gyrase subunit B
4	 29.08        4970..7483     	 +	837	26553456	-	MYPE40	L	DNA gyrase subunit A
5	 26.90        8390..8995     	 +	201	26553457	-	MYPE50	L	transposase
6	 23.58        9286..9654     	 +	122	26553458	-	MYPE60	L	transposase
7	 18.82 -2     9776..9961     	 +	61	26553459	-	MYPE70	-	transposase
8	 27.66       12011..12838    	 +	275	26553460	-	MYPE80	D	Soj protein
9	 23.79       12851..13678    	 +	275	26553461	-	MYPE90	-	hypothetical protein
10	 25.51       13682..14167    	 +	161	26553462	-	MYPE100	J	rRNA methylase
11	 29.63 +1    14264..14506    	 -	80	26553463	-	MYPE110	-	hypothetical protein
12	 27.23       14624..15082    	 -	152	26553464	-	MYPE120	-	hypothetical protein
13	 23.07       15438..16343    	 -	301	26553465	-	MYPE130	J	pseudouridine synthase
14	 25.26       16424..16906    	 +	160	26553466	-	MYPE140	O	peroxiredoxin
15	 24.19       17109..18683    	 +	524	26553467	-	MYPE150	-	hypothetical protein
16	 28.44       18805..19704    	 +	299	26553468	-	MYPE160	M	UTP-glucose-1-phosphate uridylyltransferase
17	 25.18       19895..21451    	 -	518	26553469	-	MYPE170	-	transposase
18	 29.29       21634..24378    	 +	914	26553470	-	MYPE180	-	hypothetical protein
19	 28.43       24393..28433    	 +	1346	26553471	-	MYPE190	-	hypothetical protein
20	 25.96       28477..31512    	 +	1011	26553472	-	MYPE200	G	phosphoglycerate mutase
21	 26.58       31521..32438    	 +	305	26553473	-	MYPE210	G	triose phosphate isomerase
22	 22.27 -1    32759..34078    	 +	439	26553474	-	MYPE220	J	cysteinyl-tRNA synthetase
23	 22.32 -1    34086..34802    	 +	238	26553475	-	MYPE230	J	rRNA methylase
24	 20.65 -1    34793..35407    	 +	204	26553476	-	MYPE240	-	conserved hypothetical protein
25	 30.98 +1    35628..36095    	 +	155	26553477	-	MYPE250	J	ribosomal protein L11
26	 29.18       36106..37116    	 +	336	26553478	-	MYPE260	J	ribosomal protein L1
27	 21.05 -1    37157..38092    	 -	311	26553479	-	MYPE270	M	glycosyltransferase
28	 23.46       38104..38559    	 -	151	26553480	-	MYPE280	-	hypothetical protein
29	 34.04 +2    39162..39584    	 +	140	26553481	-	MYPE290	J	ribosomal protein S12
30	 28.63       39599..40066    	 +	155	26553482	-	MYPE300	J	ribosomal protein S7
31	 32.94 +1    40085..42133    	 +	682	26553483	-	MYPE310	J	elongation factor G
32	 35.78 +2    42293..43477    	 +	394	26553484	-	MYPE320	J	elongation factor Tu
33	 35.00 +2    43741..44757    	 +	338	26553485	-	MYPE330	-	hypothetical protein
34	 27.40       44860..45213    	 +	117	26553486	-	MYPE340	-	conserved hypothetical protein
35	 20.94 -1    45182..45544    	 +	120	26553487	-	MYPE350	I	holo-acyl carrier protein synthase
36	 28.09       45685..45951    	 +	88	26553488	-	MYPE360	-	hypothetical protein
37	 26.08       46091..46903    	 +	270	26553489	-	MYPE370	I	1-acyl-sn-glycerol-3-phosphate acyltransferase
38	 23.97       46920..47795    	 +	291	26553490	-	MYPE380	S	conserved hypothetical protein
39	 30.30 +1    47785..48378    	 +	197	26553491	-	MYPE390	K	conserved hypothetical protein
40	 28.51       48388..48615    	 +	75	26553492	-	MYPE400	S	conserved hypothetical protein
41	 22.99       48615..49175    	 +	186	26553493	-	MYPE410	R	predicted GTP-binding protein
42	 24.40       49185..51803    	 +	872	26553494	-	MYPE420	J	valyl-tRNA synthetase
43	 24.84       52584..53678    	 +	364	26553495	-	MYPE430	R	predicted competence protein
44	 20.89 -1    53570..55570    	 +	666	26553496	-	MYPE440	-	conserved hypothetical protein
45	 20.23 -1    55583..56521    	 +	312	26553497	-	MYPE450	L	conserved hypothetical protein
46	 27.01       56499..57842    	 +	447	26553498	-	MYPE460	-	putative integral membrane protein
47	 26.21       57935..58846    	 +	303	26553499	-	MYPE470	-	putative integral membrane protein
48	 28.27       58901..59137    	 -	78	26553500	-	MYPE480	J	ribosomal protein S20
49	 24.78       59212..60006    	 +	264	26553501	-	MYPE490	-	conserved hypothetical protein
50	 25.29       59967..60923    	 +	318	26553502	-	MYPE500	J	methionyl-tRNA formyltransferase
51	 29.45       60933..62735    	 +	600	26553503	-	MYPE510	M	GTP-binding membrane protein
52	 27.30       62857..64464    	 +	535	26553504	-	MYPE520	F	CTP synthetase
53	 22.42 -1    64475..65299    	 +	274	26553505	-	MYPE530	R	predicted GTPase
54	 24.16       65383..65916    	 +	177	26553506	-	MYPE540	L	conserved hypothetical protein
55	 18.75 -2    66016..66447    	 +	143	26553507	-	MYPE550	-	hypothetical protein
56	 28.71       66469..67377    	 +	302	26553508	-	MYPE560	C	ATP synthase subunit A
57	 32.49 +1    67456..67692    	 +	78	26553509	-	MYPE570	C	ATP synthase subunit C
58	 25.85       67714..68301    	 +	195	26553510	-	MYPE580	C	ATP synthase subunit B
59	 22.05 -1    68318..68884    	 +	188	26553511	-	MYPE590	C	ATP synthase subunit delta
60	 28.34       68887..70428    	 +	513	26553512	-	MYPE600	C	ATP synthase subunit alpha
61	 24.27       70439..71299    	 +	286	26553513	-	MYPE610	C	ATP synthase subunit gamma
62	 28.20       71301..73637    	 +	778	26553514	-	MYPE620	C	ATP synthase subunit beta
63	 23.28       73649..74056    	 +	135	26553515	-	MYPE630	C	ATP synthase subunit epsilon
64	 27.55       74150..74443    	 +	97	26553516	-	MYPE640	J	ribosomal protein L31
65	 28.98       74531..75610    	 +	359	26553517	-	MYPE650	J	peptide chain release factor 1
66	 23.94       75576..76448    	 +	290	26553518	-	MYPE660	J	S-adenosylmethionine-dependent methyltransferase
67	 22.12 -1    76451..77092    	 +	213	26553519	-	MYPE670	J	predicted translation factor
68	 26.21       77058..77534    	 +	158	26553520	-	MYPE680	G	ribose 5-phosphate and galactose-6-phosphate isomerase
69	 23.79       77536..78258    	 +	240	26553521	-	MYPE690	T	putative two-component response regulator
70	 29.90 +1    78521..79102    	 +	193	26553522	-	MYPE700	R	predicted intracellular protease
71	 26.35       79238..80254    	 +	338	26553523	-	MYPE710	K	heat-inducible transcription repressor
72	 18.68 -2    80229..80774    	 +	181	26553524	-	MYPE720	-	hypothetical protein
73	 25.50       80780..82618    	 +	612	26553525	-	MYPE730	H	deoxyxylulose-5-phosphate synthase
74	 21.32 -1    82797..83687    	 +	296	26553526	-	MYPE740	-	conserved hypothetical protein
75	 22.42 -1    83702..84031    	 -	109	26553527	-	MYPE750	-	hypothetical protein
76	 27.78       84059..84310    	 +	83	26553528	-	MYPE760	O	nitrogen fixation protein
77	 28.64       84320..86344    	 +	674	26553529	-	MYPE770	G	transketolase
78	 28.79       86502..87998    	 +	498	26553530	-	MYPE780	G	pyruvate kinase
79	 29.70 +1    88217..92344    	 +	1375	26553531	-	MYPE790	K	DNA-directed RNA polymerase subunit beta
80	 29.04       92365..96231    	 +	1288	26553532	-	MYPE800	K	DNA-directed RNA polymerase subunit beta'
81	 27.44       96331..96771    	 +	146	26553533	-	MYPE810	J	ribosomal protein L13
82	 30.53 +1    96789..97181    	 +	130	26553534	-	MYPE820	J	ribosomal protein S9
83	 23.74       97919..98137    	 +	72	26553535	-	MYPE830	-	hypothetical protein
84	 22.69       98295..98510    	 +	71	26553536	-	MYPE835	-	hypothetical protein
85	 26.16       98853..99674    	 +	273	26553537	-	MYPE840	R	predicted haloacid dehalogenase-like hydrolase
86	 28.74      100051..102228   	 -	725	26553538	-	MYPE850	F	ribonucleoside diphosphate reductase subunit alpha
87	 26.44      102261..102710   	 -	149	26553539	-	MYPE860	F	ribonucleotide reductase
88	 30.10 +1   102713..103732   	 -	339	26553540	-	MYPE870	F	ribonucleotide diphosphate reductase subunit beta
89	 26.25      104027..109387   	 +	1786	26553541	-	MYPE880	-	predicted permeases
90	 26.77      109575..114956   	 +	1793	26553542	-	MYPE890	-	predicted permeases
91	 27.07      115033..116757   	 -	574	26553543	-	MYPE900	V	conserved hypothetical protein
92	 24.01      116865..117722   	 -	285	26553544	-	MYPE910	-	putative membrane integrated oxidoreductase
93	 23.93      117724..118446   	 -	240	26553545	-	MYPE920	-	hypothetical protein
94	 20.62 -1   118459..118875   	 -	138	26553546	-	MYPE930	-	hypothetical protein
95	 29.99 +1   119066..120202   	 +	378	26553547	-	MYPE940	H	S-adenosylmethionine synthetase
96	 20.67 -1   120286..120885   	 -	199	26553548	-	MYPE950	-	hypothetical protein
97	 25.52      121160..122272   	 -	370	26553549	-	MYPE960	V	ABC transporter ATP-binding protein
98	 26.76      122274..124313   	 -	679	26553550	-	MYPE970	-	predicted integral membrane protein
99	 26.74      124534..124806   	 +	90	26553551	-	MYPE980	O	chaperonin GroES
100	 29.98 +1   124836..126473   	 +	545	26553552	-	MYPE990	O	chaperonin GroEL


 26.11 MEAN

 3.47  STD DEV
