IslandPathversion 1.0

IslandPath Analysis: Methanococcus jannaschii DSM2661

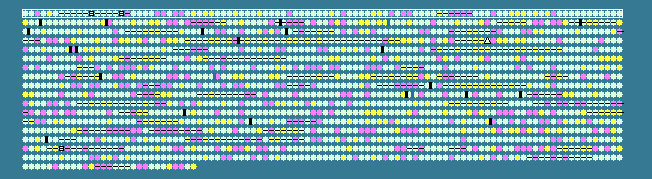

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.69 STD DEV: 3.75
Methanococcus jannaschii complete genome - 0..1664970
1729 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 33.69        2216..3343     	 -	375	15668173	MJ0001	MJ0001	E	aspartate aminotransferase (aspB1)
2	 31.69        3340..4071     	 -	243	15668174	MJ0002	MJ0002	R	M. jannaschii predicted coding region MJ0002
3	 26.54 -1     4911..5381     	 +	156	15668175	MJ0003	MJ0003	S	M. jannaschii predicted coding region MJ0003
4	 31.56        5378..6109     	 +	243	15668176	MJ0004	MJ0004	I	(R)-2-hydroxyglutaryl-CoA dehydratase activator
5	 35.18        6111..7250     	 -	379	15668177	MJ0005	MJ0005	C	formate dehydrogenase, beta subunit
6	 32.63        7338..8474     	 -	378	15668178	MJ0006	MJ0006	C	formate dehydrogenase, alpha subunit
7	 34.49        8884..10005    	 +	373	15668179	MJ0007	MJ0007	E	2-hydroxyglutaryl-CoA dehydratase, subunit beta (hgdB)
8	 30.77       10075..10737    	 +	220	15668180	MJ0008	MJ0008	G	M. jannaschii predicted coding region MJ0008
9	 32.37       10743..11573    	 +	276	15668181	MJ0009	MJ0009	-	M. jannaschii predicted coding region MJ0009
10	 33.64       11581..12867    	 +	428	15668182	MJ0010	MJ0010	G	BcpC phosphonopyruvate decarboxylase
11	 29.46       12869..13462    	 +	197	15668183	MJ0011	MJ0011	-	M. jannaschii predicted coding region MJ0011
12	 34.98       13424..14332    	 -	302	15669879	-	MJ0012m	L	transposase-related protein
13	 31.29       14348..14836    	 -	162	15668184	MJ0013	MJ0013	L	M. jannaschii predicted coding region MJ0013
14	 32.87       14817..15458    	 -	213	15668185	MJ0014	MJ0014	L	conserved hypothetical protein
15	 31.99       15511..15807    	 +	98	15668186	MJ0015	MJ0015	E	conserved hypothetical protein
16	 32.20       16240..16416    	 -	58	15668187	MJ0016	MJ0016	-	M. jannaschii predicted coding region MJ0016
17	 33.18       16806..17450    	 +	214	15668188	MJ0017	MJ0017	L	transposase, similar to IS240
18	 28.19       17658..19232    	 +	524	15668189	MJ0018	MJ0018	-	M. jannaschii predicted coding region MJ0018
19	 34.39       19229..21121    	 -	630	15668190	MJ0019	MJ0019	J	Glu-tRNA amidotransferase (gatB)
20	 33.49       21148..22401    	 -	417	15668191	MJ0020	MJ0020	E	asparaginase (ansA)
21	 31.03       22762..23889    	 +	375	15668192	MJ0021	MJ0021	R	conserved hypothetical protein
22	 30.39       24003..25091    	 +	362	15668193	MJ0022	MJ0022	H	cobalamin biosynthesis protein (cbiD)
23	 26.05 -1    25284..25640    	 +	118	15668194	MJ0023	MJ0023	-	M. jannaschii predicted coding region MJ0023
24	 27.86 -1    25686..26105    	 -	139	15668195	MJ0024	MJ0024	S	conserved hypothetical protein
25	 32.35       26106..27122    	 -	338	15668196	MJ0025	MJ0025	K	hypothetical protein
26	 27.64 -1    27134..27958    	 -	274	15668197	MJ0026	MJ0026	J	proliferating-cell nucleolar antigen, FMU/NOL1/NOP2 family
27	 25.59 -1    28018..28572    	 -	184	15668198	MJ0027	MJ0027	-	M. jannaschii predicted coding region MJ0027
28	 32.08       28514..29473    	 -	319	15668199	MJ0028	MJ0028	H	thiamine monphosphate kinase (thiL)
29	 37.50 +1    29838..31085    	 +	415	15669896	-	MJ0029	C	coenzyme F420-reducing hydrogenase, alpha subunit, selenocysteine-containing
30	 33.33       31255..31806    	 +	183	15668200	MJ0030	MJ0030	C	coenzyme F420-reducing hydrogenase, delta subunit (frcD)
31	 38.96 +1    31799..32491    	 +	230	15668201	MJ0031	MJ0031	C	coenzyme F420-reducing hydrogenase, gamma subunit
32	 37.04 +1    32511..33374    	 +	287	15668202	MJ0032	MJ0032	C	coenzyme F420-reducing hydrogenase, beta subunit (frhB)
33	 34.69       33629..35248    	 +	539	15668203	MJ0033	MJ0033	C	succinate dehydrogenase, flavoprotein subunit (sdhA)
34	 34.28       35437..36387    	 -	316	15668204	MJ0034	MJ0034	R	conserved hypothetical protein
35	 34.53       36529..37281    	 -	250	15668205	MJ0035	MJ0035	R	ABC transporter subunit
36	 38.96 +1    37551..38012    	 +	153	15668206	MJ0036	MJ0036	J	SSU ribosomal protein S15P (rpsO)
37	 29.01       38073..38789    	 +	238	15668207	MJ0037	MJ0037	R	conserved hypothetical protein
38	 30.28       38790..39443    	 -	217	15668208	MJ0038	MJ0038	J	conserved hypothetical protein
39	 31.61       39651..39998    	 -	115	15668209	MJ0039	MJ0039	S	conserved hypothetical protein
40	 37.04 +1    40098..40394    	 -	98	15668210	MJ0040	MJ0040	J	LSU ribosomal protein L21E
41	 31.28       40474..41838    	 -	454	15668211	MJ0041	MJ0041	J	conserved hypothetical protein
42	 31.64       41880..42527    	 -	215	15668212	MJ0042	MJ0042	-	M. jannaschii predicted coding region MJ0042
43	 31.98       42755..45112    	 +	785	15668213	MJ0043	MJ0043	S	intein containing hypothetical protein
44	 29.50       45117..45899    	 -	260	15668214	MJ0044	MJ0044	R	conserved hypothetical protein
45	 26.73 -1    45904..46569    	 -	221	15668215	MJ0045	MJ0045	Q	conserved hypothetical protein
46	 28.24       46566..47351    	 -	261	15668216	MJ0046	MJ0046	Q	conserved hypothetical protein
47	 31.39       47370..48656    	 -	428	15668217	MJ0047	MJ0047	J	putative mRNA 3'-end processing factor 1
48	 33.65       48846..49163    	 +	105	15668218	MJ0047.1	MJ0047.1	-	M. jannaschii predicted coding region MJ0047.1
49	 32.75       49516..50202    	 -	228	15668219	MJ0048	MJ0048	J	conserved hypothetical protein
50	 33.71       50206..50469    	 -	87	15668220	MJ0049	MJ0049	J	LSU ribosomal protein L31E
51	 32.83       51047..52237    	 -	396	15668221	MJ0050	MJ0050	E	group II decarboxylase
52	 37.07 +1    52347..52694    	 +	115	15668222	MJ0051	MJ0051	S	conserved hypothetical protein
53	 30.94       52706..53374    	 -	222	15668223	MJ0052	MJ0052	R	conserved hypothetical protein
54	 27.34 -1    53385..54068    	 -	227	15668224	MJ0053	MJ0053	R	M. jannaschii predicted coding region MJ0053
55	 31.80       54156..55001    	 -	281	15668225	MJ0054	MJ0054	S	conserved hypothetical protein
56	 32.31       55080..55763    	 -	227	15668226	MJ0055	MJ0055	H	GTP cyclohydrolase II (ribA)
57	 28.95       55756..56166    	 -	136	15668227	MJ0056	MJ0056	K	conserved hypothetical protein
58	 34.04       56182..57462    	 -	426	15668228	MJ0057	MJ0057	P	Na+/H+ antiporter
59	 37.59 +1    57588..58763    	 -	391	15668229	MJ0058	MJ0058	P	ammonium transporter (amtB)
60	 37.46 +1    58979..59317    	 +	112	15668230	MJ0059	MJ0059	E	nitrogen regulatory protein P-II (glnB)
61	 32.02       59467..60225    	 +	252	15668231	MJ0060	MJ0060	F	methylthioadenosine phosphorylase (mtaP)
62	 24.28 -1    60363..60605    	 +	80	15668232	MJ0061	MJ0061	C	ferredoxin
63	 29.01       60618..61241    	 +	207	15668233	MJ0062	MJ0062	J	hypothetical protein
64	 24.73 -1    61313..61858    	 +	181	15668234	MJ0063	MJ0063	-	M. jannaschii predicted coding region MJ0063
65	 25.96 -1    61888..62457    	 +	189	15668235	MJ0064	MJ0064	-	M. jannaschii predicted coding region MJ0064
66	 29.49       62460..63551    	 -	363	15668236	MJ0065	MJ0065	S	conserved hypothetical protein
67	 31.53       63654..65096    	 -	480	15668237	MJ0066	MJ0066	E	sulfate adenylate transferase, subunit 2 (cysD)
68	 33.01       65160..65471    	 +	103	15668238	MJ0067	MJ0067	S	M. jannaschii predicted coding region MJ0067
69	 33.62       65514..65861    	 -	115	15668239	MJ0068	MJ0068	S	conserved hypothetical protein
70	 36.99 +1    66007..66909    	 +	300	15668240	MJ0069	MJ0069	E	acetylglutamate kinase (argB)
71	 28.92       66966..67214    	 +	82	15668241	MJ0070	MJ0070	-	M. jannaschii predicted coding region MJ0070
72	 26.74 -1    67211..67483    	 +	90	15668242	MJ0071	MJ0071	S	conserved hypothetical protein
73	 28.15       67562..67696    	 +	44	15668243	MJ0072	MJ0072	-	M. jannaschii predicted coding region MJ0072
74	 28.01       67729..68010    	 +	93	15668244	MJ0073	MJ0073	-	M. jannaschii predicted coding region MJ0073
75	 27.86 -1    68013..69089    	 -	358	15668245	MJ0074	MJ0074	-	M. jannaschii predicted coding region MJ0074
76	 30.15       69233..70330    	 -	365	15668246	MJ0075	MJ0075	-	M. jannaschii predicted coding region MJ0075
77	 29.59       70391..71539    	 -	382	15668247	MJ0077	MJ0077	S	conserved hypothetical protein
78	 30.12       71620..71961    	 +	113	15668248	MJ0076	MJ0076	-	conserved hypothetical protein)
79	 26.44 -1    72051..72674    	 -	207	15668249	MJ0078	MJ0078	-	M. jannaschii predicted coding region MJ0078
80	 29.75       72664..73806    	 -	380	15668250	MJ0079	MJ0079	R	regulatory protein, putative (moxR)
81	 32.03       73799..74182    	 -	127	15668251	MJ0080	MJ0080	K	conserved hypothetical protein
82	 39.73 +2    74670..76013    	 +	447	15668252	MJ0081	MJ0081	S	methyl coenzyme M reductase II, subunit beta (mrtB)
83	 38.33 +1    76026..76826    	 +	266	15668253	MJ0082	MJ0082	S	methyl coenzyme M reductase II, subunit gamma (mtrG)
84	 39.90 +2    76826..78484    	 +	552	15668254	MJ0083	MJ0083	S	methyl coenzyme M reductase II, subunit alpha (mtrA)
85	 32.67       78746..79495    	 +	249	15668255	MJ0084	MJ0084	D	CODH nickel-insertion accessory protein (cooC)
86	 35.29       79630..80751    	 +	373	15668256	MJ0085	MJ0085	P	iron transport periplasmic binding protein, putative (ceuE)
87	 30.21       80788..81906    	 +	372	15668257	MJ0086	MJ0086	Q	unspecified methyltransferase
88	 36.38 +1    81930..82979    	 +	349	15668258	MJ0087	MJ0087	P	hemin permease (hemU)
89	 25.97 -1    82998..83540    	 +	180	15668259	MJ0088	MJ0088	-	M. jannaschii predicted coding region MJ0088
90	 31.90       83541..84305    	 +	254	15668260	MJ0089	MJ0089	P	ferric enterobactin transport ATP-binding protein
91	 33.17       84386..85609    	 +	407	15668261	MJ0090	MJ0090	O	collagenase (prtC)
92	 34.54       85705..86613    	 +	302	15668262	MJ0091	MJ0091	P	Na+/Ca+ exchanger protein, putative
93	 34.97       86613..88082    	 +	489	15668263	MJ0092	MJ0092	C	heterodisulfide reductase, subunit D (hdrD)
94	 28.67       88089..88517    	 -	142	15668264	MJ0093	MJ0093	S	M. jannaschii predicted coding region MJ0093
95	 34.62       88561..89493    	 -	310	15668265	MJ0094	MJ0094	S	methyl coenzyme M reductase II, operon protein C (mtrC)
96	 31.23       89565..89945    	 -	126	15668266	MJ0095	MJ0095	-	M. jannaschii predicted coding region MJ0095
97	 28.90       89964..90752    	 -	262	15668267	MJ0096	MJ0096	-	M. jannaschii predicted coding region MJ0096
98	 33.80       91045..91476    	 -	143	15668268	MJ0097	MJ0097	J	translation initiation factor aIF-2, subunit beta, putative (aIF2B)
99	 32.80       91672..91857    	 -	61	15668269	MJ0098	MJ0098	J	LSU ribosomal protein L37E
100	 32.58       92902..93297    	 -	131	15668270	MJ0099	MJ0099	C	ferredoxin II


 31.69 MEAN

 3.75  STD DEV
