IslandPath Analysis: Leptospira interrogans chromosome I

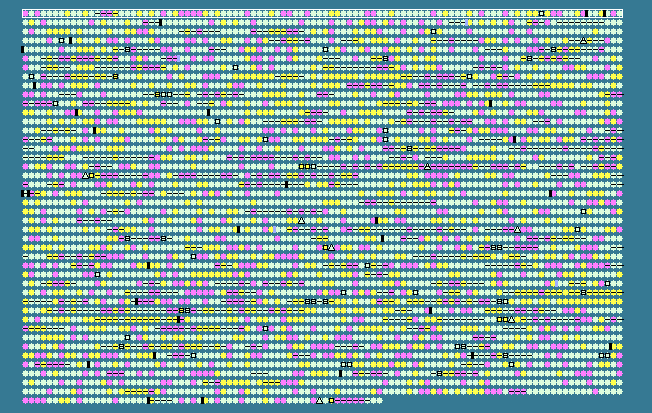

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.02   STD DEV: 4.84
Leptospira interrogans serovar lai str. 56601 chromosome I, complete sequence - 0..4332241
4360 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 31.53         234..1565     	 +	443	24212701	dnaA	LA0001	-	chromosomal replication initiator protein
2	 32.17        3221..4342     	 +	373	24212702	dnaN	LA0002	-	DNA polymerase III beta subunit
3	 30.69        5004..6101     	 +	365	24212703	recF	LA0003	-	RecF protein
4	 32.26        6098..6562     	 +	154	24212704	-	LA0004	-	conserved hypothetical protein
5	 37.19        6626..8545     	 +	639	24212705	gyrB1	LA0005	-	DNA gyrase subunit B
6	 36.45        8564..11068    	 +	834	24212706	gyrA1	LA0006	-	DNA gyrase subunit A
7	 37.47       11073..12062    	 +	329	24212707	-	LA0007	-	conserved hypothetical protein
8	 43.19 +1    12069..12413    	 +	114	24212708	-	LA0008	-	hypothetical protein
9	 34.28       12655..13392    	 +	245	24212709	-	LA0009	-	unknown
10	 35.33       13744..14745    	 -	333	24212710	-	LA0010	-	hypothetical protein
11	 41.35 +1    15156..15716    	 -	186	24212711	-	LA0011	-	putative lipoprotein
12	 33.27       15795..17402    	 +	535	24212712	-	LA0012	-	hypothetical protein
13	 32.55       17424..18317    	 +	297	24212713	-	LA0013	-	transcriptional regulator, Fis family
14	 31.40       18259..19347    	 -	362	24212714	-	LA0014	-	conserved hypothetical protein
15	 25.00 -2    19556..19663    	 +	35	24212715	-	LA0015	-	hypothetical protein
16	 40.74 +1    19919..20134    	 +	71	24212716	-	LA0016	-	hypothetical protein
17	 31.74       20125..20688    	 -	187	24212717	-	LA0017	-	Maf-like protein
18	 32.67       20740..21645    	 +	301	24212718	-	LA0018	-	hypothetical protein
19	 31.55       21790..22293    	 +	167	24212719	-	LA0019	-	hypothetical protein
20	 38.71       22298..23041    	 +	247	24212720	-	LA0020	-	3-oxoacyl-[acyl-carrier protein] reductase
21	 32.51       23057..23665    	 +	202	24212721	-	LA0021	-	predicted translation factor SUA5
22	 40.29 +1    24156..25838    	 +	560	24212722	-	LA0022	-	conserved hypothetical protein
23	 32.18       26414..26587    	 -	57	24212723	-	LA0023	-	hypothetical protein
24	 31.40       26668..27030    	 -	120	24212724	-	LA0024	-	conserved hypothetical protein
25	 36.51       27957..28082    	 -	41	24212725	-	LA0026	-	hypothetical protein
26	 40.53 +1    28064..29077    	 +	337	24212726	fliG1	LA0025	-	flagellar motor switch protein FliG
27	 30.39       29142..31418    	 +	758	24212727	cyaA1	LA0027	-	adenylate cyclase
28	 19.88 -2    31868..32038    	 +	56	24212728	-	LA0028	-	hypothetical protein
29	 29.93 -1    32041..32598    	 +	185	24212729	-	LA0029	-	hypothetical protein
30	 30.40       32546..33772    	 +	408	24212730	-	LA0030	-	unknown protein
31	 40.57 +1    33997..34701    	 +	234	24212731	-	LA0031	-	unknown protein
32	 36.67       34705..35064    	 +	119	24212732	-	LA0032	-	hypothetical protein
33	 40.16 +1    35061..35909    	 -	282	24212733	suhB1	LA0033	-	inositol monophophatase family protein
34	 33.22       35929..36840    	 -	303	24212734	-	LA0034	-	hypothetical protein
35	 35.76       37450..39426    	 -	658	24212735	-	LA0035	-	beta-galactosidase I
36	 33.90       39454..39630    	 -	58	24212736	-	LA0037	-	hypothetical protein
37	 35.78       39612..40469    	 +	285	24212737	-	LA0036	-	Heat shock protein HSP33
38	 29.67 -1    40477..41049    	 +	190	24212738	-	LA0038	-	conserved hypothetical protein
39	 34.20       41031..41726    	 +	231	24212739	-	LA0039	-	conserved hypothetical protein
40	 32.75       41732..43978    	 +	748	24212740	-	LA0040	-	VacB protein
41	 34.11       44138..44650    	 +	170	24212741	-	LA0041	-	hypothetical protein
42	 39.16       44654..46267    	 +	537	24212742	-	LA0042	-	GMC oxidoreductase
43	 32.67       46409..47917    	 +	502	24212743	-	LA0043	-	TPR-repeat-containing proteins
44	 25.69 -1    47932..48075    	 +	47	24212744	-	LA0044	-	hypothetical protein
45	 30.35       48128..48832    	 -	234	24212745	aroD	LA0045	-	3-dehydroquinate dehydratase
46	 35.91       48836..49804    	 -	322	24212746	kpsF	LA0046	-	Polysialic acid capsule expression protein kpsF
47	 34.07       49788..50327    	 -	179	24212747	nusG	LA0047	-	transcriptional activator affecting biosynthesis of lipopolysaccharide core, F pilin, and haemolysin
48	 30.83       50311..50790    	 -	159	24212748	-	LA0048	-	hypothetical protein
49	 35.81       51872..53569    	 +	565	24212749	aer	LA0049	-	aerotaxis sensor receptor, flavoprotein
50	 37.43       54175..55053    	 +	292	24212750	-	LA0050	-	conserved hypothetical protein
51	 37.91       55050..55988    	 +	312	24212751	-	LA0051	-	dTDPglucose 4,6-dehydratase
52	 39.83       56062..57231    	 +	389	24212752	pntA	LA0052	-	NAD(P) transhydrogenase subunit alpha
53	 39.29       57190..57726    	 -	178	24212753	-	LA0053	-	predicted phosphatase
54	 36.29       57723..59042    	 -	439	24212754	hisS1	LA0054	-	histidyl-tRNA synthetase
55	 35.68       59049..60197    	 -	382	24212755	-	LA0055	-	unknown protein
56	 36.09       60207..62270    	 -	687	24212756	-	LA0056	-	outer membrane protein OmpA family
57	 32.62       62364..63206    	 +	280	24212757	folP	LA0057	-	dihydropteroate synthase
58	 28.99 -1    63644..63781    	 -	45	24212758	-	LA0058	-	hypothetical protein
59	 30.14 -1    63975..65225    	 -	416	24212759	-	LA0059	-	TPR-repeat-containing protein
60	 34.11       65283..66185    	 -	300	24212760	-	LA0060	-	TPR-repeat-containing protein
61	 36.54       66235..67200    	 +	321	24212761	-	LA0061	-	conserved hypothetical protein
62	 39.97 +1    67903..68610    	 -	235	24212762	cysE1	LA0062	-	Serine acetyltransferase
63	 36.25       68812..69738    	 +	308	24212763	-	LA0063	-	conserved hypothetical protein
64	 35.45       69702..71117    	 +	471	24212764	-	LA0064	-	conserved hypothetical protein
65	 31.60       71912..73294    	 -	460	24212765	dinF	LA0065	-	DNA-damage-inducible protein F
66	 36.53       73311..74594    	 -	427	24212766	gltT	LA0066	-	Proton/sodium-glutamate symport protein
67	 34.68       74734..77919    	 +	1061	24212767	-	LA0067	-	conserved hypothetical protein
68	 34.79       77912..78802    	 +	296	24212768	-	LA0068	-	hypothetical protein
69	 28.07 -1    79400..79627    	 +	75	24212769	-	LA0069	-	hypothetical protein
70	 33.52       79673..82879    	 +	1068	24212770	-	LA0070	-	conserved hypothetical protein
71	 39.34       83593..84075    	 -	160	24212771	-	LA0071	-	unknown protein
72	 35.06       84139..84660    	 -	173	24212772	-	LA0072	-	probable dCTP deaminase  dcd
73	 37.93       84661..85443    	 -	260	24212773	ech1	LA0073	-	enoyl-CoA hydratase
74	 36.10       85476..86270    	 +	264	24212774	-	LA0074	-	hypothetical protein
75	 41.67 +1    87157..87384    	 +	75	24212775	-	LA0075	-	hypothetical protein
76	 33.58       87472..87870    	 -	132	24212776	-	LA0076	-	Glyoxalase/Bleomycin resistance protein/Dioxygenase family protein
77	 31.22       87950..89038    	 -	362	24212777	-	LA0077	-	conserved hypothetical protein
78	 35.79       89035..90540    	 -	501	24212778	-	LA0078	-	conserved hypothetical protein
79	 31.67       90575..90694    	 -	39	24212779	-	LA0079	-	hypothetical protein
80	 32.54       90672..90797    	 -	41	24212780	-	LA0081	-	hypothetical protein
81	 31.47       90769..91518    	 +	249	24212781	-	LA0080	-	putative haloacid dehalogenase-like hydrolase
82	 34.98       91507..92358    	 -	283	24212782	-	LA0082	-	S-adenosylmethionine-dependent methyltransferase
83	 39.83       92497..93342    	 +	281	24212783	dapF	LA0083	-	diaminopimelate epimerase
84	 36.29       93349..94059    	 -	236	24212784	-	LA0084	-	putative acyltransferase
85	 41.75 +1    94092..94376    	 -	94	24212785	-	LA0085	-	unknown protein
86	 39.64       94349..94459    	 -	36	24212786	-	LA0086	-	hypothetical protein
87	 36.87       95097..96170    	 +	357	24212787	-	LA0087	-	transposase
88	 41.06 +1    96152..96397    	 -	81	24212788	-	LA0088	-	unknown protein
89	 31.03       96819..96992    	 -	57	24212789	-	LA0090	-	hypothetical protein
90	 28.74 -1    96862..97035    	 +	57	24212790	-	LA0089	-	unknown protein
91	 33.91       97163..97510    	 +	115	24212791	-	LA0091	-	conserved hypothetical protein
92	 32.29       97514..98089    	 -	191	24212792	-	LA0092	-	Sensory transduction histidine kinases
93	 40.45 +1    98281..98814    	 -	177	24212793	-	LA0093	-	conserved hypothetical protein
94	 27.62 -1    99185..100006   	 -	273	24212794	-	LA0094	-	hypothetical protein
95	 35.20      100722..101042   	 -	106	24212795	-	LA0095	-	hypothetical protein
96	 35.12      101086..101532   	 -	148	24212796	-	LA0097	-	hypothetical protein
97	 42.98 +1   101513..101626   	 +	37	24212797	-	LA0096	-	hypothetical protein
98	 33.09      101861..103108   	 +	415	24212798	-	LA0098	-	RNA methyltransferase
99	 30.33      103386..104051   	 +	221	24212799	-	LA0099	-	hypothetical protein
100	 38.49      104945..106225   	 +	426	24212800	-	LA0100	-	putative outermembrane protein


 35.02 MEAN

 4.84  STD DEV
