IslandPath Analysis: Lactobacillus plantarum WCFS1

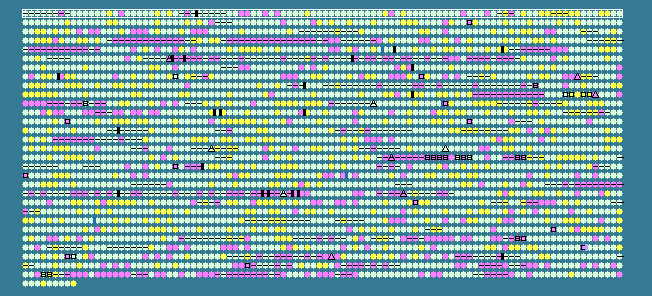

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 45.06   STD DEV: 4.00
Lactobacillus plantarum WCFS1, complete genome - 0..3308274
3009 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 44.52           1..1368     	 +	455	28376975	dnaA	lp_0001	-	chromosomal replication initiation protein DnaA
2	 42.54        1546..2685     	 +	379	28376976	dnaN	lp_0002	-	DNA-directed DNA polymerase III, beta chain
3	 42.74        3210..3443     	 +	77	28376977	-	lp_0004	-	unknown
4	 45.24        3444..4568     	 +	374	28376978	recF	lp_0005	-	DNA repair and genetic recombination protein RecF
5	 45.92        4565..6511     	 +	648	28376979	gyrB	lp_0006	-	DNA gyrase, B subunit
6	 46.29        6676..9237     	 +	853	28376980	gyrA	lp_0007	-	DNA gyrase, A subunit
7	 39.67 -1     9860..10159    	 +	99	28376981	rpsF	lp_0009	-	ribosomal protein S6
8	 41.96       10196..10798    	 +	200	28376982	ssb	lp_0010	-	single-strand binding protein
9	 44.30       10837..11073    	 +	78	28376983	rpsR	lp_0011	-	ribosomal protein S18
10	 44.36       11254..13266    	 +	670	28376984	-	lp_0012	-	exopolyphosphatase-related protein (putative)
11	 44.59       13279..13731    	 +	150	28376985	rplI	lp_0013	-	ribosomal protein L9
12	 47.72       13747..15171    	 +	474	28376986	dnaC	lp_0014	-	replicative DNA helicase DnaC
13	 44.04       15393..16616    	 +	407	28376987	-	lp_0015	-	transport protein
14	 43.62       16629..17435    	 +	268	28376988	proB	lp_0016	-	glutamate 5-kinase
15	 48.91       17454..18692    	 +	412	28376989	proA	lp_0017	-	glutamate-5-semialdehyde dehydrogenase
16	 44.84       19153..20769    	 +	538	28376990	-	lp_0018	-	lipoprotein precursor, peptide binding protein OppA homolog
17	 38.10 -1    20774..21025    	 -	83	28376991	-	lp_0019	-	unknown
18	 47.72       21099..23003    	 +	634	28376992	glgB	lp_0020	-	1,4-alpha-glucan branching enzyme
19	 45.00       22993..24132    	 +	379	28376993	glgC	lp_0021	-	glucose-1-phosphate adenylyltransferase, subunit
20	 46.72       24129..25301    	 +	390	28376994	glgD	lp_0022	-	glucose-1-phosphate adenylyltransferase, subunit
21	 47.99       25294..26733    	 +	479	28376995	glgA	lp_0023	-	starch (bacterial glycogen) synthase
22	 47.98       26753..29149    	 +	798	28376996	glgP	lp_0024	-	glycogen phosphorylase
23	 49.17 +1    29167..30984    	 +	605	28376997	amy1	lp_0025	-	alpha-amylase
24	 47.53       31317..32084    	 +	255	28376998	-	lp_0026	-	hydrolase, HAD superfamily, Cof family
25	 48.81       32236..32907    	 -	223	28376999	pgmB1	lp_0027	-	beta-phosphoglucomutase
26	 46.82       32925..35645    	 -	906	28377000	map1	lp_0028	-	maltose phosphorylase
27	 47.11       36033..36482    	 -	149	28377001	-	lp_0030	-	unknown
28	 40.80 -1    36680..36880    	 +	66	28377002	cspL	lp_0031	-	cold shock protein CspL
29	 45.30       36963..37196    	 +	77	28377003	-	lp_0032	-	unknown
30	 45.76       37770..38477    	 +	235	28377004	rrp1	lp_0036	-	response regulator
31	 43.20       38491..40365    	 +	624	28377005	hpk1	lp_0037	-	histidine protein kinase; sensor protein
32	 42.31       40346..41671    	 +	441	28377006	-	lp_0038	-	unknown
33	 45.03       41683..42537    	 +	284	28377007	-	lp_0039	-	unknown
34	 44.12       42895..43710    	 +	271	28377008	-	lp_0041	-	hydrolase
35	 45.05       43821..45083    	 +	420	28377009	htrA	lp_0043	-	serine protease HtrA
36	 43.33       45638..46117    	 +	159	28377010	-	lp_0045	-	unknown
37	 33.85 -2    46600..47175    	 +	191	28377011	-	lp_0046	-	transcription regulator
38	 41.23       47239..48669    	 +	476	28377012	aldH	lp_0047	-	aldehyde dehydrogenase
39	 45.50       48877..49509    	 +	210	28377013	-	lp_0048	-	unknown
40	 47.31       49758..50408    	 +	216	28377014	pnb	lp_0050	-	p-nitrobenzoate reductase
41	 41.46       50524..50892    	 +	122	28377015	-	lp_0052	-	unknown
42	 43.72       50960..51787    	 -	275	28377016	-	lp_0053	-	unknown
43	 40.29 -1    51804..52637    	 -	277	28377017	-	lp_0054	-	unknown
44	 45.91       52791..55160    	 -	789	28377018	-	lp_0055	-	fumarate reductase, flavoprotein subunit precursor
45	 42.87       55625..57040    	 +	471	28377019	-	lp_0056	-	cation transport protein
46	 47.35       57132..58037    	 +	301	28377020	-	lp_0057	-	transcription regulator
47	 45.31       58107..58532    	 -	141	28377021	-	lp_0058	-	unknown
48	 50.23 +1    58868..59293    	 +	141	28377022	arsC	lp_0059	-	arsenate reductase
49	 46.69       59613..60473    	 +	286	28377023	-	lp_0060	-	short-chain dehydrogenase/oxidoreductase
50	 46.34       60505..61350    	 +	281	28377024	-	lp_0061	-	acetoacetate decarboxylase (putative)
51	 46.02       61378..62031    	 +	217	28377025	-	lp_0062	-	nitroreductase
52	 45.96       62200..63735    	 +	511	28377026	-	lp_0063	-	unknown
53	 46.40       63662..63883    	 -	73	28377027	-	lp_0064	-	unknown
54	 44.94       64066..64737    	 +	223	28377028	pgmB2	lp_0066	-	beta-phosphoglucomutase
55	 47.10       64823..65839    	 -	338	28377029	bsh2	lp_0067	-	choloylglycine hydrolase
56	 45.68       66113..67456    	 +	447	28377030	-	lp_0068	-	integral membrane protein
57	 45.92       67605..68351    	 +	248	28377031	ptp1	lp_0069	-	protein-tyrosine phosphatase
58	 47.04       68424..69671    	 -	415	28377032	-	lp_0070	-	4-hydroxyphenylacetate-3-hydroxylase
59	 44.74       69747..69860    	 -	37	28377033	-	lp_0071	-	unknown
60	 45.51       69943..70443    	 -	166	28377034	-	lp_0072	-	unknown
61	 49.33 +1    70536..71204    	 +	222	28377035	-	lp_0073	-	unknown
62	 40.65 -1    71292..72248    	 -	318	28377036	-	lp_0074	-	unknown
63	 42.75       72330..72977    	 +	215	28377037	-	lp_0075	-	acyl carrier protein phosphodiesterase (putative)
64	 49.58 +1    73239..75257    	 +	672	28377038	fusA1	lp_0076	-	elongation factor G
65	 47.60       75275..75961    	 +	228	28377039	-	lp_0077	-	unknown
66	 46.89       75967..76851    	 +	294	28377040	-	lp_0078	-	transport protein
67	 46.34       77039..77530    	 +	163	28377041	-	lp_0080	-	acetyltransferase (GNAT) family (putative)
68	 47.85       77561..78235    	 -	224	28377042	-	lp_0081	-	intracellular protease/amidase (putative)
69	 45.67       78281..79285    	 -	334	28377043	-	lp_0082	-	oxidoreductase
70	 44.66       79467..79775    	 +	102	28377044	-	lp_0083	-	transcription regulator
71	 45.39       79946..81280    	 -	444	28377045	-	lp_0085	-	cation efflux protein (putative)
72	 47.91       82631..83515    	 +	294	28377046	pepI	lp_0088	-	prolyl aminopeptidase
73	 45.78       83697..84443    	 -	248	28377047	-	lp_0089	-	unknown
74	 39.77 -1    84613..85047    	 +	144	28377048	-	lp_0091	-	unknown
75	 44.77       85149..86792    	 -	547	28377049	-	lp_0092	-	extracellular protein, peptide binding protein OppA homolog
76	 46.67       87460..88209    	 +	249	28377050	-	lp_0096	-	unknown
77	 46.15       88467..89246    	 +	259	28377051	-	lp_0098	-	adenylyl transferase (putative)
78	 39.32 -1    89314..89547    	 -	77	28377052	-	lp_0099	-	unknown
79	 47.68       89568..90299    	 -	243	28377053	-	lp_0100	-	cobalt ABC transporter, ATP-binding protein (putative)
80	 46.59       90301..91122    	 -	273	28377054	-	lp_0101	-	cobalt transport protein
81	 51.00 +1    91097..92098    	 -	333	28377055	cbiM	lp_0102	-	cobalamin biosynthesis protein
82	 40.69 -1    92098..92763    	 -	221	28377056	-	lp_0103	-	transcription regulator
83	 44.86       93016..94290    	 +	424	28377057	-	lp_0104	-	unknown
84	 52.90 +1    94292..95032    	 +	246	28377058	-	lp_0105	-	NCAIR mutase, PurE-related protein
85	 44.07       96329..97045    	 +	238	28377059	glpF1	lp_0108	-	glycerol uptake facilitator protein
86	 46.33       97070..97900    	 +	276	28377060	-	lp_0109	-	unknown
87	 52.25 +1    98100..99077    	 -	325	28377061	-	lp_0111	-	oxidoreductase
88	 49.12 +1    99433..100224   	 +	263	28377062	thiM	lp_0113	-	hydroxyethylthiazole kinase
89	 51.52 +1   100250..101074   	 +	274	28377063	thiD	lp_0114	-	phosphomethylpyrimidine kinase
90	 52.45 +1   101064..101717   	 +	217	28377064	thiE	lp_0115	-	thiamine-phosphate pyrophosphorylase
91	 49.08 +1   101717..102916   	 +	399	28377065	-	lp_0116	-	purine-cytosine transport protein
92	 51.28 +1   102998..103738   	 +	246	28377066	-	lp_0117	-	unknown
93	 49.22 +1   103981..105573   	 +	530	28377067	-	lp_0118	-	unknown
94	 45.01      105689..106159   	 -	156	28377068	-	lp_0119	-	NTP pyrophosphohydrolase
95	 44.32      106392..107756   	 +	454	28377069	-	lp_0120	-	amino acid transport protein
96	 46.54      107784..108563   	 +	259	28377070	-	lp_0121	-	unknown
97	 50.06 +1   108588..109370   	 +	260	28377071	hpo	lp_0122	-	halo peroxidase
98	 49.32 +1   109566..112304   	 -	912	28377072	pacL1	lp_0124	-	cation transporting P-type ATPase
99	 46.25      112589..113347   	 +	252	28377073	-	lp_0125	-	purine nucleoside phosphorylase (putative)
100	 43.08      113390..113584   	 -	64	28377074	-	lp_0126	-	stress-responsive transcription regulator (putative)


 45.06 MEAN

 4.00  STD DEV
