IslandPath Analysis: Helicobacter pylori 26695

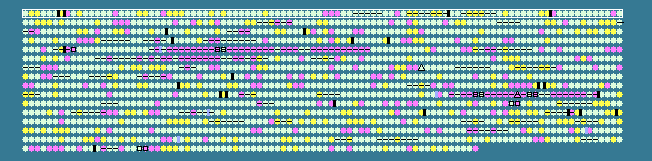

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 39.13   STD DEV: 3.75
Helicobacter pylori 26695 complete genome - 0..1667867
1576 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 41.01         217..633      	 -	138	15644635	-	HP0001	K	hypothetical protein
2	 45.65 +1      635..1105     	 -	156	15644636	-	HP0002	H	riboflavin synthase beta chain (ribE)
3	 42.84        1115..1945     	 -	276	15644637	-	HP0003	M	3-deoxy-d-manno-octulosonic acid 8-phosphate synthetase (kdsA)
4	 40.09        1932..2597     	 -	221	15644638	-	HP0004	P	carbonic anhydrase (icfA)
5	 39.91        2719..3402     	 +	227	15644639	-	HP0005	F	orotidine 5'-phosphate decarboxylase (pyrF)
6	 41.03        3403..4233     	 +	276	15644640	-	HP0006	H	pantoate-beta-alanine ligase (panC)
7	 48.61 +2     4697..4768     	 +	23	15644641	-	HP0007	-	hypothetical protein
8	 23.81 -2     4937..5020     	 +	27	15644642	-	HP0008	-	hypothetical protein
9	 42.52        5241..7145     	 -	634	15646197	omp1	HP0009	-	outer membrane protein
10	 45.28 +1     7603..9243     	 -	546	15644643	-	HP0010	O	chaperone and heat shock protein (groEL)
11	 41.74        9268..9624     	 -	118	15644644	-	HP0011	O	co-chaperone (groES)
12	 40.18        9911..11590    	 +	559	15644645	-	HP0012	L	DNA primase (dnaG)
13	 40.55       11587..12639    	 +	350	15644646	-	HP0013	J	hypothetical protein
14	 38.89       12728..13555    	 +	275	15644647	-	HP0014	-	hypothetical protein
15	 39.72       13702..13983    	 +	93	15644648	-	HP0015	-	hypothetical protein
16	 35.23 -1    13983..14246    	 +	87	15644649	-	HP0016	-	hypothetical protein
17	 37.69       14248..16611    	 +	787	15644650	-	HP0017	N	virB4 homolog (virB4)
18	 40.00       16863..18272    	 +	469	15644651	-	HP0018	S	hypothetical protein
19	 40.37       18380..19345    	 +	321	15644652	-	HP0019	T	chemotaxis protein (cheV)
20	 42.78       19342..20559    	 +	405	15644653	-	HP0020	E	carboxynorspermidine decarboxylase (nspC)
21	 44.68 +1    20569..21141    	 -	190	15644654	-	HP0021	I	hypothetical protein
22	 39.97       21152..22717    	 -	521	15644655	-	HP0022	R	conserved hypothetical integral membrane protein
23	 37.50       22773..22892    	 +	39	15644656	-	HP0023	-	hypothetical protein
24	 32.26 -1    22903..22995    	 +	30	15644657	-	HP0024	-	hypothetical protein
25	 44.29 +1    23324..25459    	 -	711	15644658	-	HP0025	-	outer membrane protein (omp2)
26	 44.81 +1    26078..27358    	 -	426	15644659	-	HP0026	C	citrate synthase (gltA)
27	 42.80       27557..28834    	 +	425	15644660	-	HP0027	C	isocitrate dehydrogenase (icd)
28	 37.45       28901..29434    	 +	177	15644661	-	HP0028	-	conserved hypothetical secreted protein
29	 40.03       29411..30067    	 -	218	15644662	-	HP0029	H	dethiobiotin synthetase (bioD)
30	 36.70       30071..31852    	 -	593	15644663	-	HP0030	-	hypothetical protein
31	 39.37       31961..32374    	 +	137	15644664	-	HP0031	-	hypothetical protein
32	 43.12 +1    32405..32680    	 +	91	15644665	-	HP0032	S	conserved hypothetical protein
33	 39.44       32680..34905    	 +	741	15644666	-	HP0033	O	ATP-dependent C1p protease (clpA)
34	 42.94 +1    34895..35248    	 +	117	15644667	-	HP0034	H	aspartate 1-decarboxylase (panD)
35	 40.82       35251..35544    	 +	97	15644668	-	HP0035	S	conserved hypothetical protein
36	 39.40       35544..36548    	 +	334	15644669	-	HP0036	-	hypothetical protein
37	 38.16       36556..37611    	 +	351	15644670	-	HP0037	N	NADH-ubiquinone oxidoreductase subunit
38	 39.97       37738..38475    	 +	245	15644671	-	HP0038	N	hypothetical protein
39	 36.70       38472..39453    	 +	326	15646206	-	HP0039m	N	Component of conjugal plasmid transfer system
40	 38.98       39446..39817    	 +	123	15644672	-	HP0041	N	hypothetical protein
41	 43.02 +1    39880..40581    	 +	233	15644673	-	HP0042	N	trbI protein
42	 39.14       40651..42063    	 +	470	15644674	-	HP0043	M	mannose-6-phosphate isomerase (pmi) or (algA)
43	 40.75       42105..43250    	 +	381	15644675	-	HP0044	M	GDP-D-mannose dehydratase (rfbD)
44	 41.48       43243..44175    	 +	310	15644676	-	HP0045	M	nodulation protein (nolK)
45	 39.86       44299..44436    	 +	45	15644677	-	HP0046	-	hypothetical protein
46	 41.34       45041..46039    	 -	332	15644678	-	HP0047	O	hydrogenase expression/formation protein (hypE)
47	 41.77       46042..48351    	 -	769	15644679	-	HP0048	O	transcriptional regulator (hypF)
48	 40.18       48291..49283    	 -	330	15644680	-	HP0049	E	hypothetical protein
49	 39.34       49335..50033    	 -	232	15644681	-	HP0050	L	adenine specific DNA methyltransferase (dpnA)
50	 38.86       50030..51097    	 -	355	15644682	-	HP0051	L	cytosine specific DNA methyltransferase (DDEM)
51	 34.74 -1    51272..52264    	 -	330	15644683	-	HP0052	-	hypothetical protein
52	 29.84 -2    52459..53718    	 -	419	15644684	-	HP0053	-	hypothetical protein
53	 32.93 -1    53715..56186    	 -	823	15644685	-	HP0054	L	adenine/cytosine DNA methyltransferase
54	 42.59       56224..57714    	 -	496	15644686	-	HP0055	E	proline permease (putP)
55	 40.84       57741..61298    	 -	1185	15644687	-	HP0056	C	delta-1-pyrroline-5-carboxylate dehydrogenase
56	 39.52       61619..61828    	 +	69	15644688	-	HP0057	-	hypothetical protein
57	 37.43       63145..63999    	 +	284	15644689	-	HP0059	-	hypothetical protein
58	 39.03       64016..66457    	 +	813	15644690	-	HP0060	-	hypothetical protein
59	 40.70       66454..67023    	 +	189	15644691	-	HP0061	-	hypothetical protein
60	 39.46       67039..67299    	 +	86	15644692	-	HP0062	-	hypothetical protein
61	 38.83       67310..68800    	 +	496	15644693	-	HP0063	-	hypothetical protein
62	 39.52       68770..69189    	 +	139	15644694	-	HP0064	-	hypothetical protein
63	 35.59       69191..69544    	 +	117	15644695	-	HP0065	-	hypothetical protein
64	 40.06       69468..71963    	 +	831	15644696	-	HP0066	D	conserved hypothetical ATP-binding protein
65	 43.86 +1    72021..72818    	 -	265	15644697	-	HP0067	O	urease accessory protein (ureH)
66	 44.83 +1    72818..73417    	 -	199	15644698	-	HP0068	O	urease accessory protein (ureG)
67	 40.92       73446..74210    	 -	254	15644699	-	HP0069	O	urease accessory protein (ureF)
68	 40.74       74233..74745    	 -	170	15644700	-	HP0070	O	urease accessory protein (ureE)
69	 43.54 +1    74747..75334    	 -	195	15644701	-	HP0071	-	urease accessory protein (ureI)
70	 44.21 +1    75527..77236    	 -	569	15644702	-	HP0072	E	urease beta subunit (urea amidohydrolase) (ureB)
71	 41.84       77240..77956    	 -	238	15644703	-	HP0073	E	urease alpha subunit (ureA) (urea amidohydrolase)
72	 36.92       78302..78775    	 -	157	15644704	-	HP0074	N	lipoprotein signal peptidase (lspA)
73	 41.26       78769..80106    	 -	445	15644705	-	HP0075	G	urease protein (ureC)
74	 38.89       80196..80465    	 +	89	15644706	-	HP0076	J	ribosomal protein S20 (rps20)
75	 42.87       80589..81647    	 +	352	15644707	-	HP0077	J	peptide chain release factor RF-1 (prfA)
76	 43.41 +1    82058..82315    	 +	85	15644708	-	HP0078	-	hypothetical protein
77	 43.06 +1    82326..84113    	 +	595	15644709	-	HP0079	-	outer membrane protein (omp3)
78	 42.14       84359..86140    	 +	593	15644710	-	HP0080	-	hypothetical protein
79	 39.84       86410..86532    	 +	40	15644711	-	HP0081	-	hypothetical protein
80	 39.17       86656..88677    	 -	673	15644712	-	HP0082	N	methyl-accepting chemotaxis transducer (tlpC)
81	 42.82       88833..89222    	 -	129	15644713	-	HP0083	J	ribosomal protein S9 (rps9)
82	 42.02       89219..89644    	 -	141	15644714	-	HP0084	J	ribosomal protein L13 (rpl13)
83	 37.04       89957..90145    	 -	62	15644715	-	HP0085	-	hypothetical protein
84	 40.80       90152..91504    	 -	450	15644716	-	HP0086	R	conserved hypothetical protein
85	 39.59       91558..92931    	 -	457	15644717	-	HP0087	M	hypothetical protein
86	 39.09       92952..94967    	 -	671	15644718	-	HP0088	K	RNA polymerase sigma-70 factor (rpoD)
87	 42.82       95191..95886    	 -	231	15644719	-	HP0089	F	pfs protein (pfs)
88	 42.80       95897..96826    	 -	309	15644720	-	HP0090	I	malonyl coenzyme A-acyl carrier protein transacylase (fabD)
89	 30.70 -2    97256..98089    	 +	277	15644721	-	HP0091	-	type II restriction enzyme R protein (hsdR)
90	 39.81       98083..98916    	 +	277	15644722	-	HP0092	L	type II restriction enzyme M protein (hsdM)
91	 41.27       98936..99376    	 -	146	15644723	-	HP0093	-	hypothetical protein
92	 40.17       99373..99840    	 -	155	15644724	-	HP0094	-	conserved hypothetical protein
93	 36.91       99939..100469   	 -	176	15644725	-	HP0095	-	hypothetical protein
94	 40.11      100542..101486   	 +	314	15644726	-	HP0096	C	phosphoglycerate dehydrogenase
95	 42.02      101643..102356   	 -	237	15644727	-	HP0097	-	hypothetical protein
96	 40.52      102461..103921   	 -	486	15644728	-	HP0098	E	threonine synthase (thrC)
97	 39.45      104125..106152   	 +	675	15644729	-	HP0099	N	methyl-accepting chemotaxis protein (tlpA)
98	 38.48      106152..107258   	 +	368	15644730	-	HP0100	S	conserved hypothetical protein
99	 34.25 -1   107471..108232   	 +	253	15644731	-	HP0101	-	hypothetical protein
100	 38.33      108215..108994   	 -	259	15644732	-	HP0102	M	conserved hypothetical protein


 39.13 MEAN

 3.75  STD DEV
