IslandPath Analysis: Haemophilus influenzae Rd-KW20

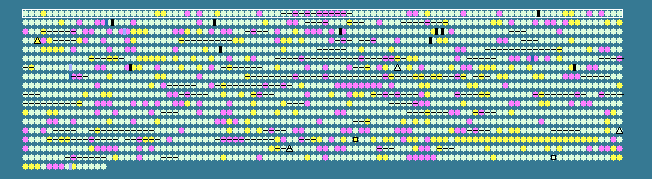

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.39   STD DEV: 3.53

Haemophilus influenzae Rd, complete genome - 0..1830138
1714 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 40.78           2..1021     	 +	339	16271977	HI0001	HI0001	G	glyceraldehyde-3-phosphate dehydrogenase (gapdH)
2	 37.28        1190..3013     	 +	607	16271978	HI0002	HI0002	I	long chain fatty acid coA ligase, putative
3	 36.63        3050..3838     	 -	262	16271979	HI0003	HI0003	R	conserved hypothetical protein
4	 43.23 +1     3854..4318     	 -	154	16271980	HI0004	HI0004	R	conserved hypothetical protein
5	 36.41        4579..5391     	 -	270	16271981	HI0005	HI0005	C	fdhD protein (fdhD)
6	 39.97        5662..8748     	 +	1028	16273678	fdnG	HI0006m	C	Formate dehydrogenase large subunit
7	 41.43        8750..9688     	 +	312	16271982	HI0007	HI0007	C	formate dehydrogenase, beta subunit (fdxH)
8	 38.49        9681..10397    	 +	238	16271983	HI0008	HI0008	C	formate dehydrogenase, gamma subunit (fdxI)
9	 36.63       10467..11375    	 +	302	16271984	HI0009	HI0009	O	fdhE protein (fdhE)
10	 35.15       11414..11854    	 -	146	16271985	HI0010	HI0010	R	ribosomal-protein-alanine acetyltransferase (rimI)
11	 40.99       11857..12261    	 -	134	16271986	HI0011	HI0011	L	DNA polymerase III, psi subunit (holD)
12	 36.56       12367..13359    	 +	330	16271987	HI0012	HI0012	J	conserved hypothetical protein
13	 38.61       13423..14331    	 -	302	16271988	HI0013	HI0013	R	GTP-binding protein (era)
14	 41.67       14328..15011    	 -	227	16271989	HI0014	HI0014	K	ribonuclease III (rnc)
15	 38.95       15013..16062    	 -	349	16271990	HI0015	HI0015	N	signal peptidase I (lepB)
16	 39.96       16071..17867    	 -	598	16271991	HI0016	HI0016	N	GTP-binding membrane protein (lepA)
17	 38.54       18035..18418    	 -	127	16271992	HI0017	HI0017	R	conserved hypothetical protein
18	 40.61       18676..19335    	 +	219	16271993	HI0018	HI0018	L	uracil DNA glycosylase (ung)
19	 41.47       19405..20829    	 -	474	16271994	HI0019	HI0019	J	conserved hypothetical protein
20	 40.76       21248..22687    	 -	479	16271995	HI0020	HI0020	P	transport protein, putative
21	 37.65       22689..23939    	 -	416	16271996	HI0021	HI0021	H	citG protein (citG)
22	 41.25       24267..25769    	 -	500	16271997	HI0022	HI0022	C	citrate lyase, alpha chain (citF)
23	 42.01 +1    25784..26659    	 -	291	16271998	HI0023	HI0023	G	citrate lyase, beta chain (citE)
24	 42.36 +1    26656..26943    	 -	95	16271999	HI0024	HI0024	C	citrate lyase, gamma chain (citD)
25	 35.02       26981..27988    	 -	335	16272000	HI0025	HI0025	C	citrate lyase ligase (citC)
26	 39.98       28239..29201    	 -	320	16272001	HI0026	HI0026	H	lipoate biosynthesis protein A (lipA)
27	 37.40       29255..29893    	 -	212	16272002	HI0027	HI0027	H	lipoate biosynthesis protein B (lipB)
28	 32.26 -1    29895..30173    	 -	92	16272003	HI0028	HI0028	S	conserved hypothetical protein
29	 35.36       30229..31410    	 -	393	16272004	HI0029	HI0029	M	penicillin-binding protein 5 (dacA)
30	 34.61 -1    31426..32289    	 -	287	16272005	HI0030	HI0030	M	lipoprotein, putative
31	 38.62       32341..33456    	 -	371	16272006	HI0031	HI0031	D	rod shape-determining protein (rodA)
32	 38.55       33446..35401    	 -	651	16272007	HI0032	HI0032	M	penicillin-binding protein 2 (pbp2)
33	 45.73 +2    35422..35889    	 -	155	16272008	HI0033	HI0033	S	conserved hypothetical protein
34	 38.83       35943..36251    	 -	102	16272009	HI0034	HI0034	S	conserved hypothetical protein
35	 41.67       36376..38031    	 -	551	16272010	HI0035	HI0035	R	conserved hypothetical protein
36	 37.32       38237..40015    	 +	592	16272011	HI0036	HI0036	I	ABC transporter, ATP-binding protein
37	 39.93       40064..41200    	 +	378	16272012	HI0037	HI0037	D	rod shape-determining protein (mreB)
38	 37.50       41280..42335    	 +	351	16272013	HI0038	HI0038	M	rod shape-determining protein (mreC)
39	 34.97       42335..42823    	 +	162	16272014	HI0039	HI0039	M	rod shape-determining protein (mreD)
40	 31.79 -1    42874..43650    	 -	258	16272015	HI0040	HI0040	-	conserved hypothetical protein
41	 37.94       43660..44463    	 -	267	16272016	HI0041	HI0041	L	exodeoxyribonuclease III (xthA)
42	 35.26       44511..45185    	 -	224	16272017	HI0042	HI0042	J	conserved hypothetical protein
43	 35.68       45185..46249    	 -	354	16272018	HI0043	HI0043	S	conserved hypothetical transmembrane protein
44	 36.05       46309..46971    	 -	220	16272019	HI0044	HI0044	R	conserved hypothetical transmembrane protein
45	 36.22       47298..47852    	 -	184	16272020	HI0045	HI0045	R	conserved hypothetical protein
46	 33.61 -1    47919..48281    	 +	120	16272021	HI0046	HI0046	P	alkylphosphonate uptake protein (phnA)
47	 38.18       48334..48972    	 -	212	16272022	HI0047	HI0047	G	4-hydroxy-2-oxoglutarate aldolase/2-deydro-3-deoxyphosphogluconate aldolase (eda)
48	 34.38 -1    48991..49848    	 -	285	16272023	HI0048	HI0048	Q	oxidoreductase
49	 35.34       49848..50792    	 -	314	16272024	HI0049	HI0049	G	2-dehydro-3-deoxygluconokinase (kdgK)
50	 34.29 -1    50812..52068    	 -	418	16273630	-	HI0050m	S	Integral membrane protein, possible transporter
51	 31.33 -1    52092..52589    	 -	165	16272025	HI0051	HI0051	S	conserved hypothetical transmembrane protein
52	 28.88 -2    52628..53614    	 -	328	16272026	HI0052	HI0052	G	conserved hypothetical protein
53	 34.60 -1    53641..54669    	 -	342	16272027	HI0053	HI0053	E	zinc-type alcohol dehydrogenase
54	 30.96 -2    54779..55579    	 +	266	16272028	HI0054	HI0054	K	uxu operon regulator (uxuR)
55	 37.97       55607..56791    	 +	394	16272029	HI0055	HI0055	G	mannonate dehydratase (uxuA)
56	 37.68       56844..57557    	 -	237	16272030	HI0056	HI0056	P	conserved hypothetical transmembrane protein
57	 39.07       57655..59484    	 -	609	16272031	HI0057	HI0057	L	excinuclease ABC, subunit C (uvrC)
58	 40.52       59486..60250    	 -	254	16272032	HI0058	HI0058	M	3-deoxy-D-manno-octulosonate cytidylyltransferase (kdsB)
59	 39.74       60321..61319    	 -	332	16272033	HI0059	HI0059	N	conserved hypothetical protein
60	 37.64       61392..63155    	 -	587	16272034	HI0060	HI0060	Q	ABC transporter, ATP-binding protein (msbA)
61	 38.23       63196..65562    	 -	788	16272035	HI0061	HI0061	R	recombination protein (rec2)
62	 40.41       65821..66258    	 +	145	16272036	HI0062	HI0062	T	dnaK suppressor protein (dksA)
63	 41.35       66506..67864    	 +	452	16272037	HI0063	HI0063	J	poly(A) polymerase (pcnB)
64	 39.13       67873..68355    	 +	160	16272038	HI0064	HI0064	H	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine-pyrophosphokinase (folK)
65	 34.17 -1    68431..68907    	 +	158	16272039	HI0065	HI0065	R	conserved hypothetical protein
66	 32.56 -1    68915..70213    	 +	432	16272040	HI0066	HI0066	N	N-acetylmuramoyl-L-alanine amidase, putative
67	 39.52       70214..72103    	 +	629	16272041	HI0067	HI0067	L	DNA mismatch repair protein (mutL)
68	 43.06 +1    72111..73046    	 +	311	16272042	HI0068	HI0068	J	tRNA delta(2)-isopentenylpyrophosphate transferase (trpX)
69	 38.02       73052..75997    	 +	981	16272043	HI0069	HI0069	O	glutamate-ammonia-ligase adenylyltransferase (glnE)
70	 37.69       76082..77758    	 -	558	16272044	HI0070	HI0070	L	DNA repair protein (recN)
71	 38.17       77902..78687    	 -	261	16272045	HI0072	HI0072	R	conserved hypothetical protein
72	 38.58       78751..79455    	 +	234	16272046	HI0071	HI0071	O	heat shock protein (grpE)
73	 37.39       79468..79812    	 -	114	16272047	HI0073	HI0073	R	H. influenzae predicted coding region HI0073
74	 32.43 -1    79805..80245    	 -	146	16272048	HI0074	HI0074	-	H. influenzae predicted coding region HI0074
75	 41.71       80526..82649    	 +	707	16272049	HI0075	HI0075	F	anaerobic ribonucleoside-triphosphate reductase (nrdD)
76	 38.91       82767..83627    	 +	286	16272050	HI0076	HI0076	I	acyl-CoA thioesterase II (tesB)
77	 40.14       83638..84504    	 +	288	16272051	HI0077	HI0077	S	H. influenzae predicted coding region HI0077
78	 40.29       84580..85959    	 -	459	16272052	HI0078	HI0078	J	cysteinyl-tRNA synthetase (cysS)
79	 37.25       86062..86571    	 +	169	16272053	HI0079	HI0079	O	peptidyl-prolyl cis-trans isomerase B (ppiB)
80	 31.94 -1    86575..87006    	 +	143	16272054	HI0080	HI0080	S	conserved hypothetical protein
81	 38.78       87148..87936    	 +	262	16272055	HI0081	HI0081	L	conserved hypothetical protein
82	 38.58       88193..88459    	 +	88	16272056	HI0082	HI0082	-	H. influenzae predicted coding region HI0082
83	 38.43       88474..88689    	 +	71	16272057	HI0083	HI0083	-	H. influenzae predicted coding region HI0083
84	 35.80       88739..89062    	 -	107	16272058	HI0084	HI0084	O	thioredoxin (trxM)
85	 39.16       89182..90177    	 -	331	16272059	HI0085	HI0085	C	D-lactate dehydrogenase, fermentative (ldhA)
86	 38.31       90190..91335    	 -	381	16272060	HI0086	HI0086	E	cystathionine gamma-synthase (metB)
87	 39.67       92148..93425    	 -	425	16272061	HI0087	HI0087	E	threonine synthase (thrC)
88	 38.62       93468..94412    	 -	314	16272062	HI0088	HI0088	E	homoserine kinase (thrB)
89	 40.52       94425..96872    	 -	815	16272063	HI0089	HI0089	E	aspartokinase I / homoserine dehydrogenase I (thrA)
90	 38.38       97196..97909    	 +	237	16272064	HI0090	HI0090	R	conserved hypothetical protein
91	 44.50 +1    97949..99085    	 -	378	16272065	HI0091	HI0091	G	conserved hypothetical protein
92	 43.41 +1    99094..100353   	 -	419	16272066	HI0092	HI0092	G	H. influenzae predicted coding region HI0092
93	 37.49      100475..101581   	 -	368	16272067	HI0093	HI0093	K	conserved hypothetical protein
94	 36.76      101783..102103   	 -	106	16272068	HI0094	HI0094	M	H. influenzae predicted coding region HI0094
95	 28.07 -2   102194..102364   	 +	56	16273631	-	HI0094a	K	Uncharacterized protein
96	 37.83      102453..103208   	 -	251	16272069	HI0095	HI0095	Q	conserved hypothetical protein
97	 30.56 -2   103542..104117   	 +	191	16272070	HI0096	HI0096	-	H. influenzae predicted coding region HI0096
98	 39.66      104390..105274   	 +	294	16272071	HI0097	HI0097	H	iron(III) ABC transporter, periplasmic-binding protein (hitA)
99	 39.03      105491..106912   	 +	473	16272072	HI0098	HI0098	H	iron(III) ABC transporter, permease protein (hitB)
100	 38.26      106914..107969   	 +	351	16272073	HI0099	HI0099	P	iron(III) ABC transporter, ATP-binding protein (hitC)


 38.39 MEAN

 3.53  STD DEV
