IslandPath Analysis: Escherichia coli CFT073

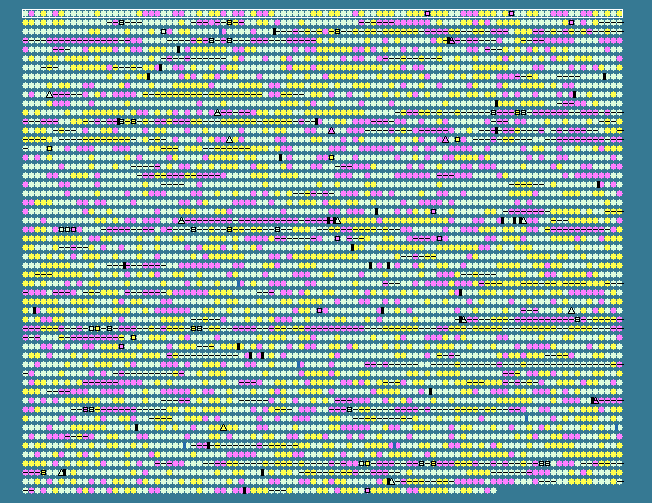

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.14 STD DEV: 5.55
Escherichia coli CFT073, complete genome - 0..5231428
5379 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 51.52         190..255      	 +	21	26245918	thrL	c5491	-	Thr operon leader peptide
2	 46.03         534..911      	 +	125	26245919	-	c0002	-	Hypothetical protein
3	 52.53         985..3510     	 +	841	26245920	thrA	c0003	-	Aspartokinase I
4	 55.52        3512..4444     	 +	310	26245921	thrB	c0004	-	Homoserine kinase
5	 52.76        4445..5731     	 +	428	26245922	thrC	c0005	-	Threonine synthase
6	 40.67 -1     5799..5948     	 +	49	26245923	-	c0006	-	Hypothetical protein
7	 53.87        5945..6241     	 +	98	26245924	yaaX	c0007	-	Hypothetical protein yaaX precursor
8	 53.41        6021..6269     	 -	82	26245925	-	c0008	-	Hypothetical protein
9	 52.27        6060..6323     	 +	87	26245926	-	c0009	-	Hypothetical protein
10	 48.65        6301..7077     	 -	258	26245927	yaaA	c0010	-	Protein yaaA
11	 53.46        7147..8577     	 -	476	26245928	yaaJ	c0011	-	Putative transporter yaaJ
12	 51.43        8793..9809     	 +	338	26245929	talB	c0012	-	Transaldolase B
13	 54.15        9921..10511    	 +	196	26245930	mog	c0013	-	Molybdopterin biosynthesis mog protein
14	 47.83       10535..10672    	 -	45	26245931	-	c0014	-	Hypothetical protein
15	 52.73       10716..11282    	 -	188	26245932	yaaH	c0015	-	Hypothetical protein yaaH
16	 50.98       11431..12144    	 -	237	26245933	yaaW	c0016	-	Hypothetical protein yaaW
17	 47.65       12170..12574    	 -	134	26245934	yaaI	c0017	-	Hypothetical protein yaaI precursor
18	 50.91       12904..14940    	 -	678	26245935	-	c0018	-	Putative glutamate dehydrogenase
19	 51.07       12946..14862    	 +	638	26245936	dnaK	c0019	-	Chaperone protein dnaK
20	 54.82       14951..16081    	 +	376	26245937	dnaJ	c0020	-	Chaperone protein dnaJ
21	 40.03 -1    16953..17714    	 +	253	26245938	-	c0021	-	Putative conserved protein
22	 44.77       17698..19227    	 +	509	26245939	-	c0022	-	Hypothetical protein
23	 43.41 -1    19356..20615    	 +	419	26245940	-	c0023	-	Hypothetical protein
24	 50.47       20850..22016    	 +	388	26245941	nhaA	c0024	-	Na(+)/H(+) antiporter 1
25	 47.29       22058..22981    	 +	307	26245942	nhaR	c0025	-	Transcriptional activator protein nhaR
26	 41.86 -1    22948..23076    	 -	42	26245943	-	c0026	-	Hypothetical protein
27	 46.21       23077..23340    	 -	87	26245944	rpsT	c0027	-	30S ribosomal protein S20
28	 48.86       23443..23661    	 +	72	26245945	yaaY	c0028	-	Hypothetical protein yaaY
29	 52.87       23669..24610    	 +	313	26245946	ribF	c0029	-	Riboflavin biosynthesis protein ribF
30	 54.77       24653..27469    	 +	938	26245947	ileS	c0030	-	Isoleucyl-tRNA synthetase
31	 52.32       27469..27963    	 +	164	26245948	lspA	c0031	-	Lipoprotein signal peptidase
32	 54.44       28071..28520    	 +	149	26245949	slpA	c0032	-	FKBP-type 16 kDa peptidyl-prolyl cis-trans isomerase
33	 55.42       28477..29472    	 +	331	26245950	lytB	c0033	-	IspH protein
34	 44.54 -1    30475..30840    	 +	121	26245951	-	c0036	-	Hypothetical protein
35	 53.28       31001..31822    	 +	273	26245952	dapB	c0037	-	Dihydrodipicolinate reductase
36	 25.60 -2    31864..32031    	 -	55	26245953	-	c0038	-	Hypothetical protein
37	 38.41 -2    32101..32238    	 +	45	26245954	-	c0039	-	Hypothetical protein
38	 53.06       32251..33426    	 +	391	26245955	carA	c0040	-	Carbamoyl-phosphate synthase small chain
39	 56.18 +1    33444..36665    	 +	1073	26245956	carB	c0041	-	Carbamoyl-phosphate synthase large chain
40	 36.07 -2    36673..36891    	 -	72	26245957	-	c0042	-	Conserved hypothetical protein
41	 44.31 -1    36821..37321    	 +	166	26245958	caiF	c0043	-	Transcriptional activatory protein caiF
42	 55.07       37440..38051    	 -	203	26245959	caiE	c0044	-	Carnitine operon protein caiE
43	 52.80       38036..38929    	 -	297	26245960	caiD	c0045	-	Carnitinyl-CoA dehydratase
44	 50.80       38930..40498    	 -	522	26245961	caiC	c0046	-	Probable crotonobetaine/carnitine-CoA ligase
45	 52.46       40556..41773    	 -	405	26245962	caiB	c0047	-	Crotonobetainyl-CoA:carnitine CoA-transferase
46	 53.46       41901..43043    	 -	380	26245963	caiA	c0048	-	Crotonobetainyl-CoA dehydrogenase
47	 52.41       43074..44588    	 -	504	26245964	caiT	c0049	-	Probable carnitine transporter
48	 50.84       44998..45831    	 +	277	26245965	fixA	c0050	-	FixA protein
49	 54.31       46809..48095    	 +	428	26245966	fixC	c0053	-	FixC protein
50	 57.29 +1    48092..48379    	 +	95	26245967	fixX	c0054	-	Ferredoxin-like protein
51	 53.60       48438..49769    	 +	443	26245968	yaaU	c0055	-	Hypothetical metabolite transport protein yaaU
52	 54.43       49877..50407    	 +	176	26245969	yabF	c0056	-	Putative NAD(P)H oxidoreductase yabF
53	 55.45       50400..52262    	 +	620	26245970	kefC	c0057	-	Glutathione-regulated potassium-efflux system protein kefC
54	 52.20       52319..52933    	 +	204	26245971	folA	c0058	-	Dihydrofolate reductase
55	 48.72       53019..53252    	 +	77	26245972	-	c0059	-	Putative antitoxin of gyrase inhibiting toxin-antitoxin system
56	 46.03       53255..53569    	 +	104	26245973	-	c0060	-	Putative toxin of gyrase inhibiting toxin-antitoxin system
57	 55.48       53566..54414    	 -	282	26245974	apaH	c0061	-	Bis(5'-nucleosyl)-tetraphosphatase, symmetrical
58	 51.98       54385..54738    	 +	117	26245975	-	c0062	-	Hypothetical protein
59	 52.12       54421..54798    	 -	125	26245976	apaG	c0063	-	ApaG protein
60	 53.77       54801..55622    	 -	273	26245977	ksgA	c0064	-	Dimethyladenosine transferase
61	 55.76 +1    55619..56608    	 -	329	26245978	pdxA	c0065	-	4-hydroxythreonine-4-phosphate dehydrogenase
62	 53.77       56608..57894    	 -	428	26245979	surA	c0066	-	Survival protein surA precursor
63	 51.72       57947..60301    	 -	784	26245980	imp	c0067	-	Organic solvent tolerance protein precursor
64	 51.71       60463..61371    	 +	302	26245981	yabH	c0068	-	DnaJ-like protein djlA
65	 54.24       61489..62148    	 -	219	26245982	yabO	c0069	-	Ribosomal large subunit pseudouridine synthase A
66	 55.07       62160..65066    	 -	968	26245983	hepA	c0070	-	RNA polymerase associated protein
67	 55.44       65231..67582    	 -	783	26245984	polB	c0071	-	DNA polymerase II
68	 46.08       67723..68232    	 +	169	26245985	-	c0072	-	Transposase
69	 55.60       68369..69064    	 -	231	26245986	araD	c0073	-	L-ribulose-5-phosphate 4-epimerase
70	 55.22       69349..70851    	 -	500	26245987	araA	c0074	-	L-arabinose isomerase
71	 58.14 +1    70862..72562    	 -	566	26245988	araB	c0075	-	L-ribulokinase
72	 52.96       72901..73746    	 +	281	26245989	araC	c0076	-	Arabinose operon Regulatory protein
73	 47.15       74011..74133    	 +	40	26245990	-	c0077	-	Hypothetical protein
74	 34.18 -2    74258..74494    	 +	78	26245991	-	c0078	-	Hypothetical protein
75	 33.51 -2    74536..75108    	 +	190	26245992	-	c0079	-	Hypothetical protein
76	 31.21 -2    75115..75537    	 +	140	26245993	-	c0080	-	Hypothetical protein
77	 54.77       75692..76456    	 +	254	26245994	yabI	c0081	-	Hypothetical protein yabI
78	 56.53 +1    76570..77289    	 -	239	26245995	yabJ	c0082	-	Thiamine transport ATP-binding protein thiQ
79	 57.98 +1    77252..78862    	 -	536	26245996	yabK	c0083	-	Thiamine transport system permease protein thiP
80	 51.81       78838..79833    	 -	331	26245997	tbpA	c0084	-	Thiamine-binding periplasmic protein precursor
81	 55.34       79985..81661    	 -	558	26245998	yabN	c0085	-	Hypothetical protein yabN
82	 46.27       82026..82535    	 +	169	26245999	-	c0086	-	Transposase
83	 51.82       82679..83284    	 -	201	26246000	leuD	c0087	-	3-isopropylmalate dehydratase small subunit
84	 52.69       82730..82915    	 +	61	26246001	-	c0088	-	Hypothetical protein
85	 55.60       83295..84695    	 -	466	26246002	leuC	c0089	-	3-isopropylmalate dehydratase large subunit
86	 54.89       84698..85792    	 -	364	26246003	leuB	c0090	-	3-isopropylmalate dehydrogenase
87	 52.91       85789..87402    	 -	537	26246004	leuA	c0091	-	2-isopropylmalate synthase
88	 47.13       87451..87537    	 -	28	26246005	leuL	c5492	-	Leu operon leader peptide
89	 30.08 -2    87996..88118    	 +	40	26246006	-	c0092	-	Hypothetical protein
90	 46.24       88195..89139    	 +	314	26246007	leuO	c0093	-	Probable activator protein in leuABCD operon
91	 24.81 -2    89175..89303    	 -	42	26246008	-	c0094	-	Hypothetical protein
92	 52.67       89367..91181    	 +	604	26246009	ilvI	c0095	-	Acetolactate synthase isozyme III large subunit
93	 49.62       91154..91675    	 +	173	26246010	ilvH	c0096	-	Acetolactate synthase isozyme III small subunit
94	 45.98       91687..91773    	 +	28	26246011	fruL	c5493	-	Very hypothetical fruR/shl operon leader peptide
95	 39.39 -1    91727..91858    	 +	43	26246012	-	c0097	-	Hypothetical protein
96	 55.12       91855..92859    	 +	334	26246013	fruR	c0098	-	Fructose repressor
97	 52.73       93425..93919    	 +	164	26246014	yabB	c0099	-	Protein mraZ
98	 55.31       93921..94862    	 +	313	26246015	yabC	c0100	-	S-adenosyl-methyltransferase mraW
99	 50.55       94859..95224    	 +	121	26246016	ftsL	c0101	-	Cell division protein ftsL
100	 53.71       95240..97006    	 +	588	26246017	ftsI	c0102	-	Peptidoglycan synthetase ftsI precursor


 50.14 MEAN

 5.55  STD DEV
