IslandPath Analysis: Escherichia coli O157

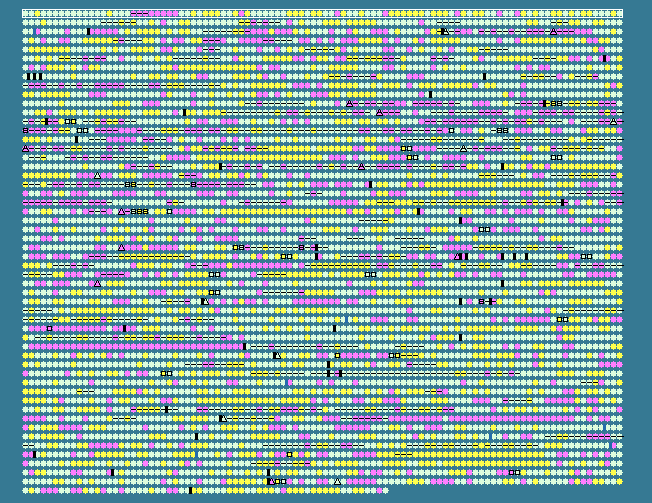

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 50.58   STD DEV: 5.59
Escherichia coli O157:H7, complete genome - 0..5498450
5361 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 51.19         190..273      	 +	27	15829255	-	ECs0001	-	thr operon leader peptide
2	 52.82         354..2816     	 +	820	15829256	-	ECs0002	E	aspartokinase I-homoserine dehydrogenase I
3	 56.27 +1     2818..3750     	 +	310	15829257	-	ECs0003	E	homoserine kinase
4	 53.15        3751..5037     	 +	428	15829258	-	ECs0004	E	threonine synthase
5	 53.87        5251..5547     	 +	98	15829259	-	ECs0005	-	hypothetical protein
6	 48.91        5700..6476     	 -	258	15829260	-	ECs0006	S	hypothetical protein
7	 52.97        6546..7976     	 -	476	15829261	-	ECs0007	E	putative inner membrane transport protein
8	 51.68        8255..9208     	 +	317	15829262	-	ECs0008	G	transaldolase B
9	 53.91        9323..9910     	 +	195	15829263	-	ECs0009	H	molybdopeterin biosynthesis protein
10	 52.73        9945..10511    	 -	188	15829264	-	ECs0010	R	hypothetical protein
11	 50.98       10660..11373    	 -	237	15829265	-	ECs0012	-	putative oxidoreductase
12	 50.08       10742..11362    	 +	206	15829266	-	ECs0011	-	positive regulator for sigma 32 heat shock promoters
13	 48.89       11399..11803    	 -	134	15829267	-	ECs0013	-	hypothetical protein
14	 51.38       12180..14096    	 +	638	15829268	-	ECs0014	O	heat shock protein DnaK
15	 55.08       14185..15315    	 +	376	15829269	-	ECs0015	O	DnaJ protein
16	 50.95       15419..15628    	 -	69	15829270	-	ECs0016	-	Gef protein
17	 51.33       16157..17323    	 +	388	15829271	-	ECs0017	P	Na+/H antiporter
18	 47.57       17383..18288    	 +	301	15829272	-	ECs0018	K	transcriptional activator of nhaA
19	 36.93 -2    18326..18853    	 -	175	15829273	-	ECs0019	-	hypothetical protein
20	 37.61 -2    18832..18948    	 -	38	15829274	-	ECs0020	-	hypothetical protein
21	 37.00 -2    18959..19285    	 -	108	15829275	-	ECs0021	-	hypothetical protein
22	 41.00 -1    19298..21748    	 -	816	15829276	-	ECs0022	N	putative outer membrane usher protein precursor
23	 36.55 -2    21761..22444    	 -	227	15829277	-	ECs0023	N	putative fimbrial chaperone
24	 39.14 -2    22494..23027    	 -	177	15829278	-	ECs0024	-	putative fimbrial protein
25	 32.28 -2    23329..24750    	 -	473	15829279	-	ECs0025	-	hypothetical protein
26	 46.59       25220..25483    	 -	87	15829280	-	ECs0026	J	30S ribosomal subunit protein S20
27	 48.00       25586..25810    	 +	74	15829281	-	ECs0027	-	hypothetical protein
28	 53.50       25818..26759    	 +	313	15829282	-	ECs0028	H	putative regulator
29	 55.73       26802..29618    	 +	938	15829283	-	ECs0029	J	isoleucine tRNA synthetase
30	 53.33       29618..30112    	 +	164	15829284	-	ECs0030	N	prolipoprotein signal peptidase
31	 55.33       30200..30649    	 +	149	15829285	-	ECs0031	O	putative FKBX-type 16KD peptidyl-prolyl cis-trans isomerase
32	 55.21       30651..31601    	 +	316	15829286	-	ECs0032	I	LytB protein
33	 55.63       31667..32581    	 +	304	15829287	-	ECs0033	F	hypothetical protein
34	 52.92       32748..33569    	 +	273	15829288	-	ECs0034	E	dihydrodipicolinate reductase
35	 53.44       34025..35173    	 +	382	15829289	-	ECs0035	E	carbamoyl-phosphate synthetase small subunit
36	 55.87       35191..38412    	 +	1073	15829290	-	ECs0036	E	carbamoyl-phosphate synthase large subunit
37	 43.51 -1    38568..39068    	 +	166	15829291	-	ECs0037	-	transcriptional regulator of cai operon
38	 54.90       39187..39798    	 -	203	15829292	-	ECs0038	R	Carnitine operon protein CaiE
39	 52.46       39783..40676    	 -	297	15829293	-	ECs0039	I	carnitine racemase
40	 50.61       40677..42245    	 -	522	15829294	-	ECs0040	I	probable crotonobetaine/carnitine-CoA ligase
41	 52.46       42304..43521    	 -	405	15829295	-	ECs0041	C	l-carnitine dehydratase
42	 53.81       43650..44792    	 -	380	15829296	-	ECs0042	I	putative carnitine operon oxidoreductase
43	 51.88       44823..46337    	 -	504	15829297	-	ECs0043	M	putative carnitine transporter
44	 51.67       46780..47586    	 +	268	15829298	-	ECs0044	C	putative flavoprotein subunit
45	 55.94       47601..48542    	 +	313	15829299	-	ECs0045	C	putative flavoprotein subunit
46	 54.86       48593..49879    	 +	428	15829300	-	ECs0046	C	flavoprotein
47	 56.94 +1    49876..50163    	 +	95	15829301	-	ECs0047	C	putative ferredoxin
48	 53.38       50221..51552    	 +	443	15829302	-	ECs0048	G	putative transport protein
49	 54.80       51660..52190    	 +	176	15829303	-	ECs0049	R	putative NAD(P)H oxidoreductase
50	 55.82       52183..54045    	 +	620	15829304	-	ECs0050	P	glutathione-regulated K+ efflux antiporter
51	 53.33       54237..54716    	 +	159	15829305	-	ECs0051	H	dihydrofolate reductase type I; trimethoprim resistance
52	 48.72       54802..55035    	 +	77	15829306	-	ECs0052	-	CcdA-like protein
53	 45.71       55038..55352    	 +	104	15829307	-	ECs0053	-	CcdB-like protein
54	 55.95       55349..56197    	 -	282	15829308	-	ECs0054	T	diadenosine tetraphosphatase
55	 51.85       56204..56581    	 -	125	15829309	-	ECs0055	P	hypothetical protein
56	 53.16       56584..57405    	 -	273	15829310	-	ECs0056	J	dimethyladenosine transferase
57	 56.16       57402..58391    	 -	329	15829311	-	ECs0057	H	pyridoxine biosynthesis
58	 53.77       58391..59677    	 -	428	15829312	-	ECs0058	O	survival protein
59	 51.34       59730..62084    	 -	784	15829313	-	ECs0059	M	organic solvent tolerance protein
60	 52.82       62339..63154    	 +	271	15829314	-	ECs0060	O	putative DNA binding protein
61	 41.83 -1    63449..64201    	 +	250	15829315	-	ECs0061	-	hypothetical protein
62	 54.09       64619..65278    	 -	219	15829316	-	ECs0062	J	hypothetical protein
63	 55.01       65290..68196    	 -	968	15829317	-	ECs0063	K	probable ATP-dependent RNA helicase
64	 55.57       68360..70711    	 -	783	15829318	-	ECs0064	L	DNA polymerase II
65	 54.89       70786..71481    	 -	231	15829319	-	ECs0065	G	L-ribulose-5-phosphate 4-epimerase
66	 55.62       71681..73183    	 -	500	15829320	-	ECs0066	G	L-arabinose isomerase
67	 57.97 +1    73194..74894    	 -	566	15829321	-	ECs0067	C	L-ribulokinase
68	 52.90       75233..76111    	 +	292	15829322	-	ECs0068	K	transcriptional regulator for ara operon
69	 54.38       76197..76961    	 +	254	15829323	-	ECs0069	S	hypothetical protein
70	 56.94 +1    77048..77746    	 -	232	15829324	-	ECs0070	H	putative ATP-binding component of a transport system
71	 58.97 +1    77730..79340    	 -	536	15829325	-	ECs0071	H	putative transport system permease protein
72	 52.95       79316..80299    	 -	327	15829326	-	ECs0072	H	thiamin-binding periplasmic protein
73	 43.16 -1    80671..81240    	 +	189	15829327	-	ECs0073	-	hypothetical protein
74	 55.21       81469..83127    	 -	552	15829328	-	ECs0074	E	putative transport protein
75	 52.31       83455..84060    	 -	201	15829329	-	ECs0075	E	isopropylmalate isomerase subunit
76	 55.67       84071..85471    	 -	466	15829330	-	ECs0076	E	3-isopropylmalate isomerase (dehydratase) subunit
77	 54.89       85474..86568    	 -	364	15829331	-	ECs0077	E	3-isopropylmalate dehydrogenase
78	 53.12       86565..88136    	 -	523	15829332	-	ECs0078	E	2-isopropylmalate synthase
79	 47.13       88229..88315    	 -	28	15829333	-	ECs0079	-	leu operon leader peptide
80	 45.82       88973..89917    	 +	314	15829334	-	ECs0080	K	putative transcriptional activator for leuABCD operon
81	 52.52       90193..91959    	 +	588	15829335	-	ECs0081	E	putative acetolactate synthase III large subunit
82	 49.39       91962..92453    	 +	163	15829336	-	ECs0082	E	acetolactate synthase III small subunit
83	 44.83 -1    92465..92551    	 +	28	15829337	-	ECs0083	-	fruR leader peptide
84	 54.83       92633..93637    	 +	334	15829338	-	ECs0084	K	transcriptional repressor of fru operon and others
85	 52.29       94239..94697    	 +	152	15829339	-	ECs0085	S	hypothetical protein
86	 54.88       94699..95640    	 +	313	15829340	-	ECs0086	M	putative apolipoprotein
87	 50.55       95637..96002    	 +	121	15829341	-	ECs0087	D	cell division protein FtsL
88	 53.65       96018..97784    	 +	588	15829342	-	ECs0088	M	septum formation  protein FtsI
89	 56.32 +1    97771..99258    	 +	495	15829343	-	ECs0089	M	meso-diaminopimelate-adding enzyme
90	 54.75       99255..100613   	 +	452	15829344	-	ECs0090	M	D-alanine:D-alanine-adding enzyme
91	 53.09      100607..101689   	 +	360	15829345	-	ECs0091	M	putative phospho-N-acetylmuramoyl-pentapeptide transferase
92	 55.20      101692..103008   	 +	438	15829346	-	ECs0092	M	UDP-N-acetylmuramoylalanine-D-glutamate ligase
93	 52.85      103008..104252   	 +	414	15829347	-	ECs0093	D	cell division protein FtsW
94	 55.99      104249..105316   	 +	355	15829348	-	ECs0094	M	UDP-N-acetylglucosamine:N-acetylmuramyl- (pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
95	 54.61      105370..106845   	 +	491	15829349	-	ECs0095	M	UDP-N-acetyl-muramate:alanine ligase
96	 51.68      106838..107758   	 +	306	15829350	-	ECs0096	M	D-alanine-D-alanine ligase B
97	 53.55      107760..108590   	 +	276	15829351	-	ECs0097	M	cell division protein FtsQ
98	 52.26      108587..109849   	 +	420	15829352	-	ECs0098	D	ATP-binding cell division protein FtsA
99	 54.25      109910..111061   	 +	383	15829353	-	ECs0099	D	cell division protein FtsZ
100	 51.20      111162..112079   	 +	305	15829354	-	ECs0100	M	UDP-3-O-acyl N-acetylglucosamine deacetylase


 50.58 MEAN

 5.59  STD DEV
