IslandPath Analysis: Escherichia coli O157_EDL933

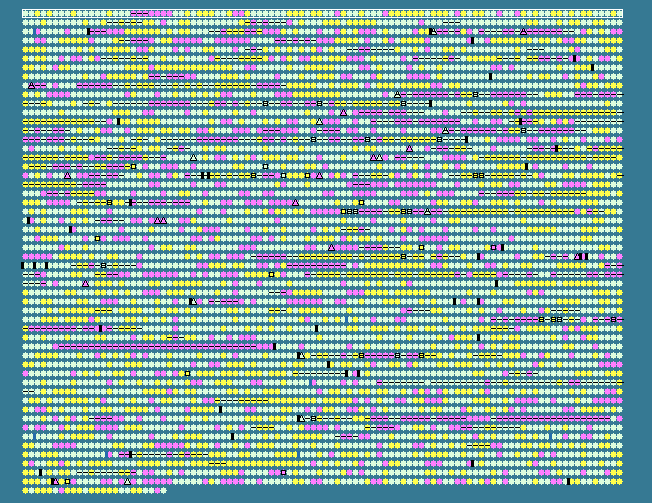

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 50.36   STD DEV: 5.88
Escherichia coli O157:H7 EDL933, complete genome - 0..5528445
5324 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 51.19         190..273      	 +	27	15799681	thrL	Z0001	-	thr operon leader peptide
2	 52.82         354..2816     	 +	820	15799682	thrA	Z0002	E	aspartokinase I, homoserine dehydrogenase I
3	 56.27 +1     2818..3750     	 +	310	15799683	thrB	Z0003	E	homoserine kinase
4	 53.15        3751..5037     	 +	428	15799684	thrC	Z0004	E	threonine synthase
5	 53.87        5251..5547     	 +	98	15799685	-	Z0005	-	orf, hypothetical protein
6	 48.91        5700..6476     	 -	258	15799686	yaaA	Z0006	S	orf, hypothetical protein
7	 52.97        6546..7976     	 -	476	15799687	yaaJ	Z0007	E	inner membrane transport protein
8	 51.68        8255..9208     	 +	317	15799688	talB	Z0008	G	transaldolase B
9	 53.91        9323..9910     	 +	195	15799689	mog	Z0009	H	required for the efficient incorporation of molybdate into molybdoproteins
10	 52.73        9945..10511    	 -	188	15799690	yaaH	Z0010	R	orf, hypothetical protein
11	 50.98       10660..11373    	 -	237	15799691	-	Z0011	-	putative oxidoreductase
12	 50.08       10742..11362    	 +	206	15799692	htgA	Z0012	-	positive regulator for sigma 32 heat shock promoters
13	 48.89       11399..11803    	 -	134	15799693	yaaI	Z0013	-	orf, hypothetical protein
14	 51.38       12180..14096    	 +	638	15799694	dnaK	Z0014	O	chaperone Hsp70; DNA biosynthesis; autoregulated heat shock proteins
15	 55.08       14185..15315    	 +	376	15799695	dnaJ	Z0015	O	chaperone with DnaK; heat shock protein
16	 50.48       15419..15628    	 -	69	15799696	gef	Z0016	-	Gef protein interferes with membrane function when in excess
17	 51.33       16157..17323    	 +	388	15799697	nhaA	Z0018	P	Na+/H antiporter, pH dependent
18	 47.57       17383..18288    	 +	301	15799698	nhaR	Z0019	K	transcriptional activator of nhaA
19	 37.34 -2    18326..18949    	 -	207	15799699	-	Z0020	-	-
20	 37.00 -2    18960..19286    	 -	108	15799700	-	Z0021	-	-
21	 41.00 -1    19299..21749    	 -	816	15799701	-	Z0022	N	putative usher protein
22	 36.55 -2    21762..22445    	 -	227	15799702	-	Z0023	N	putative chaperone protein
23	 39.14 -1    22495..23028    	 -	177	15799703	-	Z0024	-	putative type-1 fimbrial protein
24	 32.28 -2    23330..24751    	 -	473	15799704	-	Z0025	-	-
25	 46.59       25221..25484    	 -	87	15799705	rpsT	Z0027	J	30S ribosomal subunit protein S20
26	 48.00       25587..25811    	 +	74	15799706	-	Z0028	-	orf, hypothetical protein
27	 53.50       25819..26760    	 +	313	15799707	ribF	Z0029	H	putative regulator
28	 55.70       26803..29619    	 +	938	15799708	ileS	Z0030	J	isoleucine tRNA synthetase
29	 53.33       29619..30113    	 +	164	15799709	lspA	Z0031	N	prolipoprotein signal peptidase (SPase II)
30	 55.33       30201..30650    	 +	149	15799710	slpA	Z0033	O	probable FKBX-type 16KD peptidyl-prolyl cis-trans isomerase (a rotamase)
31	 55.21       30652..31602    	 +	316	15799711	lytB	Z0034	I	control of stringent response; involved in penicillin tolerance
32	 55.63       31668..32582    	 +	304	15799712	yaaF	Z0035	F	orf, hypothetical protein
33	 52.92       32749..33570    	 +	273	15799713	dapB	Z0036	E	dihydrodipicolinate reductase
34	 53.44       34026..35174    	 +	382	15799714	carA	Z0037	E	carbamoyl-phosphate synthetase, glutamine (small) subunit
35	 55.87       35192..38413    	 +	1073	15799715	carB	Z0038	E	carbamoyl-phosphate synthase large subunit
36	 35.62 -2    38421..38639    	 -	72	15799716	-	Z0039	-	-
37	 43.51 -1    38569..39069    	 +	166	15799717	-	Z0040	-	transcriptional regulator of cai operon
38	 54.90       39188..39799    	 -	203	15799718	caiE	Z0041	R	possible synthesis of cofactor for carnitine racemase and dehydratase
39	 52.46       39784..40677    	 -	297	15799719	caiD	Z0042	I	carnitine racemase
40	 50.61       40678..42246    	 -	522	15799720	caiC	Z0043	I	probable crotonobetaine/carnitine-CoA ligase
41	 52.46       42305..43522    	 -	405	15799721	caiB	Z0044	C	l-carnitine dehydratase
42	 53.81       43651..44793    	 -	380	15799722	caiA	Z0045	I	probable carnitine operon oxidoreductase
43	 51.68       44824..46338    	 -	504	15799723	caiT	Z0046	M	probable carnitine transporter
44	 51.67       46781..47587    	 +	268	15799724	fixA	Z0047	C	probable flavoprotein subunit, carnitine metabolism
45	 55.94       47602..48543    	 +	313	15799725	fixB	Z0048	C	probable flavoprotein subunit, carnitine metabolism
46	 54.78       48594..49880    	 +	428	15799726	fixC	Z0049	C	flavoprotein; electron transport
47	 56.94 +1    49877..50164    	 +	95	15799727	fixX	Z0050	C	putative ferredoxin
48	 53.38       50222..51553    	 +	443	15799728	yaaU	Z0051	G	putative transport protein
49	 54.80       51661..52191    	 +	176	15799729	yabF	Z0052	R	putative NAD(P)H oxidoreductase
50	 55.82       52184..54046    	 +	620	15799730	kefC	Z0053	P	K+ efflux antiporter, glutathione-regulated
51	 53.33       54238..54717    	 +	159	15799731	-	Z0055	H	dihydrofolate reductase type I; trimethoprim resistance
52	 48.72       54803..55036    	 +	77	15799732	-	Z0056	-	putative antitoxin of gyrase inhibiting toxin-antitoxin system
53	 45.71       55039..55353    	 +	104	15799733	-	Z0057	-	putative toxin of gyrase inhibiting toxin-antitoxin system
54	 55.95       55350..56198    	 -	282	15799734	apaH	Z0058	T	diadenosine tetraphosphatase
55	 51.85       56205..56582    	 -	125	15799735	apaG	Z0059	P	orf, hypothetical protein
56	 53.16       56585..57406    	 -	273	15799736	ksgA	Z0060	J	S-adenosylmethionine-6-N',N'-adenosyl (rRNA) dimethyltransferase
57	 56.16       57403..58392    	 -	329	15799737	pdxA	Z0061	H	pyridoxine biosynthesis
58	 53.77       58392..59678    	 -	428	15799738	surA	Z0062	O	survival protein
59	 51.34       59731..62085    	 -	784	15799739	imp	Z0063	M	organic solvent tolerance
60	 52.82       62340..63155    	 +	271	15799740	yabH	Z0064	O	putative DNA binding protein
61	 41.83 -1    63450..64202    	 +	250	15799741	-	Z0065	-	-
62	 54.09       64620..65279    	 -	219	15799742	yabO	Z0066	J	orf, hypothetical protein
63	 55.01       65291..68197    	 -	968	15799743	-	Z0067	K	-
64	 55.57       68361..70712    	 -	783	15799744	polB	Z0068	L	DNA polymerase II
65	 54.89       70787..71482    	 -	231	15799745	araD	Z0069	G	L-ribulose-5-phosphate 4-epimerase
66	 55.62       71682..73184    	 -	500	15799746	araA	Z0070	G	L-arabinose isomerase
67	 57.97 +1    73195..74895    	 -	566	15799747	araB	Z0072	C	L-ribulokinase
68	 52.90       75234..76112    	 +	292	15799748	araC	Z0073	K	transcriptional regulator for ara operon
69	 54.38       76198..76962    	 +	254	15799749	yabI	Z0074	S	orf, hypothetical protein
70	 56.94 +1    77049..77747    	 -	232	15799750	yabJ	Z0075	H	putative ATP-binding component of a transport system
71	 58.97 +1    77731..79341    	 -	536	15799751	yabK	Z0076	H	putative transport system permease protein
72	 52.95       79317..80300    	 -	327	15799752	tbpA	Z0077	H	thiamin-binding periplasmic protein
73	 43.16 -1    80672..81241    	 +	189	15799753	-	Z0078	-	-
74	 55.21       81470..83128    	 -	552	15799754	yabN	Z0079	E	putative transport protein
75	 52.31       83456..84061    	 -	201	15799755	leuD	Z0080	E	isopropylmalate isomerase subunit
76	 55.67       84072..85472    	 -	466	15799756	leuC	Z0081	E	3-isopropylmalate isomerase (dehydratase) subunit
77	 54.89       85475..86569    	 -	364	15799757	leuB	Z0082	E	3-isopropylmalate dehydrogenase
78	 53.12       86566..88137    	 -	523	15799758	leuA	Z0083	E	2-isopropylmalate synthase
79	 47.13       88230..88316    	 -	28	15799759	leuL	Z0084	-	leu operon leader peptide
80	 45.79       88956..89918    	 +	320	15799760	leuO	Z0086	K	probable transcriptional activator for leuABCD operon
81	 52.40       90152..91960    	 +	602	15799761	ilvI	Z0087	E	acetolactate synthase III, valine sensitive, large subunit
82	 49.39       91963..92454    	 +	163	15799762	ilvH	Z0088	E	acetolactate synthase III, valine sensitive, small subunit
83	 44.83       92466..92552    	 +	28	15799763	fruL	Z0089	-	fruR leader peptide
84	 54.83       92634..93638    	 +	334	15799764	fruR	Z0090	K	transcriptional repressor of fru operon and others
85	 52.29       94240..94698    	 +	152	15799765	yabB	Z0091	S	orf, hypothetical protein
86	 54.88       94700..95641    	 +	313	15799766	yabC	Z0092	M	putative apolipoprotein
87	 50.55       95638..96003    	 +	121	15799767	ftsL	Z0093	D	cell division protein; ingrowth of wall at septum
88	 53.65       96019..97785    	 +	588	15799768	ftsI	Z0094	M	septum formation; penicillin-binding protein 3; peptidoglycan synthetase
89	 56.18       97772..99259    	 +	495	15799769	murE	Z0095	M	meso-diaminopimelate-adding enzyme
90	 54.75       99256..100614   	 +	452	15799770	murF	Z0096	M	D-alanine:D-alanine-adding enzyme
91	 53.09      100608..101690   	 +	360	15799771	mraY	Z0097	M	phospho-N-acetylmuramoyl-pentapeptide transferase?
92	 55.20      101693..103009   	 +	438	15799772	murD	Z0098	M	UDP-N-acetylmuramoylalanine-D-glutamate ligase
93	 52.85      103009..104253   	 +	414	15799773	ftsW	Z0099	D	cell division; membrane protein involved in shape determination
94	 55.99      104250..105317   	 +	355	15799774	murG	Z0100	M	UDP-N-acetylglucosamine:N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
95	 54.54      105371..106846   	 +	491	15799775	murC	Z0101	M	L-alanine adding enzyme, UDP-N-acetyl-muramate:alanine ligase
96	 51.68      106839..107759   	 +	306	15799776	ddlB	Z0102	M	D-alanine-D-alanine ligase B, affects cell division
97	 53.55      107761..108591   	 +	276	15799777	ftsQ	Z0103	M	cell division protein; ingrowth of wall at septum
98	 52.26      108588..109850   	 +	420	15799778	ftsA	Z0104	D	ATP-binding cell division protein, septation process, complexes with FtsZ, associated with junctions of inner and outer membranes
99	 54.25      109911..111062   	 +	383	15799779	ftsZ	Z0105	D	cell division; forms circumferential ring; tubulin-like GTP-binding protein and GTPase
100	 51.20      111163..112080   	 +	305	15799780	lpxC	Z0106	M	UDP-3-O-acyl N-acetylglucosamine deacetylase; lipid A biosynthesis


 50.36 MEAN

 5.88  STD DEV




Last Updated: Sept 17 2004 (Note: update adds new organisms but does not affect the existing records)
