IslandPath Analysis: Escherichia coli K12

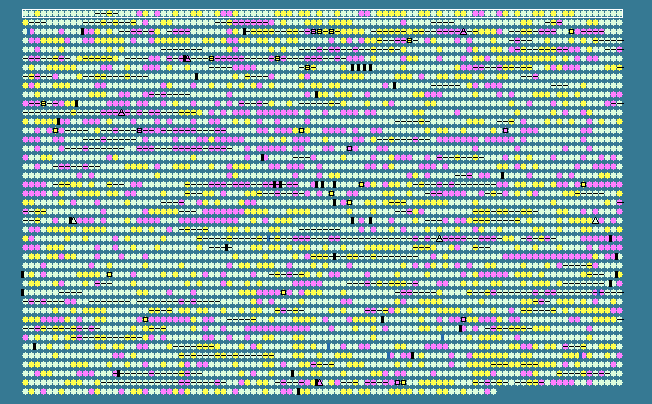

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 50.99   STD DEV: 4.90

Escherichia coli K12, complete genome - 0..4639221
4279 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 51.52         190..255      	 +	21	16127995	thrL	b0001	-	thr operon leader peptide
2	 53.07         337..2799     	 +	820	16127996	thrA	b0002	E	aspartokinase I, homoserine dehydrogenase I
3	 56.27 +1     2801..3733     	 +	310	16127997	thrB	b0003	E	homoserine kinase
4	 52.84        3734..5020     	 +	428	16127998	thrC	b0004	E	threonine synthase
5	 53.87        5234..5530     	 +	98	16127999	-	b0005	-	orf, hypothetical protein
6	 49.68        5683..6459     	 -	258	16128000	yaaA	b0006	S	orf, hypothetical protein
7	 53.32        6529..7959     	 -	476	16128001	yaaJ	b0007	E	inner membrane transport protein
8	 51.99        8238..9191     	 +	317	16128002	talB	b0008	G	transaldolase B
9	 54.42        9306..9893     	 +	195	16128003	mog	b0009	H	required for the efficient incorporation of molybdate into molybdoproteins
10	 53.09        9928..10494    	 -	188	16128004	yaaH	b0010	R	orf, hypothetical protein
11	 50.84       10643..11356    	 -	237	16128005	b0011	b0011	-	putative oxidoreductase
12	 50.59       10725..11315    	 +	196	16128006	htgA	b0012	-	positive regulator for sigma 32 heat shock promoters
13	 48.89       11382..11786    	 -	134	16128007	yaaI	b0013	-	orf, hypothetical protein
14	 51.12       12163..14079    	 +	638	16128008	dnaK	b0014	O	chaperone Hsp70; DNA biosynthesis; autoregulated heat shock proteins
15	 55.17       14168..15298    	 +	376	16128009	dnaJ	b0015	O	chaperone with DnaK; heat shock protein
16	 51.93       15445..16557    	 +	370	16128010	yi81_1	b0016	L	IS186 hypothetical protein
17	 52.10       15869..16177    	 -	102	16128011	yi82_1	b0017	-	IS186 and IS421 hypothetical protein
18	 51.43       16751..16960    	 -	69	16128012	gef	b0018	-	Gef protein interferes with membrane function when in excess
19	 51.41       17489..18655    	 +	388	16128013	nhaA	b0019	P	Na+/H antiporter, pH dependent
20	 47.46       18715..19620    	 +	301	16128014	nhaR	b0020	K	transcriptional activator of nhaA
21	 54.56       19811..20314    	 -	167	16128015	insB_1	b0021	L	IS1 protein InsB
22	 52.90       20233..20508    	 -	91	16128016	insA_1	b0022	L	IS1 protein InsA
23	 46.59       20815..21078    	 -	87	16128017	rpsT	b0023	J	30S ribosomal subunit protein S20
24	 48.86       21181..21399    	 +	72	16128018	b0024	b0024	-	orf, hypothetical protein
25	 53.61       21407..22348    	 +	313	16128019	ribF	b0025	H	putative regulator
26	 55.77       22391..25207    	 +	938	16128020	ileS	b0026	J	isoleucine tRNA synthetase
27	 53.54       25207..25701    	 +	164	16128021	lspA	b0027	N	prolipoprotein signal peptidase (SPase II)
28	 54.44       25826..26275    	 +	149	16128022	slpA	b0028	O	probable FKBX-type 16KD peptidyl-prolyl cis-trans isomerase (a rotamase)
29	 55.10       26277..27227    	 +	316	16128023	lytB	b0029	I	control of stringent response; involved in penicillin tolerance
30	 56.28 +1    27293..28207    	 +	304	16128024	yaaF	b0030	F	orf, hypothetical protein
31	 53.41       28374..29195    	 +	273	16128025	dapB	b0031	E	dihydrodipicolinate reductase
32	 53.35       29651..30799    	 +	382	16128026	carA	b0032	E	carbamoyl-phosphate synthetase, glutamine (small) subunit
33	 56.27 +1    30817..34038    	 +	1073	16128027	carB	b0033	E	carbamoyl-phosphate synthase large subunit
34	 35.56 -2    34086..34265    	 -	59	16132238	yaaV	b0033a	-	Uncharacterized conserved protein
35	 43.51 -1    34195..34695    	 +	166	16128028	caiF	b0034	-	transcriptional regulator of cai operon
36	 54.74       34781..35392    	 -	203	16128029	caiE	b0035	R	possible synthesis of cofactor for carnitine racemase and dehydratase
37	 52.35       35377..36270    	 -	297	16128030	caiD	b0036	I	carnitine racemase
38	 50.99       36271..37839    	 -	522	16128031	caiC	b0037	I	probable crotonobetaine/carnitine-CoA ligase
39	 52.63       37898..39115    	 -	405	16128032	caiB	b0038	C	l-carnitine dehydratase
40	 53.89       39244..40386    	 -	380	16128033	caiA	b0039	I	probable carnitine operon oxidoreductase
41	 51.82       40417..41931    	 -	504	16128034	caiT	b0040	M	probable carnitine transporter
42	 52.04       42367..43173    	 +	268	16128035	fixA	b0041	C	probable flavoprotein subunit, carnitine metabolism
43	 56.69 +1    43188..44129    	 +	313	16128036	fixB	b0042	C	probable flavoprotein subunit, carnitine metabolism
44	 54.93       44180..45466    	 +	428	16128037	fixC	b0043	C	flavoprotein; electron transport
45	 56.94 +1    45463..45750    	 +	95	16128038	fixX	b0044	C	putative ferredoxin
46	 53.30       45807..47138    	 +	443	16128039	yaaU	b0045	G	putative transport protein
47	 54.61       47246..47776    	 +	176	16128040	yabF	b0046	R	putative NAD(P)H oxidoreductase
48	 55.50       47769..49631    	 +	620	16128041	kefC	b0047	P	K+ efflux antiporter, glutathione-regulated
49	 52.71       49823..50302    	 +	159	16128042	folA	b0048	H	dihydrofolate reductase type I; trimethoprim resistance
50	 55.75       50380..51222    	 -	280	16128043	apaH	b0049	T	diadenosine tetraphosphatase
51	 51.85       51229..51606    	 -	125	16128044	apaG	b0050	P	orf, hypothetical protein
52	 53.04       51609..52430    	 -	273	16128045	ksgA	b0051	J	S-adenosylmethionine-6-N',N'-adenosyl (rRNA) dimethyltransferase
53	 56.36 +1    52427..53416    	 -	329	16128046	pdxA	b0052	H	pyridoxine biosynthesis
54	 53.85       53416..54702    	 -	428	16128047	surA	b0053	O	survival protein
55	 51.38       54755..57109    	 -	784	16128048	imp	b0054	M	organic solvent tolerance
56	 52.70       57364..58179    	 +	271	16128049	yabH	b0055	O	putative DNA binding protein
57	 45.16 -1    58474..59124    	 +	216	16128050	yabP	b0056	-	orf, hypothetical protein
58	 33.96 -2    59121..59279    	 +	52	16128051	yabQ	b0057	-	orf, hypothetical protein
59	 53.94       59687..60346    	 -	219	16128052	yabO	b0058	J	pseudouridylate synthase
60	 54.90       60358..63264    	 -	968	16128053	hepA	b0059	K	probable ATP-dependent RNA helicase
61	 55.36       63429..65780    	 -	783	16128054	polB	b0060	L	DNA polymerase II
62	 55.32       65855..66550    	 -	231	16128055	araD	b0061	G	L-ribulose-5-phosphate 4-epimerase
63	 55.49       66835..68337    	 -	500	16128056	araA	b0062	G	L-arabinose isomerase
64	 58.02 +1    68348..70048    	 -	566	16128057	araB	b0063	C	L-ribulokinase
65	 52.56       70387..71265    	 +	292	16128058	araC	b0064	K	transcriptional regulator for ara operon
66	 53.86       71351..72115    	 +	254	16128059	yabI	b0065	S	orf, hypothetical protein
67	 57.08 +1    72229..72927    	 -	232	16128060	yabJ	b0066	H	putative ATP-binding component of a transport system
68	 58.41 +1    72911..74521    	 -	536	16128061	yabK	b0067	H	putative transport system permease protein
69	 53.25       74497..75480    	 -	327	16128062	tbpA	b0068	H	thiamin-binding periplasmic protein
70	 54.89       75644..77299    	 -	551	16128063	yabN	b0069	E	putative transport protein
71	 48.43       77621..78799    	 +	392	16128064	yabM	b0070	G	putative transport protein
72	 51.49       78848..79453    	 -	201	16128065	leuD	b0071	E	isopropylmalate isomerase subunit
73	 55.75       79464..80864    	 -	466	16128066	leuC	b0072	E	3-isopropylmalate isomerase (dehydratase) subunit
74	 55.53       80867..81961    	 -	364	16128067	leuB	b0073	E	3-isopropylmalate dehydrogenase
75	 52.99       81958..83529    	 -	523	16128068	leuA	b0074	E	2-isopropylmalate synthase
76	 47.13       83622..83708    	 -	28	16128069	leuL	b0075	-	leu operon leader peptide
77	 43.76 -1    84191..85312    	 +	373	16128070	leuO	b0076	K	probable transcriptional activator for leuABCD operon
78	 52.93       85630..87354    	 +	574	16132273	ilvI	b0077m	E	acetolactate synthase isozyme III large subunit
79	 50.20       87357..87848    	 +	163	16128071	ilvH	b0078	E	acetolactate synthase III, valine sensitive, small subunit
80	 44.83 -1    87860..87946    	 +	28	16128072	fruL	b0079	-	fruR leader peptide
81	 54.93       88028..89032    	 +	334	16128073	fruR	b0080	K	transcriptional repressor of fru operon and others
82	 52.07       89634..90092    	 +	152	16128074	yabB	b0081	S	orf, hypothetical protein
83	 55.20       90094..91035    	 +	313	16128075	yabC	b0082	M	putative apolipoprotein
84	 50.27       91032..91397    	 +	121	16128076	ftsL	b0083	D	cell division protein; ingrowth of wall at septum
85	 53.99       91413..93179    	 +	588	16128077	ftsI	b0084	M	septum formation; penicillin-binding protein 3; peptidoglycan synthetase
86	 56.59 +1    93166..94653    	 +	495	16128078	murE	b0085	M	meso-diaminopimelate-adding enzyme
87	 55.11       94650..96008    	 +	452	16128079	murF	b0086	M	D-alanine:D-alanine-adding enzyme
88	 53.37       96002..97084    	 +	360	16128080	mraY	b0087	M	phospho-N-acetylmuramoyl-pentapeptide transferase?
89	 54.90       97087..98403    	 +	438	16128081	murD	b0088	M	UDP-N-acetylmuramoylalanine-D-glutamate ligase
90	 53.01       98403..99647    	 +	414	16128082	ftsW	b0089	D	cell division; membrane protein involved in shape determination
91	 56.09 +1    99644..100711   	 +	355	16128083	murG	b0090	M	UDP-N-acetylglucosamine:N-acetylmuramyl- (pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
92	 54.74      100765..102240   	 +	491	16128084	murC	b0091	M	L-alanine adding enzyme, UDP-N-acetyl-muramate:alanine ligase
93	 51.57      102233..103153   	 +	306	16128085	ddlB	b0092	M	D-alanine-D-alanine ligase B, affects cell division
94	 53.31      103155..103985   	 +	276	16128086	ftsQ	b0093	M	cell division protein; ingrowth of wall at septum
95	 52.10      103982..105244   	 +	420	16128087	ftsA	b0094	D	ATP-binding cell division protein, septation process, complexes with FtsZ, associated with junctions of inner and outer membranes
96	 54.17      105305..106456   	 +	383	16128088	ftsZ	b0095	D	cell division; forms circumferential ring; tubulin-like GTP-binding protein and GTPase
97	 51.09      106557..107474   	 +	305	16128089	lpxC	b0096	M	UDP-3-O-acyl N-acetylglucosamine deacetylase; lipid A biosynthesis
98	 52.38      107630..108217   	 +	195	16128090	yacA	b0097	-	orf, hypothetical protein
99	 52.40      108279..110984   	 +	901	16128091	secA	b0098	N	preprotein translocase; secretion protein
100	 49.23      111044..111433   	 +	129	16128092	mutT	b0099	L	7,8-dihydro-8-oxoguanine-triphosphatase, prefers dGTP, causes AT-GC transversions


 50.99 MEAN

 4.90  STD DEV
