IslandPath Analysis: Deinococcus radiodurans chrom 1

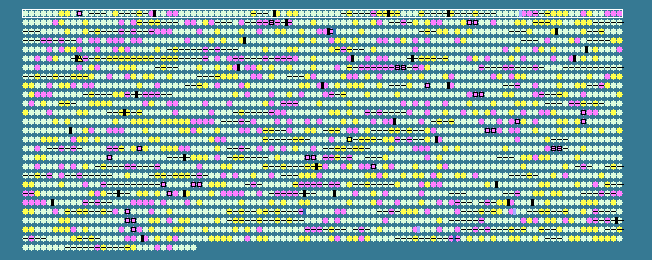

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.25   STD DEV: 4.30
Deinococcus radiodurans R1 complete chromosome 1 - 0..2648638
2629 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 63.79           1..1182     	 -	393	15805043	DR0001	DR0001	L	DNA polymerase III, beta subunit
2	 64.47        1904..3268     	 -	454	15805044	DR0002	DR0002	L	chromosomal replication initiator protein
3	 66.78        3412..4287     	 +	291	15805045	DR0003	DR0003	-	hypothetical protein
4	 67.90        4378..5430     	 +	350	15805046	DR0004	DR0004	L	MutT/nudix family protein
5	 69.91        5438..6115     	 +	225	15805047	DR0005	DR0005	K	conserved hypothetical protein
6	 67.05        6162..6944     	 -	260	15805048	DR0006	DR0006	R	conserved hypothetical protein
7	 71.09        6986..7822     	 +	278	15805049	DR0007	DR0007	S	conserved hypothetical protein
8	 71.76 +1     7819..8859     	 +	346	15805050	DR0008	DR0008	-	hypothetical protein
9	 68.14        8925..10283    	 +	452	15805051	DR0009	DR0009	S	conserved hypothetical protein
10	 59.77 -1    10413..11615    	 +	400	15807617	-	DR0010	L	putative transposase
11	 65.99       11855..12736    	 -	293	15805052	DR0011	DR0011	M	conserved hypothetical protein
12	 68.51       13333..14199    	 -	288	15805053	DR0012	DR0012	K	chromosome partitioning protein
13	 69.70       14183..15073    	 -	296	15805054	DR0013	DR0013	D	chromosome partitioning ATPase Soj
14	 69.29       15101..15862    	 -	253	15805055	DR0014	DR0014	M	gidB protein
15	 65.27       15859..16215    	 -	118	15805056	DR0015	DR0015	-	hypothetical protein
16	 72.06 +1    16307..17047    	 -	246	15805057	DR0016	DR0016	H	conserved hypothetical protein
17	 66.91       17147..17557    	 -	136	15805058	DR0017	DR0017	S	conserved hypothetical protein
18	 68.77       17568..18185    	 -	205	15805059	DR0018	DR0018	-	hypothetical protein
19	 69.39       18182..19063    	 -	293	15805060	DR0019	DR0019	-	hypothetical protein
20	 72.15 +1    19258..20643    	 +	461	15805061	DR0020	DR0020	K	ribonuclease II family protein
21	 65.17       20768..21034    	 +	88	15805062	DR0021	DR0021	-	hypothetical protein
22	 61.33 -1    21162..21761    	 -	199	15805063	DR0022	DR0022	-	conserved hypothetical protein
23	 69.48       22233..22766    	 +	177	15805064	DR0023	DR0023	F	phosphoribosylaminoimidazole carboxylase, catalytic subunit
24	 70.53       22763..23875    	 +	370	15805065	DR0024	DR0024	F	phosphoribosylaminoimidazole carboxylase, ATPase subunit
25	 63.42       23983..25182    	 +	399	15805066	DR0025	DR0025	S	conserved hypothetical protein
26	 62.72 -1    25273..26082    	 +	269	15805067	DR0026	DR0026	Q	methyltransferase, putative
27	 66.22       26166..27968    	 -	600	15805068	DR0027	DR0027	D	gidA protein
28	 66.97       28040..29674    	 +	544	15805069	DR0028	DR0028	E	aminotransferase, putative
29	 66.40       29796..30941    	 +	381	15805070	DR0029	DR0029	C	2-oxo acid dehydrogenase, E1 component, alpha subunit
30	 66.47       30938..31972    	 +	344	15805071	DR0030	DR0030	C	2-oxo acid dehydrogenase, E1 component, beta subunit
31	 66.26       32002..32244    	 +	80	15805072	DR0031	DR0031	-	hypothetical protein
32	 67.24       32248..33825    	 +	525	15805073	DR0032	DR0032	C	2-oxo acid dehydrogenase, E2 component
33	 65.40       33903..34376    	 -	157	15805074	DR0033	DR0033	J	conserved hypothetical protein
34	 65.52       34348..34695    	 +	115	15805075	DR0034	DR0034	-	hypothetical protein
35	 66.01       34829..36046    	 +	405	15805076	DR0035	DR0035	F	adenylosuccinate synthase
36	 65.59       36181..36831    	 +	216	15805077	DR0036	DR0036	H	GTP cyclohydrolase I
37	 64.85       36859..37464    	 +	201	15805078	DR0037	DR0037	-	hypothetical protein
38	 66.13       37446..38756    	 +	436	15805079	DR0038	DR0038	E	serine hydroxymethyltransferase
39	 71.34       38823..39977    	 +	384	15805080	DR0039	DR0039	T	conserved hypothetical protein
40	 68.13       39999..40475    	 -	158	15805081	DR0040	DR0040	-	hypothetical protein
41	 70.29       40458..41036    	 +	192	15805082	DR0041	DR0041	-	hypothetical protein
42	 66.02       41050..41823    	 +	257	15805083	DR0042	DR0042	-	hypothetical protein
43	 73.54 +1    41990..42775    	 -	261	15805084	DR0043	DR0043	S	hypothetical protein
44	 68.97       42772..43899    	 -	375	15805085	DR0044	DR0044	H	N-acylamino acid racemase
45	 71.85 +1    43942..44520    	 +	192	15805086	DR0045	DR0045	S	hypothetical protein
46	 72.58 +1    44596..45102    	 +	168	15805087	DR0046	DR0046	-	conserved hypothetical protein
47	 67.17       45124..45321    	 +	65	15805088	DR0047	DR0047	-	hypothetical protein
48	 67.06       45318..46082    	 +	254	15805089	DR0048	DR0048	S	conserved hypothetical protein
49	 69.36       46123..47349    	 +	408	15805090	DR0049	DR0049	R	conserved hypothetical protein
50	 67.82       47370..47891    	 -	173	15805091	DR0050	DR0050	S	hypothetical protein
51	 64.15       47912..48268    	 -	118	15805092	DR0051	DR0051	S	HesB/YadR/YfhF family protein
52	 69.44       48296..49051    	 -	251	15805093	DR0052	DR0052	S	hypothetical protein
53	 67.07       49054..49548    	 -	164	15805094	DR0053	DR0053	S	conserved hypothetical protein
54	 67.26       49657..49992    	 +	111	15805095	DR0054	DR0054	S	conserved hypothetical protein
55	 71.92 +1    49989..50939    	 +	316	15805096	DR0055	DR0055	K	repressor protein, putative
56	 70.28       51060..52361    	 +	433	15805097	DR0056	DR0056	Q	benzoate membrane transport protein, putative
57	 69.41       52370..52624    	 -	84	15805098	DR0057	DR0057	O	conserved hypothetical protein
58	 67.45       52646..54421    	 -	591	15805099	DR0058	DR0058	T	serine/threonine protein kinase, putative
59	 62.46 -1    54831..55115    	 +	94	15805100	DR0059	DR0059	-	hypothetical protein
60	 73.66 +1    55152..55580    	 +	142	15805101	DR0060	DR0060	-	hypothetical protein
61	 74.81 +1    55573..57009    	 +	478	15805102	DR0061	DR0061	-	hypothetical protein
62	 72.34 +1    57231..58217    	 -	328	15805103	DR0062	DR0062	E	ABC transporter, ATP-binding protein
63	 71.09       58272..59153    	 -	293	15805104	DR0063	DR0063	S	hypothetical protein
64	 66.67       59243..60433    	 -	396	15805105	DR0064	DR0064	H	conserved hypothetical protein
65	 69.30       60568..63186    	 +	872	15805106	DR0065	DR0065	R	ATP-dependent helicase, putative
66	 70.58       63356..64147    	 -	263	15805107	DR0066	DR0066	J	aminoglycoside 3`-phosphotransferase
67	 74.84 +1    64184..65113    	 +	309	15805108	DR0067	DR0067	-	hypothetical protein
68	 65.33       65110..65484    	 +	124	15805109	DR0068	DR0068	-	hypothetical protein
69	 66.39       65586..65948    	 +	120	15805110	DR0069	DR0069	-	hypothetical protein
70	 66.67       66004..66603    	 +	199	15805111	DR0070	DR0070	-	hypothetical protein
71	 67.06       66759..68792    	 -	677	15805112	DR0071	DR0071	O	peptidyl-prolyl cis-trans isomerse, putative, PpiC family
72	 71.30       69032..69571    	 +	179	15805113	DR0072	DR0072	-	hypothetical protein
73	 68.79       69707..71875    	 -	722	15805114	DR0073	DR0073	C	phosphate acetyltransferase
74	 68.86       71920..72513    	 -	197	15805115	DR0074	DR0074	K	transcriptional regulator, TetR family
75	 67.82       72681..77084    	 +	1467	15805116	DR0075	DR0075	S	conserved hypothetical protein
76	 73.63 +1    77159..78364    	 +	401	15805117	DR0076	DR0076	H	molybdopterin biosynthesis MoeA
77	 67.27       78380..79201    	 -	273	15805118	DR0077	DR0077	E	shikimate 5-dehydrogenase, putative
78	 66.88       79205..80125    	 -	306	15805119	DR0078	DR0078	E	N-acetyl-gamma-glutamyl-phosphate reductase
79	 64.73       80122..80637    	 -	171	15805120	DR0079	DR0079	L	MutT/nudix family protein
80	 65.35       80645..81706    	 -	353	15805121	DR0080	DR0080	E	ornithine carbamoyltransferase
81	 65.69       81769..82482    	 -	237	15805122	DR0081	DR0081	S	conserved hypothetical protein
82	 67.74       82517..82981    	 -	154	15805123	DR0082	DR0082	-	hypothetical protein
83	 63.96       83069..84322    	 -	417	15805124	DR0083	DR0083	C	2-oxoglutarate dehydrogenase, dihydrolipoamide succinyltransferase E2 component
84	 63.25       86474..87790    	 -	438	15805125	DR0084	DR0084	R	GTP-binding protein Obg
85	 61.96 -1    87904..88179    	 -	91	15805126	DR0085	DR0085	J	ribosomal protein L27
86	 61.18 -1    88194..88703    	 -	169	15805127	DR0086	DR0086	J	ribosomal protein L21
87	 65.19       88873..89346    	 -	157	15805128	DR0087	DR0087	K	conserved hypothetical protein
88	 70.80       89343..90140    	 -	265	15805129	DR0088	DR0088	Q	oxidoreductase, short-chain dehydrogenase/reductase family
89	 72.79 +1    90184..91260    	 -	358	15805130	DR0089	DR0089	M	conserved hypothetical protein
90	 75.82 +1    91257..91955    	 -	232	15805131	DR0090	DR0090	I	conserved hypothetical protein
91	 72.42 +1    91945..92883    	 -	312	15805132	DR0091	DR0091	S	conserved hypothetical protein
92	 69.93       92880..93155    	 -	91	15805133	DR0092	DR0092	L	MutT/nudix family protein
93	 67.64       93152..94687    	 -	511	15805134	DR0093	DR0093	Q	phytoene dehydrogenase, putative
94	 58.06 -2    94950..95495    	 +	181	15805135	DR0094	DR0094	-	hypothetical protein
95	 70.83       95577..97403    	 -	608	15805136	DR0095	DR0095	Q	ABC transporter, ATP-binding protein
96	 70.49       97501..99252    	 -	583	15805137	DR0096	DR0096	Q	ABC transporter, ATP-binding protein, MsbA family
97	 68.42       99317..99886    	 -	189	15805138	DR0097	DR0097	-	conserved hypothetical protein
98	 61.49 -1   100030..100338   	 +	102	15805139	DR0098	DR0098	J	ribosomal protein S6
99	 60.19 -1   100371..100802   	 +	143	15805140	DR0099	DR0099	L	single-stranded DNA-binding protein
100	 63.11      100829..101361   	 +	177	15807618	ssb	DR0100	L	single-stranded DNA-binding protein


 67.25 MEAN

 4.30  STD DEV
