IslandPath Analysis: Campylobacter jejuni NCTC11168

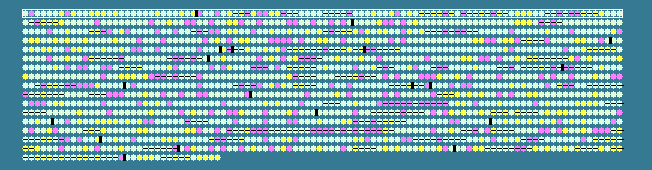

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 30.55   STD DEV: 3.69
Campylobacter jejuni complete genome - 0..1641481
1634 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 30.08           1..1323     	 +	440	15791400	dnaA	Cj0001	L	chromosomal replication initiator protein
2	 25.94 -1     1483..2550     	 +	355	15791401	dnaN	Cj0002	L	DNA polymerase III, beta chain
3	 33.16        2579..4888     	 +	769	15791402	gyrB	Cj0003	L	DNA gyrase subunit B
4	 31.87        4916..5257     	 -	113	15791403	Cj0004c	Cj0004c	-	putative periplasmic protein
5	 32.85        5260..6498     	 -	412	15791404	Cj0005c	Cj0005c	R	putative molybdenum containing oxidoreductase
6	 31.88        6703..8010     	 +	435	15791405	Cj0006	Cj0006	R	putative integral membrane protein
7	 34.67 +1     8144..12634    	 +	1496	15791406	gltB	Cj0007	E	glutamate synthase (NADPH) large subunit
8	 24.60 -1    12644..14395    	 +	583	15791407	Cj0008	Cj0008	S	hypothetical protein Cj0008
9	 34.72 +1    14398..15843    	 +	481	15791408	gltD	Cj0009	E	glutamate synthase (NADPH) small subunit
10	 32.12       15844..16419    	 -	191	15791409	rnhB	Cj0010c	L	ribonuclease HII
11	 27.08       16452..16691    	 -	79	15791410	Cj0011c	Cj0011c	L	putative non-specific DNA binding protein
12	 35.80 +1    16756..17403    	 -	215	15791411	Cj0012c	Cj0012c	C	non-haem iron protein
13	 36.97 +1    17563..19239    	 +	558	15791412	ilvD	Cj0013	E	dihydroxy-acid dehydratase
14	 35.05 +1    19251..19775    	 -	174	15791413	Cj0014c	Cj0014c	S	putative integral membrane protein
15	 32.36       19867..21093    	 -	408	15791414	Cj0015c	Cj0015c	R	hypothetical protein Cj0015c
16	 34.22       21159..21833    	 +	224	15791415	Cj0016	Cj0016	R	putative transcriptional regulatory protein
17	 33.33       21854..23380    	 -	508	15791416	Cj0017c	Cj0017c	O	putative ATP /GTP binding protein
18	 31.55       23392..23559    	 -	55	15791417	Cj0018c	Cj0018c	-	small hydrophobic protein
19	 27.66       23665..25443    	 -	592	15791418	Cj0019c	Cj0019c	N	MCP-domain signal transduction protein
20	 31.91       25433..26347    	 -	304	15791419	Cj0020c	Cj0020c	P	cytochrome C551 peroxidase
21	 31.97       26411..27289    	 -	292	15791420	Cj0021c	Cj0021c	Q	hypothetical protein Cj0021c
22	 29.46       27402..28304    	 -	300	15791421	Cj0022c	Cj0022c	J	putative ribosomal pseudouridine synthase
23	 34.31 +1    28382..29710    	 +	442	15791422	purB	Cj0023	F	adenylosuccinate lyase
24	 33.67       29726..32095    	 +	789	15791423	nrdA	Cj0024	F	ribonucleoside-diphosphate reductase alpha chain
25	 31.46       32134..33519    	 -	461	15791424	Cj0025c	Cj0025c	R	putative transmembrane symporter
26	 33.65       33639..34262    	 -	207	15791425	Cj0026c	Cj0026c	F	hypothetical protein Cj0026c
27	 34.38 +1    34382..36013    	 +	543	15791426	pyrG	Cj0027	F	CTP synthase
28	 29.83       36000..37571    	 +	523	15791427	recJ	Cj0028	L	putative single-stranded-DNA-specific exonuclease
29	 34.24       37667..38662    	 +	331	15791428	ansA	Cj0029	E	cytoplasmic L-asparaginase
30	 20.53 -2    44966..46363    	 +	465	15791429	Cj0030	Cj0030	-	hypothetical protein Cj0030
31	 30.38       46424..49027    	 +	867	15791430	Cj0031	Cj0031	L	putative type IIS restriction /modification enzyme, N-terminal half
32	 31.09       48996..50156    	 +	386	15791431	Cj0032	Cj0032	L	putative type IIS restriction /modification enzyme, C-terminal half
33	 23.74 -1    50156..51937    	 +	593	15791432	Cj0033	Cj0033	-	putative integral membrane protein
34	 32.34       51967..52668    	 -	233	15791433	Cj0034c	Cj0034c	S	putative periplasmic protein
35	 35.33 +1    52665..53867    	 -	400	15791434	Cj0035c	Cj0035c	G	putative efflux protein
36	 31.04       53970..55319    	 +	449	15791435	Cj0036	Cj0036	-	hypothetical protein Cj0036
37	 36.59 +1    55343..56386    	 -	347	15791436	Cj0037c	Cj0037c	C	putative cytochrome c
38	 25.00 -1    56564..57211    	 -	215	15791437	Cj0038c	Cj0038c	-	putative membrane protein
39	 37.26 +1    57211..59019    	 -	602	15791438	typA	Cj0039c	N	GTP-binding protein typA homolog
40	 23.15 -2    59154..59477    	 +	107	15791439	Cj0040	Cj0040	-	hypothetical protein Cj0040
41	 26.38 -1    59493..61289    	 +	598	15791440	Cj0041	Cj0041	-	hypothetical protein Cj0041
42	 36.50 +1    61343..62227    	 +	294	15791441	flgD	Cj0042	N	putative flagellar hook assembly protein
43	 34.07       62231..63868    	 +	545	15791442	flgE	Cj0043	N	flagellar hook protein flgE
44	 25.53 -1    63872..65743    	 -	623	15791443	Cj0044c	Cj0044c	-	hypothetical protein Cj0044c
45	 28.08       65744..66466    	 -	240	15791444	Cj0045c	Cj0045c	P	putative iron-binding protein
46	 32.74       68532..69548    	 -	338	15791445	trmU	Cj0053c	J	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
47	 31.19       69548..70153    	 -	201	15791446	Cj0054c	Cj0054c	R	hypothetical protein Cj0054c
48	 28.48       70274..71098    	 -	274	15791447	Cj0055c	Cj0055c	-	hypothetical protein Cj0055c
49	 32.85       71155..71571    	 -	138	15791448	Cj0056c	Cj0056c	-	hypothetical protein Cj0056c
50	 31.11       72005..72859    	 +	284	15791449	Cj0057	Cj0057	-	putative periplasmic protein
51	 28.83       72844..73443    	 +	199	15791450	Cj0058	Cj0058	R	putative periplasmic protein
52	 33.10       73492..74334    	 -	280	15791451	fliY	Cj0059c	N	putative flagellar motor switch protein
53	 33.80       74331..75410    	 -	359	15791452	fliM	Cj0060c	N	flagellar motor switch protein
54	 32.50       75410..76126    	 -	238	15791453	fliA	Cj0061c	K	putative RNA polymerase sigma factor for flagellar operon
55	 26.89       76083..76439    	 -	118	15791454	Cj0062c	Cj0062c	-	putative integral membrane protein
56	 31.26       76458..77324    	 -	288	15791455	Cj0063c	Cj0063c	D	putative ATP-binding protein
57	 30.58       77317..78771    	 -	484	15791456	flhF	Cj0064c	N	flagellar biosynthesis protein
58	 30.59       78781..79254    	 -	157	15791457	folK	Cj0065c	H	putative 2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
59	 35.21 +1    79257..79736    	 -	159	15791458	aroQ	Cj0066c	E	3-dehydroquinate dehydratase
60	 28.86       79827..81056    	 +	409	15791459	Cj0067	Cj0067	F	hypothetical protein Cj0067
61	 33.00       81044..81940    	 +	298	15791460	pspA	Cj0068	N	protease
62	 34.30 +1    82019..83050    	 +	343	15791461	Cj0069	Cj0069	-	hypothetical protein Cj0069
63	 25.16 -1    83047..83205    	 -	52	15791462	Cj0070c	Cj0070c	-	very hypothetical protein Cj0070c
64	 30.75       84087..84743    	 -	218	15791463	Cj0073c	Cj0073c	S	hypothetical protein Cj0073c
65	 34.79 +1    84736..86175    	 -	479	15791464	Cj0074c	Cj0074c	C	putative iron-sulfur protein
66	 33.20       86172..86912    	 -	246	15791465	Cj0075c	Cj0075c	C	putative oxidoreductase iron-sulfur subunit
67	 35.12 +1    87036..88718    	 -	560	15791466	lctP	Cj0076c	C	L-lactate permease
68	 31.23       88890..89459    	 -	189	15791467	cdtC	Cj0077c	-	cytolethal distending toxin
69	 36.34 +1    89470..90267    	 -	265	15791468	cdtB	Cj0078c	-	cytolethal distending toxin
70	 34.32 +1    90264..91070    	 -	268	15791469	cdtA	Cj0079c	-	cytolethal distending toxin
71	 21.48 -2    91147..91416    	 +	89	15791470	Cj0080	Cj0080	-	putative membrane protein
72	 34.68 +1    91417..92979    	 +	520	15791471	cydA	Cj0081	C	cytochrome bd oxidase subunit I
73	 31.29       92979..94103    	 +	374	15791472	cydB	Cj0082	C	cytochrome bd oxidase subunit II
74	 26.58 -1    94297..94992    	 -	231	15791473	Cj0085c	Cj0085c	M	putative amino acid recemase
75	 28.88       95108..95803    	 -	231	15791474	ung	Cj0086c	L	uracil-DNA glycosylase
76	 33.26       96074..97480    	 +	468	15791475	aspA	Cj0087	E	aspartate ammonia-lyase
77	 37.22 +1    97496..98833    	 +	445	15791476	dcuA	Cj0088	R	putative anaerobic C4-dicarboxylate transporter
78	 27.68       98941..100302   	 +	453	15791477	Cj0089	Cj0089	S	putative lipoprotein
79	 26.83 -1   100312..100680   	 +	122	15791478	Cj0090	Cj0090	-	putative lipoprotein
80	 34.78 +1   100704..101327   	 +	207	15791479	Cj0091	Cj0091	N	putative lipoprotein
81	 31.17      101410..102747   	 +	445	15791480	Cj0092	Cj0092	-	putative periplasmic protein
82	 32.50      102757..103959   	 +	400	15791481	Cj0093	Cj0093	-	putative periplasmic protein
83	 35.28 +1   104118..104426   	 +	102	15791482	rplU	Cj0094	J	50S ribosomal protein L21
84	 37.25 +1   104437..104691   	 +	84	15791483	rpmA	Cj0095	J	50S ribosomal protein L27
85	 35.90 +1   104798..105850   	 +	350	15791484	Cj0096	Cj0096	R	putative GTP-binding protein
86	 32.28      105955..106710   	 +	251	15791485	proB	Cj0097	E	putative glutamate 5-kinase
87	 32.46      106784..107701   	 +	305	15791486	fmt	Cj0098	J	methionyl-tRNA formyltransferase
88	 29.36      107664..108317   	 +	217	15791487	birA	Cj0099	H	putative biotin--[acetyl-CoA-carboxylase] synthetase
89	 30.92      108314..109099   	 +	261	15791488	Cj0100	Cj0100	D	parA family protein
90	 26.40 -1   109105..109941   	 +	278	15791489	Cj0101	Cj0101	K	parB family protein
91	 28.40      110002..110427   	 +	141	15791490	atpF'	Cj0102	C	ATP synthase F0 sector B' subunit
92	 25.93 -1   110438..110950   	 +	170	15791491	atpF	Cj0103	C	ATP synthase F0 sector B subunit
93	 21.84 -2   110953..111474   	 +	173	15791492	atpH	Cj0104	C	ATP synthase F1 sector delta subunit
94	 35.19 +1   111488..112993   	 +	501	15791493	atpA	Cj0105	C	ATP synthase F1 sector alpha subunit
95	 28.93      113002..113886   	 +	294	15791494	atpG	Cj0106	C	ATP synthase F1 sector gamma subunit
96	 35.41 +1   113912..115309   	 +	465	15791495	atpD	Cj0107	C	ATP synthase F1 sector beta subunit
97	 35.13 +1   115313..115702   	 +	129	15791496	atpC	Cj0108	C	ATP synthase F1 sector epsilon subunit
98	 29.73      115702..116256   	 +	184	15791497	exbB3	Cj0109	N	exbB\tolQ family transport protein
99	 28.46      116265..116654   	 +	129	15791498	exbD3	Cj0110	N	exbD\tolR family transport protein
100	 28.72      116657..117436   	 +	259	15791499	Cj0111	Cj0111	-	periplasmic protein


 30.55 MEAN

 3.69  STD DEV
