IslandPath Analysis: Chlorobium tepidum TLS

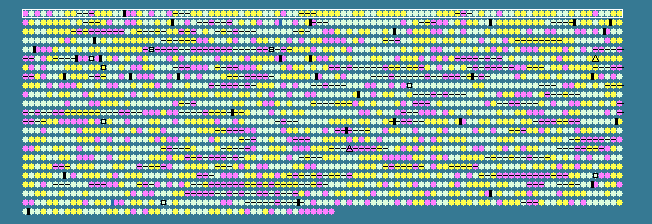

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 55.49   STD DEV: 6.35
Chlorobium tepidum TLS complete genome - 0..2154946
2252 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 50.22           2..1126     	 -	374	21645890	dnaN	CT0001	-	DNA polymerase III, beta subunit
2	 53.51        1398..2879     	 -	493	21645891	dnaA	CT0002	-	chromosomal replication initiator protein DnaA
3	 50.62        3285..3446     	 +	53	21645892	rpmH	CT0003	-	ribosomal protein L34
4	 54.62        3494..3958     	 +	154	21645893	-	CT0004	-	ribonuclease P protein component, putative
5	 49.60        4017..4268     	 +	83	21645894	-	CT0005	-	conserved hypothetical protein
6	 57.59        4268..6040     	 +	590	21645895	-	CT0006	-	Oxa1/60 kDa IMP family protein
7	 57.96        6047..6643     	 +	198	21645896	-	CT0007	-	Pap2 superfamily protein
8	 66.88 +1     6640..7563     	 +	307	21645897	-	CT0008	-	Rok family protein
9	 60.19        7593..9044     	 +	483	21645898	-	CT0009	-	RNA methyltransferase, TrmA family
10	 58.15        9171..9839     	 -	222	21645899	tal	CT0010	-	transaldolase
11	 58.59        9849..10901    	 -	350	21645900	-	CT0011	-	deoxyhypusine synthase, putative
12	 39.58 -2    10984..11079    	 +	31	21645902	-	CT0012	-	hypothetical protein
13	 59.03       11570..12604    	 +	344	21645903	trpS	CT0013	-	tryptophanyl-tRNA synthetase
14	 61.42       12601..13305    	 +	234	21645904	-	CT0014	-	hydrolase, haloacid dehalogenase-like family
15	 59.12       13318..14973    	 +	551	21645905	argS	CT0015	-	arginyl-tRNA synthetase
16	 57.31       15001..15588    	 -	195	21645906	nadD	CT0016	-	nicotinate-nucleotide adenyltransferase, putative
17	 53.44       15585..16733    	 -	382	21645907	-	CT0017	-	hypothetical protein
18	 48.90 -1    16990..17535    	 -	181	21645908	atpH	CT0018	-	ATP synthase F1, delta subunit
19	 51.70       17554..18081    	 -	175	21645909	atpF	CT0019	-	ATP synthase F0, B subunit
20	 59.46       18167..18388    	 -	73	21645910	atpE	CT0020	-	ATP synthase F0, C subunit
21	 54.99       18473..19303    	 -	276	21645911	atpB-2	CT0021	-	ATP synthase F0, A subunit
22	 47.94 -1    19568..19882    	 +	104	21645912	-	CT0022	-	hypothetical protein
23	 52.02       19930..20250    	 -	106	21645913	-	CT0023	-	hypothetical protein
24	 58.48       20271..21260    	 -	329	21645914	galE	CT0024	-	UDP-glucose 4-epimerase
25	 48.89 -1    21468..21602    	 +	44	21645916	-	CT0025	-	hypothetical protein
26	 61.48       21622..22392    	 +	256	21645917	-	CT0026	-	conserved hypothetical protein
27	 54.76       22376..22585    	 -	69	21645918	-	CT0027	-	hypothetical protein
28	 58.01       22801..23817    	 +	338	21645919	-	CT0028	-	CrtF-related protein
29	 62.11 +1    23975..25270    	 -	431	21645920	cat2	CT0029	-	4-hydroxybutyrate coenzyme A transferase
30	 60.15       25421..26725    	 -	434	21645922	ftsZ	CT0030	-	cell division protein FtsZ
31	 58.33       26772..28115    	 -	447	21645923	ftsA	CT0031	-	cell division protein FtsA
32	 59.21       28112..29050    	 -	312	21645924	-	CT0032	-	FtsQ protein, putative
33	 64.36 +1    29087..30514    	 -	475	21645925	murC	CT0033	-	UDP-N-acetylmuramate-alanine ligase
34	 64.29 +1    30518..31612    	 -	364	21645926	murG	CT0034	-	UDP-N-acetylglucosamine-N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
35	 59.47       31609..32775    	 -	388	21645927	ftsW	CT0035	-	cell division protein, FtsW/RodA/SpoVE family
36	 65.81 +1    32835..34232    	 -	465	21645929	murD	CT0036	-	UDP-N-acetylmuramoylalanine-D-glutamate ligase
37	 54.83       34234..35340    	 -	368	21645930	mraY	CT0037	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
38	 64.36 +1    35348..36778    	 -	476	21645931	murF	CT0038	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate-D-alanyl-D-alanyl ligase
39	 65.88 +1    36797..38323    	 -	508	21645932	murE	CT0039	-	UDP-N-acetylmuramoylalanyl-D-glutamate-2,6-diaminopimelate ligase
40	 59.92       38323..40278    	 -	651	21645933	ftsI	CT0040	-	penicillin-binding protein 3
41	 53.42       40306..40773    	 -	155	21645934	-	CT0041	-	hypothetical protein
42	 58.93       40793..41749    	 -	318	21645935	-	CT0042	-	conserved hypothetical protein
43	 59.83       41754..42221    	 -	155	21645936	-	CT0043	-	conserved hypothetical protein
44	 51.85       42299..42838    	 +	179	21645937	-	CT0044	-	hypothetical protein
45	 55.25       42801..43667    	 +	288	21645938	-	CT0045	-	hypothetical protein
46	 58.53       43710..45392    	 -	560	21645939	fadD	CT0046	-	long-chain-fatty-acid-CoA ligase
47	 62.84 +1    45467..46747    	 -	426	21645941	bioA	CT0047	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
48	 62.08 +1    46744..47463    	 -	239	21645942	bioD	CT0048	-	dethiobiotin synthase
49	 63.73 +1    47436..48218    	 -	260	21645943	bioC	CT0049	-	biotin synthesis protein, putative
50	 64.40 +1    48215..48877    	 -	220	21645944	-	CT0050	-	conserved hypothetical protein
51	 65.19 +1    48892..50112    	 -	406	21645945	bioF-2	CT0051	-	8-amino-7-oxononanoate synthase
52	 63.57 +1    50109..51110    	 -	333	21645946	bioB	CT0052	-	biotin synthetase
53	 62.97 +1    51107..52108    	 -	333	21645947	birA	CT0053	-	BirA bifunctional protein
54	 57.21       52338..53987    	 -	549	21645948	amiB	CT0054	-	N-acetylmuramoyl-L-alanine amidase
55	 58.96       54413..56812    	 +	799	21645949	topA	CT0055	-	DNA topoisomerase I
56	 60.64       56948..59086    	 -	712	21645951	feoB-2	CT0056	-	ferrous iron transport protein B
57	 60.54       59083..59376    	 -	97	21645952	feoA-2	CT0057	-	ferrous iron transport protein A
58	 58.40       59511..59897    	 -	128	21645953	-	CT0058	-	Hit family protein
59	 52.11       59924..60658    	 -	244	21645954	-	CT0059	-	hypothetical protein
60	 59.62       60635..61315    	 +	226	21645955	-	CT0060	-	hypothetical protein
61	 63.01 +1    61355..62311    	 -	318	21645956	-	CT0061	-	hypothetical protein
62	 61.47       62295..63218    	 -	307	21645957	-	CT0062	-	conserved hypothetical protein
63	 60.36       63202..64200    	 -	332	21645958	-	CT0063	-	magnesium chelatase, subunit I, putative
64	 60.64       64534..65595    	 +	353	21645959	gcp	CT0064	-	O-sialoglycoprotein endopeptidase
65	 55.65       65703..66056    	 +	117	21645960	-	CT0065	-	conserved hypothetical protein
66	 58.13       66066..67166    	 +	366	21645961	carA	CT0066	-	carbamoyl-phosphate synthase, small subunit
67	 55.91       67505..67783    	 +	92	21645963	-	CT0067	-	hemagglutinin-related protein
68	 56.67       68072..68701    	 +	209	21645964	-	CT0068	-	hemagglutinin-related protein
69	 52.94       68828..68929    	 -	33	21645965	-	CT0069	-	hypothetical protein
70	 60.96       68965..70104    	 +	379	21645966	-	CT0070	-	aminotransferase, class V
71	 62.19 +1    70164..70811    	 +	215	21645967	-	CT0071	-	hypothetical protein
72	 62.66 +1    70817..72238    	 +	473	21645968	-	CT0072	-	BchE/P-methylase family protein
73	 60.19       72338..72769    	 +	143	21645969	-	CT0073	-	cytochrome c-555, membrane-bound
74	 39.72 -2    72824..72964    	 +	46	21645970	-	CT0074	-	hypothetical protein
75	 56.88       72989..73315    	 +	108	21645971	-	CT0075	-	cytochrome c-555
76	 52.06       73469..73735    	 +	88	21645972	-	CT0076	-	conserved hypothetical protein
77	 61.42       73755..74555    	 +	266	21645973	proC	CT0077	-	pyrroline-5-carboxylate reductase
78	 58.44       74555..75916    	 +	453	21645974	-	CT0078	-	hypothetical protein
79	 58.33       75939..76742    	 -	267	21645975	ugpQ	CT0079	-	glycerophosphoryl diester phosphodiesterase
80	 49.02 -1    76871..77176    	 -	101	21645976	-	CT0080	-	hypothetical protein
81	 56.50       77409..77585    	 +	58	21645978	-	CT0081	-	Ric1 protein
82	 58.97       77774..78202    	 +	142	21645979	-	CT0082	-	conserved hypothetical protein
83	 62.01 +1    78362..78919    	 +	185	21645980	pyrE	CT0083	-	orotate phosphoribosyltransferase
84	 61.25       78928..79794    	 +	288	21645981	tyrA	CT0084	-	prephenate dehydrogenase
85	 57.16       79791..80642    	 +	283	21645982	-	CT0085	-	conserved hypothetical protein
86	 61.90 +1    80671..82158    	 +	495	21645983	-	CT0086	-	hypothetical protein
87	 61.78       82260..82832    	 -	190	21645984	-	CT0087	-	conserved hypothetical protein
88	 60.14       82845..83687    	 -	280	21645985	kdsA	CT0088	-	2-dehydro-3-deoxyphosphooctonate aldolase
89	 60.14       83816..85132    	 +	438	21645986	clpB-2	CT0089	-	ATP-dependent Clp protease, ATP-binding subunit ClpB
90	 58.00       85187..86305    	 +	372	21645987	-	CT0090	-	glycosyl hydrolase, family 3
91	 58.94       86302..86793    	 +	163	21645988	sixA	CT0091	-	phosphohistidine phosphatase SixA
92	 62.38 +1    86889..87890    	 -	333	21645989	gpsA	CT0092	-	glycerol-3-phosphate dehydrogenase, NAD-dependent
93	 57.94       87904..88602    	 -	232	21645990	-	CT0093	-	conserved hypothetical protein
94	 60.40       88645..89634    	 -	329	21645991	purM	CT0094	-	phosphoribosylformylglycinamidine cyclo-ligase
95	 59.09       89683..91095    	 -	470	21645992	lysC	CT0095	-	aspartokinase
96	 39.81 -2    91089..91196    	 -	35	21645993	-	CT0096	-	hypothetical protein
97	 56.02       91182..91829    	 +	215	21645994	-	CT0097	-	NLP/P60 family protein
98	 58.51       91963..92832    	 +	289	21645996	-	CT0098	-	ribosomal protein L11 methyltransferase, putative
99	 62.74 +1    92946..93938    	 +	330	21645997	-	CT0099	-	exopolyphosphatase, putative
100	 61.75       93942..95141    	 -	399	21645998	-	CT0100	-	conserved hypothetical protein


 55.49 MEAN

 6.35  STD DEV
