IslandPath Analysis: Chlamydophila caviae GPIC

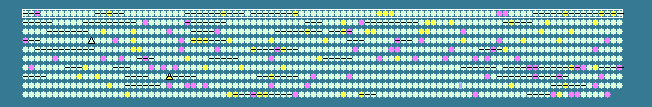

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No tRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 39.42   STD DEV: 2.69
Chlamydophila caviae GPIC, complete genome - 0..1173390
998 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 38.15          57..1052     	 +	331	29839770	hemB	CCA00001	-	delta-aminolevulinic acid dehydratase
2	 38.71        1068..2480     	 -	470	29839771	nqrA	CCA00002	-	NADH:ubiquinone oxidoreductase, subunit A
3	 32.18 -2     2502..2936     	 -	144	29839772	-	CCA00003	-	conserved hypothetical protein
4	 36.54 -1     3048..5201     	 +	717	29839773	greA	CCA00004	-	transcription elongation factor GreA
5	 38.79        5353..6543     	 +	396	29839774	-	CCA00005	-	amino acid biosynthesis aminotransferase, class I
6	 38.71        6839..7861     	 +	340	29839775	-	CCA00006	-	conserved hypothetical protein
7	 36.55 -1     7821..10958    	 -	1045	29839776	recB	CCA00007	-	exodeoxyribonuclease V, beta subunit
8	 36.89       10945..14010    	 -	1021	29839777	recC	CCA00008	-	exodeoxyribonuclease V, gamma subunit
9	 39.11       14009..15721    	 +	570	29839778	-	CCA00009	-	efflux protein, putative
10	 39.96       15743..16738    	 -	331	29839779	-	CCA00010	-	rhodanese-like domain protein
11	 40.79       16965..17594    	 +	209	29839780	rpsD	CCA00011	-	ribosomal protein S4
12	 40.92       17659..18528    	 -	289	29839781	nfo	CCA00012	-	endonuclease IV
13	 41.06       18594..20237    	 +	547	29839782	-	CCA00013	-	conserved hypothetical protein
14	 39.72       20346..21614    	 +	422	29839783	-	CCA00014	-	conserved hypothetical protein
15	 43.90 +1    21725..23635    	 +	636	29839784	-	CCA00015	-	conserved hypothetical protein
16	 38.04       23820..26432    	 -	870	29839785	-	CCA00016	-	conserved hypothetical protein
17	 37.35       26634..29150    	 +	838	29839786	-	CCA00017	-	conserved hypothetical protein
18	 38.10       29189..29419    	 +	76	29839787	-	CCA00018	-	conserved hypothetical protein
19	 38.04       29416..30138    	 -	240	29839788	-	CCA00019	-	ABC transporter, ATP-binding protein
20	 38.89       30144..30629    	 -	161	29839789	-	CCA00020	-	conserved hypothetical protein
21	 41.73       30626..31435    	 -	269	29839790	kdsA	CCA00021	-	2-dehydro-3-deoxyphosphooctonate aldolase
22	 40.51       31875..32111    	 -	78	29839791	-	CCA00022	-	KH domain protein
23	 39.16       33445..33753    	 -	102	29839792	-	CCA00024	-	conserved hypothetical protein
24	 36.73       33755..34048    	 -	97	29839793	-	CCA00025	-	conserved hypothetical protein
25	 38.54       34161..35600    	 -	479	29839794	-	CCA00026	-	topoisomerase, subunit A, putative
26	 36.04 -1    35604..37412    	 -	602	29839795	-	CCA00027	-	topoisomerase, subunit B, putative
27	 37.86       37967..38983    	 +	338	29839796	-	CCA00028	-	oxidoreductase
28	 38.02       39330..39734    	 +	134	29839797	-	CCA00029	-	conserved hypothetical protein
29	 39.71       39754..42231    	 +	825	29839798	-	CCA00030	-	FHA domain protein
30	 37.70       42278..42529    	 +	83	29839799	-	CCA00031	-	conserved hypothetical protein
31	 38.70       42553..42813    	 +	86	29839800	-	CCA00032	-	conserved hypothetical protein
32	 36.67 -1    42832..43281    	 +	149	29839801	-	CCA00033	-	conserved hypothetical protein
33	 38.57       43325..43993    	 +	222	29839802	-	CCA00034	-	conserved hypothetical protein
34	 44.17 +1    43995..45323    	 +	442	29839803	sctN	CCA00035	-	type III secretion cytoplasmic ATPase SctN
35	 38.54       45344..45862    	 +	172	29839804	-	CCA00036	-	conserved hypothetical protein
36	 38.16       45853..46701    	 +	282	29839805	-	CCA00037	-	conserved hypothetical protein
37	 40.23       46714..47829    	 +	371	29839806	sctQ	CCA00038	-	type III secretion translocase SctQ
38	 38.45       47847..49352    	 +	501	29839807	pkn5	CCA00039	-	serine/threonine-protein kinase
39	 39.93       49349..52078    	 +	909	29839808	sctC	CCA00040	-	type III secretion protein SctC
40	 39.09       52707..53783    	 -	358	29839809	-	CCA00041	-	arginine kinase-related protein
41	 40.66       53767..54285    	 -	172	29839810	-	CCA00042	-	conserved hypothetical protein
42	 37.75       54691..55233    	 -	180	29839811	frr	CCA00043	-	ribosome recycling factor
43	 39.00       55235..55957    	 -	240	29839812	pyrH	CCA00044	-	uridylate kinase
44	 39.22       55973..56821    	 -	282	29839813	tsf	CCA00045	-	translation elongation factor Ts
45	 38.51       56821..57651    	 -	276	29839814	rpsB	CCA00046	-	ribosomal protein S2
46	 42.99 +1    58028..59197    	 -	389	29839815	ompA	CCA00047	-	major outer membrane protein, porin
47	 40.29       59801..63076    	 +	1091	29839816	pbp2	CCA00048	-	PBP2-transglycolase/transpeptidase
48	 40.67       63144..64151    	 +	335	29839817	-	CCA00049	-	type III secretion chaperone, putative
49	 40.55       64506..65960    	 +	484	29839818	-	CCA00050	-	conserved hypothetical protein
50	 38.93       65964..66731    	 +	255	29839819	-	CCA00051	-	ABC transporter, ATP-binding protein
51	 40.00       66733..68007    	 +	424	29839820	-	CCA00052	-	conserved hypothetical protein
52	 40.95       67997..69217    	 +	406	29839821	b1680	CCA00053	-	aminotransferase, class V
53	 37.95       69220..69999    	 -	259	29839822	-	CCA00054	-	conserved hypothetical protein
54	 39.30       70193..70846    	 -	217	29839823	-	CCA00055	-	conserved hypothetical protein
55	 41.01       71087..71920    	 +	277	29839824	parB	CCA00056	-	chromosome partioning protein, ParB family
56	 37.98       71959..72927    	 -	322	29839825	dppF	CCA00057	-	peptide ABC transporter, ATP-binding protein
57	 41.95       72920..73882    	 -	320	29839826	-	CCA00058	-	peptide ABC transporter, ATP-binding protein
58	 39.41       73936..74610    	 +	224	29839827	-	CCA00059	-	conserved hypothetical protein
59	 42.70 +1    74617..75897    	 +	426	29839828	-	CCA00060	-	phosphate permease family protein
60	 44.80 +1    75935..77146    	 +	403	29839829	pgk	CCA00061	-	phosphoglycerate kinase
61	 43.46 +1    77599..78990    	 +	463	29839830	-	CCA00062	-	conserved hypothetical protein
62	 43.35 +1    79009..80226    	 +	405	29839831	-	CCA00063	-	conserved hypothetical protein
63	 38.96       80322..81476    	 +	384	29839832	-	CCA00064	-	conserved hypothetical protein
64	 40.68       81600..82715    	 +	371	29839833	-	CCA00065	-	Nol1/Nop2/Sun family protein
65	 36.67 -1    82721..83110    	 -	129	29839834	-	CCA00066	-	conserved hypothetical protein
66	 42.32 +1    83161..84462    	 -	433	29839835	-	CCA00067	-	D-alanyl-D-alanine carboxypeptidase
67	 40.19       84573..84995    	 +	140	29839836	-	CCA00068	-	conserved hypothetical protein
68	 38.13       84982..85440    	 -	152	29839837	-	CCA00069	-	rsbW protein, putative
69	 40.00       85409..86008    	 -	199	29839838	-	CCA00070	-	conserved hypothetical protein
70	 36.05 -1    86025..86981    	 -	318	29839839	-	CCA00071	-	TPR domain protein
71	 39.77       87134..88018    	 +	294	29839840	-	CCA00072	-	conserved hypothetical protein
72	 38.99       88015..91743    	 -	1242	29839841	dnaE	CCA00073	-	DNA polymerase III, alpha subunit
73	 40.28       91769..93136    	 -	455	29839842	uhpC	CCA00074	-	sugar phosphate sensor protein UhpC
74	 38.81       93368..93586    	 +	72	29839843	-	CCA00075	-	hypothetical protein
75	 40.06       93655..94947    	 +	430	29839844	hisS	CCA00076	-	histidyl-tRNA synthetase
76	 38.75       94922..96676    	 +	584	29839845	aspS	CCA00077	-	aspartyl-tRNA synthetase
77	 39.32       96752..97519    	 +	255	29839846	mip	CCA00078	-	peptidyl-prolyl cis-trans isomerase Mip
78	 38.85       97516..97986    	 +	156	29839847	-	CCA00079	-	RNA methyltransferase, TrmH family
79	 40.13       97983..98291    	 -	102	29839848	trx	CCA00080	-	thioredoxin
80	 29.29 -2    98417..98515    	 +	32	29839849	-	CCA00081	-	hypothetical protein
81	 28.85 -2    98701..98856    	 +	51	29839850	-	CCA00082	-	hypothetical protein
82	 37.80       99311..100027   	 +	238	29839851	-	CCA00083	-	conserved hypothetical protein
83	 40.91      100006..100467   	 +	153	29839852	-	CCA00084	-	conserved hypothetical protein TIGR00150
84	 37.33      100477..101226   	 +	249	29839853	dnaQ-1	CCA00085	-	DNA polymerase III, epsilon chain
85	 38.85      101387..101857   	 +	156	29839854	-	CCA00086	-	cytosolic acyl-CoA thioester hydrolase family protein
86	 39.67      101865..103490   	 +	541	29839855	-	CCA00087	-	hydrolase, carbon-nitrogen family
87	 42.54 +1   103505..104362   	 +	285	29839856	lpxC	CCA00088	-	UDP-3-0-acyl N-acetylglucosamine deacetylase
88	 39.35      104377..104841   	 +	154	29839857	fabZ	CCA00089	-	(3R)-hydroxymyristoyl-(acyl carrier protein) dehydratase
89	 41.55      104851..105690   	 +	279	29839858	lpxA	CCA00090	-	acyl-(acyl-carrier-protein)--UDP-N-acetylglucosamine o-acyltransferase
90	 42.34 +1   105677..106642   	 +	321	29839859	fmt	CCA00091	-	methionyl-tRNA formyltransferase
91	 42.97 +1   106758..107732   	 +	324	29839860	-	CCA00092	-	conserved hypothetical protein
92	 40.84      108028..108693   	 +	221	29839861	rplC	CCA00093	-	ribosomal protein L3
93	 40.74      108710..109384   	 +	224	29839862	rplD	CCA00094	-	ribosomal protein L4
94	 38.39      109401..109736   	 +	111	29839863	rplW	CCA00095	-	ribosomal protein L23
95	 42.57 +1   109758..110612   	 +	284	29839864	rplB	CCA00096	-	ribosomal protein L2
96	 37.45      110618..110884   	 +	88	29839865	rpsS	CCA00097	-	ribosomal protein S19
97	 44.94 +2   110903..111238   	 +	111	29839866	rplV	CCA00098	-	ribosomal protein L22
98	 42.41 +1   111247..111918   	 +	223	29839867	rpsC	CCA00099	-	ribosomal protein S3
99	 42.93 +1   111945..112361   	 +	138	29839868	rplP	CCA00100	-	ribosomal protein L16
100	 37.90      112367..112585   	 +	72	29839869	rpmC	CCA00101	-	ribosomal protein L29


 39.42 MEAN

 2.69  STD DEV
