IslandPath Analysis: Bacillus subtilis 168

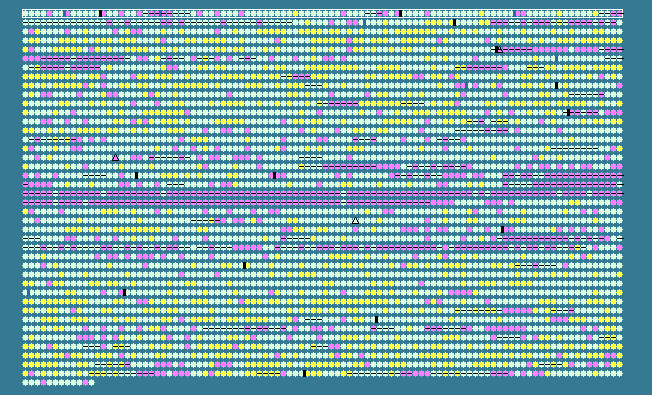

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 43.32   STD DEV: 4.61
Bacillus subtilis, complete genome - 0..4214814
4112 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 40.12         410..1750     	 +	446	16077069	dnaA	Bsu0001	L	alternate gene name: dnaH, dnaJ, dnaK
2	 39.93        1939..3075     	 +	378	16077070	dnaN	Bsu0002	L	DNA polymerase III (beta subunit)
3	 43.52        3206..3421     	 +	71	16077071	yaaA	Bsu0003	S	similar to hypothetical proteins
4	 45.55        3437..4549     	 +	370	16077072	recF	Bsu0004	L	recF
5	 38.99        4567..4725     	 +	52	16077073	yaaB	Bsu0005	-	yaaB
6	 45.02        4866..6782     	 +	638	16077074	gyrB	Bsu0006	L	DNA gyrase (subunit B)
7	 44.40        6993..9458     	 +	821	16077075	gyrA	Bsu0007	L	DNA gyrase (subunit A)
8	 34.60 -1    14845..15792    	 -	315	16077076	yaaC	Bsu0008	-	yaaC
9	 43.49       15913..17379    	 +	488	16077077	guaB	Bsu0009	R	inositol-monophosphate dehydrogenase
10	 40.54       17532..18863    	 +	443	16077078	dacA	Bsu0010	M	D-alanyl-D-alanine carboxypeptidase (penicillin-binding protein 5)
11	 45.99       19060..19944    	 +	294	16077079	yaaD	Bsu0011	H	similar to hypothetical proteins
12	 46.36       19966..20556    	 +	196	16077080	yaaE	Bsu0012	H	similar to hypothetical proteins
13	 44.44       20878..22155    	 +	425	16077081	serS	Bsu0013	J	seryl-tRNA synthetase
14	 37.61 -1    22494..23147    	 -	217	16077082	yaaF	Bsu0014	F	similar to deoxypurine kinase subunit
15	 40.54       23144..23767    	 -	207	16077083	yaaG	Bsu0015	F	similar to deoxypurine kinase subunit
16	 45.95       23866..25149    	 -	427	16077084	yaaH	Bsu0016	R	similar to hypothetical proteins
17	 37.73 -1    25219..25764    	 -	181	16077085	yaaI	Bsu0017	Q	similar to isochorismatase
18	 45.47       25850..26335    	 +	161	16077086	yaaJ	Bsu0018	F	similar to hypothetical proteins
19	 43.62       26812..28503    	 +	563	16077087	dnaX	Bsu0019	L	DNA polymerase III (gamma and tau subunits)
20	 39.51       28527..28850    	 +	107	16077088	yaaK	Bsu0020	S	similar to hypothetical proteins
21	 43.22       28865..29461    	 +	198	16077089	recR	Bsu0021	L	alternate gene name: recM
22	 37.78 -1    29479..29703    	 +	74	16077090	yaaL	Bsu0022	-	yaaL
23	 38.64 -1    29770..30033    	 +	87	16077091	bofA	Bsu0023	-	integral membrane protein
24	 32.31 -2    35529..35723    	 +	64	16077092	csfB	Bsu0024	-	alternate gene name: yaaM~sigma-F transcribed gene
25	 36.91 -1    35843..36457    	 +	204	16077093	xpaC	Bsu0025	-	xpaC
26	 40.31       36476..37636    	 +	386	16077094	yaaN	Bsu0026	P	similar to toxic cation resistance
27	 42.97       37718..39160    	 +	480	16077095	yaaO	Bsu0027	E	similar to lysine decarboxylase
28	 41.31       39157..39795    	 +	212	16077096	tmk	Bsu0028	F	thymidylate kinase
29	 41.82       39869..40198    	 +	109	16077097	yaaQ	Bsu0029	S	similar to hypothetical proteins
30	 36.96 -1    40211..40651    	 +	146	16077098	yaaR	Bsu0030	S	yaaR
31	 41.72       40663..41652    	 +	329	16077099	holB	Bsu0031	L	DNA polymerase III (delta' subunit)
32	 42.87       41655..42482    	 +	275	16077100	yaaT	Bsu0032	S	similar to signal peptidase II
33	 37.78 -1    42497..42856    	 +	119	16077101	yabA	Bsu0033	-	yabA
34	 42.34       42915..43658    	 +	247	16077102	yabB	Bsu0034	Q	similar to hypothetical proteins
35	 40.33       43645..43944    	 +	99	16077103	yazA	Bsu0035	L	similar to hypothetical proteins
36	 43.23       43919..44797    	 +	292	16077104	yabC	Bsu0036	R	similar to hypothetical proteins
37	 35.40 -1    44846..45136    	 -	96	16077105	abrB	Bsu0037	K	transcriptional regulator
38	 42.11       45631..47625    	 +	664	16077106	metS	Bsu0038	R	methionyl-tRNA synthetase
39	 42.32       47704..48471    	 +	255	16077107	yabD	Bsu0039	L	similar to hypothetical proteins
40	 41.55       48627..49940    	 +	437	16077108	yabE	Bsu0040	S	similar to hypothetical proteins
41	 46.17       50085..50645    	 +	186	16077109	yabF	Bsu0041	L	similar to hypothetical proteins
42	 43.46       50638..51516    	 +	292	16077110	ksgA	Bsu0042	J	dimethyladenosine transferase
43	 42.27       51678..52550    	 +	290	16077111	yabG	Bsu0043	-	yabG
44	 42.15       52761..53021    	 +	86	16077112	veg	Bsu0044	-	veg
45	 45.70       53181..53366    	 +	61	16077113	sspF	Bsu0045	-	small acid-soluble spore protein (alpha/beta-type SASP)
46	 48.05 +1    53514..54383    	 +	289	16077114	yabH	Bsu0046	I	similar to hypothetical proteins
47	 42.66       54439..55296    	 +	285	16077115	purR	Bsu0047	F	transcriptional regulator
48	 44.18       55293..55670    	 +	125	16077116	yabJ	Bsu0048	J	similar to hypothetical proteins
49	 44.90       55864..56157    	 +	97	16077117	spoVG	Bsu0049	M	spoVG
50	 43.18       56350..57720    	 +	456	16077118	gcaD	Bsu0050	M	UDP-N-acetylglucosamine pyrophosphorylase
51	 42.66       57743..58696    	 +	317	16077119	prs	Bsu0051	F	phosphoribosyl pyrophosphate synthetase
52	 46.18       58781..59395    	 +	204	16077120	ctc	Bsu0052	J	general stress protein
53	 43.56       59502..60068    	 +	188	16077121	spoVC	Bsu0053	J	thermosensitive mutant blocks spore coat formation (stage V sporulation)
54	 38.53 -1    60128..60358    	 +	76	16077122	yabK	Bsu0054	-	yabK
55	 45.16       60428..63961    	 +	1177	16077123	mfd	Bsu0055	L	transcription-repair coupling factor
56	 45.07       64097..64633    	 +	178	16077124	spoVT	Bsu0056	K	transcriptional regulator
57	 44.47       64815..66413    	 +	532	16077125	yabM	Bsu0057	R	similar to amino acid transporter
58	 44.83       66403..67872    	 +	489	16077126	yabN	Bsu0058	R	similar to hypothetical proteins
59	 41.38       67875..68135    	 +	86	16077127	yabO	Bsu0059	J	similar to hypothetical proteins
60	 39.27       68214..68516    	 +	100	16077128	yabP	Bsu0060	-	yabP
61	 38.99       68513..69148    	 +	211	16077129	yabQ	Bsu0061	-	yabQ
62	 39.95       69166..69543    	 +	125	16077130	divIC	Bsu0062	O	cell-division initiation protein
63	 39.79       69624..70010    	 +	128	16077131	yabR	Bsu0063	J	similar to polyribonucleotide nucleotidyltransferase
64	 43.76       70536..73019    	 +	827	16077132	spoIIE	Bsu0064	T	serine phosphatase
65	 46.21       73104..73841    	 +	245	16077133	yabS	Bsu0065	R	similar to hypothetical proteins
66	 43.62       73930..74823    	 +	297	16077134	yabT	Bsu0066	T	yabT
67	 44.05       74927..76345    	 +	472	16077135	yacA	Bsu0067	D	similar to cell-cycle protein
68	 39.23       76342..76884    	 +	180	16077136	hprT	Bsu0068	F	hypoxanthine-guanine phosphoribosyltransferase
69	 45.98       76982..78895    	 +	637	16077137	ftsH	Bsu0069	O	cell-division protein and general stress protein (class III heat-shock)
70	 43.45       79090..79791    	 +	233	16077138	yacB	Bsu0070	K	similar to hypothetical proteins
71	 44.41       79877..80752    	 +	291	16077139	yacC	Bsu0071	O	similar to hypothetical proteins
72	 40.38       80799..81692    	 +	297	16077140	yacD	Bsu0072	O	similar to protein secretion PrsA homolog
73	 45.52       81768..82694    	 +	308	16077141	cysK	Bsu0073	E	cysteine synthetase A
74	 42.75       82861..84273    	 +	470	16077142	pabB	Bsu0074	E	para-aminobenzoate synthase (subunit A)
75	 45.30       84287..84871    	 +	194	16077143	pabA	Bsu0075	E	para-aminobenzoate synthase glutamine amidotransferase (subunit B)
76	 43.88       84871..85752    	 +	293	16077144	pabC	Bsu0076	E	aminodeoxychorismate lyase
77	 47.55       85734..86591    	 +	285	16077145	sul	Bsu0077	H	dihydropteroate synthase
78	 43.53       86584..86946    	 +	120	16077146	folA	Bsu0078	H	dihydroneopterin aldolase
79	 43.06       86943..87446    	 +	167	16077147	folK	Bsu0079	H	7,8-dihydro-6-hydroxymethylpterin pyrophosphokinase
80	 42.86       87398..87607    	 +	69	16077148	yazB	Bsu0080	K	yazB
81	 44.81       87631..88632    	 +	333	16077149	yacF	Bsu0081	R	similar to transcriptional regulator (nitrogen regulation protein)
82	 43.33       88724..90223    	 +	499	16077150	lysS	Bsu0082	J	lysyl-tRNA synthetase
83	 33.98 -2   101446..101910   	 +	154	16077151	ctsR	Bsu0083	-	transcriptional regulator
84	 37.10 -1   101924..102481   	 +	185	16077152	yacH	Bsu0084	S	similar to hypothetical proteins
85	 41.85      102481..103572   	 +	363	16077153	yacI	Bsu0085	E	similar to creatine kinase
86	 43.53      103569..106001   	 +	810	16077154	clpC	Bsu0086	O	class III stress response-related ATPase
87	 45.03      106093..107469   	 +	458	16077155	sms	Bsu0087	O	DNA repair protein homolog
88	 40.35      107473..108555   	 +	360	16077156	yacK	Bsu0088	R	yacK
89	 40.24      108671..109771   	 +	366	16077157	yacL	Bsu0089	R	similar to hypothetical proteins
90	 47.93      109786..110484   	 +	232	16077158	yacM	Bsu0090	I	similar to hypothetical proteins
91	 46.54      110477..110953   	 +	158	16077159	yacN	Bsu0091	I	similar to hypothetical proteins
92	 43.18      111044..112495   	 +	483	16077160	gltX	Bsu0092	J	glutamyl-tRNA synthetase
93	 43.58      112797..113450   	 +	217	16077161	cysE	Bsu0093	E	serine acetyltransferase
94	 43.47      113447..114847   	 +	466	16077162	cysS	Bsu0094	J	cysteinyl-tRNA synthetase
95	 42.13      114851..115282   	 +	143	16077163	yazC	Bsu0095	S	similar to hypothetical proteins
96	 47.47      115266..116015   	 +	249	16077164	yacO	Bsu0096	J	similar to hypothetical proteins
97	 44.44      116022..116534   	 +	170	16077165	yacP	Bsu0097	R	similar to hypothetical proteins
98	 40.49      116597..117253   	 +	218	16077166	sigH	Bsu0098	K	RNA polymerase sigma-30 factor (sigma-H)
99	 38.67 -1   117346..117495   	 +	49	16077167	rpmG	Bsu0099	J	ribosomal protein L33
100	 31.11 -2   117529..117708   	 +	59	16077168	secE	Bsu0100	N	preprotein translocase subunit


 43.32 MEAN

 4.61  STD DEV
