IslandPath Analysis: Brucella suis 1330 chromosome I

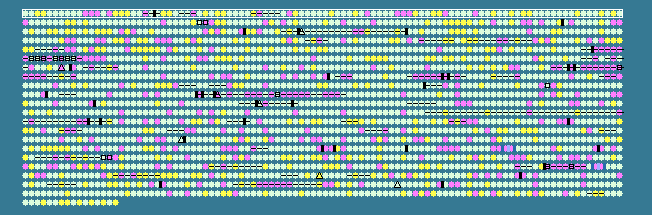

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 56.99   STD DEV: 4.33
Brucella suis 1330 chromosome I, complete sequence - 0..2107792
2116 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 60.23         784..2274     	 +	496	23500917	dnaA	BR0001	-	chromosomal replication initiator protein DnaA
2	 58.79        2503..3696     	 +	397	23500918	dnaN	BR0002	-	DNA polymerase III, beta subunit
3	 61.30        3878..5032     	 +	384	23500919	recF	BR0003	-	recF protein
4	 61.43 +1     5070..5852     	 +	260	23500920	moeB	BR0004	-	molybdopterin biosynthesis protein MoeB
5	 57.47        5869..6825     	 -	318	23500921	-	BR0005	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
6	 59.10        6822..8447     	 -	541	23500922	-	BR0006	-	ABC transporter, ATP-binding protein
7	 58.16        8471..9610     	 -	379	23500923	-	BR0007	-	ABC transporter, permease protein
8	 55.92        9610..10707    	 -	365	23500924	-	BR0008	-	ABC transporter, permease protein
9	 57.74       10819..12633    	 -	604	23500925	-	BR0009	-	ABC transporter, periplasmic substrate-binding protein, putative
10	 55.97       12680..14548    	 -	622	23500926	-	BR0010	-	ABC transporter, periplasmic substrate-binding protein, putative
11	 53.40       14779..15102    	 -	107	23500927	-	BR0011	-	hypothetical protein
12	 47.76 -2    15148..15348    	 -	66	23500928	-	BR0012	-	hypothetical protein
13	 36.47 -2    15388..15738    	 -	116	23500929	-	BR0013	-	hypothetical protein
14	 59.26       16003..17109    	 -	368	23500930	-	BR0014	-	branched-chain amino acid ABC transporter, perisplasmic amino acid-binding protein, putative
15	 52.74       17381..17581    	 +	66	23500931	-	BR0015	-	conserved domain protein
16	 61.64 +1    17578..18372    	 -	264	23500932	-	BR0016	-	enoyl-CoA hydratase/isomerase family protein
17	 62.12 +1    19224..21245    	 -	673	23500933	-	BR0018	-	biotin carboxylase
18	 62.25 +1    21257..22864    	 -	535	23500934	-	BR0019	-	carboxyl transferase family protein
19	 59.09       22864..24012    	 -	382	23500935	ivd	BR0020	-	isovaleryl-CoA dehydrogenase
20	 59.98       24189..26177    	 -	662	23500936	-	BR0021	-	acetoacetyl-CoA synthase
21	 53.33       26362..26796    	 -	144	23500937	-	BR0022	-	conserved hypothetical protein
22	 54.81       26973..28094    	 -	373	23500938	-	BR0023	-	conserved hypothetical protein
23	 55.99       28617..29000    	 -	127	23500939	-	BR0024	-	conserved hypothetical protein
24	 61.20       29385..30737    	 +	450	23500940	aroA	BR0025	-	3-phosphoshikimate 1-carboxyvinyltransferase
25	 62.42 +1    30734..31393    	 +	219	23500941	cmk	BR0026	-	cytidylate kinase
26	 58.02       31609..33309    	 +	566	23500942	rpsA	BR0027	-	ribosomal protein S1
27	 59.84       33727..34737    	 -	336	23500943	-	BR0028	-	conserved hypothetical protein
28	 57.33       34853..35752    	 +	299	23500944	-	BR0029	-	transcriptional regulator, LysR family
29	 29.17 -2    35746..36321    	 -	191	23500945	-	BR0030	-	membrane protein, putative
30	 55.22       36357..37640    	 -	427	23500946	-	BR0031	-	transglycosylase, putative
31	 60.73       37656..38261    	 -	201	23500947	recR	BR0032	-	recombination protein RecR
32	 59.88       38392..38715    	 -	107	23500948	-	BR0033	-	conserved hypothetical protein TIGR00103
33	 61.80 +1    38740..40548    	 -	602	23500949	dnaX	BR0034	-	DNA polymerase III, gamma and tau subunits
34	 61.73 +1    40829..41233    	 +	134	23500950	-	BR0035	-	conserved hypothetical protein
35	 60.02       41262..42209    	 +	315	23500951	-	BR0036	-	MutT/nudix family protein
36	 58.68       42210..43073    	 -	287	23500952	pheA	BR0037	-	prephenate dehydratase
37	 60.45       43162..43917    	 -	251	23500953	kdsB	BR0038	-	3-deoxy-manno-octulosonate cytidylyltransferase
38	 56.98       44295..44903    	 +	202	23500954	-	BR0039	-	cytochrome c, membrane-bound
39	 61.70 +1    44948..45913    	 -	321	23500955	-	BR0040	-	conserved hypothetical protein
40	 50.49 -1    45969..46277    	 +	102	23500956	-	BR0041	-	hypothetical protein
41	 55.75       46440..47465    	 +	341	23500957	cyoA	BR0042	-	ubiquinol oxidase, subunit II
42	 58.03       47545..49524    	 +	659	23500958	qoxB	BR0043	-	ubiquinol oxidase subunit I
43	 57.94       49528..50157    	 +	209	23500959	-	BR0044	-	ubiquinol oxidase subunit III
44	 55.19       50157..50522    	 +	121	23500960	qoxD	BR0045	-	ubiquinol oxidase subunit IV
45	 50.54 -1    50519..50797    	 -	92	23500961	-	BR0046	-	hypothetical protein
46	 64.29 +1    50973..51560    	 +	195	23500962	-	BR0047	-	conserved domain protein
47	 59.27       52156..54075    	 +	639	23500963	-	BR0048	-	conserved hypothetical protein
48	 59.89       54264..58811    	 +	1515	23500964	-	BR0049	-	conserved hypothetical protein
49	 57.44       58956..59681    	 +	241	23500965	-	BR0050	-	lipoprotein, putative
50	 55.56       59732..59947    	 -	71	23500966	-	BR0051	-	hypothetical protein
51	 59.52       60017..60520    	 -	167	23500967	-	BR0052	-	hypothetical protein
52	 61.35 +1    60857..61063    	 -	68	23500968	-	BR0053	-	hypothetical protein
53	 58.61       61074..62078    	 -	334	23500969	-	BR0054	-	conserved hypothetical protein
54	 59.90       62213..62611    	 -	132	23500970	-	BR0055	-	hypothetical protein
55	 58.59       62864..63259    	 -	131	23500971	-	BR0056	-	glyoxalase family protein
56	 62.20 +1    63456..64619    	 +	387	23500972	-	BR0057	-	mrp-related protein
57	 57.90       64824..66455    	 -	543	23500973	pgm	BR0058	-	phosphoglucomutase
58	 44.62 -2    66511..66696    	 -	61	23500974	-	BR0059	-	hypothetical protein
59	 59.84       66671..67564    	 -	297	23500975	-	BR0060	-	transcriptional regulator, LysR family
60	 54.65       67689..68612    	 +	307	23500976	-	BR0061	-	dienelactone hydrolase domain protein
61	 58.94       68685..69383    	 +	232	23500977	-	BR0062	-	kinase-related protein
62	 58.99       69483..70172    	 +	229	23500978	-	BR0063	-	fumarylacetoacetate hydrolase family protein
63	 52.60 -1    70192..70383    	 +	63	23500979	-	BR0064	-	conserved hypothetical protein
64	 46.30 -2    70445..70660    	 +	71	23500980	-	BR0065	-	hypothetical protein
65	 51.85 -1    70826..71014    	 +	62	23500981	-	BR0066	-	conserved hypothetical protein
66	 62.50 +1    71029..71892    	 +	287	23500982	-	BR0067	-	Transglycosylase SLT domain protein
67	 57.84       72078..72734    	 +	218	23500983	-	BR0068	-	channel protein, hemolysin III family
68	 60.42       72875..76108    	 -	1077	23500984	dnaE-1	BR0069	-	DNA polymerase III, alpha subunit
69	 64.81 +1    76108..77559    	 -	483	23500985	-	BR0070	-	conserved hypothetical protein
70	 63.89 +1    77585..78448    	 -	287	23500986	-	BR0071	-	conserved hypothetical protein
71	 52.99       78967..81189    	 +	740	23500987	-	BR0072	-	outer membrane protein
72	 53.73       81398..81946    	 +	182	23500988	-	BR0073	-	conserved hypothetical protein
73	 58.15       82025..83245    	 -	406	23500989	argG	BR0074	-	argininosuccinate synthase
74	 57.74       84095..84598    	 -	167	23500990	-	BR0076	-	hypothetical protein
75	 59.30       84632..85867    	 -	411	23500991	-	BR0077	-	conserved hypothetical protein TIGR00048
76	 51.04 -1    85811..86002    	 +	63	23500992	-	BR0078	-	hypothetical protein
77	 55.38       85987..86181    	 +	64	23500993	-	BR0079	-	hypothetical protein
78	 57.54       86127..86630    	 -	167	23500994	-	BR0080	-	conserved hypothetical protein
79	 63.28 +1    87070..87453    	 -	127	23500995	-	BR0081	-	conserved hypothetical protein
80	 54.76       87541..87834    	 -	97	23500996	phhB	BR0082	-	pterin-4-alpha-carbinolamine dehydratase
81	 55.61       88061..88666    	 +	201	23500997	-	BR0083	-	phosphotyrosine protein phosphatase
82	 61.25       88576..89166    	 -	196	23500998	-	BR0084	-	conserved hypothetical protein
83	 56.06       89347..90072    	 -	241	23500999	-	BR0085	-	lipase/acylhydrolase domain protein
84	 61.73 +1    90219..90947    	 +	242	23501000	-	BR0086	-	ABC transporter, ATP-binding protein
85	 61.65 +1    90944..93493    	 +	849	23501001	-	BR0087	-	ABC transporter, permease protein
86	 57.99       93727..94464    	 +	245	23501002	-	BR0088	-	membrane protein, putative
87	 59.44       94579..95118    	 +	179	23501003	pat	BR0089	-	phosphinothricin N-acetyltransferase
88	 54.48       95138..95539    	 -	133	23501004	-	BR0090	-	conserved hypothetical protein
89	 57.01       96089..96823    	 -	244	23501005	-	BR0091	-	conserved hypothetical protein
90	 56.74       96976..97116    	 -	46	23501006	-	BR0092	-	hypothetical protein
91	 60.16       97100..99787    	 -	895	23501007	acnA	BR0093	-	aconitate hydratase 1
92	 58.33      100131..100778   	 +	215	23501008	ccmA	BR0094	-	heme exporter protein CcmA
93	 62.31 +1   100778..101443   	 +	221	23501009	ccmB	BR0095	-	heme exporter protein CcmB
94	 58.40      101501..102286   	 +	261	23501010	ccmC	BR0096	-	heme exporter protein CcmC
95	 56.90      102283..102456   	 +	57	23501011	-	BR0097	-	heme exporter protein D
96	 59.15      102453..103064   	 +	203	23501012	cycY	BR0098	-	thiol:disulfide interchange protein, thioredoxin family
97	 61.00      103313..105148   	 -	611	23501013	ilvD	BR0099	-	dihydroxy-acid dehydratase
98	 54.35      105330..105467   	 +	45	23501014	-	BR0100	-	hypothetical protein
99	 61.02      105548..105901   	 -	117	23501015	-	BR0101	-	conserved domain protein
100	 59.52      106006..106383   	 -	125	23501016	-	BR0102	-	response regulator, putative


 56.99 MEAN

 4.33  STD DEV
