IslandPathversion 1.0

IslandPath Analysis: Archaeoglobus fulgidus DSM4304

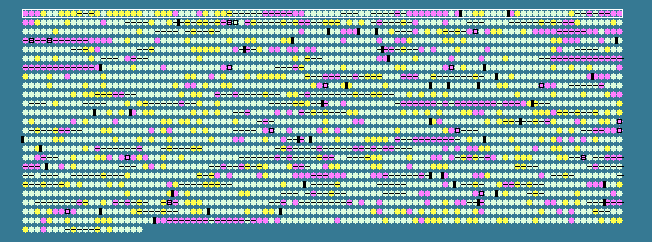

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.73 STD DEV: 3.95
Archaeoglobus fulgidus, complete genome - 0..2178400
2420 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 42.78 -1      406..786      	 -	126	11497622	-	AF0001	-	hypothetical protein
2	 41.48 -1     3222..3749     	 -	175	11497623	-	AF0002	-	hypothetical protein
3	 42.42 -1     4290..4784     	 +	164	11497624	-	AF0003	S	hypothetical protein
4	 53.04 +1     5051..6811     	 +	586	11497625	-	AF0004	R	RNase L inhibitor
5	 48.99        6850..7443     	 +	197	11497626	-	AF0005	-	hypothetical protein
6	 51.50        7548..8180     	 +	210	11497627	mtaC-1	AF0006	E	corrinoid methyltransferase protein (mtaC-1)
7	 52.79 +1     8181..9434     	 +	417	11497628	-	AF0007	-	hypothetical protein
8	 52.26        9508..10770    	 +	420	11497629	oxlT-1	AF0008	G	oxalate/formate antiporter (oxlT-1)
9	 52.27       10730..11611    	 +	293	11497630	mtr	AF0009	H	N5-methyltetrahydromethanopterin:coenzyme M methyltransferase (mtr)
10	 52.51       11613..13406    	 +	597	11497631	-	AF0010	R	hypothetical protein
11	 48.75       13406..14125    	 +	239	11497632	mtaC-2	AF0011	E	corrinoid methyltransferase protein (mtaC-2)
12	 52.68       14126..15376    	 +	416	11497633	-	AF0012	-	hypothetical protein
13	 53.58 +1    15396..16595    	 +	399	11497634	exuT	AF0013	G	hexuronate transporter (exuT)
14	 52.17       16691..17104    	 +	137	11497635	-	AF0014	-	hypothetical protein
15	 54.34 +1    17106..18581    	 +	491	11497636	putP-1	AF0015	E	proline permease (putP-1)
16	 53.40 +1    18636..19283    	 +	215	11497637	-	AF0016	-	hypothetical protein
17	 52.47       19287..21272    	 +	661	11497638	hbd-1	AF0017	I	3-hydroxyacyl-CoA dehydrogenase (hbd-1)
18	 55.53 +1    21295..22470    	 +	391	11497639	acaB-1	AF0018	I	3-ketoacyl-CoA thiolase (acaB-1)
19	 52.59       22475..22957    	 +	160	11497640	-	AF0019	R	conserved hypothetical protein
20	 52.97 +1    22960..24222    	 +	420	11497641	caiB-1	AF0020	C	L-carnitine dehydratase (caiB-1)
21	 49.07       24261..25232    	 +	323	11497642	-	AF0021	T	signal-transducing histidine kinase
22	 49.28       25221..25496    	 -	91	11497643	-	AF0022	H	hypothetical protein
23	 54.13 +1    25503..27281    	 -	592	11497644	aor-1	AF0023	C	aldehyde ferredoxin oxidoreductase (aor-1)
24	 53.08 +1    27284..28534    	 -	416	11497645	-	AF0024	C	alcohol dehydrogenase, iron-containing
25	 56.09 +1    28539..29720    	 -	393	11497646	cynX	AF0025	G	cyanate transport protein (cynX)
26	 44.85       30082..30732    	 +	216	11497647	-	AF0026	-	hypothetical protein
27	 48.87       30788..31096    	 +	102	11497648	-	AF0027	-	conserved hypothetical protein
28	 50.99       31091..32206    	 -	371	11497649	-	AF0028	R	conserved hypothetical protein
29	 51.59       32238..32582    	 -	114	11497650	-	AF0029	S	conserved hypothetical protein
30	 38.67 -2    32924..33073    	 +	49	11497651	-	AF0030	-	hypothetical protein
31	 52.94 +1    33137..34156    	 +	339	11497652	-	AF0031	S	hypothetical protein
32	 48.51       34153..34857    	 -	234	11497653	-	AF0032	R	conserved hypothetical protein
33	 52.85 +1    34894..36297    	 +	467	11497654	acaA-1	AF0033	R	acyl carrier protein synthase (acaA-1)
34	 54.55 +1    36200..37453    	 +	417	11497655	acaB-2	AF0034	I	3-ketoacyl-CoA thiolase (acaB-2)
35	 52.22       37450..38349    	 -	299	11497656	-	AF0035	G	mannosephosphate isomerase, putative
36	 47.93       38739..39389    	 +	216	11497657	pcm-1	AF0036	O	L-isoaspartyl protein carboxyl methyltransferase (pcm-1)
37	 50.25       39244..40041    	 +	265	11497658	cobS-1	AF0037	H	cobalamin (5'-phosphate) synthase (cobS-1)
38	 48.62       40111..41196    	 +	361	11497659	-	AF0038	M	conserved hypothetical protein
39	 47.39       41153..42262    	 +	369	11497660	-	AF0039	M	dolichol-P-glucose synthetase, putative
40	 46.52       42263..44044    	 +	593	11497661	-	AF0040	R	hypothetical protein
41	 41.60 -1    44093..44806    	 -	237	11497662	rfbB-1	AF0041	G	polysaccharide ABC transporter, ATP-binding protein (rfbB-1)
42	 39.22 -2    44803..45567    	 -	254	11497663	rfbA-1	AF0042	M	polysaccharide ABC transporter, permease protein (rfbA-1)
43	 39.29 -2    45631..46722    	 +	363	11497664	wbaZ-1	AF0043	M	first mannosyl transferase (wbaZ-1)
44	 44.87       46731..47969    	 +	412	11500013	gmd-1	AF0044m	M	GDP-D-mannose dehydratase (gmd-1)
45	 41.95 -1    47966..51607    	 +	1213	11497665	mtfA	AF0045	M	mannosyltransferase A (mtfA)
46	 37.13 -2    51610..53031    	 -	473	11497666	-	AF0046	Q	hypothetical protein
47	 43.68 -1    53358..53792    	 +	144	11497667	-	AF0047	-	hypothetical protein
48	 50.72       54242..55483    	 -	413	11497668	-	AF0048	-	hypothetical protein
49	 51.90       55526..56764    	 -	412	11497669	-	AF0049	S	hypothetical protein
50	 51.08       56863..58062    	 +	399	11497670	-	AF0050	S	conserved hypothetical protein
51	 51.26       58049..59158    	 -	369	11497671	dapE-1	AF0051	E	succinyl-diaminopimelate desuccinylase (dapE-1)
52	 49.90       59291..59767    	 +	158	11497672	-	AF0052	-	hypothetical protein
53	 51.13       59760..60467    	 -	235	11497673	-	AF0053	M	conserved hypothetical protein
54	 48.42       60485..60769    	 -	94	11497674	-	AF0054	-	hypothetical protein
55	 49.37       60772..61170    	 -	132	11497675	-	AF0055	S	conserved hypothetical protein
56	 48.23       61191..61331    	 -	46	11497676	-	AF0056	K	hypothetical protein
57	 51.98       61335..61586    	 -	83	11497677	rpl37AE	AF0057	J	LSU ribosomal protein L37AE (rpl37AE)
58	 48.19       61625..62149    	 -	174	11497678	-	AF0058	J	conserved hypothetical protein
59	 48.64       62116..62520    	 -	134	11497679	-	AF0059	-	hypothetical protein
60	 50.00       62618..62899    	 +	93	11497680	-	AF0060	R	hypothetical protein
61	 47.38       62899..63489    	 +	196	11497681	tmk	AF0061	F	thymidylate kinase (tmk)
62	 45.34       63463..64353    	 -	296	11497682	-	AF0062	R	conserved hypothetical protein
63	 43.55 -1    64406..64591    	 -	61	11497683	-	AF0063	-	hypothetical protein
64	 46.15       64619..65281    	 +	220	11497684	-	AF0064	-	hypothetical protein
65	 42.51 -1    65075..65488    	 -	137	11497685	-	AF0065	R	conserved hypothetical protein
66	 43.92 -1    65485..65673    	 -	62	11497686	-	AF0066	K	hypothetical protein
67	 38.28 -2    65799..66485    	 -	228	11497687	-	AF0067	S	hypothetical protein
68	 40.57 -2    66497..67450    	 -	317	11497688	-	AF0068	S	conserved hypothetical protein
69	 39.12 -2    67451..67813    	 -	120	11497689	-	AF0069	-	hypothetical protein
70	 40.30 -2    67800..68861    	 -	353	11497690	-	AF0070	-	hypothetical protein
71	 39.34 -2    68830..71109    	 -	759	11497691	-	AF0071	R	ATP-dependent RNA helicase, putative
72	 46.97       71266..71991    	 -	241	11497692	-	AF0072	S	conserved hypothetical protein
73	 43.68 -1    73048..73134    	 -	28	11497693	-	AF0073	-	hypothetical protein
74	 51.00       73396..74295    	 +	299	11497694	birA	AF0074	K	biotin operon repressor/biotin--[acetyl CoA carboxylase] ligase (birA)
75	 51.05       74322..75563    	 +	413	11497695	-	AF0075	L	conserved hypothetical protein
76	 53.04 +1    75544..75954    	 +	136	11497696	-	AF0076	C	iron-sulfur cluster binding protein
77	 52.33       75951..77687    	 +	578	11497697	aor-2	AF0077	C	aldehyde ferredoxin oxidoreductase (aor-2)
78	 49.39       77684..78424    	 -	246	11497698	-	AF0078	-	hypothetical protein
79	 50.85       78494..79789    	 +	431	11497699	-	AF0079	S	hypothetical protein
80	 51.51       79817..80944    	 +	375	11497700	argD-1	AF0080	E	acetylornithine aminotransferase (argD-1)
81	 48.20       81167..81637    	 -	156	11497701	-	AF0081	-	hypothetical protein
82	 44.41 -1    81853..82701    	 +	282	11497702	-	AF0082	L	hypothetical protein
83	 53.23 +1    82710..82895    	 -	61	11497703	-	AF0083	-	hypothetical protein
84	 48.03       82867..83322    	 -	151	11497704	-	AF0084	-	hypothetical protein
85	 48.36       83298..83723    	 +	141	11497705	-	AF0085	-	hypothetical protein
86	 50.07       83680..84414    	 -	244	11497706	nrtB-1	AF0086	P	nitrate ABC transporter, permease protein (nrtB-1)
87	 49.73       84378..85109    	 -	243	11497707	nrtC-1	AF0087	P	nitrate ABC transporter, ATP-binding protein (nrtC-1)
88	 50.28       85106..86008    	 -	300	11497708	-	AF0088	P	thiamine biosynthesis protein, putative
89	 46.72       86366..87994    	 +	542	11497709	fadD-1	AF0089	I	long-chain-fatty-acid--CoA ligase (fadD-1)
90	 50.45       88042..88923    	 +	293	11497710	-	AF0090	R	dehydrase
91	 52.00       88920..89894    	 +	324	11497711	hpcE-1	AF0091	Q	2-hydroxyhepta-2,4-diene-1,7-dioate isomerase (hpcE-1)
92	 52.42       89891..90613    	 -	240	11497712	cysA	AF0092	P	sulfate ABC transporter, ATP-binding protein (cysA)
93	 50.76       90591..91376    	 -	261	11497713	cysT	AF0093	P	sulfate ABC transporter, permease protein (cysT)
94	 48.40       91373..92401    	 -	342	11497714	-	AF0094	P	conserved hypothetical protein
95	 42.20 -1    93028..93354    	 -	108	11497715	-	AF0095	-	hypothetical protein
96	 50.48       93365..93679    	 -	104	11497716	-	AF0096	-	hypothetical protein
97	 40.07 -2    93981..94277    	 -	98	11497717	-	AF0097	-	hypothetical protein
98	 39.81 -2    94327..94650    	 -	107	11497718	-	AF0098	G	hypothetical protein
99	 41.72 -1    94932..95396    	 -	154	11497719	-	AF0099	R	hypothetical protein
100	 42.55 -1    95387..95668    	 -	93	11497720	-	AF0100	S	hypothetical protein


 48.73 MEAN

 3.95  STD DEV
