IslandPath Analysis: Aeropyrum pernix K1

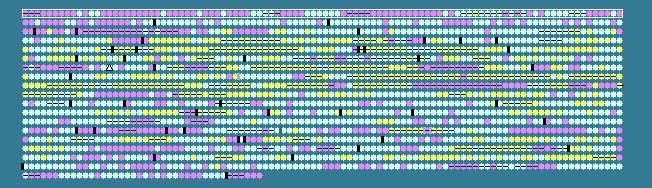

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 56.92   STD DEV: 5.69
Aeropyrum pernix, complete genome - 0..1669695
1840 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 37.74 -2      213..938      	 -	241	14600380	-	APE0001	-	hypothetical protein
2	 45.13 -2      938..1276     	 -	112	14600381	-	APE0002	K	hypothetical protein
3	 42.51 -2     1260..2174     	 -	304	14600382	-	APE0004	R	hypothetical protein
4	 40.80 -2     2261..2836     	 +	191	14600383	-	APE0006	-	hypothetical protein
5	 50.94 -1     3896..5440     	 +	514	14600384	-	APE0007	-	hypothetical protein
6	 40.25 -2     5774..6091     	 -	105	14600385	-	APE0009	P	transport protein
7	 48.05 -1     6213..7829     	 -	538	14600386	-	APE0010	E	hypothetical protein
8	 50.55 -1     8251..8889     	 +	212	14600387	-	APE0011	G	hypothetical protein
9	 48.23 -1     8908..9840     	 +	310	14600388	-	APE0012	G	sugar kinase
10	 55.03        9925..11652    	 +	575	14600389	-	APE0013	E	dihydroxy-acid dehydratase
11	 44.84 -2    11954..12370    	 +	138	14600390	-	APE0016	-	hypothetical protein
12	 56.49       12387..13928    	 -	513	14600391	-	APE0017	G	xylulose kinase
13	 56.12       13925..15346    	 -	473	14600392	-	APE0020	E	hypothetical protein
14	 51.85       15391..15849    	 -	152	14600393	-	APE0023	-	hypothetical protein
15	 44.75 -2    16021..16344    	 -	107	14600394	-	APE0024	-	hypothetical protein
16	 49.52 -1    16416..16835    	 -	139	14600395	-	APE0025	K	hypothetical protein
17	 48.80 -1    16932..18800    	 +	622	14600396	-	APE0026	G	phosphoenolpyruvate synthase
18	 50.53 -1    18728..19384    	 +	218	14600397	-	APE0028	G	phosphoenolpyruvate synthase
19	 47.68 -1    19387..20850    	 +	487	14600398	-	APE0031	G	antibiotic resistance protein
20	 50.94 -1    20898..22379    	 +	493	14600399	-	APE0033	C	hypothetical protein
21	 53.35       22554..23912    	 +	452	14600400	-	APE0035	G	hypothetical protein
22	 49.87 -1    24026..24823    	 +	265	14600401	-	APE0038	G	multiple sugar-binding transport system permease protein
23	 51.71       24790..25698    	 +	302	14600402	-	APE0040	G	multiple sugar-binding transport system permease protein
24	 53.93       25667..26812    	 +	381	14600403	-	APE0043	N	multiple sugar-binding transport ATP-binding protein
25	 52.23       26994..28115    	 +	373	14600404	-	APE0045	P	phosphate-binding periplasmic protein
26	 53.14       28329..29060    	 +	243	14600405	-	APE0047	P	phosphate transport system permease protein pstC
27	 51.35       29053..29907    	 +	284	14600406	-	APE0048	P	phosphate transport system permease protein pstA
28	 50.66 -1    29907..30668    	 +	253	14600407	-	APE0050	P	phosphate transport ATP-binding protein pstB
29	 50.66 -1    30668..31273    	 +	201	14600408	-	APE0051	P	hypothetical protein
30	 54.36       31407..31934    	 -	175	14600409	-	APE0052	-	hypothetical protein
31	 51.59       32017..32898    	 -	293	14600410	-	APE0053	Q	hypothetical protein
32	 46.04 -1    33058..33600    	 -	180	14600411	-	APE0054	-	hypothetical protein
33	 49.34 -1    33674..34966    	 -	430	14600412	-	APE0055	P	hypothetical protein
34	 54.59       35035..35796    	 -	253	14600413	-	APE0056	I	enoyl-CoA hydratase
35	 48.75 -1    35977..40392    	 +	1471	14600414	-	APE0057	-	hypothetical protein
36	 46.03 -1    38070..38384    	 -	104	14600415	-	APE0058	-	hypothetical protein
37	 48.96 -1    38631..39110    	 -	159	14600416	-	APE0059	-	hypothetical protein
38	 52.91       40402..41106    	 +	234	14600417	-	APE0060	F	hypothetical protein
39	 55.37       41227..42510    	 +	427	14600418	-	APE0061	N	hypothetical protein
40	 56.46       42608..44086    	 +	492	14600419	-	APE0063	G	ABC transporter ATP-binding protein
41	 53.53       44083..45018    	 +	311	14600420	-	APE0065	R	hypothetical protein
42	 56.74       45022..45867    	 +	281	14600421	-	APE0067	R	hypothetical protein
43	 50.65 -1    46167..46472    	 -	101	14600422	-	APE0068	-	hypothetical protein
44	 51.83       46617..47108    	 +	163	14600423	-	APE0069	F	deoxycytidine triphosphate deaminase
45	 46.06 -1    47135..47731    	 -	198	14600424	-	APE0070	-	hypothetical protein
46	 49.80 -1    47940..48917    	 -	325	14600425	-	APE0071	R	hypothetical protein
47	 52.79       49294..50331    	 +	345	14600426	-	APE0072	O	heme exporter protein C
48	 54.89       50533..52197    	 +	554	14600427	-	APE0073	-	hypothetical protein
49	 54.30       50631..51083    	 -	150	14600428	-	APE0074	-	hypothetical protein
50	 56.46       51418..51750    	 -	110	14600429	-	APE0075	-	hypothetical protein
51	 55.56       52159..53049    	 -	296	14600430	-	APE0076	G	hypothetical protein
52	 53.49       53276..53791    	 +	171	14600431	-	APE0077	H	molybdopterin biosynthesis mog protein
53	 53.88       54129..54527    	 +	132	14600432	-	APE0079	E	hypothetical protein
54	 52.28       54512..56596    	 -	694	14600433	-	APE0080	R	hypothetical protein
55	 47.69 -1    56575..57744    	 -	389	14600434	-	APE0082	-	hypothetical protein
56	 47.90 -1    56764..57072    	 +	102	14600435	-	APE0083	-	hypothetical protein
57	 51.15 -1    57823..58602    	 -	259	14600436	-	APE0084	C	NADH dehydrogenase
58	 51.78       58607..59338    	 -	243	14600437	-	APE0085	R	hypothetical protein
59	 47.97 -1    59910..60401    	 +	163	14600438	-	APE0086	O	bacterioferritin comigratory protein
60	 46.67 -1    60406..60825    	 -	139	14600439	-	APE0087	-	hypothetical protein
61	 47.03 -1    60963..61838    	 +	291	14600440	-	APE0088	-	hypothetical protein
62	 49.32 -1    62528..63997    	 +	489	14600441	-	APE0089	R	hypothetical protein
63	 52.22       64012..65361    	 +	449	14600442	-	APE0091	R	hypothetical protein
64	 53.04       65371..66471    	 -	366	14602183	-	APE0092m	T	predicted deacetylase
65	 49.93 -1    66579..67271    	 -	230	14600443	-	APE0093	-	hypothetical protein
66	 51.00 -1    66642..66992    	 +	116	14600444	-	APE0094	-	hypothetical protein
67	 45.15 -2    67294..67623    	 +	109	14600445	-	APE0095	-	hypothetical protein
68	 51.98       67970..68473    	 +	167	14600446	-	APE0096	-	hypothetical protein
69	 52.05       68480..69136    	 -	218	14600447	-	APE0097	S	hypothetical protein
70	 50.14 -1    69239..72118    	 -	959	14600448	-	APE0099	L	DNA-directed DNA polymerase (pfu polymerase)
71	 54.67       72628..74778    	 +	716	14600449	-	APE0101	C	hypothetical protein
72	 50.21 -1    74775..75254    	 -	159	14600450	-	APE0103	O	hypothetical protein
73	 54.37       75287..76075    	 -	262	14600451	-	APE0104	R	hypothetical protein
74	 54.85       76180..76416    	 +	78	14600452	-	APES001	C	ferredoxin
75	 53.79       76470..77261    	 +	263	14600453	-	APE0105	R	GTP-binding protein
76	 60.78       77364..77822    	 -	152	14600454	-	APE0106	-	hypothetical protein
77	 55.21       77777..79417    	 -	546	14600455	-	APE0107	R	hypothetical protein
78	 57.03       79401..80645    	 -	414	14600456	-	APE0109	S	hypothetical protein
79	 55.14       80633..83392    	 -	919	14600457	-	APE0110	L	hypothetical protein
80	 54.39       83399..84628    	 -	409	14600458	-	APE0113	L	hypothetical protein
81	 48.37 -1    84782..84934    	 -	50	14600459	-	APES002	J	50S ribosomal protein L40
82	 56.14       85004..86209    	 -	401	14600460	-	APE0115	L	flap endonuclease-1
83	 51.23       86157..86765    	 +	202	14600461	-	APE0116	S	hypothetical protein
84	 57.99       87535..88755    	 -	406	14600462	-	APE0117	J	threonyl-tRNA synthetase
85	 53.23       88998..89957    	 +	319	14600463	-	APE0119	L	radA protein
86	 58.84       89933..90673    	 +	246	14600464	-	APE0121	N	hypothetical protein
87	 52.25       90706..91260    	 +	184	14600465	-	APE0122	F	hit-like protein
88	 54.05       91264..92262    	 +	332	14600466	-	APE0124	R	hypothetical protein
89	 56.12       92381..93850    	 +	489	14600467	-	APE0125	-	hypothetical protein
90	 54.12       93837..94856    	 +	339	14600468	-	APE0126	-	hypothetical protein
91	 54.39       94864..95808    	 +	314	14600469	-	APE0127	R	hypothetical protein
92	 54.50       95780..96889    	 +	369	14600470	-	APE0129	S	hypothetical protein
93	 54.85       97001..97999    	 +	332	14600471	-	APE0130	-	hypothetical protein
94	 54.34       98101..98676    	 -	191	14600472	-	APE0131	-	hypothetical protein
95	 49.40 -1    98828..99163    	 +	111	14600473	-	APE0132	S	hypothetical protein
96	 50.79 -1    99329..100084   	 +	251	14600474	-	APE0134	C	electron transfer flavoprotein beta subunit
97	 50.70 -1   100104..101030   	 +	308	14600475	-	APE0135	C	electron transfer flavoprotein alpha subunit
98	 49.56 -1   101117..102256   	 +	379	14600476	-	APE0136	-	hypothetical protein
99	 59.87      102380..103879   	 +	499	14600477	-	APE0137	E	gamma-glutamyltranspeptidase
100	 50.14 -1   104096..104827   	 +	243	14600478	-	APE0140	T	hypothetical protein


 56.92 MEAN

 5.69  STD DEV
