IslandPath Analysis: Wolbachia endosymbiont of Drosophila melanogaster

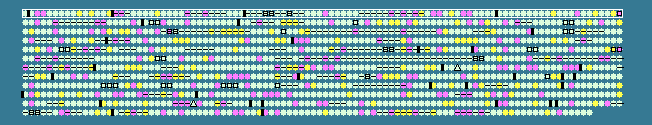

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.43   STD DEV: 3.58
Wolbachia endosymbiont of Drosophila melanogaster, complete genome - 0..1267782
1195 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 34.42      153..1535     	 +	460	42519921	dnaA	WD0001	-	chromosomal replication initiator protein DnaA
2	 33.52        3145..4227     	 +	360	42519922	ribA	WD0003	-	GTP cyclohydrolase II
3	 30.10 -1     4300..4980     	 +	226	42519923	-	WD0004	-	type IV secretion system protein VirB8
4	 30.06 -1     4973..5767     	 +	264	42519924	-	WD0005	-	type IV secretion system protein VirB9
5	 37.03        5784..7244     	 +	486	42519925	-	WD0006	-	type IV secretion system protein VirB10
6	 37.97        7246..8238     	 +	330	42519926	-	WD0007	-	type IV secretion system protein VirB11
7	 36.26        8269..10215    	 +	648	42519927	-	WD0008	-	type IV secretion system protein VirD4
8	 36.87       10337..11185    	 +	282	42519928	-	WD0009	-	surface antigen Wsp paralog
9	 34.88       11350..12189    	 -	279	42519929	-	WD0010	-	modification methylase, HemK family
10	 41.48 +1    12529..12663    	 -	44	42519930	-	WD0012	-	hypothetical protein
11	 36.30       12642..12776    	 +	44	42519931	-	WD0013	-	hypothetical protein
12	 41.07 +1    13302..13676    	 +	124	42519932	rpsL	WD0014	-	ribosomal protein S12
13	 37.92       13682..14161    	 +	159	42519933	rpsG	WD0015	-	ribosomal protein S7
14	 36.71       14183..16258    	 +	691	42519934	fusA	WD0016	-	translation elongation factor G
15	 43.14 +2    16270..17442    	 +	390	42519935	tuf	WD0017	-	translation elongation factor Tu
16	 30.48 -1    17539..17748    	 +	69	42519936	-	WD0018	-	protein translocase subunit SecE
17	 30.12 -1    17984..18574    	 +	196	42519937	-	WD0019	-	transcription antitermination protein NusG, putative
18	 37.87       18577..19017    	 +	146	42519938	rplK	WD0020	-	ribosomal protein L11
19	 32.26       19022..19675    	 +	217	42519939	rplA	WD0021	-	ribosomal protein L1
20	 31.98       19688..20206    	 +	172	42519940	rplJ	WD0022	-	ribosomal protein L10
21	 35.82       20233..20634    	 +	133	42519941	rplL	WD0023	-	ribosomal protein L7/L12
22	 35.76       20693..29206    	 +	2837	42519942	rpoBC	WD0024	-	DNA-directed RNA polymerase, beta/beta' subunits
23	 40.60 +1    29213..30175    	 -	320	42519943	-	WD0025	-	NifR3 family protein
24	 32.91       30201..30677    	 -	158	42519944	-	WD0026	-	hypothetical protein
25	 36.27       30692..31168    	 -	158	42519945	-	WD0027	-	hypothetical protein
26	 37.56       31467..32744    	 +	425	42519946	serS	WD0028	-	seryl-tRNA synthetase
27	 37.19       32779..34050    	 +	423	42519947	purD	WD0029	-	phosphoribosylamine--glycine ligase
28	 27.78 -2    34458..34565    	 -	35	42519948	-	WD0031	-	hypothetical protein
29	 33.33       34679..34954    	 -	91	42519949	-	WD0032	-	hypothetical protein
30	 33.10       35323..36585    	 -	420	42519950	-	WD0033	-	hypothetical protein
31	 31.35 -1    36604..37257    	 -	217	42519951	-	WD0034	-	hypothetical protein
32	 35.99       37671..38537    	 +	288	42519952	-	WD0035	-	ankyrin repeat domain protein
33	 35.60       38841..39767    	 +	308	42519953	prsA	WD0036	-	ribose-phosphate pyrophosphokinase
34	 33.62       39757..40110    	 +	117	42519954	-	WD0037	-	glutamyl-tRNA(Gln) amidotransferase, C subunit, putative
35	 33.81       40152..41414    	 -	420	42519955	-	WD0038	-	tolB protein, putative
36	 37.06       41420..43054    	 -	544	42519956	-	WD0039	-	metallo-beta-lactamase family protein
37	 37.53       43264..44382    	 -	372	42519957	dnaJ	WD0040	-	dnaJ protein
38	 38.36       44606..45241    	 -	211	42519958	-	WD0041	-	hypothetical protein
39	 38.44       45767..46177    	 -	136	42519959	-	WD0042	-	conserved hypothetical protein
40	 33.48       46174..46860    	 -	228	42519960	-	WD0043	-	reverse transcriptase, interruption-C
41	 36.26       46857..47198    	 -	113	42519961	-	WD0044	-	transposase, IS5 family, OrfB
42	 36.75       47309..47689    	 -	126	42519962	-	WD0045	-	transposase, IS5 family, OrfA
43	 36.03       49261..49668    	 -	135	42519963	-	WD0047	-	conserved domain protein
44	 34.58       51062..51301    	 -	79	42519964	-	WD0049	-	hypothetical protein
45	 37.98       51258..51515    	 -	85	42519965	-	WD0050	-	transposase, degenerate
46	 32.16       51493..51834    	 +	113	42519966	-	WD0051	-	hypothetical protein
47	 36.87       51846..52043    	 -	65	42519967	-	WD0052	-	hypothetical protein
48	 35.51       52111..52752    	 +	213	42519968	-	WD0053	-	dioxygenase, putative
49	 37.19       52849..54351    	 +	500	42519969	pepA	WD0054	-	cytosol aminopeptidase
50	 35.44       55045..56232    	 +	395	42519970	-	WD0056	-	major facilitator family transporter
51	 31.70 -1    56293..56598    	 +	101	42519971	-	WD0057	-	DNA-binding protein, HU family
52	 33.33       56598..56924    	 +	108	42519972	-	WD0058	-	conserved hypothetical protein
53	 36.30       56994..57566    	 +	190	42519973	nlpD	WD0059	-	peptidase, M23/M37 family
54	 37.98       57579..60095    	 +	838	42519974	leuS	WD0060	-	leucyl-tRNA synthetase
55	 38.21       60224..60859    	 +	211	42519975	-	WD0061	-	hypothetical protein
56	 35.29       61230..61331    	 +	33	42519976	-	WD0062	-	hypothetical protein
57	 36.58       62503..63210    	 +	235	42519977	pdxJ	WD0064	-	pyridoxal phosphate biosynthetic protein PdxJ
58	 32.05       63203..63514    	 -	103	42519978	-	WD0065	-	DNA-binding protein, HU family
59	 36.40       63661..64116    	 -	151	42519979	rpsI	WD0066	-	ribosomal protein S9
60	 35.95       64127..64585    	 -	152	42519980	rplM	WD0067	-	ribosomal protein L13
61	 34.15       64715..65938    	 +	407	42519981	-	WD0068	-	outer membrane protein TolC, putative
62	 31.60 -1    65958..66533    	 +	191	42519982	-	WD0069	-	hypothetical protein
63	 33.51       66610..67188    	 +	192	42519983	-	WD0070	-	ribosomal RNA large subunit methyltransferase J, putative
64	 26.85 -2    67587..67694    	 -	35	42519984	-	WD0072	-	hypothetical protein
65	 34.71       68396..70798    	 +	800	42519985	-	WD0073	-	ankyrin repeat domain protein
66	 27.83 -2    70932..71258    	 +	108	42519986	-	WD0074	-	hypothetical protein
67	 40.86 +1    71248..71340    	 -	30	42519987	-	WD0075	-	hypothetical protein
68	 35.61       71395..71877    	 +	160	42519988	-	WD0076	-	uncharacterized phage protein, putative
69	 29.93 -1    72249..72659    	 +	136	42519989	-	WD0077	-	hypothetical protein
70	 30.26 -1    72634..73023    	 +	129	42519990	-	WD0078	-	hypothetical protein
71	 37.50       73059..73874    	 +	271	42519991	-	WD0079	-	hypothetical protein
72	 42.86 +2    74176..74280    	 +	34	42519992	-	WD0080	-	hypothetical protein
73	 34.31       75578..76705    	 -	375	42519993	-	WD0082	-	conserved hypothetical protein
74	 31.13 -1    76813..77628    	 -	271	42519994	-	WD0083	-	hypothetical protein
75	 27.62 -2    77726..77830    	 +	34	42519995	-	WD0084	-	hypothetical protein
76	 36.39       77862..78647    	 +	261	42519996	fabI	WD0085	-	enoyl-(acyl-carrier-protein) reductase
77	 35.39       78664..80169    	 -	501	42519997	secD	WD0086	-	protein-export membrane protein SecD
78	 38.45       81378..82862    	 -	494	42519998	guaB	WD0089	-	inosine-5'-monophosphate dehydrogenase
79	 32.29       82988..83848    	 -	286	42519999	ksgA	WD0090	-	dimethyladenosine transferase
80	 33.06       83976..84704    	 +	242	42520000	tpiA	WD0091	-	triosephosphate isomerase
81	 36.36       84779..85867    	 -	362	42520001	dprA	WD0092	-	DNA processing chain A
82	 34.67       85929..86303    	 +	124	42520002	-	WD0093	-	ferredoxin, 4Fe-4S
83	 33.33       86633..87280    	 +	215	42520003	-	WD0094	-	hypothetical protein
84	 33.33       87366..88313    	 +	315	42520004	-	WD0095	-	D-alanine--D-alanine ligase
85	 33.73       88294..89052    	 +	252	42520005	-	WD0096	-	cell division protein FtsQ, putative
86	 34.87       90714..91820    	 +	368	42520006	-	WD0098	-	D-alanyl-D-alanine carboxypeptidase
87	 33.97       91920..92234    	 +	104	42520007	-	WD0099	-	multidrug resistance protein
88	 34.20       92251..92595    	 +	114	42520008	sugE	WD0100	-	sugE protein
89	 40.35 +1    93139..93423    	 +	94	42520009	-	WD0102	-	hypothetical protein
90	 36.84       94147..97287    	 -	1046	42520010	putA	WD0103	-	proline dehydrogenase/delta-1-pyrroline-5-carboxylate dehydrogenase
91	 37.74       97422..100007   	 -	861	42520011	acnA	WD0105	-	aconitate hydratase
92	 33.33      100022..100525   	 -	167	42520012	secB	WD0106	-	protein-export protein SecB
93	 29.65 -1   100690..101340   	 +	216	42520013	-	WD0107	-	conserved domain protein
94	 35.49      101358..102053   	 +	231	42520014	dnaQ	WD0108	-	DNA polymerase III, epsilon subunit
95	 34.81      102098..102706   	 +	202	42520015	-	WD0109	-	SCO1/SenC family protein
96	 43.30 +2   102737..102997   	 +	86	42520016	-	WD0110	-	hypothetical protein
97	 34.96      103297..103419   	 +	40	42520017	-	WD0111	-	hypothetical protein
98	 34.55      103515..105902   	 +	795	42520018	gyrB	WD0112	-	DNA gyrase, B subunit
99	 50.78 +2   105996..106253   	 +	85	42520019	-	WD0113	-	hypothetical protein
100	 30.62 -1   107885..109213   	 +	442	42520020	-	WD0115	-	transposase, IS4 family


 35.43 MEAN

 3.58  STD DEV
