IslandPath Analysis: Vibrio vulnificus YJ016 chromosome I

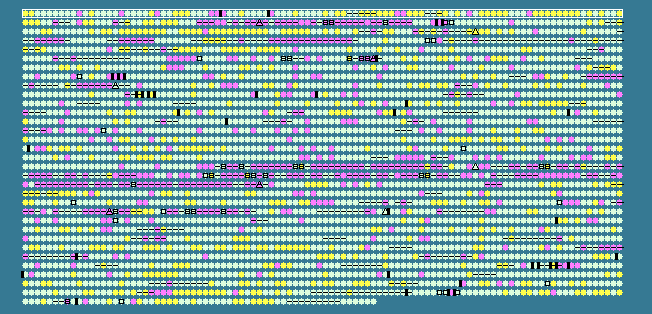

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.27 STD DEV: 4.02
Vibrio vulnificus YJ016 chromosome I, complete sequence - 0..3354505
3259 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 51.49      353..787      	 -	144	37678185	-	VV0001	-	MioC protein
2	 51.12 +1      835..2223     	 -	462	37678186	-	VV0002	-	thiophene and furan oxidation protein ThdF
3	 48.89        2314..3933     	 -	539	37678187	-	VV0003	-	inner membrane protein, 60 kDa
4	 45.10        4160..4516     	 -	118	37678188	-	VV0004	-	RNase P protein component
5	 49.65        4530..4670     	 -	46	37678189	-	VV0005	-	ribosomal protein L34
6	 49.19        4898..5635     	 -	245	37678190	-	VV0006	-	ABC-type polar amino acid transport system, ATPase component
7	 48.80        5632..6342     	 -	236	37678191	-	VV0007	-	ABC-type amino acid transport system, permease component
8	 47.14        6385..7137     	 -	250	37678192	-	VV0009	-	ABC-type amino acid transport system, periplasmic component
9	 49.08        6389..6661     	 +	90	37678193	-	VV0008	-	hypothetical protein
10	 39.02 -1     7282..7404     	 +	40	37678194	-	VV0010	-	hypothetical protein
11	 49.68        7450..8856     	 +	468	37678195	-	VV0011	-	chromosomal DNA replication initiator DnaA
12	 50.68 +1     8917..10017    	 +	366	37678196	-	VV0012	-	DNA polymerase III, beta chain
13	 46.48       10027..11106    	 +	359	37678197	-	VV0013	-	Recombinational DNA repair ATPase
14	 49.21       11125..13542    	 +	805	37678198	-	VV0014	-	DNA gyrase, subunit B
15	 46.67       13955..14389    	 +	144	37678199	-	VV0015	-	16 kDa heat shock protein A
16	 45.80       14370..16631    	 -	753	37678200	-	VV0017	-	GGDEF family protein
17	 41.36 -1    15081..15242    	 +	53	37678201	-	VV0016	-	hypothetical protein
18	 47.10       16651..17907    	 -	418	37678202	-	VV0018	-	valine-pyruva_e aminotransferase
19	 45.18       18206..18568    	 +	120	37678203	-	VV0019	-	hypothetical protein
20	 48.80       18651..20732    	 -	693	37678204	-	VV0020	-	glycyl-tRNA synthetase, beta subunit
21	 48.37       20746..21663    	 -	305	37678205	-	VV0021	-	glycyl-tRNA synthetase, alpha subunit
22	 50.99 +1    22144..22698    	 +	184	37678206	-	VV0022	-	predicted membrane protein
23	 41.00 -1    22858..23118    	 +	86	37678207	-	VV0023	-	NADH dehydrogenase subunit II-related protein
24	 46.75       23158..23403    	 -	81	37678208	-	VV0024	-	predicted redox protein
25	 43.01       23535..23720    	 +	61	37678209	-	VV0025	-	conserved hypothetical protein
26	 52.17 +1    23849..24814    	 +	321	37678210	-	VV0026	-	transcriptional regulator
27	 51.89 +1    24886..25866    	 -	326	37678211	-	VV0027	-	Zn-binding alcohol dehydrogenase
28	 52.32 +1    26027..27190    	 -	387	37678212	-	VV0028	-	acetyl-CoA acetyltransferase
29	 49.31       27203..29374    	 -	723	37678213	-	VV0029	-	3-hydroxyacyl-CoA dehydrogenase
30	 46.96       29622..30245    	 +	207	37678214	-	VV0030	-	conserved hypothetical protein
31	 48.77       30291..31748    	 +	485	37678215	-	VV0031	-	Trk-type K+ transport system, membrane component
32	 39.39 -1    31661..31792    	 +	43	37678216	-	VV0032	-	hypothetical protein
33	 41.24 -1    31755..32285    	 +	176	37678217	-	VV0033	-	protoporphyrinogen oxidase
34	 41.56 -1    38276..39199    	 -	307	37678218	-	VV0034	-	transcriptional activator IlvY
35	 46.46       39308..40792    	 +	494	37678219	-	VV0035	-	ketol-acid reductoisomerase
36	 42.86       40988..41239    	 -	83	37678220	-	VV0036	-	conserved hypothetical protein
37	 50.00       41385..44504    	 -	1039	37678221	-	VV0037	-	putative multidrug resistance protein
38	 46.43       44516..45622    	 -	368	37678222	-	VV0038	-	membrane-fusion protein
39	 44.85       45640..46221    	 -	193	37678223	-	VV0039	-	transcriptional regulator
40	 49.03       46389..48407    	 +	672	37678224	-	VV0040	-	ATP-dependent DNA helicase Rep
41	 47.68       48469..48921    	 -	150	37678225	-	VV0041	-	cytochrome c5
42	 29.94 -2    50663..50839    	 -	58	37678226	-	VV0042	-	hypothetical protein
43	 49.59       50886..52601    	 +	571	37678227	-	VV0043	-	Peptide ABC transporter, ATP-binding protein
44	 49.52       52677..54233    	 +	518	37678228	-	VV0044	-	Peptide ABC transporter, periplasmic peptide-binding protein
45	 48.77       54385..55362    	 +	325	37678229	-	VV0045	-	peptide ABC transporter, permease component
46	 51.01 +1    55365..56303    	 +	312	37678230	-	VV0046	-	peptide ABC transporter, permease component
47	 43.65       56374..56499    	 +	41	37678231	-	VV0047	-	hypothetical protein
48	 47.94       56490..57434    	 +	314	37678232	-	VV0048	-	conserved hypothetical protein
49	 46.53       57492..60218    	 -	908	37678233	-	VV0049	-	hypothetical protein
50	 48.15       60471..61334    	 +	287	37678234	-	VV0050	-	hypothetical protein
51	 51.75 +1    61356..62957    	 -	533	37678235	-	VV0051	-	hypothetical protein
52	 48.34       62933..63505    	 -	190	37678236	-	VV0052	-	putative RNA polymerase ECF-type sigma factor
53	 50.76 +1    63502..64941    	 -	479	37678237	-	VV0053	-	conserved hypothetical protein
54	 51.09 +1    64970..66304    	 -	444	37678238	-	VV0054	-	conserved hypothetical protein
55	 49.25       66457..67254    	 -	265	37678239	-	VV0055	-	conserved hypothetical protein
56	 49.39       67355..68251    	 +	298	37678240	-	VV0056	-	response regulator
57	 51.59 +1    68267..69334    	 +	355	37678241	-	VV0057	-	gluconate utilization system Gnt-I transcriptional repressor
58	 53.64 +1    69026..69286    	 -	86	37678242	-	VV0058	-	hypothetical protein
59	 55.93 +2    69385..71181    	 -	598	37678243	-	VV0059	-	phosphogluconate dehydratase
60	 50.57 +1    71178..71699    	 -	173	37678244	-	VV0060	-	thermoresistant gluconokinase
61	 51.41 +1    71813..73228    	 +	471	37678245	-	VV0061	-	putative gluconate permease
62	 52.78 +1    73238..73849    	 +	203	37678246	-	VV0062	-	2-keto-3-deoxy-6-phosphogluconate aldolase
63	 39.76 -1    74322..74819    	 +	165	37678247	-	VV0063	-	putative membrane protein
64	 38.61 -1    74819..75349    	 +	176	37678248	-	VV0064	-	hypothetical protein
65	 53.10 +1    75517..76872    	 -	451	37678249	-	VV0065	-	glutathione reductase
66	 51.19 +1    77024..77863    	 -	279	37678250	-	VV0066	-	conserved hypothetical protein
67	 52.39 +1    78071..80179    	 +	702	37678251	-	VV0067	-	Zn-dependent oligopeptidase
68	 48.21       80227..80757    	 +	176	37678252	-	VV0068	-	hypothetical protein
69	 49.03       80299..80763    	 -	154	37678253	-	VV0069	-	transcriptional regulator
70	 50.21       80872..84018    	 +	1048	37678254	-	VV0070	-	sensory box/GGDEF family protein
71	 54.49 +2    84128..84907    	 +	259	37678255	-	VV0071	-	SAM-dependent methyltransferase
72	 47.97       85067..85558    	 +	163	37678256	-	VV0072	-	hypothetical protein
73	 50.84 +1    85662..86552    	 -	296	37678257	-	VV0073	-	madN protein
74	 45.39       86618..87148    	 -	176	37678258	-	VV0075	-	universal stress protein UspA
75	 42.57       87100..87738    	 +	212	37678259	-	VV0074	-	ferritin-like protein
76	 44.14       87825..88148    	 +	107	37678260	-	VV0076	-	conserved hypothetical protein
77	 52.39 +1    88206..89438    	 +	410	37678261	-	VV0077	-	predicted flavoprotein
78	 50.59 +1    89512..90693    	 -	393	37678262	-	VV0078	-	uncharacterized enzyme of heme biosynthesis
79	 49.83       90690..91901    	 -	403	37678263	-	VV0079	-	uncharacterized enzyme of heme biosynthesis
80	 50.83 +1    91916..92698    	 -	260	37678264	-	VV0080	-	uroporphyrinogen-III synthase
81	 53.57 +1    92649..93587    	 -	312	37678265	-	VV0081	-	porphobilinogen deaminase
82	 43.45       93713..93880    	 +	55	37678266	-	VV0082	-	hypothetical protein
83	 49.03       93951..96485    	 +	844	37678267	-	VV0083	-	adenylate cyclase
84	 46.03       96618..96932    	 -	104	37678268	-	VV0085	-	frataxin-like protein
85	 41.20 -1    96909..97124    	 +	71	37678269	-	VV0084	-	hypothetical protein
86	 51.91 +1    97173..98426    	 +	417	37678270	-	VV0086	-	diaminopimelate decarboxylase
87	 50.66 +1    98437..99267    	 +	276	37678271	-	VV0087	-	diaminopimelate epimerase
88	 50.43 +1    99310..100011   	 +	233	37678272	-	VV0088	-	conserved hypothetical protein
89	 52.94 +1    99962..100930   	 +	322	37678273	-	VV0089	-	site-specific recombinase XerC
90	 53.70 +1   100927..101643   	 +	238	37678274	-	VV0090	-	predicted hydrolase
91	 51.33 +1   101773..104262   	 +	829	37678275	-	VV0091	-	GGDEF family protein
92	 53.63 +1   104312..104917   	 -	201	37678276	-	VV0092	-	conserved hypothetical protein
93	 52.55 +1   104914..106464   	 -	516	37678277	-	VV0093	-	predicted membrane protein
94	 48.24      106494..106976   	 +	160	37678278	-	VV0094	-	conserved hypothetical protein
95	 50.42 +1   107074..107904   	 -	276	37678279	-	VV0095	-	predicted hydrolase
96	 49.55      108085..109083   	 -	332	37678280	-	VV0096	-	lysophospholipase
97	 50.16      109141..109764   	 +	207	37678281	-	VV0097	-	putative threonine efflux protein
98	 48.77      109818..111041   	 +	407	37678282	-	VV0098	-	predicted signal transduction protein
99	 48.51      111148..111483   	 +	111	37678283	-	VV0099	-	predicted transcriptional regulator
100	 52.20 +1   111513..112514   	 +	333	37678284	-	VV0100	-	glyceraldehyde 3-phosphate dehydrogenase


 46.27 MEAN

 4.02  STD DEV
