IslandPathversion 1.0

IslandPath Analysis: Propionibacterium acnes KPA171202

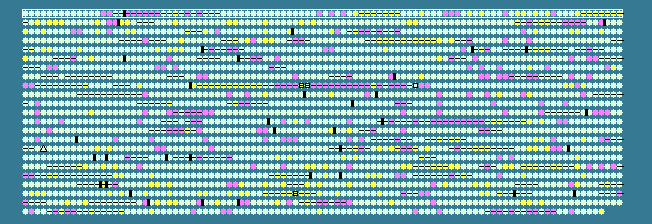

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.05 STD DEV: 3.20
Propionibacterium acnes KPA171202, complete genome - 0..2560265
2297 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 56.95      245..1747     	 +	500	50841497	-	PPA0001	-	chromosomal replication initiator protein DnaA
2	 57.47        1868..3379     	 +	503	50841498	-	PPA0002	-	DNA polymerase III, beta chain
3	 60.91        3666..4169     	 +	167	50841499	-	PPA0003	-	hypothetical protein
4	 59.58        4227..5411     	 +	394	50841500	-	PPA0004	-	DNA replication and repair protein RecF
5	 61.08        5389..5997     	 +	202	50841501	-	PPA0005	-	hypothetical conserved protein
6	 58.59        8304..9491     	 +	395	50841502	-	PPA0008	-	mannose-6-phosphate isomerase
7	 59.86        9733..11805    	 +	690	50841503	-	PPA0009	-	DNA gyrase subunit B
8	 61.02       11847..14522    	 +	891	50841504	-	PPA0010	-	DNA gyrase subunit A
9	 58.61       14515..15147    	 +	210	50841505	-	PPA0011	-	hypothetical conserved protein
10	 61.82       15246..16214    	 -	322	50841506	-	PPA0012	-	L-lactate dehydrogenase
11	 57.44       16412..16606    	 +	64	50841507	-	PPA0013	-	hypothetical protein
12	 59.23       16732..17739    	 +	335	50841508	-	PPA0014	-	putative transcriptional regulator
13	 58.96       17736..19241    	 +	501	50841509	-	PPA0015	-	ABC transporter protein
14	 54.19 -1    19324..20301    	 +	325	50841510	-	PPA0016	-	ribose ABC transporter
15	 55.94 -1    20350..21291    	 +	313	50841511	-	PPA0017	-	periplasmic sugar-binding protein
16	 61.94       21288..22217    	 +	309	50841512	-	PPA0018	-	sugar kinase
17	 57.81       22214..22597    	 +	127	50841513	-	PPA0019	-	high affinity ribose transport protein RbsD
18	 54.81 -1    22780..23049    	 +	89	50841514	-	PPA0020	-	hypothetical protein
19	 51.15 -2    23201..23677    	 -	158	50841515	-	PPA0021	-	PTS system, galactitol-specific IIA component
20	 54.18 -1    23734..24990    	 -	418	50841516	-	PPA0022	-	PTS system, galactitol-specific IIC component
21	 53.47 -2    25011..25313    	 -	100	50841517	-	PPA0023	-	PTS system, galactitol-specific IIB component
22	 55.99 -1    25303..25686    	 -	127	50841518	-	PPA0025	-	alcohol dehydrogenase
23	 47.72 -2    28427..28711    	 -	94	50841519	-	PPA2391	-	hypothetical protein
24	 59.84       28718..29083    	 -	121	50841520	-	PPA2390	-	hypothetical protein
25	 63.24       29313..29984    	 -	223	50841521	-	PPA0029	-	hypothetical protein
26	 66.84 +2    30008..30586    	 -	192	50841522	-	PPA0030	-	putative phosphatase
27	 62.19       30784..31542    	 +	252	50841523	-	PPA0031	-	transcriptional regulator
28	 53.66 -1    31730..32152    	 +	140	50841524	-	PPA2392	-	hypothetical protein
29	 57.18       32158..32895    	 -	245	50841525	-	PPA0032	-	hypothetical protein
30	 52.22 -2    32889..33428    	 -	179	50841526	-	PPA0033	-	hypothetical protein
31	 62.42       33561..34619    	 +	352	50841527	-	PPA0034	-	histidinol-phosphate aminotransferase
32	 61.55       35552..36118    	 +	188	50841528	-	PPA0037	-	acetyltransferase
33	 61.21       36132..36791    	 +	219	50841529	-	PPA0038	-	hypothetical protein
34	 61.50       37044..37682    	 +	212	50841530	-	PPA0039	-	putative membrane protein
35	 61.66       37682..38500    	 +	272	50841531	-	PPA0040	-	hypothetical protein
36	 61.19       38497..39975    	 +	492	50841532	-	PPA0041	-	secretion system protein
37	 61.79       39966..40847    	 +	293	50841533	-	PPA0042	-	membrane spanning protein
38	 61.35       40840..41742    	 +	300	50841534	-	PPA0043	-	membrane associated protein
39	 60.18       41739..42401    	 +	220	50841535	-	PPA0044	-	putative membrane protein
40	 61.37       42398..42907    	 +	169	50841536	-	PPA0046	-	putative membrane protein
41	 62.76       42904..45666    	 +	920	50841537	-	PPA0047	-	hypothetical membrane-spanning protein
42	 60.86       45713..47125    	 -	470	50841538	-	PPA0048	-	conserved membrane protein
43	 60.82       47426..49135    	 +	569	50841539	-	PPA0049	-	formate--tetrahydrofolate ligase
44	 60.63       49241..49654    	 +	137	50841540	-	PPA0050	-	hypothetical protein
45	 58.19       49651..50181    	 -	176	50841541	-	PPA0051	-	hypothetical protein
46	 61.19       50197..50871    	 -	224	50841542	-	PPA0052	-	hypothetical protein
47	 59.95       51068..53539    	 -	823	50841543	-	PPA0053	-	ABC transporter associated permease
48	 60.97       53539..54573    	 -	344	50841544	-	PPA0054	-	ABC transporter ATP-binding protein
49	 60.43       54681..55337    	 -	218	50841545	-	PPA0055	-	two-component response regulator
50	 55.23 -1    55356..55967    	 -	203	50841546	-	PPA0056	-	hypothetical membrane spanning protein
51	 57.64       56040..56870    	 -	276	50841547	-	PPA0057	-	sugar transport permease BglB
52	 54.96 -1    56867..57763    	 -	298	50841548	-	PPA0058	-	transport permease
53	 61.38       57848..59152    	 -	434	50841549	-	PPA0059	-	sugar-binding protein
54	 55.21 -1    59132..59323    	 +	63	50841550	-	PPA2395	-	hypothetical protein
55	 61.14       59565..60251    	 +	228	50841551	-	PPA0060	-	operon regulator, DeoR family
56	 63.64 +1    60248..61636    	 +	462	50841552	-	PPA0061	-	putative glucosidase
57	 63.69 +1    61629..64757    	 +	1042	50841553	-	PPA0062	-	glycosyl hydrolase
58	 66.67 +2    64754..65809    	 +	351	50841554	-	PPA0063	-	hypothetical membrane-associated protein
59	 63.88 +1    65803..66447    	 +	214	50841555	-	PPA0064	-	putative hydrolase
60	 63.50 +1    66444..67739    	 +	431	50841556	-	PPA0065	-	conserved hypothetical protein
61	 64.39 +1    67723..69261    	 -	512	50841557	-	PPA0066	-	glycosyl hydrolase
62	 64.21 +1    69367..70302    	 +	311	50841558	-	PPA0067	-	putative carbohydrate kinase
63	 63.97 +1    70321..71691    	 -	456	50841559	-	PPA0068	-	putative two component sensor kinase
64	 59.09       71871..72860    	 +	329	50841560	-	PPA0069	-	UDP-glucose 4-epimerase
65	 61.52       72933..73748    	 -	271	50841561	-	PPA0070	-	regulator putative TetR-family
66	 62.82       73685..76414    	 +	909	50841562	-	PPA0071	-	putative membrane transport protein
67	 64.77 +1    76411..78780    	 +	789	50841563	-	PPA0072	-	membrane associated protein
68	 61.76       78966..80411    	 -	481	50841564	-	PPA0073	-	hypothetical protein
69	 61.81       80414..81175    	 -	253	50841565	-	PPA0074	-	ABC transporter, ATP-binding protein
70	 58.06       81438..82250    	 +	270	50841566	-	PPA0075	-	hypothetical protein
71	 49.36 -2    82471..83481    	 +	336	50841567	-	PPA0076	-	periplasmic binding protein
72	 54.94 -1    83628..84650    	 +	340	50841568	-	PPA0077	-	ABC transporter
73	 53.65 -2    84643..85410    	 +	255	50841569	-	PPA0078	-	permease
74	 61.52       85493..86950    	 +	485	50841570	-	PPA0079	-	aldehyde dehydrogenase
75	 63.95 +1    86995..88281    	 +	428	50841571	-	PPA0080	-	chloride channel protein
76	 58.39       88336..90702    	 +	788	50841572	-	PPA0081	-	carbohydrate phosphorylase
77	 65.25 +1    91144..91779    	 -	211	50841573	-	PPA0082	-	hypothetical membrane associated protein
78	 63.28 +1    91967..94183    	 -	738	50841574	-	PPA0083	-	hypothetical protein
79	 63.45 +1    94313..95524    	 -	403	50841575	-	PPA0084	-	transcriptional regulator, Rok family
80	 58.71       95889..97232    	 +	447	50841576	-	PPA0085	-	periplasmic protein
81	 56.52 -1    97276..98211    	 +	311	50841577	-	PPA0086	-	putative permease protein
82	 59.86       98211..99092    	 +	293	50841578	-	PPA0087	-	permease protein
83	 65.95 +1    99230..100351   	 +	373	50841579	-	PPA0088	-	putative transcriptional regulator
84	 64.70 +1   100341..102530   	 +	729	50841580	-	PPA0089	-	conserved protein, glycosyl hydrolase family
85	 61.21      102809..104017   	 +	402	50841581	-	PPA0090	-	6-phosphofructokinase 2
86	 65.12 +1   104055..104636   	 -	193	50841582	-	PPA0091	-	putative regulatory protein
87	 62.62      104633..107374   	 -	913	50841583	-	PPA0092	-	conserved membrane protein
88	 64.81 +1   107367..108500   	 -	377	50841584	-	PPA0093	-	hypothetical membrane protein
89	 53.84 -1   108930..110402   	 +	490	50841585	-	PPA0094	-	aspartate ammonia-lyase
90	 58.12      110409..111707   	 +	432	50841586	-	PPA0095	-	C4-dicarboxylate transporter
91	 57.73      111808..112098   	 -	96	50841587	-	PPA0096	-	conserved protein
92	 59.37      112227..113678   	 +	483	50841588	-	PPA0097	-	catalase
93	 66.67 +2   113716..115461   	 -	581	50841589	-	PPA0098	-	ABC transporter
94	 67.12 +2   115458..117224   	 -	588	50841590	-	PPA0099	-	ABC transporter
95	 65.15 +1   117221..118207   	 -	328	50841591	-	PPA0100	-	magnesium-chelatase subunit ChlI
96	 66.82 +2   118209..120173   	 -	654	50841592	-	PPA0101	-	magnesium-chelatase 67 kDa subunit
97	 65.52 +1   120173..124195   	 -	1340	50841593	-	PPA0102	-	cobalamin biosynthesis protein CobN
98	 66.85 +2   124075..125169   	 -	364	50841594	-	PPA0103	-	conserved radical SAM superfamily protein
99	 67.47 +2   125166..126167   	 -	333	50841595	-	PPA0104	-	ABC transporter
100	 65.18 +1   126164..127303   	 -	379	50841596	-	PPA0105	-	transporter (putative iron (III) permease)


 60.05 MEAN

 3.20  STD DEV
