IslandPath Analysis: Picrophilus torridus DSM 9790

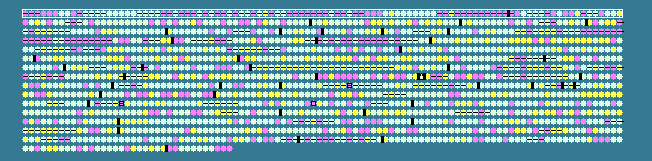

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 36.84 STD DEV: 4.42
Picrophilus torridus DSM 9790, complete genome - 0..1545895
1535 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 30.43        1..345      	 +	114	48477073	-	PTO0001	-	hypothetical protein
2	 28.79 -1      524..787      	 -	87	48477074	-	PTO0002	-	putative protein involved in DNA replication
3	 27.06 -2      792..1748     	 -	318	48477075	-	PTO0003	-	DNA polymerase
4	 32.16 -1     1751..2260     	 -	169	48477076	-	PTO0004	-	conserved hypothetical protein
5	 28.74 -1     2270..4009     	 -	579	48477077	-	PTO0005	-	DEAD/DEAH box helicase
6	 31.36 -1     3990..4649     	 -	219	48477078	-	PTO0006	-	hypothetical protein
7	 36.44        4669..5601     	 -	310	48477079	-	PTO0007	-	hypothetical protein
8	 34.47        5603..8161     	 -	852	48477080	-	PTO0008	-	hypothetical protein
9	 33.33        8158..8859     	 -	233	48477081	-	PTO0009	-	hypothetical protein
10	 28.72 -1     8898..9590     	 +	230	48477082	-	PTO0010	-	hypothetical protein
11	 35.86        9705..10694    	 -	329	48477083	-	PTO0011	-	N-acetylglucosamine kinase
12	 38.00       10691..11632    	 -	313	48477084	-	PTO0012	-	isomerizing glucosamine--fructose-6-phosphate aminotransferase
13	 38.35       11719..12855    	 +	378	48477085	-	PTO0013	-	N-acetylglucosamine-6-phosphate deacetylase
14	 38.55       12889..13713    	 +	274	48477086	-	PTO0014	-	glucokinase regulatory protein
15	 36.63       13759..14730    	 +	323	48477087	-	PTO0015	-	D-Ala-D-Ala carboxypeptidase 3
16	 38.33       14769..16028    	 +	419	48477088	-	PTO0016	-	diaminopimelate decarboxylase
17	 39.91       16006..16704    	 -	232	48477089	-	PTO0017	-	hypothetical membrane associated protein
18	 40.17       16975..20850    	 +	1291	48477090	-	PTO0018	-	extracellular solute-binding protein
19	 37.50       20992..22047    	 +	351	48477091	-	PTO0019	-	beta lactamase
20	 35.02       22078..23442    	 +	454	48477092	-	PTO0020	-	beta-hexosaminidase
21	 37.37       23451..24539    	 -	362	48477093	-	PTO0021	-	O-succinylbenzoate-CoA synthase
22	 36.42       24615..25811    	 +	398	48477094	-	PTO0022	-	hypothetical protein
23	 33.73       25815..26321    	 -	168	48477095	-	PTO0023	-	conserved hypothetical protein
24	 29.90 -1    26538..27236    	 -	232	48477096	-	PTO0024	-	hypothetical membrane associated protein
25	 29.07 -1    27316..27996    	 -	226	48477097	-	PTO0025	-	hypothetical membrane associated protein
26	 34.83       28028..28360    	 -	110	48477098	-	PTO0026	-	hypothetical membrane spanning protein
27	 32.42 -1    30695..31348    	 -	217	48477099	-	PTO0027	-	hypothetical protein
28	 33.27       31996..33567    	 -	523	48477100	-	PTO0028	-	5-methylcytosine-specific restriction enzyme B
29	 28.19 -1    35303..36313    	 +	336	48477101	-	PTO0029	-	hypothetical protein
30	 35.23       36561..37298    	 +	245	48477102	-	PTO0030	-	hypothetical membrane associated protein
31	 31.16 -1    37400..37675    	 -	91	48477103	-	PTO0031	-	hypothetical protein
32	 34.06       38056..38469    	 -	137	48477104	-	PTO0032	-	hypothetical protein
33	 25.49 -2    39232..39843    	 +	203	48477105	-	PTO0033	-	hypothetical protein
34	 28.90 -1    39836..40624    	 +	262	48477106	-	PTO0034	-	conserved hypothetical protein
35	 34.46       41799..42065    	 -	88	48477107	-	PTO0035	-	hypothetical membrane associated protein
36	 31.42 -1    42712..43287    	 +	191	48477108	-	PTO0036	-	methyltransferase
37	 36.61       43447..44025    	 +	192	48477109	-	PTO0037	-	amino acid permease
38	 35.90       43985..44374    	 +	129	48477110	-	PTO0038	-	amino acid permease
39	 29.08 -1    45270..45833    	 +	187	48477111	-	PTO0039	-	precorrin-6X reductase
40	 37.27       45811..46242    	 +	143	48477112	-	PTO0040	-	precorrin-8X methylmutase
41	 41.06       46642..46887    	 +	81	48477113	-	PTO0041	-	precorrin-2 C20-methyltransferase
42	 32.99       46817..47110    	 +	97	48477114	-	PTO0042	-	NADH oxidase
43	 40.10       47251..48432    	 -	393	48477115	-	PTO0043	-	altronate hydrolase
44	 34.68       48432..48728    	 -	98	48477116	-	PTO0044	-	altronate hydrolase
45	 25.61 -2    49160..49405    	 +	81	48477117	-	PTO0045	-	nucleotidyltransferase
46	 30.85 -1    49390..49590    	 +	66	48477118	-	PTO0046	-	nucleotidyltransferase
47	 29.07 -1    50573..51064    	 -	163	48477119	-	PTO0047	-	hypothetical protein
48	 26.82 -2    52535..52795    	 -	86	48477120	-	PTO0048	-	conserved hypothetical protein
49	 29.18 -1    52795..53757    	 -	320	48477121	-	PTO0049	-	DNA polymerase
50	 26.76 -2    53790..54914    	 -	374	48477122	-	PTO0050	-	hypothetical protein
51	 30.26 -1    54904..55815    	 -	303	48477123	-	PTO0051	-	hypothetical protein
52	 34.00       55796..56548    	 -	250	48477124	-	PTO0052	-	conserved hypothetical protein
53	 29.74 -1    56884..59190    	 -	768	48477125	-	PTO0053	-	HD domain family protein
54	 29.18 -1    59180..59902    	 -	240	48477126	-	PTO0054	-	conserved hypothetical protein
55	 38.12       60523..61107    	 -	194	48477127	-	PTO0055	-	hypothetical membrane spanning protein
56	 26.03 -2    62769..63521    	 -	250	48477128	-	PTO0056	-	hypothetical protein
57	 29.38 -1    63594..64910    	 -	438	48477129	-	PTO0057	-	hypothetical protein
58	 28.09 -1    64858..66153    	 -	431	48477130	-	PTO0058	-	hypothetical membrane associated protein
59	 31.77 -1    66305..66817    	 +	170	48477131	-	PTO0059	-	SAM-dependent methyltransferase
60	 29.81 -1    66914..67993    	 +	359	48477132	-	PTO0060	-	conserved hypothetical protein
61	 35.25       68124..68540    	 -	138	48477133	-	PTO0061	-	hypothetical protein
62	 42.20 +1    68683..69381    	 -	232	48477134	-	PTO0062	-	hypothetical membrane associated protein
63	 35.80       69483..69968    	 -	161	48477135	-	PTO0063	-	transcriptional regulatory protein
64	 33.66       69983..71200    	 -	405	48477136	-	PTO0064	-	permease
65	 36.10       71191..72417    	 -	408	48477137	-	PTO0065	-	sugar transporter
66	 39.32       72761..72877    	 -	38	48477138	-	PTO0066	-	hypothetical protein
67	 35.98       72934..75051    	 +	705	48477139	-	PTO0067	-	1,4-alpha-glucan branching enzyme
68	 36.45       75032..76924    	 +	630	48477140	-	PTO0068	-	1,4-alpha-glucan branching enzyme
69	 39.95       76917..78593    	 +	558	48477141	-	PTO0069	-	trehalose synthase
70	 28.91 -1    78562..79872    	 +	436	48477142	-	PTO0070	-	hypothetical membrane spanning protein
71	 30.13 -1    79853..80227    	 -	124	48477143	-	PTO0071	-	trehalose synthase
72	 41.97 +1    80244..81563    	 -	439	48477144	-	PTO0072	-	transporter
73	 30.16 -1    81905..83101    	 -	398	48477145	-	PTO0073	-	transporter
74	 27.78 -2    83180..83521    	 +	113	48477146	-	PTO0074	-	hypothetical protein
75	 19.73 -2    84568..85236    	 -	222	48477147	-	PTO0075	-	hypothetical protein
76	 25.31 -2    85223..88213    	 -	996	48477148	-	PTO0076	-	type I restriction-modification system restriction subunit
77	 31.67 -1    88203..89528    	 -	441	48477149	-	PTO0077	-	type I restriction-modification system specificity subunit
78	 29.23 -1    89521..91251    	 -	576	48477150	-	PTO0078	-	type I restriction-modification system methylation subunit
79	 28.76 -1    91625..91930    	 -	101	48477151	-	PTO0079	-	hypothetical protein
80	 27.07 -2    92225..93118    	 +	297	48477152	-	PTO0080	-	hypothetical membrane associated protein
81	 28.37 -1    94088..94732    	 +	214	48477153	-	PTO0081	-	hypothetical protein
82	 33.33       95265..95606    	 +	113	48477154	-	PTO0082	-	transcriptional regulator, ArsR family
83	 32.79       95603..96886    	 +	427	48477155	-	PTO0083	-	arsenical pump membrane protein
84	 34.72       96931..98298    	 +	455	48477156	-	PTO0084	-	cysteinyl-tRNA synthetase
85	 37.16       98333..99481    	 +	382	48477157	-	PTO0085	-	cytochrome P450
86	 39.79       99523..100839   	 +	438	48477158	-	PTO0086	-	transporter
87	 35.01      101296..102369   	 -	357	48477159	-	PTO0087	-	glycerol-3-P ABC transporter ATP binding protein
88	 31.85 -1   102375..103184   	 -	269	48477160	-	PTO0088	-	glycerol-3-P ABC transporter permease protein
89	 31.76 -1   103181..104071   	 -	296	48477161	-	PTO0089	-	glycerol-3-P ABC transporter permease protein
90	 38.58      104077..105657   	 -	526	48477162	-	PTO0090	-	glycerol-3-P ABC transporter solute binding protein
91	 27.42 -2   105747..108605   	 +	952	48477163	-	PTO0091	-	alpha-mannosidase
92	 32.56      108647..110584   	 +	645	48477164	-	PTO0092	-	alpha-glucosidase
93	 41.88 +1   110833..112224   	 +	463	48477165	-	PTO0093	-	phosphate transporter
94	 31.53 -1   112312..112920   	 +	202	48477166	-	PTO0094	-	hypothetical membrane spanning protein
95	 37.97      112936..113883   	 +	315	48477167	-	PTO0095	-	ABC-type multidrug transport system, ATPase component
96	 36.73      113880..114644   	 +	254	48477168	-	PTO0096	-	ABC-type multidrug transport system, permease component
97	 31.31 -1   114781..115275   	 +	164	48477169	-	PTO0097	-	hypothetical membrane spanning protein
98	 38.58      115333..115770   	 +	145	48477170	-	PTO0098	-	ATP/GTP binding protein
99	 36.74      116032..117615   	 +	527	48477171	-	PTO0099	-	hypothetical membrane associated protein
100	 40.49      117819..119048   	 +	409	48477172	-	PTO0100	-	transporter


 36.84 MEAN

 4.42  STD DEV
