IslandPath Analysis: Leptospira interrogans serovar Copenhageni, chromosome I

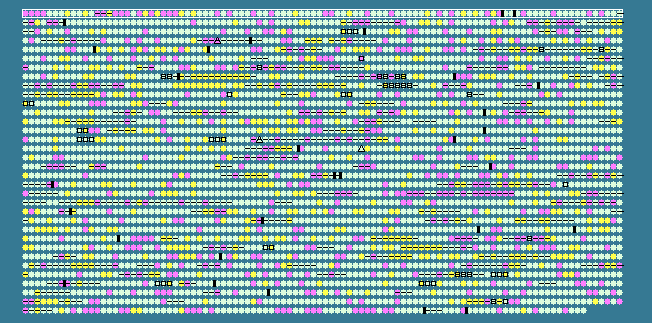

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 36.17   STD DEV: 3.74
Leptospira interrogans serovar Copenhageni str. Fiocruz L1-130 chromosome I, complete sequence - 0..4277185
3394 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 31.61      292..1623     	 +	443	45655915	dnaA	LIC10001	-	chromosomal replication initiator protein
2	 32.35 -1     3279..4400     	 +	373	45655916	dnaN	LIC10002	-	DNA polymerase III beta subunit
3	 30.42 -1     5062..6159     	 +	365	45655917	recF	LIC10003	-	DNA repair and genetic recombination protein
4	 32.47        6156..6620     	 +	154	45655918	-	LIC10004	-	conserved hypothetical protein
5	 37.14        6686..8605     	 +	639	45655919	-	LIC10005	-	DNA gyrase subunit B
6	 36.33        8624..11128    	 +	834	45655920	gyrA	LIC10006	-	DNA gyrase subunit A
7	 37.58       11133..12122    	 +	329	45655921	-	LIC10007	-	nifR3-like protein
8	 44.35 +2    12129..12473    	 +	114	45655922	-	LIC10008	-	conserved hypothetical protein
9	 34.15       12715..13452    	 +	245	45655923	-	LIC10009	-	putative lipoprotein
10	 35.13       13804..14805    	 -	333	45655924	-	LIC10010	-	conserved hypothetical protein
11	 41.53 +1    15216..15776    	 -	186	45655925	lipL21	LIC10011	-	LipL21
12	 33.27       15855..17462    	 +	535	45655926	-	LIC10012	-	conserved hypothetical protein
13	 32.44       17484..18377    	 +	297	45655927	-	LIC10013	-	sigma 54 activator
14	 31.50 -1    18319..19407    	 -	362	45655928	-	LIC10014	-	conserved hypothetical protein
15	 40.74 +1    19980..20195    	 +	71	45655929	-	LIC10015	-	conserved hypothetical protein
16	 32.09 -1    20186..20749    	 -	187	45655930	maf	LIC10016	-	Maf-like protein
17	 32.67       20801..21706    	 +	301	45655931	-	LIC10017	-	conserved hypothetical protein
18	 31.35 -1    21851..22354    	 +	167	45655932	-	LIC10018	-	putative lipoprotein
19	 38.71       22359..23102    	 +	247	45655933	-	LIC10019	-	3-oxoacyl-acyl carrier protein reductase
20	 32.35 -1    23118..23726    	 +	202	45655934	-	LIC10020	-	conserved hypothetical protein
21	 40.29 +1    24216..25898    	 +	560	45655935	-	LIC10021	-	putative lipoprotein
22	 31.13 -1    26728..27090    	 -	120	45655936	-	LIC10022	-	arsenate reductase
23	 40.34 +1    28185..29198    	 +	337	45655937	fliG	LIC10023	-	FliG
24	 30.57 -1    29263..31539    	 +	758	45655938	-	LIC10024	-	adenylate/guanylate cyclase
25	 30.11 -1    32228..32785    	 +	185	45655939	-	LIC10025	-	conserved hypothetical protein
26	 30.31 -1    32934..33959    	 +	341	45655940	-	LIC10026	-	conserved hypothetical protein
27	 40.57 +1    34184..34888    	 +	234	45655941	-	LIC10027	-	conserved hypothetical protein
28	 36.39       34892..35251    	 +	119	45655942	-	LIC10028	-	putative lipoprotein
29	 40.40 +1    35248..36096    	 -	282	45655943	-	LIC10029	-	inositol monophosphatase
30	 33.33       36116..37027    	 -	303	45655944	-	LIC10030	-	conserved hypothetical protein
31	 35.86       37639..39615    	 -	658	45655945	lacZ	LIC10031	-	beta-galactosidase
32	 35.90       39801..40658    	 +	285	45655946	-	LIC10032	-	conserved hypothetical protein
33	 29.67 -1    40666..41238    	 +	190	45655947	-	LIC10033	-	conserved hypothetical protein
34	 34.20       41220..41915    	 +	231	45655948	-	LIC10034	-	conserved hypothetical protein
35	 32.67       41921..44176    	 +	751	45655949	rnR	LIC10035	-	ribonuclease R
36	 34.11       44336..44848    	 +	170	45655950	-	LIC10036	-	conserved hypothetical protein
37	 39.10       44852..46465    	 +	537	45655951	-	LIC10037	-	GMC oxidoreductase
38	 32.74       46607..48115    	 +	502	45655952	-	LIC10038	-	conserved hypothetical protein
39	 30.64 -1    48326..49030    	 -	234	45655953	aroD	LIC10039	-	3-dehydroquinate dehydratase
40	 35.91       49034..50002    	 -	322	45655954	kpsF	LIC10040	-	polysialic acid capsule expression protein
41	 33.89       49986..50525    	 -	179	45655955	-	LIC10041	-	transcription activator or transcription antitermination factor
42	 31.04 -1    50509..50988    	 -	159	45655956	-	LIC10042	-	conserved hypothetical protein
43	 35.81       52070..53767    	 +	565	45655957	aer	LIC10043	-	Aer
44	 37.54       54372..55250    	 +	292	45655958	-	LIC10044	-	conserved hypothetical protein
45	 37.91       55247..56185    	 +	312	45655959	-	LIC10045	-	dTDP-glucose 4-6-dehydratase
46	 39.91 +1    56259..57428    	 +	389	45655960	pntA	LIC10046	-	proton-translocating transhydrogenase, subunit alpha part 1
47	 39.11       57387..57923    	 -	178	45655961	-	LIC10047	-	conserved hypothetical protein
48	 36.29       57920..59239    	 -	439	45655962	hisS	LIC10048	-	histidyl-tRNA synthetase
49	 35.68       59246..60394    	 -	382	45655963	-	LIC10049	-	conserved hypothetical protein
50	 36.00       60404..62467    	 -	687	45655964	-	LIC10050	-	peptidoglycan-associated cytoplasmic membrane protein
51	 32.62       62561..63403    	 +	280	45655965	folP	LIC10051	-	7,8-dihydropteroate synthase protein
52	 30.14 -1    64172..65422    	 -	416	45655966	-	LIC10052	-	conserved hypothetical protein
53	 33.89       65480..66382    	 -	300	45655967	-	LIC10053	-	conserved hypothetical protein
54	 36.54       66432..67397    	 +	321	45655968	rlpA	LIC10054	-	putative lipoprotein
55	 40.11 +1    68117..68824    	 -	235	45655969	cysE	LIC10055	-	serine acetyltransferase
56	 36.35       69026..69952    	 +	308	45655970	-	LIC10056	-	conserved hypothetical protein
57	 35.65       70123..71331    	 +	402	45655971	-	LIC10057	-	conserved hypothetical protein
58	 31.67 -1    72115..73497    	 -	460	45655972	-	LIC10058	-	drug:Na+ antiporter of the multi antimicrobial extrusion family
59	 36.53       73514..74797    	 -	427	45655973	-	LIC10059	-	proton glutamate symport protein
60	 34.90       74937..78122    	 +	1061	45655974	-	LIC10060	-	conserved hypothetical protein
61	 34.68       78115..79005    	 +	296	45655975	-	LIC10061	-	conserved hypothetical protein
62	 28.51 -2    79606..79833    	 +	75	45655976	-	LIC10062	-	conserved hypothetical protein
63	 33.33       79879..83085    	 +	1068	45655977	-	LIC10063	-	histidine kinase sensor protein
64	 39.54       83798..84280    	 -	160	45655978	-	LIC10064	-	conserved hypothetical protein
65	 35.06       84344..84865    	 -	173	45655979	dcd	LIC10065	-	deoxycytidine triphosphate deaminase
66	 37.93       84866..85648    	 -	260	45655980	-	LIC10066	-	enoyl-Coa hydratase/isomerase family
67	 36.23       85681..86475    	 +	264	45655981	-	LIC10067	-	conserved hypothetical protein
68	 41.90 +1    87380..87589    	 +	69	45655982	-	LIC10068	-	conserved hypothetical protein
69	 33.58       87678..88076    	 -	132	45655983	glo1	LIC10069	-	glyoxylase I
70	 31.04 -1    88156..89244    	 -	362	45655984	-	LIC10070	-	conserved hypothetical protein
71	 35.59       89241..90881    	 -	546	45655985	-	LIC10071	-	conserved hypothetical protein
72	 31.47 -1    90975..91724    	 +	249	45655986	-	LIC10072	-	conserved hypothetical protein
73	 34.98       91713..92564    	 -	283	45655987	-	LIC10073	-	3-demethylubiquinone-9 3-methyltransferase
74	 39.95 +1    92703..93548    	 +	281	45655988	dapF	LIC10074	-	diaminopimelate epimerase
75	 36.15       93555..94265    	 -	236	45655989	-	LIC10075	-	conserved hypothetical protein
76	 41.75 +1    94298..94582    	 -	94	45655990	-	LIC10076	-	conserved hypothetical protein
77	 34.20       96008..96355    	 +	115	45655991	-	LIC10077	-	conserved hypothetical protein
78	 31.94 -1    96359..96934    	 -	191	45655992	-	LIC10078	-	conserved hypothetical protein
79	 40.45 +1    97126..97659    	 -	177	45655993	-	LIC10079	-	conserved hypothetical protein
80	 27.49 -2    98030..98851    	 -	273	45655994	-	LIC10080	-	conserved hypothetical protein
81	 35.20       99567..99887    	 -	106	45655995	-	LIC10082	-	conserved hypothetical protein
82	 35.12       99931..100377   	 -	148	45655996	-	LIC10083	-	conserved hypothetical protein
83	 32.85      100706..101953   	 +	415	45655997	-	LIC10086	-	RNA methyltransferase
84	 30.15 -1   102232..102891   	 +	219	45655998	-	LIC10087	-	conserved hypothetical protein
85	 38.56      103786..105066   	 +	426	45655999	-	LIC10088	-	conserved hypothetical protein
86	 34.30      105286..106011   	 +	241	45656000	-	LIC10089	-	conserved hypothetical protein
87	 38.70      106049..107596   	 +	515	45656001	-	LIC10090	-	conserved hypothetical protein
88	 35.82      107605..108648   	 +	347	45656002	-	LIC10091	-	putative lipoprotein
89	 29.02 -1   108645..109502   	 +	285	45656003	-	LIC10092	-	metallo-beta-lactamase
90	 33.33      109973..110899   	 -	308	45656004	-	LIC10093	-	conserved hypothetical protein
91	 36.69      111018..113075   	 -	685	45656005	-	LIC10094	-	long-chain-fatty-acid CoA ligase
92	 37.54      113248..113604   	 -	118	45656006	-	LIC10095	-	conserved hypothetical protein
93	 35.30      113577..114236   	 -	219	45656007	aat	LIC10096	-	leucyl/phenylalanyl-tRNA-protein transferase
94	 34.97      114286..114834   	 -	182	45656008	ligT	LIC10097	-	2'-5' RNA ligase
95	 32.26 -1   114882..116657   	 -	591	45656009	pabB	LIC10098	-	para-aminobenzoate synthase component I
96	 35.65      116680..118833   	 +	717	45656010	-	LIC10099	-	histidine kinase sensor protein
97	 29.90 -1   119602..119805   	 -	67	45656011	-	LIC10100	-	conserved hypothetical protein
98	 34.26      120143..121645   	 -	500	45656012	met-7	LIC10101	-	cystathionine gamma-synthase
99	 38.40      121705..122769   	 -	354	45656013	prfA	LIC10102	-	peptide chain release factor 1
100	 37.79      122810..123415   	 +	201	45656014	-	LIC10103	-	conserved hypothetical protein


 36.17 MEAN

 3.74  STD DEV
