IslandPath Analysis: Helicobacter hepaticus

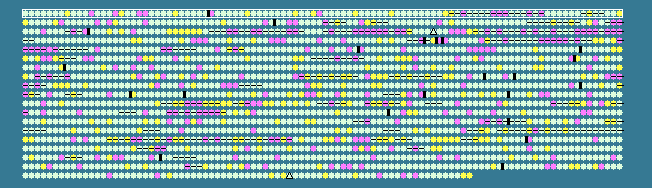

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.80   STD DEV: 3.58
Helicobacter hepaticus ATCC 51449, complete genome - 0..1799146
1875 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 36.09      141..2423     	 +	760	32265500	-	HH0001	-	conserved hypothetical protein
2	 37.05        2484..3989     	 +	501	32265501	trpC	HH0002	-	phosphoribosylanthranilate isomerase
3	 35.91        3986..5032     	 +	348	32265502	-	HH0003	-	conserved hypothetical protein
4	 32.79        5053..5607     	 -	184	32265503	-	HH0004	-	hypothetical protein
5	 34.57        5633..6196     	 -	187	32265504	-	HH0005	-	conserved hypothetical protein
6	 37.02        6282..6905     	 -	207	32265505	rnhB	HH0006	-	ribonuclease HII
7	 37.77        7073..7681     	 -	202	32265506	hopZ	HH0007	-	conserved hypothetical protein
8	 39.94 +1     7845..8888     	 -	347	32265507	-	HH0008	-	conserved hypothetical protein
9	 39.15        9016..9273     	 -	85	32265508	rpmA	HH0009	-	50S ribosomal protein L27
10	 36.19        9290..9604     	 -	104	32265509	rplU	HH0010	-	50S ribosomal protein L21
11	 35.51        9758..10585    	 +	275	32265510	-	HH0011	-	conserved hypothetical protein
12	 32.16 -1    10571..11254    	 -	227	32265511	-	HH0012	-	conserved hypothetical protein
13	 37.04       11394..13283    	 +	629	32265512	gidA	HH0013	-	glucose inhibited division protein A
14	 37.80       13308..13934    	 +	208	32265513	-	HH0014	-	conserved hypothetical protein
15	 36.40       13936..15108    	 +	390	32265514	ygiC	HH0015	-	conserved hypothetical protein
16	 31.74 -1    15102..16670    	 -	522	32265515	-	HH0016	-	hypothetical protein
17	 41.16 +1    16692..18134    	 -	480	32265516	-	HH0017	-	aspartate oxidase
18	 35.29       18344..18802    	 +	152	32265517	-	HH0018	-	conserved hypothetical protein
19	 34.62       18792..20657    	 +	621	32265518	uvrC	HH0019	-	excinuclease ABC subunit C
20	 30.56 -1    20820..22151    	 +	443	32265519	-	HH0020	-	hypothetical protein
21	 31.98 -1    22148..23623    	 +	491	32265520	-	HH0021	-	two-component sensor histidine kinase family protein
22	 35.11       23613..24287    	 +	224	32265521	-	HH0022	-	two-component response regulator family protein
23	 39.06       24450..25742    	 +	430	32265522	rho	HH0023	-	transcription termination factor rho
24	 39.25       25751..26494    	 +	247	32265523	murI	HH0024	-	glutamate racemase
25	 34.70       26504..28696    	 -	730	32265524	-	HH0025	-	conserved hypothetical protein
26	 39.82 +1    28808..30766    	 -	652	32265525	tktA	HH0026	-	transketolase
27	 36.70       30801..33206    	 -	801	32265526	pheT	HH0027	-	phenylalanyl-tRNA synthetase beta subunit
28	 37.03       33206..34207    	 -	333	32265527	pheS	HH0028	-	phenylalanyl-tRNA synthetase alpha subunit
29	 36.84       34349..34690    	 +	113	32265528	-	HH0029	-	HIT hydrolase family protein
30	 35.56       34762..35346    	 +	194	32265529	tehB	HH0030	-	conserved hypothetical protein
31	 38.77       35415..36701    	 +	428	32265530	-	HH0031	-	conserved hypothetical membrane protein
32	 25.57 -2    37157..37594    	 -	145	32265531	-	HH0032	-	conserved hypothetical membrane protein
33	 35.20       37606..39801    	 -	731	32265532	feoB	HH0033	-	ferrous ion uptake system protein
34	 38.00       39885..41126    	 -	413	32265533	-	HH0034	-	hypothetical protein
35	 37.89       41136..41969    	 -	277	32265534	panC	HH0035	-	pantoate-beta-alanine ligase
36	 36.47       42006..42707    	 -	233	32265535	pyrF	HH0036	-	Orotidine-5'-phosphate decarboxylase
37	 38.61       42708..43181    	 -	157	32265536	nusB	HH0037	-	transcription termination factor NusB
38	 39.49 +1    43192..43662    	 -	156	32265537	ribH	HH0038	-	riboflavin synthase beta-chain
39	 38.62       43692..44504    	 -	270	32265538	kdsA	HH0039	-	3-deoxy-d-manno-octulosonic acid 8-phosphate synthetase
40	 36.11       44515..45162    	 -	215	32265539	icfA	HH0040	-	carbonic anhydrase
41	 33.48       45310..45990    	 +	226	32265540	-	HH0041	-	conserved hypothetical protein
42	 35.85       46021..46497    	 -	158	32265541	yahD	HH0042	-	ankyrin repeat family protein
43	 37.44       46498..47934    	 -	478	32265542	katA	HH0043	-	catalase
44	 35.90       48104..48688    	 +	194	32265543	ribA	HH0044	-	GTP cyclohydrolase II
45	 37.57       48725..49975    	 +	416	32265544	moeA_1	HH0045	-	molybdopterin biosynthesis enzyme
46	 43.56 +2    50021..50245    	 +	74	32265545	moaD	HH0046	-	molybdopterin converting factor
47	 38.40       50233..50706    	 +	157	32265546	moaE	HH0047	-	molybdopterin converting factor
48	 35.28       50690..51253    	 +	187	32265547	mobB	HH0048	-	molybdopterin-guanine dinucleotide biosynthesis protein MobB
49	 39.63 +1    51253..51792    	 +	179	32265548	mog	HH0049	-	molybdopterin biosynthesis enzyme MoaB
50	 30.36 -1    51968..55228    	 +	1086	32265549	-	HH0050	-	hypothetical protein
51	 38.28       55394..56263    	 -	289	32265550	-	HH0051	-	hypothetical protein
52	 38.96       56477..56956    	 +	159	32265551	moaC	HH0052	-	Molybdenum cofactor biosynthesis enzyme MoaC
53	 35.81       56957..58327    	 +	456	32265552	-	HH0053	-	conserved hypothetical protein
54	 34.72       58324..59910    	 -	528	32265553	-	HH0054	-	conserved hypothetical protein
55	 34.91       59970..60287    	 -	105	32265554	trxA_2	HH0055	-	thioredoxin
56	 42.64 +1    60643..61803    	 +	386	32265555	hyaA	HH0056	-	Ni/Fe hydrogenases beta subunit
57	 38.71       61814..63544    	 +	576	32265556	hyaB	HH0057	-	Ni/Fe hydrogenase alpha subunit
58	 35.03       63555..64319    	 +	254	32265557	hyaC	HH0058	-	Ni/Fe hydrogenase cytochrome b subunit
59	 37.78       64327..64866    	 +	179	32265558	hyaD	HH0059	-	Hydrogenase formation/expression protease HyaD/HupD
60	 36.40       64863..66656    	 +	597	32265559	-	HH0060	-	hypothetical protein
61	 36.06       66709..67479    	 +	256	32265560	-	HH0061	-	conserved hypothetical protein
62	 39.41 +1    67490..68641    	 +	383	32265561	metB	HH0062	-	cystathionine gamma-synthase
63	 38.22       68643..69584    	 +	313	32265562	cysK_1	HH0063	-	cysteine synthase
64	 33.72       69562..70341    	 -	259	32265563	-	HH0064	-	conserved hypothetical protein
65	 33.33       70335..70496    	 -	53	32265564	-	HH0065	-	hypothetical protein
66	 36.08       70592..71065    	 +	157	32265565	-	HH0066	-	conserved hypothetical protein
67	 36.78       71217..71825    	 +	202	32265566	-	HH0067	-	conserved hypothetical protein
68	 35.64       71863..72771    	 -	302	32265567	-	HH0068	-	conserved hypothetical protein
69	 37.95       72768..73244    	 -	158	32265568	-	HH0069	-	alpha-1,2-fucosyltransferase fragment
70	 32.89       73214..73666    	 -	150	32265569	-	HH0070	-	alpha-1,2-fucosyltransferase fragment
71	 43.53 +2    73683..74780    	 -	365	32265570	-	HH0071	-	conserved hypothetical protein
72	 40.08 +1    74801..75763    	 -	320	32265571	-	HH0072	-	conserved hypothetical protein
73	 35.90       75766..76854    	 -	362	32265572	-	HH0073	-	conserved hypothetical protein
74	 30.17 -1    76926..77558    	 -	210	32265573	cfa	HH0074	-	conserved hypothetical protein
75	 36.50       77551..78276    	 -	241	32265574	ygeA	HH0075	-	aspartate racemase
76	 33.33       78397..79212    	 -	271	32265575	-	HH0076	-	conserved hypothetical protein
77	 36.60       79209..79850    	 -	213	32265576	-	HH0077	-	conserved hypothetical protein
78	 35.50       79823..80422    	 -	199	32265577	serB	HH0078	-	phosphoserine phosphatase
79	 31.90 -1    80419..81888    	 -	489	32265578	-	HH0079	-	hypothetical protein
80	 31.61 -1    81950..83107    	 -	385	32265579	-	HH0080	-	hypothetical protein
81	 31.76 -1    83104..84057    	 -	317	32265580	-	HH0081	-	conserved hypothetical protein
82	 35.41       84050..84868    	 -	272	32265581	-	HH0082	-	UDP-N-acetylglucosamine 2-epimerase
83	 36.73       85287..86021    	 -	244	32265582	-	HH0083	-	conserved hypothetical protein
84	 34.00       86018..87661    	 -	547	32265583	-	HH0084	-	conserved hypothetical protein
85	 32.32       87674..87772    	 -	32	32265584	-	HH0085	-	conserved hypothetical protein fragment
86	 37.46       87774..88088    	 -	104	32265585	-	HH0086	-	conserved hypothetical protein fragment
87	 30.98 -1    88088..88342    	 -	84	32265586	-	HH0087	-	acyl carrier protein
88	 33.16       88345..88917    	 -	190	32265587	-	HH0088	-	hypothetical protein
89	 36.86       88914..89876    	 -	320	32265588	-	HH0089	-	conserved hypothetical protein
90	 33.26       89982..91340    	 -	452	32265589	-	HH0090	-	conserved hypothetical protein
91	 35.58       91340..92851    	 -	503	32265590	-	HH0091	-	hypothetical protein
92	 36.73       92844..93578    	 -	244	32265591	-	HH0092	-	conserved hypothetical protein
93	 32.65       93571..93864    	 -	97	32265592	-	HH0093	-	hypothetical protein
94	 37.23       93865..94428    	 -	187	32265593	-	HH0094	-	hypothetical protein
95	 40.43 +1    94428..94991    	 -	187	32265594	-	HH0095	-	conserved hypothetical protein
96	 36.24       95258..95704    	 +	148	32265595	-	HH0096	-	conserved hypothetical protein
97	 36.57       95714..96115    	 +	133	32265596	-	HH0097	-	conserved hypothetical protein
98	 37.87       96474..97508    	 -	344	32265597	-	HH0098	-	possible molybdenum cofactor biosynthesis protein A
99	 37.21       97587..98618    	 -	343	32265598	-	HH0099	-	dTDP-D-glucose 4,6-dehydratase
100	 40.87 +1    98618..99493    	 -	291	32265599	-	HH0100	-	conserved hypothetical protein


 35.80 MEAN

 3.58  STD DEV
