IslandPath Analysis: Haemophilus ducreyi 35000HP

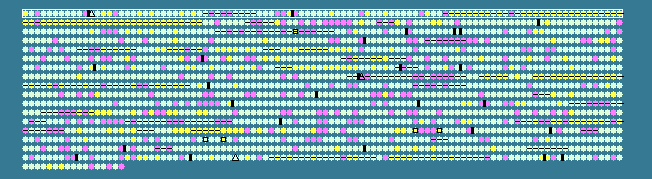

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.08   STD DEV: 4.33
Haemophilus ducreyi 35000HP, complete genome - 0..1698955
1717 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 42.05      296..2188     	 +	630	33151283	gidA	HD0001	-	glucose inhibited division protein A
2	 38.73        2293..2904     	 +	203	33151284	gidB	HD0002	-	glucose inhibited division protein B
3	 33.33 -1     3220..3603     	 +	127	33151285	-	HD0003	-	conserved hypothetical protein
4	 36.63        3629..4417     	 +	262	33151286	atpB	HD0004	-	ATP synthase A chain
5	 35.29        4538..4792     	 +	84	33151287	atpE	HD0005	-	ATP synthase C chain
6	 38.22        4846..5316     	 +	156	33151288	atpF	HD0006	-	ATP synthase B chain
7	 36.52        5330..5863     	 +	177	33151289	atpH	HD0007	-	ATP synthase delta chain
8	 40.08        5876..7417     	 +	513	33151290	atpA	HD0008	-	ATP synthase alpha chain
9	 36.79        7441..8307     	 +	288	33151291	atpG	HD0009	-	ATP synthase gamma chain
10	 39.30        8323..9696     	 +	457	33151292	atpD	HD0010	-	ATP synthase beta chain
11	 33.33 -1     9736..10155    	 +	139	33151293	atpC	HD0011	-	ATP synthase epsilon chain
12	 37.02       16486..17379    	 +	297	33151294	xerD	HD0013	-	integrase/recombinase XerD
13	 37.53       17376..18662    	 -	428	33151295	mesJ	HD0014	-	probable cell-cycle protein MesJ
14	 43.60 +1    18773..20233    	 +	486	33151296	tldD	HD0015	-	TldD protein
15	 41.95       20276..21157    	 +	293	33151297	prmA	HD0016	-	ribosomal protein L11 methyltransferase
16	 32.68 -1    23154..23306    	 -	50	33151298	-	HD0022	-	hypothetical protein
17	 36.71       23295..24359    	 +	354	33151299	-	HD0023	-	possible transport system permease protein
18	 36.27       24359..24733    	 +	124	33151300	crcB	HD0024	-	CrcB protein
19	 41.15       24825..26168    	 -	447	33151301	dcuB1	HD0025	-	anaerobic C4-dicarboxylate transporter
20	 42.18       26348..27172    	 +	274	33151302	dapF	HD0026	-	diaminopimelate epimerase
21	 41.36       27251..28234    	 -	327	33151303	genX	HD0029	-	lysine--tRNA ligase
22	 41.89       28584..30383    	 +	599	33151304	frdA	HD0030	-	fumarate reductase flavoprotein subunit
23	 38.50       30396..31130    	 +	244	33151305	frdB	HD0032	-	fumarate reductase iron-sulfur protein
24	 36.43       31139..31525    	 +	128	33151306	frdC	HD0033	-	fumarate reductase, 15 kD hydrophobic protein
25	 39.71       31535..31879    	 +	114	33151307	frdD	HD0034	-	fumarate reductase, 13 kD hydrophobic protein
26	 35.35       32032..32130    	 +	32	33151308	-	HD0035	-	hypothetical protein
27	 42.34       32231..33484    	 +	417	33151309	lysA	HD0036	-	diaminopimelate decarboxylase
28	 37.91       33596..35410    	 +	604	33151310	chuW	HD0037	-	probable oxygen-independent coproporphyrinogen III oxidase
29	 42.17       35412..36011    	 +	199	33151311	-	HD0038	-	conserved hypothetical protein
30	 40.47       36101..37459    	 -	452	33151312	trmE	HD0039	-	tRNA modification GTPase TrmE
31	 39.23       37610..39220    	 -	536	33151313	yidC	HD0040	-	60 kD inner-membrane protein
32	 30.21 -1    39217..39312    	 -	31	33151314	-	HD0041	-	hypothetical protein
33	 39.12       39364..39795    	 -	143	33151315	-	HD0042	-	conserved hypothetical protein
34	 32.50 -1    39765..39884    	 +	39	33151316	-	HD0043	-	hypothetical protein
35	 31.67 -1    39951..40070    	 -	39	33151317	-	HD0044	-	hypothetical protein
36	 37.05       40269..41480    	 +	403	33151318	momp	HD0045	-	major outer membrane protein
37	 35.38       41761..42984    	 +	407	33151319	ompA2	HD0046	-	major outer membrane protein homolog, OmpA2
38	 38.71       43024..43116    	 +	30	33151320	-	HD0047	-	hypothetical protein not likely
39	 38.54       43035..43130    	 +	31	33151321	-	HD0048	-	hypothetical protein
40	 36.91       43187..43912    	 +	241	33151322	plsC	HD0049	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
41	 40.31       43919..45337    	 +	472	33151323	sufI	HD0050	-	SufI protein
42	 40.99       45469..46422    	 +	317	33151324	accA	HD0051	-	acetyl-CoA carboxylase carboxyl transferase subunit alpha
43	 31.25 -1    46419..46514    	 -	31	33151325	-	HD0052	-	hypothetical protein
44	 33.92       46609..47808    	 -	399	33151326	-	HD0053	-	conserved hypothetical protein
45	 42.28       47920..49104    	 -	394	33151327	tufA	HD0054	-	elongation factor tu, EF-Tu
46	 27.08 -2    49672..49767    	 +	31	33151328	-	HD0055	-	hypothetical protein
47	 35.02       49866..50816    	 +	316	33151329	coaA	HD0056	-	pantothenate kinase
48	 38.15       50893..51432    	 +	179	33151330	dsbE1	HD0058	-	probable thiol:disulfide interchange protein DsbE
49	 41.03       52812..53396    	 +	194	33151331	mog	HD0061	-	molybdopterin biosynthesis protein
50	 38.64       53408..53746    	 +	112	33151332	glnB	HD0062	-	putative nitrogen regulatory protein P-II
51	 34.98       53810..54295    	 +	161	33151333	lspA	HD0063	-	lipoprotein signal peptidase
52	 42.12       54296..55240    	 +	314	33151334	ispH	HD0064	-	hydroxymethylbutenyl pyrophosphate reductase
53	 40.16       55240..55488    	 +	82	33151335	-	HD0065	-	conserved hypothetical protein
54	 36.97       55564..56937    	 -	457	33151336	-	HD0066	-	hypothetical protein
55	 38.57       57151..57723    	 -	190	33151337	ftpA	HD0068	-	fine tangled pili major subunit
56	 38.07       57947..60142    	 -	731	33151338	-	HD0069	-	probable integral membrane protein
57	 32.43 -1    60447..60557    	 -	36	33151339	-	HD0070	-	hypothetical protein
58	 41.67       60848..61375    	 +	175	33151340	napF	HD0072	-	ferredoxin-type protein NapF
59	 35.98       61417..61680    	 +	87	33151341	napD	HD0073	-	possible napD protein
60	 41.55       61718..64201    	 +	827	33151342	napA	HD0074	-	periplasmic nitrate reductase
61	 43.00 +1    64322..65221    	 +	299	33151343	napG	HD0076	-	ferredoxin-type protein NapG
62	 40.16       65221..66114    	 +	297	33151344	napH	HD0077	-	ferredoxin-type protein NapH
63	 41.04       66189..66629    	 +	146	33151345	napB	HD0078	-	possible cytochrome c-type protein
64	 38.51       66641..67258    	 +	205	33151346	napC	HD0079	-	cytochrome c-type protein
65	 38.74       67395..68429    	 +	344	33151347	murB	HD0081	-	UDP-N-acetylenolpyruvoylglucosamine reductase
66	 38.35       68356..69192    	 +	278	33151348	birA	HD0082	-	biotin operon represssor
67	 26.19 -2    69227..69352    	 +	41	33151349	-	HD0083	-	hypothetical protein
68	 42.84 +1    69429..70574    	 +	381	33151350	lldD	HD0084	-	L-lactate dehydrogenase
69	 40.44       70943..71167    	 -	74	33151351	-	HD0085	-	hypothetical protein
70	 37.60       71207..72166    	 +	319	33151352	rpoH	HD0086	-	RNA polymerase sigma-32 factor
71	 31.43 -1    72188..72292    	 +	34	33151353	-	HD0087	-	hypothetical protein
72	 44.16 +1    72533..73234    	 -	233	33151354	-	HD0089	-	probable transcription regulator
73	 44.06 +1    73434..73694    	 +	86	33151355	ner	HD0090	-	possible DNA-binding protein
74	 45.97 +1    75767..76684    	 +	305	33151356	-	HD0095	-	Mu phage DNA transposition protein B
75	 47.01 +2    76684..76917    	 +	77	33151357	-	HD0096	-	hypothetical protein
76	 48.87 +2    76930..77547    	 +	205	33151358	-	HD0097	-	conserved hypothetical protein
77	 49.37 +2    77540..77776    	 +	78	33151359	-	HD0098	-	hypothetical protein
78	 52.08 +2    77879..77974    	 +	31	33151360	-	HD0099	-	hypothetical protein
79	 37.04       78034..78168    	 +	44	33151361	-	HD0100	-	hypothetical protein
80	 45.66 +1    78171..78389    	 +	72	33151362	-	HD0101	-	hypothetical protein
81	 36.76       78392..78595    	 +	67	33151363	-	HD0102	-	hypothetical protein
82	 33.33 -1    78592..78927    	 +	111	33151364	-	HD0103	-	hypothetical protein
83	 37.76       78936..79229    	 +	97	33151365	-	HD0104	-	hypothetical protein
84	 43.90 +1    79231..79968    	 +	245	33151366	-	HD0105	-	hypothetical protein
85	 41.67       79968..80243    	 +	91	33151367	-	HD0106	-	hypothetical protein
86	 49.68 +2    80321..80791    	 +	156	33151368	-	HD0107	-	conserved hypothetical protein
87	 44.17 +1    80773..81141    	 +	122	33151369	-	HD0108	-	hypothetical protein
88	 44.60 +1    81037..81471    	 -	144	33151370	-	HD0109	-	hypothetical protein
89	 45.59 +1    81119..81583    	 +	154	33151371	-	HD0110	-	Mu-like phage E16 protein
90	 47.62 +2    81559..81915    	 +	118	33151372	-	HD0111	-	Mu-like phage C protein, possible positive regulator of late transcription
91	 50.57 +2    82023..82544    	 +	173	33151373	-	HD0112	-	possible N-acetylmuramoyl-L-alanine amidase
92	 42.92 +1    82549..82767    	 +	72	33151374	-	HD0113	-	hypothetical protein
93	 43.72 +1    82777..83007    	 +	76	33151375	-	HD0114	-	conserved hypothetical protein
94	 42.11       83010..83294    	 +	94	33151376	-	HD0115	-	conserved hypothetical protein
95	 44.34 +1    83355..84017    	 -	220	33151377	-	HD0119	-	hypothetical protein
96	 51.95 +2    83414..83644    	 +	76	33151378	-	HD0117	-	conserved hypothetical protein
97	 40.18       83641..83976    	 +	111	33151379	-	HD0118	-	Mu-like phage gp25
98	 50.46 +2    84064..84279    	 +	71	33151380	-	HD0120	-	Mu-like phage gp26
99	 48.77 +2    84302..84871    	 +	189	33151381	-	HD0121	-	Mu-like phage gp27
100	 50.06 +2    84871..86430    	 +	519	33151382	-	HD0123	-	Mu-like phage gp28


 38.08 MEAN

 4.33  STD DEV
