IslandPath Analysis: Erwinia carotovora subsp. atroseptica SCRI1043

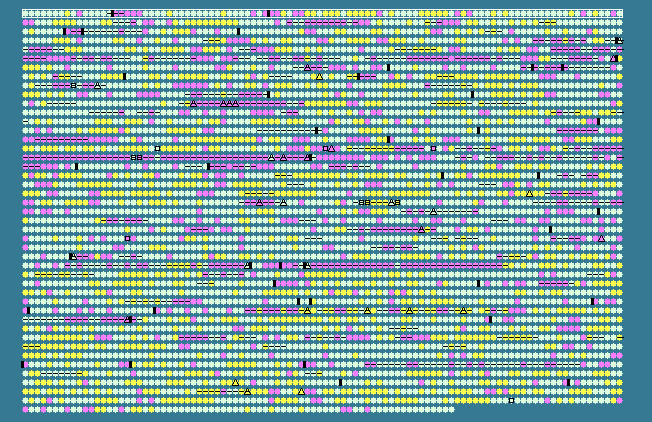

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.14   STD DEV: 5.41
Erwinia carotovora subsp. atroseptica SCRI1043, complete genome - 0..5064019
4472 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 49.10       32..475      	 -	147	50118966	mioC	ECA0001	-	putative flavoprotein (initiation of chromosome replication)
2	 47.84         565..1026     	 -	153	50118967	asnC	ECA0002	-	AsnC-family transcriptional regulator
3	 52.97        1179..2171     	 +	330	50118968	asnA	ECA0003	-	putative asparagine synthetase A
4	 53.48        2168..3646     	 -	492	50118969	-	ECA0004	-	conserved hypothetical protein
5	 52.47        3652..5151     	 -	499	50118970	-	ECA0005	-	conserved hypothetical protein
6	 52.81        5629..7497     	 +	622	50118971	kup	ECA0006	-	potassium uptake protein
7	 52.81        7668..9017     	 -	449	50118972	qseC	ECA0007	-	two-component system sensor kinase
8	 54.75        9014..9676     	 -	220	50118973	qseB	ECA0008	-	two-component system response regulator.
9	 48.23        9921..10316    	 +	131	50118974	-	ECA0009	-	putative exported protein
10	 47.38       10521..10940    	 +	139	50118975	rbsD	ECA0010	-	high affinity ribose transport protein
11	 52.06       10948..12453    	 +	501	50118976	rbsA	ECA0011	-	ribose transport ATP-binding protein
12	 52.63       12461..13429    	 +	322	50118977	rbsC	ECA0012	-	ribose transport permease system protein
13	 50.79       13455..14342    	 +	295	50118978	rbsB	ECA0013	-	ribose-binding periplasmic protein
14	 52.21       14538..15464    	 +	308	50118979	rbsK	ECA0014	-	ribokinase
15	 49.20       15468..16463    	 +	331	50118980	rbsR	ECA0015	-	ribose operon repressor
16	 44.25 -1    22163..22684    	 -	173	50118981	mobB	ECA0016	-	molybdopterin-guanine dinucleotide biosynthesis protein B
17	 46.87       22674..23264    	 -	196	50118982	mobA	ECA0017	-	molybdopterin-guanine dinucleotide biosynthesis protein A
18	 41.85 -1    23466..23735    	 +	89	50118983	-	ECA0018	-	conserved hypothetical protein
19	 47.29       23805..24800    	 +	331	50118984	-	ECA0019	-	conserved hypothetical protein
20	 45.03 -1    24825..25448    	 +	207	50118985	dsbA	ECA0020	-	thiol:disulfide interchange protein
21	 50.00       25826..28615    	 +	929	50118986	polA	ECA0021	-	putative DNA polymerase I
22	 49.69       29034..29669    	 -	211	50118987	engB	ECA0022	-	probable GTP-binding protein
23	 48.29       29873..30427    	 +	184	50118988	-	ECA0024	-	conserved hypothetical protein
24	 50.22       30749..32122    	 +	457	50118989	hemN	ECA0026	-	oxygen-independent coproporphyrinogen III oxidase
25	 55.20       32447..33859    	 -	470	50118990	glnG	ECA0027	-	nitrogen regulation two-component system, response regulator
26	 53.90       33868..34917    	 -	349	50118991	glnL	ECA0028	-	nitrogen regulation two-component system, histidine kinase
27	 51.91       35258..36667    	 -	469	50118992	glnA	ECA0029	-	glutamine synthetase
28	 50.66       37037..38860    	 +	607	50118993	typA	ECA0030	-	GTP-binding regulatory protein
29	 50.98       39022..39633    	 +	203	50118994	-	ECA0031	-	haloacid dehalogenase-like hydrolase
30	 51.60       39698..40135    	 +	145	50118995	dtd	ECA0032	-	D-tyrosyl-tRNA(Tyr) deacylase
31	 52.58       40213..41199    	 +	328	50118996	-	ECA0033	-	putative GNAT-family acetyltransferase
32	 52.54       41509..43200    	 -	563	50118997	-	ECA0034	-	putative exported protein
33	 54.28       43358..44746    	 -	462	50118998	-	ECA0035	-	putative purine permease
34	 56.15       45107..47188    	 -	693	50118999	recG	ECA0036	-	putative ATP-dependent DNA helicase
35	 53.68       47188..47880    	 -	230	50119000	trmH	ECA0037	-	putative tRNA (guanosine-2'-O)-methyltransferase
36	 51.67       47886..49985    	 -	699	50119001	spoT	ECA0038	-	guanosine-3',5'-bis(diphosphate) 3'-pyrophosphohydrolase
37	 52.90       50004..50279    	 -	91	50119002	rpoZ	ECA0039	-	DNA-directed RNA polymerase omega chain
38	 50.16       50333..50956    	 -	207	50119003	gmk	ECA0040	-	guanylate kinase
39	 47.37       50958..51185    	 +	75	50119004	-	ECA0041	-	putative membrane protein
40	 50.77       51400..53091    	 +	563	50119005	-	ECA0043	-	putative DNA ligase
41	 46.38       53350..55035    	 +	561	50119006	-	ECA0044	-	putative membrane protein
42	 41.71 -1    55765..56313    	 +	182	50119007	-	ECA0045	-	putative virulence-associated outer membrane protein
43	 47.08       56357..57964    	 -	535	50119008	-	ECA0046	-	putative signaling membrane protein
44	 54.92       58054..59253    	 -	399	50119009	-	ECA0047	-	putative exported protein
45	 52.92       59530..61035    	 +	501	50119010	pitA	ECA0048	-	low-affinity inorganic phosphate transporter
46	 47.62       61234..61569    	 -	111	50119011	uspB	ECA0049	-	putative universal stress protein B
47	 47.26       62108..62545    	 +	145	50119012	uspA	ECA0050	-	universal stress protein A
48	 56.40       62838..64181    	 +	447	50119013	gdhA	ECA0051	-	NADP-specific glutamate dehydrogenase
49	 55.94       64337..65650    	 +	437	50119014	-	ECA0052	-	conserved hypothetcial protein
50	 51.74       65657..67552    	 -	631	50119015	-	ECA0053	-	putative phosphodiesterase
51	 58.10 +1    67694..68440    	 -	248	50119016	-	ECA0054	-	conserved hypothetical protein
52	 56.58 +1    68437..70479    	 -	680	50119017	prlC	ECA0055	-	oligopeptidase A
53	 55.10       70800..73349    	 +	849	50119018	-	ECA0056	-	putative TonB-dependent heme receptor
54	 53.41       73530..74042    	 +	170	50119019	-	ECA0057	-	ECF-family RNA polymerase sigma factor
55	 57.68 +1    74039..75028    	 +	329	50119020	-	ECA0058	-	transmembrane sensor
56	 58.52 +1    75230..76051    	 +	273	50119021	-	ECA0059	-	TonB-like protein
57	 56.46       76062..76355    	 -	97	50119022	-	ECA0060	-	conserved hypothetical protein
58	 54.69       76671..77513    	 +	280	50119023	-	ECA0061	-	conserved hypothetical protein
59	 54.77       77642..78994    	 +	450	50119024	gor	ECA0062	-	putative glutathione reductase
60	 43.40 -1    79098..79385    	 -	95	50119025	-	ECA0063	-	conserved hypothetical protein
61	 48.02       79382..79633    	 -	83	50119026	-	ECA0064	-	conserved hypothetical protein
62	 56.18       79889..80794    	 +	301	50119027	-	ECA0065	-	conserved hypothetical protein
63	 53.31       80829..81584    	 -	251	50119028	dsbG	ECA0066	-	thiol:disulfide interchange protein
64	 54.33       81805..82428    	 +	207	50119029	-	ECA0067	-	putative LysE family transporter
65	 54.30       82475..83347    	 -	290	50119030	-	ECA0068	-	LysR-family transcriptional regulator
66	 48.24       83450..83959    	 +	169	50119031	padC	ECA0069	-	phenolic acid decarboxylase
67	 58.05 +1    84016..85152    	 -	378	50119032	-	ECA0070	-	conserved hypothetical protein
68	 59.52 +1    85149..86183    	 -	344	50119033	-	ECA0071	-	putative monooxygenase
69	 58.07 +1    86185..87882    	 -	565	50119034	-	ECA0072	-	ABC transporter ATP-binding protein
70	 59.00 +1    87879..88739    	 -	286	50119035	-	ECA0073	-	ABC transporter permease protein
71	 57.78 +1    88736..89680    	 -	314	50119036	-	ECA0074	-	ABC transporter permease protein
72	 54.52       89707..91344    	 -	545	50119037	-	ECA0075	-	ABC-type transporter, substrate binding protein
73	 46.30       91666..92868    	 +	400	50119038	-	ECA0077	-	putative exported protein
74	 54.97       92960..93925    	 -	321	50119039	tkrA	ECA0078	-	2-ketogluconate reductase
75	 45.89       93967..94173    	 -	68	50119040	-	ECA0079	-	hypothetical protein
76	 48.85       94276..96228    	 +	650	50119041	-	ECA0080	-	methyl-accepting chemotaxis protein
77	 49.32       96284..96727    	 -	147	50119042	-	ECA0081	-	putative GNAT-family acetyltransferase
78	 49.82       96724..97287    	 -	187	50119043	tag	ECA0082	-	DNA-3-methyladenine glycosylase I
79	 59.01 +1    97589..98332    	 +	247	50119044	-	ECA0083	-	putative membrane protein
80	 52.90       98527..99441    	 +	304	50119045	glyQ	ECA0084	-	glycine-tRNA synthetase, alpha subunit
81	 54.64       99451..101520   	 +	689	50119046	glyS	ECA0085	-	glycine-tRNA synthetase, beta subunit
82	 52.06      101812..102516   	 +	234	50119047	-	ECA0086	-	putative exported protein
83	 52.46      102940..104847   	 +	635	50119048	mtlA	ECA0087	-	PTS system, mannitol-specific IIabc component
84	 53.52      104909..106057   	 +	382	50119049	mtlD	ECA0088	-	mannitol-1-phosphate 5-dehydrogenase
85	 53.57      106133..106735   	 +	200	50119050	mtlR	ECA0089	-	mannitol operon repressor
86	 49.59      106894..107256   	 +	120	50119051	-	ECA0090	-	conserved hypothetical protein
87	 48.55      107366..109258   	 -	630	50119052	-	ECA0091	-	methyl-accepting chemotaxis protein
88	 49.44      109636..110262   	 -	208	50119053	sodA	ECA0092	-	manganese superoxide dismutase
89	 54.56      110522..111355   	 -	277	50119054	fdhD	ECA0093	-	putative formate dehydrogenase formation protein
90	 53.26      111626..113161   	 +	511	50119055	aldB	ECA0094	-	aldehyde dehydrogenase B
91	 48.74      113351..114343   	 +	330	50119056	-	ECA0095	-	putative membrane protein
92	 58.16 +1   114374..115831   	 -	485	50119057	xylB	ECA0096	-	xylulose kinase
93	 53.33      115898..117217   	 -	439	50119058	xylA	ECA0097	-	putative D-xylose isomerase
94	 46.35      117691..118689   	 +	332	50119059	xylF	ECA0098	-	D-xylose-binding periplasmic protein
95	 53.18      118825..120366   	 +	513	50119060	xylG	ECA0099	-	D-xylose transport ATP-binding protein
96	 56.26      120344..121525   	 +	393	50119061	xylH	ECA0100	-	xylose transport system permease
97	 52.50      121662..122840   	 +	392	50119062	xylR	ECA0101	-	xylose operon regulatory protein
98	 52.95      122910..123485   	 -	191	50119063	-	ECA0102	-	conserved hypothetical protein
99	 45.54 -1   123731..123943   	 -	70	50119064	-	ECA0103	-	hypothetical protein
100	 52.34      124086..125432   	 +	448	50119065	argG	ECA0104	-	argininosuccinate synthase


 51.14 MEAN

 5.41  STD DEV
