IslandPath Analysis: Bordetella pertussis

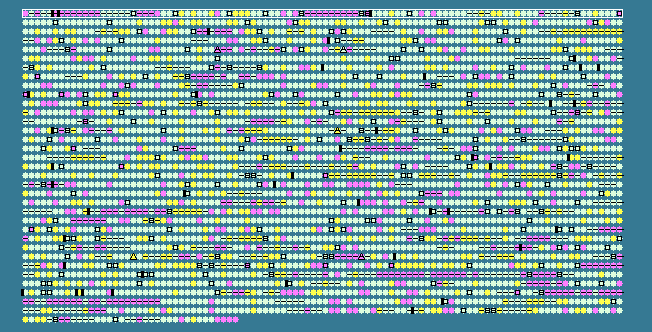

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.71   STD DEV: 3.90
Bordetella pertussis Tohama I, complete genome - 0..4086189
3436 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 62.34        1..1920     	 +	639	33591276	gidA	BP0001	-	glucose inhibited division protein A
2	 66.23        1917..2609     	 +	230	33591277	gidB	BP0002	-	glucose inhibited division protein B
3	 62.16 -1     2606..3403     	 +	265	33591278	parA	BP0003	-	ParA family protein
4	 67.32        3410..4171     	 +	253	33591279	-	BP0004	-	Putative acetyltransferase, GnaT family
5	 67.65        4215..5132     	 +	305	33591280	parB	BP0005	-	probable chromosome partitioning protein ParB
6	 62.64 -1     6722..7912     	 +	396	33591281	tufA	BP0007	-	elongation factor Tu
7	 58.79 -2     8151..8531     	 +	126	33591282	secE	BP0008	-	preprotein translocase SecE subunit
8	 54.49 -2     8541..9074     	 +	177	33591283	nusG	BP0009	-	transcription antitermination protein NusG
9	 63.19 -1     9138..9569     	 +	143	33591284	rplK	BP0010	-	50S ribosomal protein L11
10	 64.09        9572..10270    	 +	232	33591285	rplA	BP0011	-	50S ribosomal protein L1
11	 61.14 -1    10513..11037    	 +	174	33591286	rplJ	BP0013	-	50S ribosomal protein L10
12	 62.76 -1    11119..11502    	 +	127	33591287	rplL	BP0014	-	50S ribosomal protein L7/L12
13	 63.31 -1    11662..15774    	 +	1370	33591288	rpoB	BP0015	-	DNA-directed RNA polymerase beta chain
14	 64.24       15774..20018    	 +	1414	33591289	rpoC	BP0016	-	DNA-directed RNA polymerase beta' chain
15	 65.93       20127..20531    	 -	134	33591290	-	BP0017	-	putative lipoprotein
16	 70.92       20772..21947    	 +	391	33591291	-	BP0018	-	putative membrane protein
17	 68.20       24353..25459    	 -	368	33591292	-	BP0020	-	putative peptidoglycan binding protein
18	 69.36       26471..27286    	 +	271	33591293	-	BP0022	-	Two-component response regulator
19	 64.98       27283..28233    	 -	316	33591294	-	BP0023	-	transposase
20	 60.23 -1    28675..29109    	 -	144	33591295	-	BP0025	-	conserved hypothetical protein
21	 63.08 -1    29142..30368    	 -	408	33591296	-	BP0026	-	putative thiolase
22	 56.22 -2    30365..30862    	 -	165	33591297	-	BP0027	-	MaoC family protein
23	 62.93 -1    31070..31978    	 -	302	33591298	-	BP0028	-	putative transcriptional regulator
24	 66.67       32215..33006    	 +	263	33591299	-	BP0029	-	putative enoyl-CoA hydratase
25	 68.71       33049..34470    	 +	473	33591300	-	BP0030	-	conserved hypothetical protein
26	 65.09       34626..35576    	 +	316	33591301	-	BP0031	-	transposase
27	 72.21 +1    35573..36763    	 -	396	33591302	-	BP0032	-	probable transporter
28	 66.12       37013..37924    	 +	303	33591303	glyQ	BP0033	-	glycyl-tRNA synthetase alpha chain
29	 71.34       37926..40064    	 +	712	33591304	glyS	BP0034	-	glycyl-tRNA synthetase beta chain
30	 70.00       40061..40600    	 +	179	33591305	-	BP0035	-	putative haloacid dehalogenase-like hydrolase
31	 67.08       40604..41332    	 +	242	33591306	-	BP0036	-	probable acyltransferase
32	 71.25       41319..42212    	 +	297	33591307	-	BP0037	-	conserved hypothetical protein
33	 59.85 -2    42283..42678    	 +	131	33591308	gloA	BP0038	-	lactoylglutathione lyase
34	 68.36       42688..43218    	 +	176	33591309	-	BP0039	-	peptide deformylase
35	 65.19       43664..44614    	 +	316	33591310	-	BP0041	-	transposase
36	 73.04 +1    45201..45749    	 +	182	33591311	-	BP0043	-	putative exported protein
37	 72.15 +1    45721..45957    	 -	78	33591312	-	BP0044	-	transcriptional regulator
38	 71.36       46085..46978    	 +	297	33591313	-	BP0045	-	putative membrane protein
39	 67.39       48148..49395    	 +	415	33591314	metX	BP0047	-	homoserine O-acetyltransferase
40	 67.64       49392..50006    	 +	204	33591315	-	BP0048	-	conserved hypothetical protein
41	 65.09       50142..51092    	 +	316	33591316	-	BP0049	-	transposase
42	 70.79       51180..52391    	 +	403	33591317	ampG	BP0050	-	putative integral membrane signal transducer protein
43	 70.48       53623..54357    	 -	244	33591318	-	BP0053	-	putative aspartate/glutamate racemase
44	 63.77 -1    54978..55667    	 -	229	33591319	gltK	BP0055	-	glutamate/aspartate transport system permease protein
45	 64.91       55664..56458    	 -	264	33591320	gltJ	BP0056	-	glutamate/aspartate transport system permease protein
46	 63.44 -1    56505..57404    	 -	299	33591321	-	BP0057	-	amino-acid ABC transporter binding protein precursor
47	 64.98       57498..58448    	 -	316	33591322	-	BP0058	-	transposase
48	 62.35 -1    59249..60475    	 -	408	33591323	-	BP0060	-	conserved hypothetical protein
49	 62.38 -1    60475..60894    	 -	139	33591324	-	BP0061	-	putative DNA-binding protein
50	 52.65 -2    61078..62019    	 -	313	33591325	-	BP0062	-	hypothetical protein
51	 51.85 -2    62443..63279    	 -	278	33591327	-	BP0063	-	conserved hypothetical protein
52	 51.72 -2    63474..64055    	 -	193	33591328	-	BP0064	-	conserved hypothetical protein
53	 42.90 -2    64068..64370    	 -	100	33591329	-	BP0065	-	putative ferredoxin
54	 51.13 -2    64489..65550    	 -	353	33591330	-	BP0066	-	oxidoreductase
55	 48.83 -2    65582..66775    	 -	397	33591331	-	BP0067	-	integral membrane protein
56	 50.68 -2    67483..68664    	 -	393	33591332	-	BP0069	-	putative exported protein
57	 64.98       69086..70036    	 +	316	33591333	-	BP0071	-	transposase
58	 59.37 -2    70130..70444    	 +	104	33591334	-	BP0072	-	transposase
59	 64.73       71637..73544    	 +	635	33591335	htpG	BP0074	-	heat shock protein
60	 69.57       73706..74326    	 -	206	33591336	-	BP0075	-	probable glutathione S-transferase
61	 71.13       74358..74939    	 -	193	33591337	ampD	BP0076	-	N-acetylmuramoyl-L-alanine amidase
62	 76.59 +2    75028..75279    	 -	83	33591338	-	BP0077	-	putative exported protein
63	 68.21       75281..76123    	 -	280	33591339	-	BP0078	-	putative membrane protein
64	 68.58       76229..77638    	 +	469	33591340	ffh	BP0079	-	signal recognition particle protein
65	 65.09       77635..78585    	 -	316	33591341	-	BP0080	-	transposase
66	 65.07       79601..81475    	 -	624	33591342	bplL	BP0082	-	lipopolysaccharide biosynthesis protein
67	 60.43 -1    82823..83527    	 -	234	33591343	bplI	BP0085	-	lipopolysaccharide biosynthesis protein
68	 66.41       83524..84696    	 -	390	33591344	bplH	BP0086	-	putative glycosyl transferase
69	 60.10 -1    84892..85485    	 -	197	33591345	bplG	BP0087	-	probable sugar transferase
70	 67.40       85482..86714    	 -	410	33591346	bplF	BP0088	-	lipopolysaccharide biosynthesis protein
71	 68.02       86732..87991    	 -	419	33591347	bplE	BP0089	-	probable glycosyl transferase
72	 68.50       88015..89103    	 -	362	33591348	bplD	BP0090	-	UDP-N-acetylglucosamine 2-epimerase
73	 66.21       89111..90211    	 -	366	33591349	bplC	BP0091	-	lipopolysaccharide biosynthesis protein
74	 66.15       90215..90790    	 -	191	33591350	bplB	BP0092	-	probable acetyltransferase
75	 65.43       90794..91846    	 -	350	33591351	bplA	BP0093	-	probable oxidoreductase
76	 68.75       91977..92984    	 +	335	33591352	rfaC	BP0094	-	probable heptosyltransferase
77	 74.20 +1    92986..94272    	 +	428	33591353	kdtA	BP0095	-	3-deoxy-D-manno-octulosonic-acid transferase
78	 67.31       94289..94444    	 -	51	33591354	-	BP0096	-	putative exported protein
79	 74.25 +1    94469..95272    	 -	267	33591355	baf	BP0097	-	Bvg accessory factor
80	 72.43 +1    95269..96135    	 -	288	33591356	birA	BP0098	-	putative biotin protein ligase
81	 68.79       96210..97340    	 +	376	33591357	-	BP0099	-	putative integral membrane protein
82	 67.98       97340..98179    	 +	279	33591358	-	BP0100	-	probable ATP-binding component of ABC transporter
83	 75.46 +1    99112..99714    	 +	200	33591359	-	BP0101A	-	putative exported protein
84	 70.64       99744..100397   	 +	217	33591360	-	BP0101B	-	conserved hypothetical protein
85	 67.78      100530..101786   	 +	418	33591361	-	BP0102	-	putative penicillin-binding protein precursor
86	 66.67      101834..102733   	 +	299	33591362	-	BP0103	-	probable class IV aminotransferase
87	 61.59 -1   102809..103084   	 +	91	33591363	-	BP0104	-	conserved hypothetical protein
88	 69.08      103092..103754   	 +	220	33591364	lipB	BP0105	-	lipoate-protein ligase B
89	 66.37      103816..104817   	 +	333	33591365	lipA	BP0106	-	lipoic acid synthetase
90	 67.40      104832..105380   	 -	182	33591366	rfbC	BP0107	-	dTDP-4-dehydrorhamnose 3,5-epimerase
91	 72.91 +1   105438..106334   	 -	298	33591367	rfbD	BP0108	-	dTDP-4-dehydrorhamnose reductase
92	 68.93      106331..107392   	 -	353	33591368	rfbB	BP0109	-	dTDP-glucose 4,6-dehydratase
93	 64.77      107428..108378   	 -	316	33591369	-	BP0110	-	transposase
94	 69.51      109278..110471   	 +	397	33591370	metC	BP0112	-	cystathionine beta-lyase
95	 66.67      110553..111182   	 -	209	33591371	dsbA	BP0113	-	thiol:disulfide interchange protein DsbA precursor
96	 72.22 +1   111244..111927   	 -	227	33591372	-	BP0114	-	putative exported protein
97	 68.85      111937..113724   	 -	595	33591373	argS	BP0115	-	arginyl-tRNA synthetase
98	 66.40      113874..114254   	 +	126	33591374	-	BP0116	-	conserved hypothetical protein
99	 68.89      114303..114662   	 +	119	33591375	-	BP0117	-	hypothetical protein
100	 61.75 -1   114945..115961   	 +	338	33591376	-	BP0118	-	transposase for IS1663


 67.71 MEAN

 3.90  STD DEV
