IslandPath Analysis: Bordetella bronchiseptica

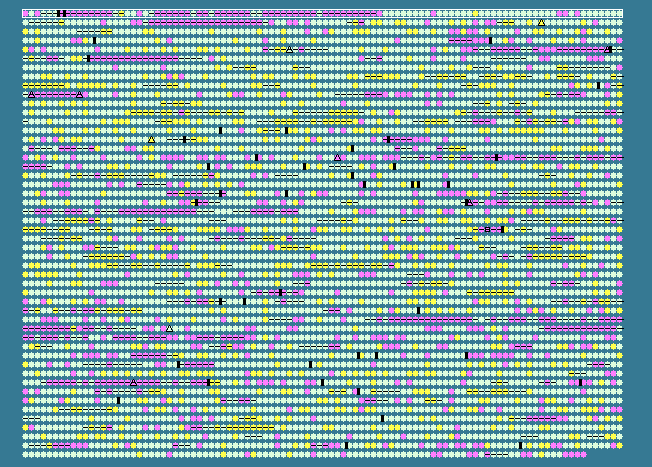

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 68.04   STD DEV: 4.24
Bordetella bronchiseptica RB50, complete genome - 0..5339179
4994 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 62.34        1..1920     	 +	639	33598994	gidA	BB0001	-	glucose inhibited division protein A
2	 65.24        1917..2549     	 +	210	33598995	gidB	BB0002	-	glucose inhibited division protein B
3	 62.16 -1     2546..3343     	 +	265	33598996	parA	BB0003	-	ParA family protein
4	 68.15        3350..4156     	 +	268	33598997	-	BB0004	-	Putative acetyltransferase, GnaT family
5	 67.76        4200..5117     	 +	305	33598998	parB	BB0005	-	probable chromosome partitioning protein ParB
6	 71.36        5110..6111     	 +	333	33598999	ansB	BB0006	-	L-asparaginase II precursor
7	 62.64 -1     6707..7897     	 +	396	33599000	tuf	BB0007	-	elongation factor Tu
8	 58.79 -2     8136..8516     	 +	126	33599001	secE	BB0008	-	preprotein translocase SecE subunit
9	 54.49 -2     8526..9059     	 +	177	33599002	nusG	BB0009	-	transcription antitermination protein NusG
10	 63.43 -1     9123..9554     	 +	143	33599003	rplK	BB0010	-	50S ribosomal protein L11
11	 64.52        9557..10255    	 +	232	33599004	rplA	BB0011	-	50S ribosomal protein L1
12	 61.33 -1    10498..11022    	 +	174	33599005	rplJ	BB0012	-	50S ribosomal protein L10
13	 62.76 -1    11104..11487    	 +	127	33599006	rplL	BB0013	-	50S ribosomal protein L7/L12
14	 63.28 -1    11623..15759    	 +	1378	33599007	rpoB	BB0014	-	DNA-directed RNA polymerase beta chain
15	 64.19       15759..20003    	 +	1414	33599008	rpoC	BB0015	-	DNA-directed RNA polymerase beta' chain
16	 65.68       20112..20516    	 -	134	33599009	-	BB0016	-	putative lipoprotein
17	 71.61       20757..21989    	 +	410	33599010	-	BB0017	-	putative membrane protein
18	 68.41       22005..24350    	 -	781	33599011	-	BB0018	-	probable two-component sensor protein
19	 68.20       24352..25458    	 -	368	33599012	-	BB0019	-	putative peptidoglycan binding protein
20	 62.99 -1    25476..26210    	 -	244	33599013	-	BB0020	-	probable two-component response regulator
21	 68.76       26468..27280    	 +	270	33599014	-	BB0021	-	Two-component response regulator
22	 66.45       27310..28245    	 -	311	33599015	-	BB0022	-	putative metal transporter
23	 63.77 -1    28251..28526    	 -	91	33599016	-	BB0023	-	conserved hypothetical protein
24	 59.18 -2    29040..29480    	 +	146	33599017	rpsL	BB0024	-	30S ribosomal protein S12
25	 60.08 -1    29644..30114    	 +	156	33599018	rpsG	BB0025	-	30S ribosomal protein S7
26	 62.77 -1    30132..32234    	 +	700	33599019	fusA	BB0026	-	elongation factor G
27	 62.64 -1    32311..33501    	 +	396	33599020	tuf	BB0027	-	elongation factor Tu
28	 60.26 -1    33565..33876    	 +	103	33599021	rpsJ	BB0028	-	30S ribosomal protein S10
29	 64.96       34222..34923    	 +	233	33599022	rplC	BB0029	-	50S ribosomal protein L3
30	 61.49 -1    34928..35545    	 +	205	33599023	rplD	BB0030	-	50S ribosomal protein L4
31	 56.57 -2    35542..35838    	 +	98	33599024	rplW	BB0031	-	50S ribosomal protein L23
32	 64.86       35839..36666    	 +	275	33599025	rplB	BB0032	-	50S ribosomal protein L2
33	 57.61 -2    36679..36954    	 +	91	33599026	rpsS	BB0033	-	30S ribosomal protein S19
34	 57.27 -2    36958..37287    	 +	109	33599027	rplV	BB0034	-	50S ribosomal protein L22
35	 63.38 -1    37297..38088    	 +	263	33599028	rpsC	BB0035	-	30S ribosomal protein S3
36	 63.31 -1    38091..38507    	 +	138	33599029	rplP	BB0036	-	50S ribosomal protein L16
37	 60.42 -1    38518..38709    	 +	63	33599030	rpmC	BB0037	-	50S ribosomal protein L29
38	 57.80 -2    38711..38992    	 +	93	33599031	rpsQ	BB0038	-	30S ribosomal protein S17
39	 68.87       39159..40022    	 -	287	33599032	-	BB0039	-	putative hydrolase
40	 66.18       40109..41536    	 -	475	33599033	-	BB0040	-	putative aldehyde dehydrogenase
41	 60.43 -1    42435..42803    	 +	122	33599034	rplN	BB0041	-	50S ribosomal protein L14
42	 62.93 -1    42814..43134    	 +	106	33599035	rplX	BB0042	-	50S ribosomal protein L24
43	 57.96 -2    43147..43686    	 +	179	33599036	rplE	BB0043	-	50S ribosomal protein L5
44	 59.15 -2    43699..44004    	 +	101	33599037	rpsN	BB0044	-	30S ribosomal protein S14
45	 61.11 -1    44015..44410    	 +	131	33599038	rpsH	BB0045	-	30S ribosomal protein S8
46	 60.30 -1    44421..44954    	 +	177	33599039	rplF	BB0046	-	50S ribosomal protein L6
47	 64.46       44976..45338    	 +	120	33599040	rplR	BB0047	-	50S ribosomal protein L18
48	 62.10 -1    45354..45878    	 +	174	33599041	rpsE	BB0048	-	30S ribosomal protein S5
49	 62.37 -1    45882..46067    	 +	61	33599042	rpmD	BB0049	-	50S ribosomal protein L30
50	 65.99       46077..46517    	 +	146	33599043	rplO	BB0050	-	50S ribosomal protein L15
51	 60.78 -1    46532..47857    	 +	441	33599044	secY	BB0051	-	preprotein translocase SecY subunit
52	 54.79 -2    47867..48085    	 +	72	33599045	infA	BB0052	-	translation initiation factor IF-1
53	 53.51 -2    48120..48233    	 +	37	33599046	rpmJ	BB0053	-	50S ribosomal protein l36
54	 62.57 -1    48275..48640    	 +	121	33599047	rpsM	BB0054	-	30S ribosomal protein S13
55	 63.68 -1    48656..49057    	 +	133	33599048	rpsK	BB0055	-	30S ribosomal protein S11
56	 63.14 -1    49069..49692    	 +	207	33599049	rpsD	BB0056	-	30S ribosomal protein S4
57	 63.53 -1    49907..50893    	 +	328	33599050	rpoA	BB0057	-	DNA-directed RNA polymerase alpha chain
58	 61.87 -1    51052..51447    	 +	131	33599051	-	BB0058	-	50S ribosomal protein L17
59	 63.47 -1    51576..52013    	 -	145	33599052	-	BB0059	-	histidine triad protein
60	 61.70 -1    52120..52461    	 +	113	33599053	cutA	BB0060	-	putative periplasmic divalent cation tolerance protein
61	 70.43       52472..54409    	 +	645	33599054	-	BB0061	-	thiol:disulfide interchange protein
62	 69.46       54450..55487    	 +	345	33599055	-	BB0062	-	putative membrane protein
63	 66.67       55484..56500    	 -	338	33599056	hemB	BB0063	-	putative delta-aminolevulinic acid dehydratase
64	 64.74       56497..57120    	 -	207	33599057	-	BB0064	-	putative GTP-binding protein
65	 66.10       57344..58045    	 +	233	33599058	-	BB0065	-	putative cytochrome C precursor
66	 66.67       58164..60260    	 +	698	33599059	-	BB0066	-	putative membrane protein
67	 66.82       60270..61604    	 +	444	33599060	-	BB0067	-	putative cytochrome c asssembly protein
68	 68.99       61675..62964    	 -	429	33599061	lysA	BB0068	-	diaminopimelate decarboxylase
69	 64.24       63178..63507    	 +	109	33599062	cyaY	BB0069	-	conserved hypothetical protein
70	 66.54       63564..66008    	 -	814	33599063	-	BB0070	-	penicillin-binding protein 1A
71	 66.04       66122..66757    	 +	211	33599064	aroK	BB0071	-	shikimate kinase I
72	 69.82       66757..67833    	 +	358	33599065	aroB	BB0072	-	3-dehydroquinate synthase
73	 67.19       67830..68984    	 +	384	33599066	-	BB0073	-	putative phosphohydrolase
74	 69.24       69158..69817    	 -	219	33599067	-	BB0074	-	putative glutathione S-transferase
75	 67.86       69874..72732    	 -	952	33599068	uvrA	BB0075	-	excinuclease ABC subunit A
76	 72.83 +1    72888..74072    	 +	394	33599069	-	BB0076	-	putative transport protein
77	 68.06       74305..74805    	 +	166	33599070	ssb	BB0077	-	single-strand binding protein
78	 64.96       75038..77152    	 +	704	33599071	bfrC	BB0078	-	ferric siderophore receptor
79	 69.25       77289..77792    	 +	167	33599072	-	BB0079	-	conserved hypothetical protein
80	 66.28       77811..78590    	 +	259	33599073	-	BB0080	-	putative aldolase
81	 70.30       78619..79635    	 +	338	33599074	-	BB0081	-	putative exported protein
82	 65.79       79689..80483    	 +	264	33599075	-	BB0082	-	GntR family regulatory proteins
83	 69.53       80480..81421    	 -	313	33599076	-	BB0083	-	transcriptional regulator
84	 67.87       81701..83191    	 +	496	33599077	-	BB0084	-	putative chlorohydrolase
85	 69.00       83230..84216    	 +	328	33599078	-	BB0085	-	putative exported protein
86	 68.67       84369..85514    	 +	381	33599079	-	BB0086	-	putative glycosyl transferases
87	 68.62       85521..86339    	 +	272	33599080	-	BB0087	-	hypothetical protein
88	 67.70       86499..87470    	 +	323	33599081	-	BB0088	-	LysR family regulatory protein
89	 69.06       87496..88497    	 +	333	33599082	-	BB0089	-	periplasmic solute-binding protein
90	 63.29 -1    88561..89331    	 +	256	33599083	-	BB0090	-	ABC transport system permease protein
91	 63.51 -1    89319..90110    	 +	263	33599084	-	BB0091	-	ABC transporter ATP-binding protein
92	 68.19       90138..91454    	 +	438	33599085	-	BB0092	-	conserved hypothetical protein
93	 62.43 -1    91591..91779    	 -	62	33599086	-	BB0093	-	putative exported protein
94	 67.75       91788..92432    	 -	214	33599087	-	BB0094	-	TetR-family transcriptional regulator
95	 68.96       92468..94645    	 -	725	33599088	glcB	BB0095	-	malate synthase G
96	 67.45       94889..95653    	 +	254	33599089	glcC	BB0096	-	GntR-family transcriptional regulator
97	 68.71       95650..96777    	 -	375	33599090	-	BB0097	-	putative dehydrogenase
98	 68.73       97002..97388    	 -	128	33599091	-	BB0098	-	Putative exported protein
99	 67.75       97654..98580    	 -	308	33599092	-	BB0099	-	UbiA prenyltransferase family protein
100	 67.00       98667..99866    	 -	399	33599093	-	BB0100	-	putative aminotransferase


 68.04 MEAN

 4.24  STD DEV




Last Updated: Sept 17 2004 (Note: update adds new organisms but does not affect the existing records)
