IslandPath Analysis: Bacillus cereus ATCC14579

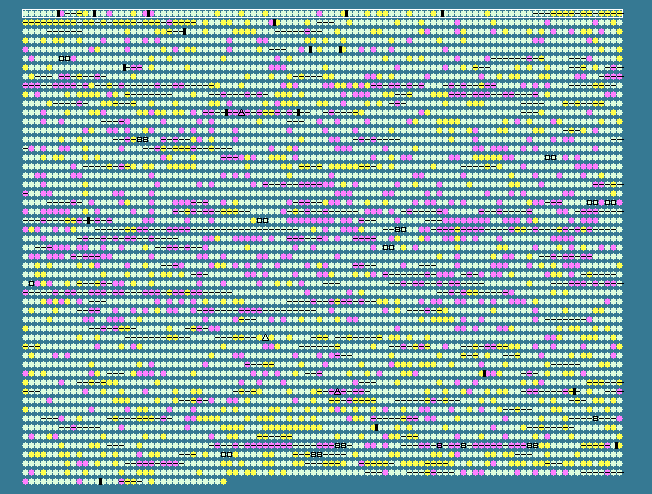

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.40 STD DEV: 3.53
Bacillus cereus ATCC 14579, complete genome - 0..5411809
5234 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 34.75      281..1621     	 +	446	30018279	-	BC0001	-	Chromosomal replication initiator protein dnaA
2	 33.42        1800..2945     	 +	381	30018280	-	BC0002	-	DNA polymerase III, beta chain
3	 33.80        3073..3285     	 +	70	30018281	-	BC0003	-	hypothetical protein
4	 33.42        3298..4425     	 +	375	30018282	-	BC0004	-	DNA replication and repair protein recF
5	 37.84        4458..6386     	 +	642	30018283	-	BC0005	-	DNA gyrase subunit B
6	 36.77        6472..8946     	 +	824	30018284	-	BC0006	-	DNA gyrase subunit A
7	 30.74 -1    14232..15233    	 -	333	30018285	-	BC0012	-	IG hypothetical 16768
8	 38.66       15349..16812    	 +	487	30018286	-	BC0013	-	Inosine-5'-monophosphate dehydrogenase
9	 35.76       16917..18233    	 +	438	30018287	-	BC0014	-	D-alanyl-D-alanine carboxypeptidase
10	 43.18 +2    18388..19281    	 +	297	30018288	-	BC0015	-	pyridoxine biosynthesis protein
11	 41.12 +1    19300..19890    	 +	196	30018289	-	BC0016	-	pyridoxine biosynthesis amidotransferase
12	 37.41       20218..21492    	 +	424	30018290	-	BC0017	-	Seryl-tRNA synthetase
13	 35.14       21747..22298    	 +	183	30018291	-	BC0019	-	hypothetical Cytosolic Protein
14	 34.12       23005..23640    	 -	211	30018292	-	BC0021	-	Deoxyguanosine kinase
15	 28.57 -1    23766..24290    	 -	174	30018293	-	BC0022	-	Pyrazinamidase
16	 37.72       24415..24915    	 +	166	30018294	-	BC0023	-	Cytosine deaminase
17	 38.60       25392..27080    	 +	562	30018295	-	BC0024	-	DNA polymerase III subunit gamma/tau
18	 37.88       27103..27432    	 +	109	30018296	-	BC0025	-	hypothetical Transcriptional Regulatory Protein
19	 39.87 +1    27447..28043    	 +	198	30018297	-	BC0026	-	Recombination protein recR
20	 34.68       28058..28279    	 +	73	30018298	-	BC0027	-	hypothetical Cytosolic Protein
21	 31.85 -1    28441..28710    	 +	89	30018299	-	BC0028	-	SigmaK-factor processing regulatory protein BofA
22	 25.00 -2    34129..34308    	 +	59	30018300	-	BC0034	-	CsfB protein
23	 35.65       34380..35801    	 +	473	30018301	-	BC0035	-	Arginine decarboxylase
24	 37.96       35803..36429    	 +	208	30018302	-	BC0036	-	Thymidylate kinase
25	 36.69       36465..37448    	 +	327	30018303	-	BC0037	-	DNA polymerase III, delta' subunit
26	 35.99       37454..38281    	 +	275	30018304	-	BC0038	-	Tpl protein
27	 33.05       38290..38646    	 +	118	30018305	-	BC0039	-	hypothetical protein
28	 33.74       38729..39469    	 +	246	30018306	-	BC0040	-	Methyltransferase
29	 34.59       39715..40590    	 +	291	30018307	-	BC0041	-	Corrin/porphyrin methyltransferase
30	 34.74       40611..40895    	 -	94	30018308	-	BC0042	-	Transcription state regulatory protein abrB
31	 35.70       41381..43363    	 +	660	30018309	-	BC0043	-	Methionyl-tRNA synthetase
32	 38.04       43533..44297    	 +	254	30018310	-	BC0044	-	Sec-independent secretion protein tatD
33	 40.00 +1    44500..45069    	 +	189	30018311	-	BC0045	-	Ribonuclease M5
34	 34.36       45066..45944    	 +	292	30018312	-	BC0046	-	Dimethyladenosine transferase
35	 37.04       46055..46918    	 +	287	30018313	-	BC0047	-	Sporulation-specific protease YabG
36	 34.87       47145..47405    	 +	86	30018314	-	BC0048	-	VEG protein
37	 40.56 +1    47497..47676    	 +	59	30018315	-	BC0049	-	SspF protein
38	 37.70       47873..48742    	 +	289	30018316	-	BC0050	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
39	 37.46       48797..49645    	 +	282	30018317	-	BC0051	-	Pur operon repressor
40	 36.53       49766..50140    	 +	124	30018318	-	BC0052	-	Translation initiation inhibitor
41	 40.82 +1    50293..50586    	 +	97	30018319	-	BC0053	M	Stage V sporulation protein G
42	 38.48       50900..52279    	 +	459	30018320	-	BC0054	-	Glucosamine-1-phosphate acetyltransferase
43	 37.00       52298..53251    	 +	317	30018321	-	BC0055	-	Ribose-phosphate pyrophosphokinase
44	 37.28       53252..53884    	 +	210	30018322	-	BC0056	-	Peptidyl-tRNA hydrolase
45	 33.33       53955..54179    	 +	74	30018323	-	BC0057	-	hypothetical protein
46	 35.54       54285..57815    	 +	1176	30018324	-	BC0058	-	Transcription-repair coupling factor
47	 37.24       57952..58488    	 +	178	30018325	-	BC0059	-	Stage V sporulation protein T
48	 34.96       58719..60320    	 +	533	30018326	-	BC0060	-	Polysaccharides export protein
49	 36.89       60333..61793    	 +	486	30018327	-	BC0061	-	MazG protein
50	 31.16 -1    61808..62083    	 +	91	30018328	-	BC0062	J	Heat shock protein 15
51	 33.98       62142..62450    	 +	102	30018329	-	BC0063	-	hypothetical protein
52	 32.70       62465..63100    	 +	211	30018330	-	BC0064	-	Spore cortex biosynthesis protein
53	 33.06       63097..63456    	 +	119	30018331	-	BC0065	-	Cell division protein DIVIC
54	 42.18 +1    63544..64029    	 +	161	30018332	-	BC0066	-	S1-type RNA-binding domain
55	 35.91       64631..67078    	 +	815	30018333	-	BC0069	-	Stage II sporulation protein E
56	 35.01       67309..68739    	 +	476	30018334	-	BC0070	-	Cell cycle protein MesJ
57	 33.89       68736..69278    	 +	180	30018335	-	BC0071	-	Hypoxanthine-guanine phosphoribosyltransferase
58	 39.64 +1    69364..71265    	 +	633	30018336	-	BC0072	-	Cell division protein ftsH
59	 36.63       71510..72298    	 +	262	30018337	-	BC0073	-	Bvg accessory factor
60	 39.38 +1    72305..73180    	 +	291	30018338	-	BC0074	-	33 kDa chaperonin
61	 39.72 +1    73294..74217    	 +	307	30018339	-	BC0075	-	Cysteine synthase
62	 38.34       74440..75837    	 +	465	30018340	-	BC0076	-	Para-aminobenzoate synthase component I
63	 38.78       75843..76430    	 +	195	30018341	-	BC0077	-	Anthranilate synthase component II
64	 35.05       76424..77296    	 +	290	30018342	-	BC0078	-	4-amino-4-deoxychorismate lyase
65	 39.49 +1    77271..78131    	 +	286	30018343	-	BC0079	-	Dihydropteroate synthase
66	 37.19       78132..78494    	 +	120	30018344	-	BC0080	-	Dihydroneopterin aldolase
67	 34.69       78491..79006    	 +	171	30018345	-	BC0081	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
68	 38.73       78958..79161    	 +	67	30018346	-	BC0082	-	Transcriptional regulator, Xre family
69	 39.74 +1    79185..80183    	 +	332	30018347	-	BC0083	-	Nif3 family protein
70	 37.00       80343..81842    	 +	499	30018348	-	BC0084	-	Lysyl-tRNA synthetase
71	 32.90       92915..93376    	 +	153	30018349	-	BC0099	-	Transcriptional regulator ctsR
72	 36.59       93544..94095    	 +	183	30018350	-	BC0100	-	ClpC ATPase
73	 35.68       94100..95164    	 +	354	30018351	-	BC0101	-	Arginine kinase
74	 38.59       95187..97622    	 +	811	30018352	-	BC0102	-	Negative regulator of genetic competence clpC/mecB
75	 38.85       97718..99094    	 +	458	30018353	-	BC0103	-	DNA repair protein RadA
76	 36.96       99098..100171   	 +	357	30018354	-	BC0104	-	DNA-binding protein
77	 35.68      100332..101441   	 +	369	30018355	-	BC0105	-	hypothetical Membrane Associated Protein
78	 40.09 +1   101458..102138   	 +	226	30018356	-	BC0106	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
79	 37.74      102255..102731   	 +	158	30018357	-	BC0107	I	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
80	 36.69      102788..104278   	 +	496	30018358	-	BC0108	-	Glutamyl-tRNA synthetase
81	 37.09      104723..105388   	 +	221	30018359	-	BC0109	-	Serine acetyltransferase
82	 36.05      105369..106766   	 +	465	30018360	-	BC0110	-	Cysteinyl-tRNA synthetase
83	 38.73      106769..107176   	 +	135	30018361	-	BC0111	-	hypothetical protein
84	 37.37      107173..107916   	 +	247	30018362	-	BC0112	-	23S rRNA methyltransferase
85	 37.04      107920..108432   	 +	170	30018363	-	BC0113	-	hypothetical Cytosolic Protein
86	 34.70      108500..109159   	 +	219	30018364	-	BC0114	-	RNA polymerase sigma-H factor
87	 38.33      109474..109653   	 +	59	30018365	-	BC0115	-	Protein translocase subunit SecE
88	 36.89      109785..110318   	 +	177	30018366	-	BC0116	K	Transcription antitermination protein nusG
89	 43.43 +2   110486..110911   	 +	141	30018367	-	BC0117	-	LSU ribosomal protein L11P
90	 40.63 +1   111082..111780   	 +	232	30018368	-	BC0118	-	LSU ribosomal protein L1P
91	 41.32 +1   112014..112514   	 +	166	30018369	-	BC0119	-	LSU ribosomal protein L10P
92	 39.17 +1   112582..112941   	 +	119	30018370	-	BC0120	-	LSU ribosomal protein L12P (L7/L12)
93	 38.17      113018..113617   	 +	199	30018371	-	BC0121	-	16S rRNA m(2)G 1207 methyltransferase
94	 41.82 +1   113908..117441   	 +	1177	30018372	-	BC0122	-	DNA-directed RNA polymerase beta chain
95	 40.53 +1   117479..121090   	 +	1203	30018373	-	BC0123	-	DNA-directed RNA polymerase beta' chain
96	 37.88      121189..121452   	 +	87	30018374	-	BC0124	-	LSU ribosomal protein L7AE
97	 40.43 +1   121567..121989   	 +	140	30018375	-	BC0125	-	SSU ribosomal protein S12P
98	 42.68 +2   122019..122489   	 +	156	30018376	-	BC0126	-	SSU ribosomal protein S7P
99	 42.57 +2   122698..124776   	 +	692	30018377	-	BC0128	-	Protein Translation Elongation Factor G (EF-G)
100	 43.77 +2   124894..126081   	 +	395	30018378	-	BC0129	-	Protein Translation Elongation Factor Tu (EF-TU)


 35.40 MEAN

 3.53  STD DEV
