IslandPath Analysis: Bacillus cereus ATCC 10987

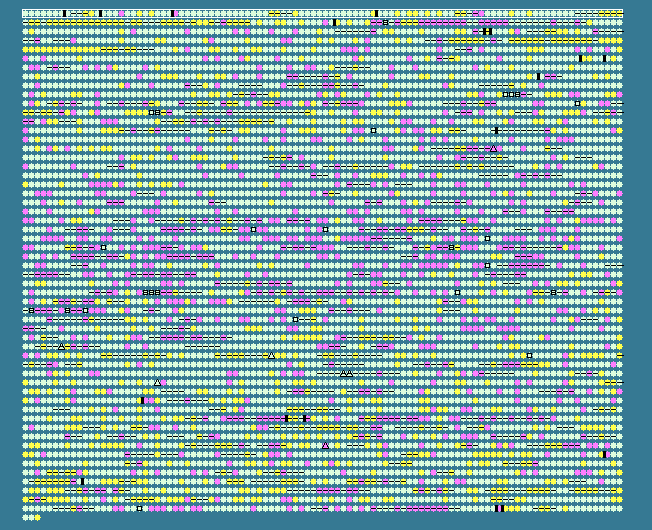

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.34   STD DEV: 4.00
Bacillus cereus ATCC 10987, complete genome - 0..5224283
5603 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 35.42      408..1748     	 +	446	42779082	dnaA	BCE0001	-	chromosomal replication initiator protein DnaA
2	 32.72        1927..3066     	 +	379	42779083	dnaN	BCE0002	-	DNA polymerase III, beta subunit
3	 34.22        3182..3406     	 +	74	42779084	-	BCE0003	-	conserved hypothetical protein
4	 34.57        3418..4545     	 +	375	42779085	recF	BCE0004	-	DNA replication and repair protein RecF
5	 37.03        4584..6506     	 +	640	42779086	gyrB	BCE0005	-	DNA gyrase, B subunit
6	 36.97        6595..9066     	 +	823	42779087	gyrA	BCE0006	-	DNA gyrase, A subunit
7	 32.32        9241..9339     	 +	32	42779088	-	BCE0007	-	hypothetical protein
8	 33.53       14353..15354    	 -	333	42779089	-	BCE0008	-	conserved hypothetical protein
9	 38.59       15470..16933    	 +	487	42779090	guaB	BCE0009	-	inosine-5'-monophosphate dehydrogenase
10	 35.46       17038..18354    	 +	438	42779091	dacA	BCE0010	-	D-alanyl-D-alanine carboxypeptidase
11	 43.47 +2    18516..19403    	 +	295	42779092	-	BCE0011	-	pyridoxine biosynthesis protein
12	 40.27 +1    19422..20012    	 +	196	42779093	-	BCE0012	-	glutamine amidotransferase, SNO family
13	 38.51       20340..21614    	 +	424	42779094	serS	BCE0013	-	seryl-tRNA synthetase
14	 34.48       21897..22421    	 +	174	42779095	-	BCE0014	-	hypothetical protein
15	 35.43       22457..23125    	 -	222	42779096	-	BCE0015	-	deoxynucleoside kinase family protein
16	 34.91       23128..23763    	 -	211	42779097	-	BCE0016	-	deoxynucleoside kinase family protein
17	 30.74 -1    23889..24428    	 -	179	42779098	-	BCE0017	-	isochorismatase family protein
18	 32.62       24406..24546    	 +	46	42779099	-	BCE0018	-	hypothetical protein
19	 38.12       24536..25036    	 +	166	42779100	-	BCE0019	-	cytidine/deoxycytidylate deaminase zinc-binding domain protein
20	 39.02       25513..27201    	 +	562	42779101	dnaX	BCE0020	-	DNA polymerase III, gamma and tau subunits
21	 37.58       27224..27553    	 +	109	42779102	-	BCE0021	-	conserved hypothetical protein TIGR00103
22	 39.53 +1    27568..28164    	 +	198	42779103	recR	BCE0022	-	recombination protein RecR
23	 34.23       28179..28400    	 +	73	42779104	-	BCE0023	-	conserved hypothetical protein
24	 35.00       28316..28495    	 +	59	42779105	-	BCE0024	-	hypothetical protein
25	 32.22       28593..28862    	 +	89	42779106	bofA	BCE0025	-	sigma-k factor processing regulatory protein BofA
26	 25.56 -2    34288..34467    	 +	59	42779107	-	BCE0026	-	csfB protein, putative
27	 35.16       34540..35961    	 +	473	42779108	cad	BCE0027	-	lysine decarboxylase
28	 37.00       35963..36589    	 +	208	42779109	tmk	BCE0028	-	thymidylate kinase
29	 36.89       36625..37608    	 +	327	42779110	holB	BCE0029	-	DNA polymerase III, delta prime subunit
30	 36.32       37605..38441    	 +	278	42779111	-	BCE0030	-	conserved hypothetical protein
31	 33.61       38441..38806    	 +	121	42779112	-	BCE0031	-	conserved hypothetical protein
32	 34.41       38927..39667    	 +	246	42779113	-	BCE0032	-	conserved hypothetical protein
33	 35.05       39654..39944    	 +	96	42779114	-	BCE0033	-	conserved hypothetical protein
34	 35.39       39913..40788    	 +	291	42779115	-	BCE0034	-	conserved hypothetical protein TIGR00096
35	 34.74       40809..41093    	 -	94	42779116	abrB	BCE0035	-	transition state transcriptional regulatory protein AbrB
36	 36.16       41611..43593    	 +	660	42779117	metS	BCE0036	-	methionyl-tRNA synthetase
37	 36.98       43759..44526    	 +	255	42779118	-	BCE0037	-	deoxyribonuclease, TatD family
38	 37.63       44740..45297    	 +	185	42779119	-	BCE0038	-	primase-related protein
39	 36.63       45294..46172    	 +	292	42779120	ksgA	BCE0039	-	dimethyladenosine transferase
40	 37.38       46283..47146    	 +	287	42779121	-	BCE0040	-	yabG protein
41	 36.40       47385..47645    	 +	86	42779122	-	BCE0041	-	veg protein
42	 39.44 +1    47737..47916    	 +	59	42779123	sspF	BCE0042	-	small, acid-soluble spore protein
43	 38.85       48113..48982    	 +	289	42779124	ispE	BCE0043	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
44	 37.46       49037..49885    	 +	282	42779125	purR	BCE0044	-	pur operon repressor PurR
45	 33.85       49999..50382    	 +	127	42779126	-	BCE0045	-	endoribonuclease L-PSP, putative
46	 39.08       50481..50828    	 +	115	42779127	spoVG	BCE0046	-	stage V sporulation protein G
47	 38.48       51151..52530    	 +	459	42779128	gcaD	BCE0047	-	UDP-N-acetylglucosamine pyrophosphorylase
48	 37.32       52549..53502    	 +	317	42779129	prs	BCE0048	-	ribose-phosphate pyrophosphokinase
49	 35.07       53503..54135    	 +	210	42779130	spoVC	BCE0049	-	peptidyl-tRNA hydrolase
50	 32.89       54206..54430    	 +	74	42779131	-	BCE0050	-	conserved hypothetical protein
51	 35.60       54537..58067    	 +	1176	42779132	mfd	BCE0051	-	transcription-repair coupling factor
52	 36.69       58204..58740    	 +	178	42779133	spoVT	BCE0052	-	stage V sporulation protein T
53	 34.83       58971..60572    	 +	533	42779134	-	BCE0053	-	stage V sporulation protein B, putative
54	 37.50       60678..62045    	 +	455	42779135	-	BCE0054	-	tetrapyrrole methylase family protein/MazG family protein
55	 32.97       62060..62335    	 +	91	42779136	-	BCE0055	-	S4 domain protein
56	 33.66       62394..62702    	 +	102	42779137	-	BCE0056	-	yabP protein
57	 32.72       62699..63352    	 +	217	42779138	-	BCE0057	-	membrane protein, putative
58	 35.09       63310..63708    	 +	132	42779139	divIC	BCE0058	-	cell division protein DivIC
59	 42.65 +1    63796..64278    	 +	160	42779140	-	BCE0059	-	S1 RNA binding domain protein
60	 36.44       64950..67328    	 +	792	42779141	spoIIE	BCE0060	-	stage II sporulation protein E
61	 36.55       67554..68984    	 +	476	42779142	-	BCE0061	-	conserved hypothetical protein
62	 34.25       68981..69523    	 +	180	42779143	hpt	BCE0062	-	hypoxanthine phosphoribosyltransferase
63	 40.43 +1    69609..71510    	 +	633	42779144	ftsH	BCE0063	-	cell division protein FtsH
64	 37.52       71736..72524    	 +	262	42779145	-	BCE0064	-	transcriptional activator, putative, Baf family
65	 39.50 +1    72531..73406    	 +	291	42779146	hslO	BCE0065	-	chaperonin, 33 kDa
66	 39.18       73511..74434    	 +	307	42779147	cysK	BCE0066	-	cysteine synthase A
67	 38.39       74609..76051    	 +	480	42779148	pabB	BCE0067	-	para-aminobenzoate synthase, component I
68	 39.29       76057..76644    	 +	195	42779149	pabA	BCE0068	-	para-aminobenzoate synthase glutamine amidotransferase, component II
69	 36.66       76638..77510    	 +	290	42779150	pabC	BCE0069	-	4-amino-4-deoxychorismate lyase PabC
70	 39.50 +1    77503..78345    	 +	280	42779151	folP	BCE0070	-	dihydropteroate synthase
71	 36.36       78346..78708    	 +	120	42779152	folB	BCE0071	-	dihydroneopterin aldolase
72	 34.69       78705..79220    	 +	171	42779153	folK	BCE0072	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
73	 41.18 +1    79172..79375    	 +	67	42779154	-	BCE0073	-	DNA-binding protein
74	 40.44 +1    79399..80397    	 +	332	42779155	-	BCE0074	-	TIM-barrel protein, putative, NifR3 family
75	 36.93       80557..82056    	 +	499	42779156	lysS	BCE0075	-	lysyl-tRNA synthetase
76	 24.44 -2    82152..82286    	 +	44	42779157	-	BCE0076	-	hypothetical protein
77	 29.37 -1    82283..82408    	 +	41	42779158	-	BCE0077	-	hypothetical protein
78	 33.33       87416..87877    	 +	153	42779159	ctsR	BCE0078	-	transcriptional regulator CtsR
79	 35.34       88051..88599    	 +	182	42779160	-	BCE0079	-	conserved hypothetical protein
80	 34.65       88604..89668    	 +	354	42779161	-	BCE0080	-	phosphotransferase domain protein
81	 38.42       89691..92126    	 +	811	42779162	-	BCE0081	-	negative regulator of genetic competence ClpC/MecB
82	 39.36 +1    92223..93599    	 +	458	42779163	radA	BCE0082	-	DNA repair protein RadA
83	 37.52       93603..94676    	 +	357	42779164	-	BCE0083	-	DNA-binding protein, putative
84	 35.05       94837..95946    	 +	369	42779165	-	BCE0084	-	conserved hypothetical protein
85	 38.91       95963..96643    	 +	226	42779166	ispD	BCE0085	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
86	 36.69       96759..97235    	 +	158	42779167	ispF	BCE0086	-	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
87	 36.83       97325..98782    	 +	485	42779168	gltX	BCE0087	-	glutamyl-tRNA synthetase
88	 37.99       99213..99878    	 +	221	42779169	cysE	BCE0088	-	serine O-acetyltransferase
89	 36.77       99859..101256   	 +	465	42779170	cysS	BCE0089	-	cysteinyl-tRNA synthetase
90	 37.75      101259..101666   	 +	135	42779171	-	BCE0090	-	conserved hypothetical protein
91	 37.77      101663..102406   	 +	247	42779172	-	BCE0091	-	RNA methyltransferase, TrmH family, group 3
92	 38.79      102410..102922   	 +	170	42779173	-	BCE0092	-	conserved hypothetical protein
93	 35.91      102990..103649   	 +	219	42779174	sigH	BCE0093	-	RNA polymerase sigma-30 factor
94	 33.33      103777..103923   	 +	48	42779175	rpmG	BCE0094	-	ribosomal protein L33
95	 37.78      103956..104135   	 +	59	42779176	-	BCE0095	-	preprotein translocase, SecE subunit
96	 37.27      104267..104800   	 +	177	42779177	nusG	BCE0096	-	transcription antitermination protein NusG
97	 43.19 +1   104968..105393   	 +	141	42779178	rplK	BCE0097	-	ribosomal protein L11
98	 40.98 +1   105571..106263   	 +	230	42779179	rplA	BCE0098	-	ribosomal protein L1
99	 41.12 +1   106496..106996   	 +	166	42779180	rplJ	BCE0099	-	ribosomal protein L10
100	 39.17      107064..107423   	 +	119	42779181	rplL	BCE0100	-	ribosomal protein L7/L12


 35.34 MEAN

 4.00  STD DEV
