IslandPath Analysis: Bacillus anthracis Ames

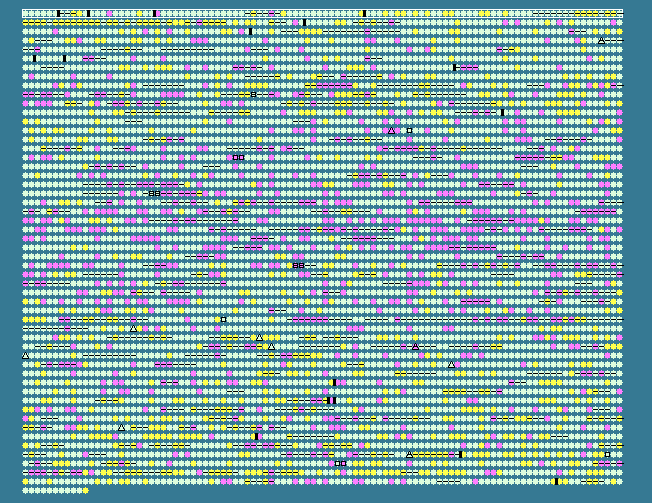

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.42   STD DEV: 3.63
Bacillus anthracis str. Ames, complete genome - 0..5227293
5311 proteins

Pos	 %G+C  SD      Location		Strand	Length	PID	Gene	Synonym	Code	Product

1	 35.42      407..1747     	 +	446	30260196	dnaA	BA0001	L	chromosomal replication initiator protein DnaA
2	 32.11        1926..3065     	 +	379	30260197	dnaN-1	BA0002	L	DNA polymerase III, beta subunit
3	 34.74        3193..3405     	 +	70	30260198	-	BA0003	S	conserved hypothetical protein
4	 34.57        3418..4545     	 +	375	30260199	recF	BA0004	L	DNA replication and repair protein RecF
5	 36.92        4584..6506     	 +	640	30260200	gyrB	BA0005	L	DNA gyrase, B subunit
6	 36.53        6595..9066     	 +	823	30260201	gyrA	BA0006	L	DNA gyrase, A subunit
7	 38.52       15468..16931    	 +	487	30260202	guaB	BA0008	F	inosine-5'-monophosphate dehydrogenase
8	 35.09       17045..18352    	 +	435	30260203	dacA	BA0009	-	D-alanyl-D-alanine carboxypeptidase
9	 42.79 +2    18514..19401    	 +	295	30260204	-	BA0010	H	pyridoxine biosynthesis protein
10	 40.27 +1    19420..20010    	 +	196	30260205	-	BA0011	H	glutamine amidotransferase, SNO family
11	 38.27       20338..21612    	 +	424	30260206	serS	BA0012	J	seryl-tRNA synthetase
12	 34.78       21869..22420    	 +	183	30260207	-	BA0013	-	hypothetical protein
13	 35.87       22456..23124    	 -	222	30260208	-	BA0014	F	deoxynucleoside kinase family protein
14	 34.59       23127..23762    	 -	211	30260209	-	BA0015	F	deoxynucleoside kinase family protein
15	 30.56 -1    23888..24427    	 -	179	30260210	-	BA0016	Q	isochorismatase family protein
16	 32.62       24405..24545    	 +	46	30260211	-	BA0017	-	hypothetical protein
17	 37.72       24535..25035    	 +	166	30260212	-	BA0018	F	cytidine/deoxycytidylate deaminase zinc-binding domain protein
18	 38.90       25512..27200    	 +	562	30260213	dnaX	BA0019	L	DNA polymerase III, gamma and tau subunits
19	 36.97       27223..27552    	 +	109	30260214	-	BA0020	S	conserved hypothetical protein TIGR00103
20	 40.03 +1    27567..28163    	 +	198	30260215	recR	BA0021	L	recombination protein RecR
21	 32.88       28178..28399    	 +	73	30260216	-	BA0022	-	conserved hypothetical protein
22	 32.22       28614..28883    	 +	89	30260217	bofA	BA0024	-	sigma-k factor processing regulatory protein BofA
23	 25.56 -2    34303..34482    	 +	59	30260218	-	BA0025	-	csfB protein, putative
24	 35.09       34554..35975    	 +	473	30260219	cad-1	BA0026	-	lysine decarboxylase
25	 36.04       35977..36603    	 +	208	30260220	tmk	BA0027	F	thymidylate kinase
26	 36.99       36639..37622    	 +	327	30260221	holB	BA0028	L	DNA polymerase III, delta prime subunit
27	 36.44       37619..38455    	 +	278	30260222	-	BA0029	S	conserved hypothetical protein
28	 32.19       38470..38820    	 +	116	30260223	-	BA0030	S	conserved hypothetical protein
29	 34.41       38941..39681    	 +	246	30260224	-	BA0031	R	conserved hypothetical protein
30	 34.02       39668..39958    	 +	96	30260225	-	BA0032	L	conserved hypothetical protein
31	 34.82       39927..40802    	 +	291	30260226	-	BA0033	R	conserved hypothetical protein TIGR00096
32	 33.68       40823..41107    	 -	94	30260227	abrB	BA0034	K	transition state transcriptional regulatory protein AbrB
33	 36.01       41598..43580    	 +	660	30260228	metS	BA0036	J	methionyl-tRNA synthetase
34	 37.50       43746..44513    	 +	255	30260229	-	BA0037	L	deoxyribonuclease, TatD family
35	 37.63       44728..45285    	 +	185	30260230	-	BA0038	L	primase-related protein
36	 36.06       45282..46160    	 +	292	30260231	ksgA	BA0039	J	dimethyladenosine transferase
37	 37.50       46271..47134    	 +	287	30260232	-	BA0040	-	yabG protein
38	 36.78       47373..47633    	 +	86	30260233	-	BA0041	S	veg protein
39	 39.44 +1    47725..47904    	 +	59	30260234	sspF	BA0042	-	small, acid-soluble spore protein
40	 38.28       48101..48970    	 +	289	30260235	ispE	BA0043	I	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
41	 36.98       49025..49873    	 +	282	30260236	purR	BA0044	F	pur operon repressor PurR
42	 22.50 -2    49860..49979    	 +	39	30260237	-	BA0045	-	hypothetical protein
43	 35.47       49996..50370    	 +	124	30260238	-	BA0046	J	endoribonuclease L-PSP, putative
44	 40.82 +1    50523..50816    	 +	97	30260239	spoVG	BA0047	M	stage V sporulation protein G
45	 38.33       51139..52518    	 +	459	30260240	gcaD	BA0048	M	UDP-N-acetylglucosamine pyrophosphorylase
46	 37.21       52537..53490    	 +	317	30260241	prs	BA0049	-	ribose-phosphate pyrophosphokinase
47	 34.40       53563..54123    	 +	186	30260242	spoVC	BA0050	-	peptidyl-tRNA hydrolase
48	 32.89       54194..54418    	 +	74	30260243	-	BA0051	-	conserved hypothetical protein
49	 35.74       54524..58054    	 +	1176	30260244	mfd	BA0052	L	transcription-repair coupling factor
50	 36.31       58190..58726    	 +	178	30260245	spoVT	BA0053	K	stage V sporulation protein T
51	 34.83       58957..60558    	 +	533	30260246	-	BA0054	R	stage V sporulation protein B, putative
52	 37.30       60571..62031    	 +	486	30260247	-	BA0055	R	tetrapyrrole methylase family protein/MazG family protein
53	 32.61       62046..62321    	 +	91	30260248	-	BA0056	J	S4 domain protein
54	 33.66       62380..62688    	 +	102	30260249	-	BA0057	-	yabP protein
55	 32.42       62685..63338    	 +	217	30260250	-	BA0058	-	membrane protein, putative
56	 33.61       63335..63694    	 +	119	30260251	divIC-1	BA0059	D	cell division protein DivIC
57	 42.44 +1    63782..64264    	 +	160	30260252	-	BA0060	-	S1 RNA binding domain protein
58	 36.91       64936..67314    	 +	792	30260253	spoIIE	BA0061	-	stage II sporulation protein E
59	 36.48       67548..68978    	 +	476	30260254	-	BA0062	D	conserved hypothetical protein
60	 34.81       68975..69517    	 +	180	30260255	hpt-1	BA0063	F	hypoxanthine phosphoribosyltransferase
61	 40.12 +1    69603..71504    	 +	633	30260256	ftsH	BA0064	O	cell division protein FtsH
62	 38.28       71729..72517    	 +	262	30260257	-	BA0065	K	transcriptional activator, putative, Baf family
63	 39.84 +1    72524..73399    	 +	291	30260258	hslO	BA0066	O	chaperonin, 33 kDa
64	 39.83 +1    73504..74427    	 +	307	30260259	cysK-1	BA0067	E	cysteine synthase A
65	 38.20       74648..76045    	 +	465	30260260	pabB	BA0068	E	para-aminobenzoate synthase, component I
66	 39.63 +1    76051..76638    	 +	195	30260261	pabA-1	BA0069	-	para-aminobenzoate synthase glutamine amidotransferase, component II
67	 35.05       76632..77504    	 +	290	30260262	pabC	BA0070	E	4-amino-4-deoxychorismate lyase PabC
68	 39.15 +1    77497..78339    	 +	280	30260263	folP	BA0071	-	dihydropteroate synthase
69	 36.64       78340..78702    	 +	120	30260264	folB	BA0072	H	dihydroneopterin aldolase
70	 34.11       78699..79214    	 +	171	30260265	folK	BA0073	H	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
71	 39.22 +1    79166..79369    	 +	67	30260266	-	BA0074	K	DNA-binding protein
72	 39.38 +1    79417..80391    	 +	324	30260267	-	BA0075	-	TIM-barrel protein, putative, NifR3 family
73	 36.73       80551..82050    	 +	499	30260268	lysS	BA0076	J	lysyl-tRNA synthetase
74	 33.33       87415..87876    	 +	153	30260269	ctsR	BA0077	K	transcriptional regulator CtsR
75	 35.34       88050..88598    	 +	182	30260270	-	BA0078	S	conserved hypothetical protein
76	 34.65       88603..89667    	 +	354	30260271	-	BA0079	E	phosphotransferase domain protein
77	 39.12 +1    89690..92125    	 +	811	30260272	-	BA0080	O	negative regulator of genetic competence ClpC/MecB
78	 39.51 +1    92222..93598    	 +	458	30260273	radA	BA0081	O	DNA repair protein RadA
79	 37.34       93602..94675    	 +	357	30260274	-	BA0082	R	DNA-binding protein, putative
80	 35.05       94836..95945    	 +	369	30260275	-	BA0083	R	conserved hypothetical protein
81	 39.35 +1    95962..96642    	 +	226	30260276	ispD	BA0084	I	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
82	 37.95       96757..97233    	 +	158	30260277	ispF	BA0085	I	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
83	 37.11       97323..98780    	 +	485	30260278	gltX	BA0086	J	glutamyl-tRNA synthetase
84	 37.39       99213..99878    	 +	221	30260279	cysE	BA0088	E	serine O-acetyltransferase
85	 36.77       99859..101256   	 +	465	30260280	cysS	BA0089	J	cysteinyl-tRNA synthetase
86	 38.24      101259..101666   	 +	135	30260281	-	BA0090	S	conserved hypothetical protein
87	 37.50      101663..102406   	 +	247	30260282	-	BA0091	J	RNA methyltransferase, TrmH family, group 3
88	 37.62      102410..102922   	 +	170	30260283	-	BA0092	R	conserved hypothetical protein
89	 35.92      102990..103646   	 +	218	30260284	sigH	BA0093	-	RNA polymerase sigma-30 factor
90	 33.33      103778..103924   	 +	48	30260285	rpmG-1	BA0094	-	ribosomal protein L33
91	 37.78      103957..104136   	 +	59	30260286	-	BA0095	U	preprotein translocase, SecE subunit
92	 37.27      104268..104801   	 +	177	30260287	nusG	BA0096	K	transcription antitermination protein NusG
93	 42.96 +2   104969..105394   	 +	141	30260288	rplK	BA0097	-	ribosomal protein L11
94	 40.84 +1   105572..106264   	 +	230	30260289	rplA	BA0098	-	ribosomal protein L1
95	 41.12 +1   106497..106997   	 +	166	30260290	rplJ	BA0099	-	ribosomal protein L10
96	 39.17 +1   107065..107424   	 +	119	30260291	rplL	BA0100	-	ribosomal protein L7/L12
97	 38.50      107499..108098   	 +	199	30260292	-	BA0101	J	ybxB protein
98	 41.74 +1   108391..111924   	 +	1177	30260293	rpoB	BA0102	K	DNA-directed RNA polymerase, beta subunit
99	 40.61 +1   111989..115573   	 +	1194	30260294	rpoC	BA0103	-	DNA-directed RNA polymerase, beta' subunit
100	 36.55      115687..115935   	 +	82	30260295	-	BA0104	J	ribosomal protein L7A family


 35.42 MEAN

 3.63  STD DEV
